TS128M~8GSDOM7H
Description
Serial-ATA is designed as a successor to the
legacy SATA standard. The new standard is
dedicated to achieve higher transfer rate with thinner
cables and more reliable operation than Parallel ATA
interface.
SATA
Flash
Modules
is
perfect
replacement storage device for PCs, Laptops,
gaming systems, and handheld devices.
•
•
•
7P Horizontal Type
SATA Flash Modules
Features
•
•
RoHS compliant
Fully compatible with devices and OS that support the
SATA 1.0a 1.5Gbps standard
7 pin female SATA connector with latch
Connect to motherboard directly without cable
Non-volatile Flash Memory for outstanding data
retention
•
The on-chip hardware 13/24 bit BCH-ECC engines can
correct up to 24 bit errors per 1,024 byte data.
•
Support global wear-leveling algorithm which ensures
maximum lifespan.
•
Supports
Ultra DMA Mode 0 to 5
Multiword DMA mode 0 to 2
PIO Mode 0 to 4
•
•
•
•
•
Supports ATA Security Commands
Support S.M.A.R.T function (self-definition)
Mechanical write-protect switch
Low Power Consumption
Power Supply: 3.3V
±
5%(UDMA mode 5) / 5.0V
±
10%(UDMA mode 4 or lower)
Shock resistance

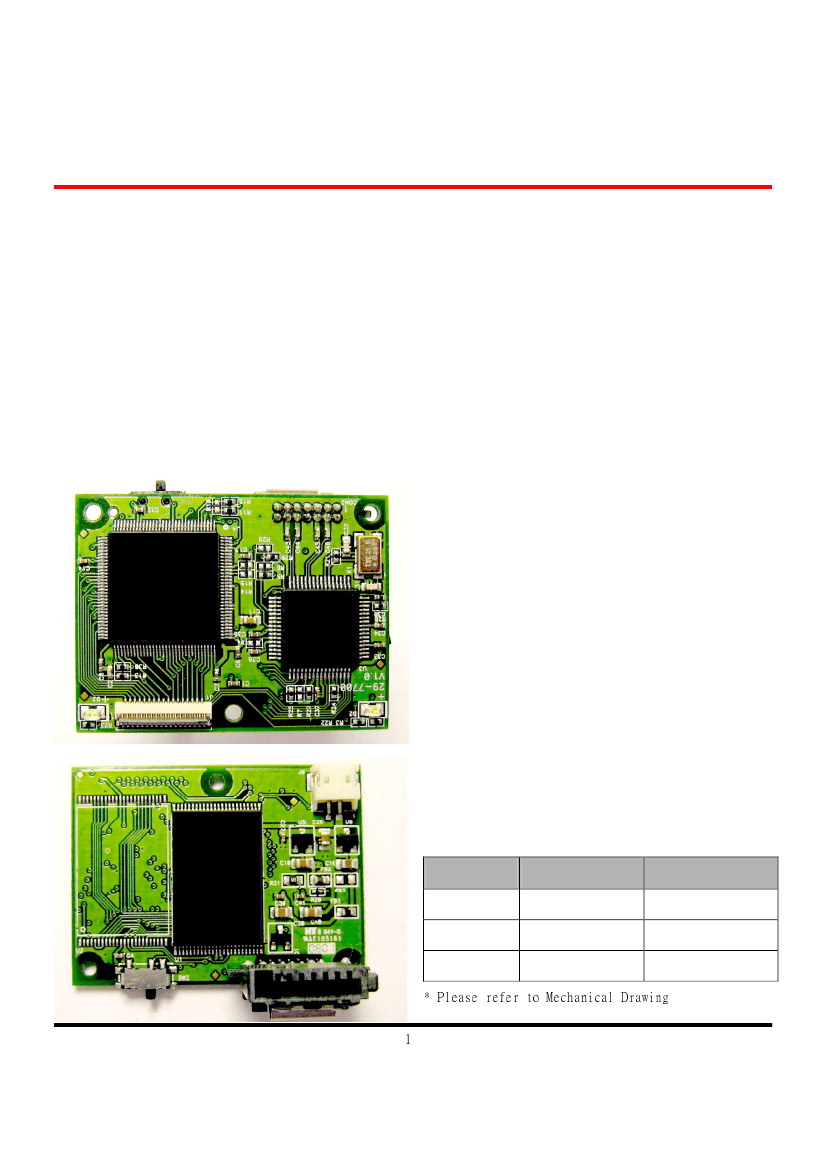

Placement
•
Dimensions
Side
A
B
C*
Millimeters
40.0
±
0.3
30.0
±
0.2
24.3
±
0.5
Inches
1.57
±
0.012
1.18
±
0.008
0.96
±
0.020
1
Transcend Information Inc.
gniwarD lacinahceM ot refer esaelP *
V0.1
TS128M~8GSDOM7H
Specifications
Physical Specification
Form Factor
Storage Capacities
Length
Dimensions (mm)
Width
Height
Input Voltage
Weight
Connector
SATA Flash Module Horizontal Type
128M~8GB
40.0
±
0.3
7P Horizontal Type
SATA Flash Modules
30.0
±
0.2 (Not including Write-Protect Switch and SATA connector)
24.3
±
0.5 (refer to mechanical drawing)
5V
±
10% / 3.3V
±
5%
8g
Signal: SATA 7 pins female connector with latch
Power: 2P 1.5mm pitch wafer connector
Environmental Specifications
Power Consumption
4GB SATA Flash Modules
Power Consumption
(DC 5V
@
25 )
Crystal Disk Mark 1.0.6 / 50MB
Read
Write
Standby
212.2 mA(peak)
207.3 mA(peak)
111.8 mA
2
Transcend Information Inc.
℃
V0.1
℃
Storage Temperature
- 40
to 85
℃
℃
Operating Temperature
0
to 70
℃
TS128M~8GSDOM7H
7P Horizontal Type
SATA Flash Modules
Reliability
Data Reliability
Data Retention
Connector Durability
13bit/1K Byte BCH ECC(2k+64 / 4k+128 byte per page flash)
24bit/1K Byte BCH ECC(4k+208 byte per page flash)
10 years
500 mating cycles
Performance*
Model P/N
2GB SATA Flash Module
Read (KB/s)
53696
Write (KB/s)
25491
Random Read (KB/s)
51174
Random Write (KB/s)
10518
, tested with
GA-8IG1000MK, 256 MB RAM, SATA interface support UDMA5, Windows XP Version 2002 SP2, benchmark utility :
HDBENCH (version 3.4006), copied file 100MB
®
Actual Capacity
Model P/N
TS512MSDOM7H
TS1GSDOM7H
TS2GSDOM7H
TS4GSDOM7H
TS8GSDOM7H
Capacity
512M
1GB
2GB
4GB
8GB
C/H/S
971 / 16 / 63
1966 / 16 / 63
3900 / 16 / 63
7785 / 16 / 63
15538 / 16 / 63
Capacity
477MB
967MB
1.87GB
3.73GB
7.46GB
User capacity (Bytes)
500,432,896
1,014,333,440
2,008,801,280
4,009,922,560
8,016,560,128
* Note: FAT format for <4GB, FAT32 format for 4~8GB
Certification
EMC
CE, FCC and BSMI (T.B.D)
3
Transcend Information Inc.
℃
* Note : The performance is based on Samsung K9F8G08U0M, single channel. Environment: at 25
V0.1
TS128M~8GSDOM7H

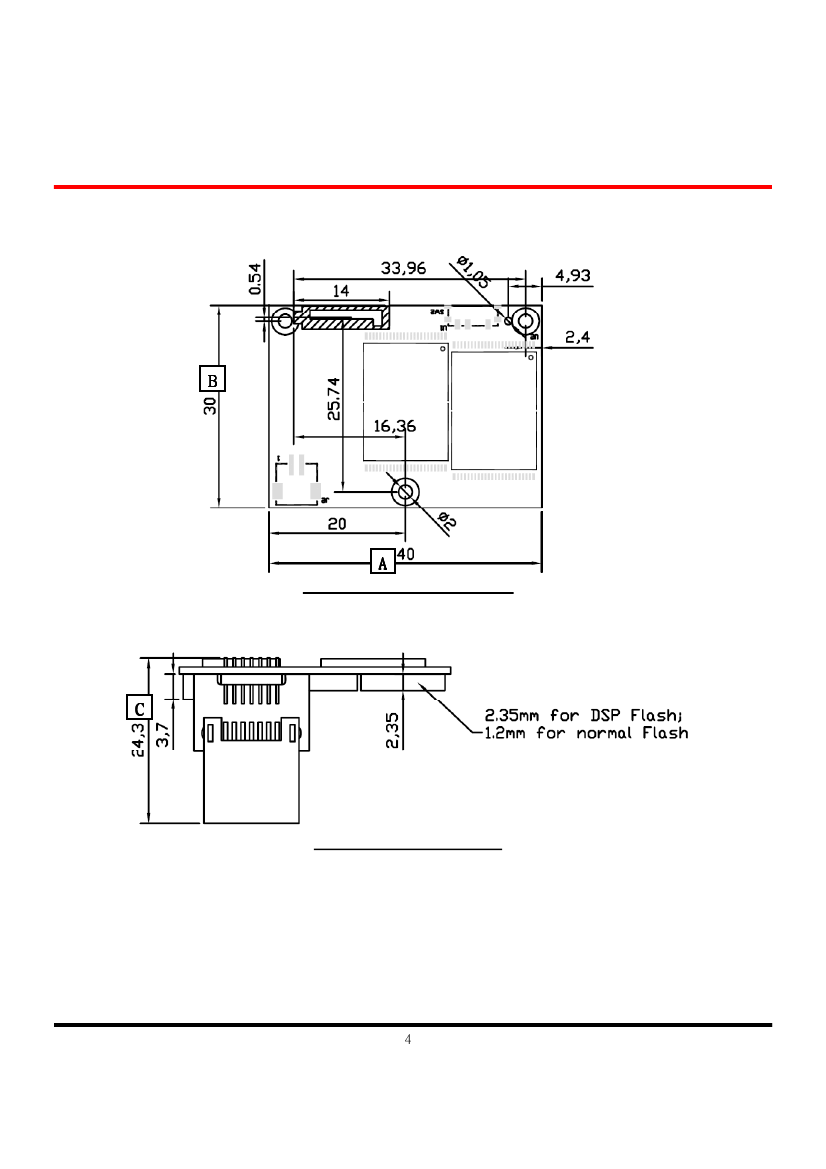

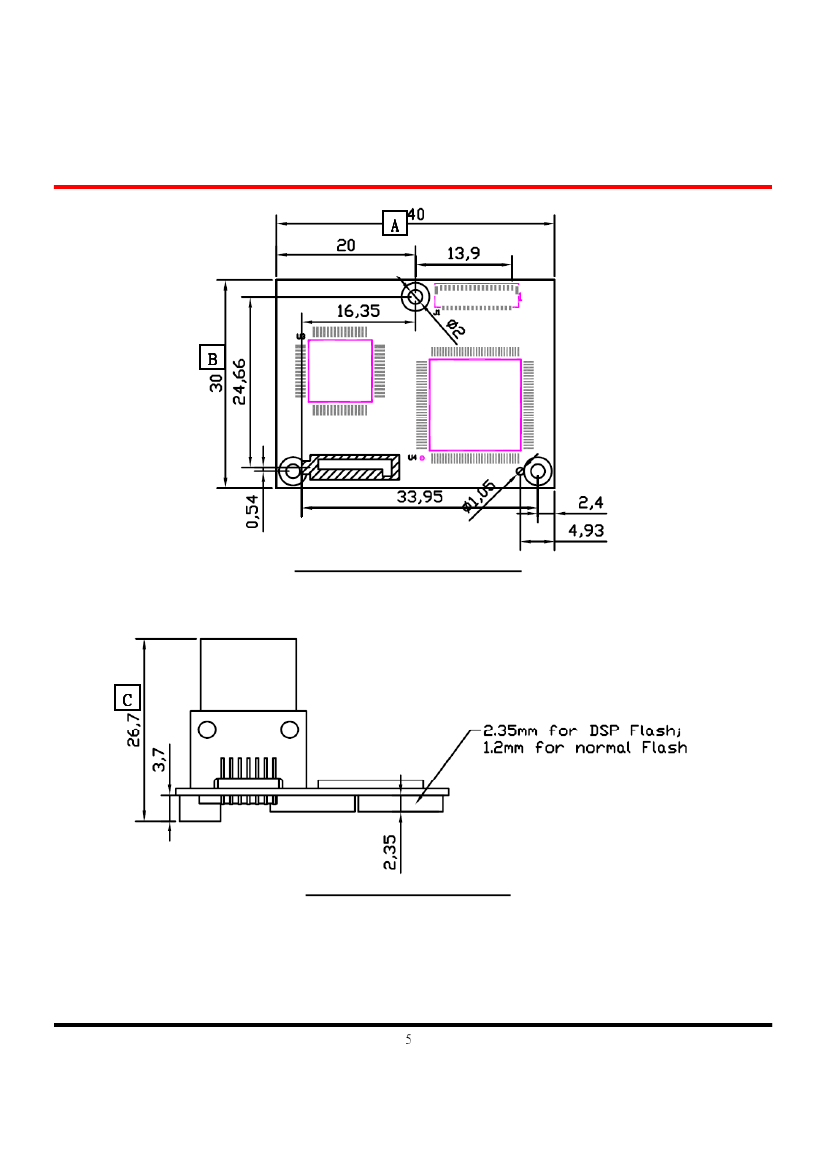

Mechanical Drawing
7P Horizontal Type
SATA Flash Modules
Bottom View (Normal Type)
Side View (Normal Type)
4
Transcend Information Inc.
A
A
A
A
B
B
B
B
C
C
C
C
V0.1
TS128M~8GSDOM7H
A
A
A
A
7P Horizontal Type
SATA Flash Modules
5
Transcend Information Inc.
B
B
B
Bottom View (Reversed Type)
C
C
C
C
Side View (Reversed Type)
V0.1
