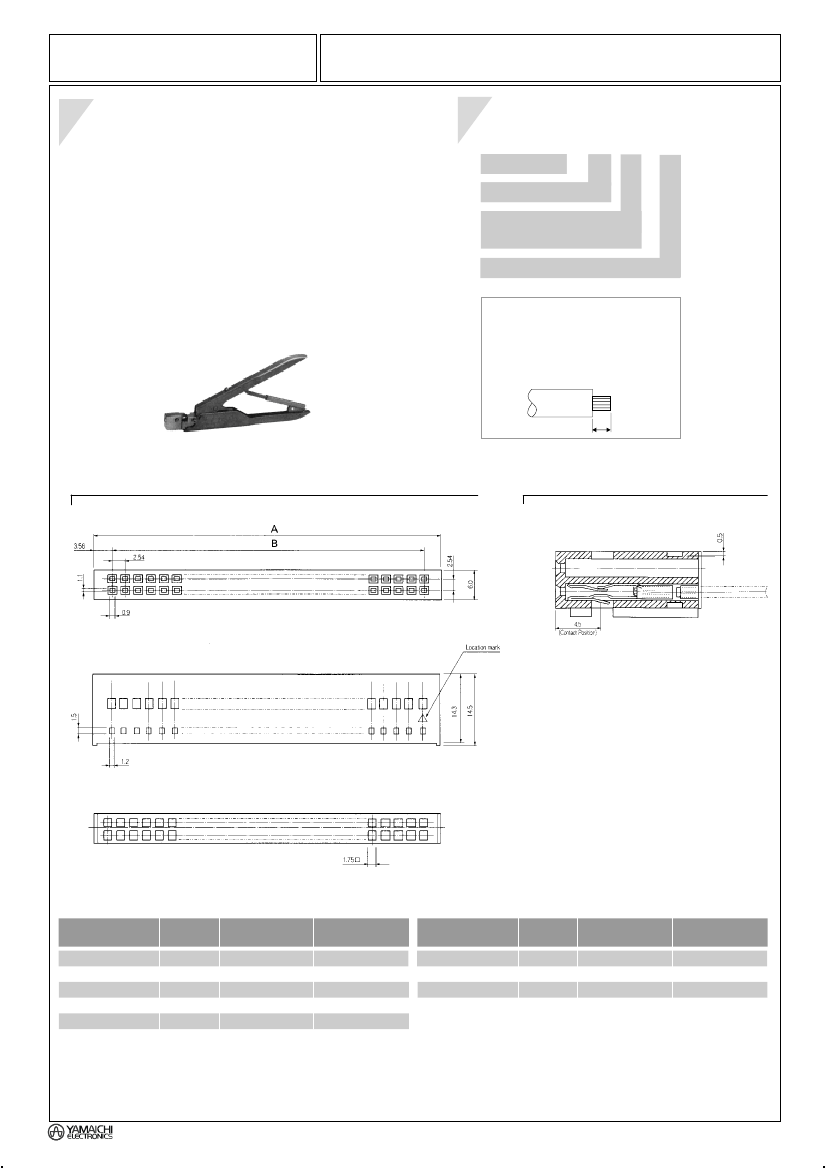

UFS Series
Specifications
Crimp Type Socket
(Double Row)
Part Number
(Details)
UFS
Series
(socket)
No. of Leads
Connector Type:
B = FAP Mating
Design No.
Inulation Resistance:
1,000MΩ min. at 500 V DC
Withstanding Voltage: 1,000 V AC rms for 1 minute
Contact Resistance:
30mΩ max. at 10mA
Current Rating:
3A
Operating Temp. Range: –55°C to +125°C
-
40 B - 03
Materials and Finish
Housing: PBT
Contacts: Copper Alloy, Gold plating over Nickel
Features
µ
Crimp-on terminals allow complex wiring
µ
Solid wire terminals eliminate loss
µ
Sockets for mating with latch header (FAP Series) available
Applicable Cables
AWG 24 - 28 stranded wire
Cross section: 0.08 to 0.2mm
2
Finished size: 0.7∅ ~ 1.2∅
Cable length: 3.5 mm (exposed)
Crimp Tool
UFS Hand Tool-66-5
3.5
Applicable Dimensions
(Reference Only)
Contact Detail
YAMAICHI ELECTRONICS - Munich 089 / 451021-0
Part No.
UFS
UFS
UFS
UFS
UFS
-10B-03
-16B-03
-20B-03
-26B-03
-30B-03
No. of
Leads
10
16
20
26
30
A
17.28
24.90
29.98
37.60
42.68
B
10.16
17.78
22.86
30.48
35.56
Part No.
UFS
UFS
UFS
UFS
-34B-03
-40B-03
-50B-03
-60B-03
No. of
Leads
34
40
50
60
A
47.76
55.38
68.08
80.78
B
40.64
48.26
60.96
73.66
SPECIFICATIONS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE – DIMENSIONS IN MILLIMETER
