Z0869112PEC: DescriptionMicrocontroller, 8-Bit, Z8 CPU, 12MHz, NMOS, PDIP40, PLASTIC, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size513KB，18 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z0869112PEC Overview

Microcontroller, 8-Bit, Z8 CPU, 12MHz, NMOS, PDIP40, PLASTIC, DIP-40

Z0869112PEC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	PLASTIC, DIP-40
Contacts	40
Reach Compliance Code	unknown
Has ADC	NO
Address bus width	16
bit size	8
boundary scan	NO
CPU series	Z8
maximum clock frequency	12 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PDIP-T40
JESD-609 code	e0
low power mode	NO
Number of DMA channels
Number of external interrupt devices	4
Number of I/O lines	32
Number of serial I/Os	1
Number of terminals	40
Number of timers	2
On-chip data RAM width	8
On-chip program ROM width
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	124
RAM (number of words)	124
rom(word)	0
speed	12 MHz
Maximum slew rate	180 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	NMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

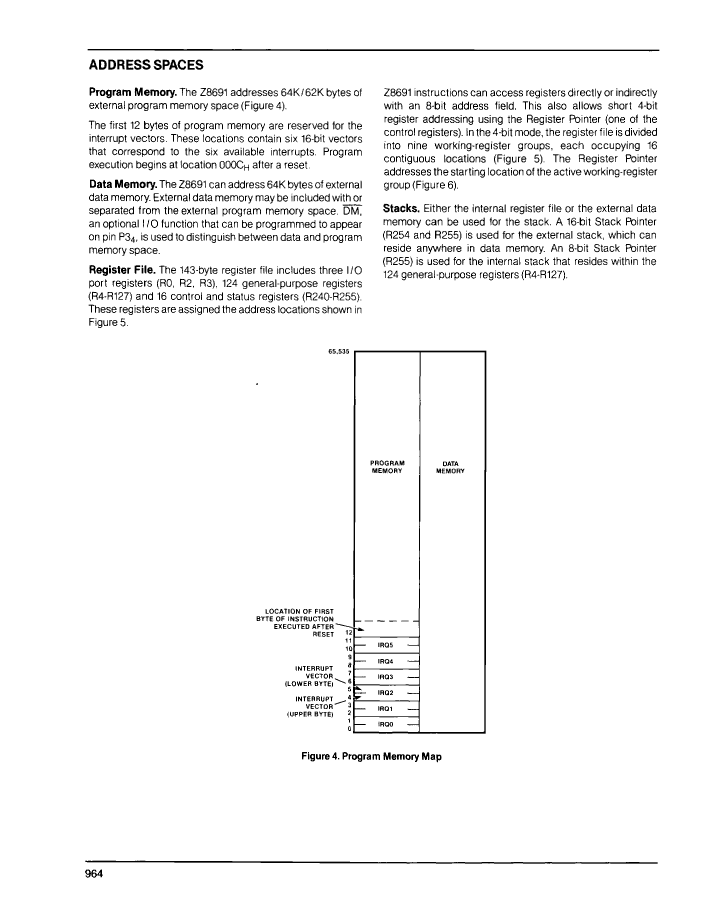

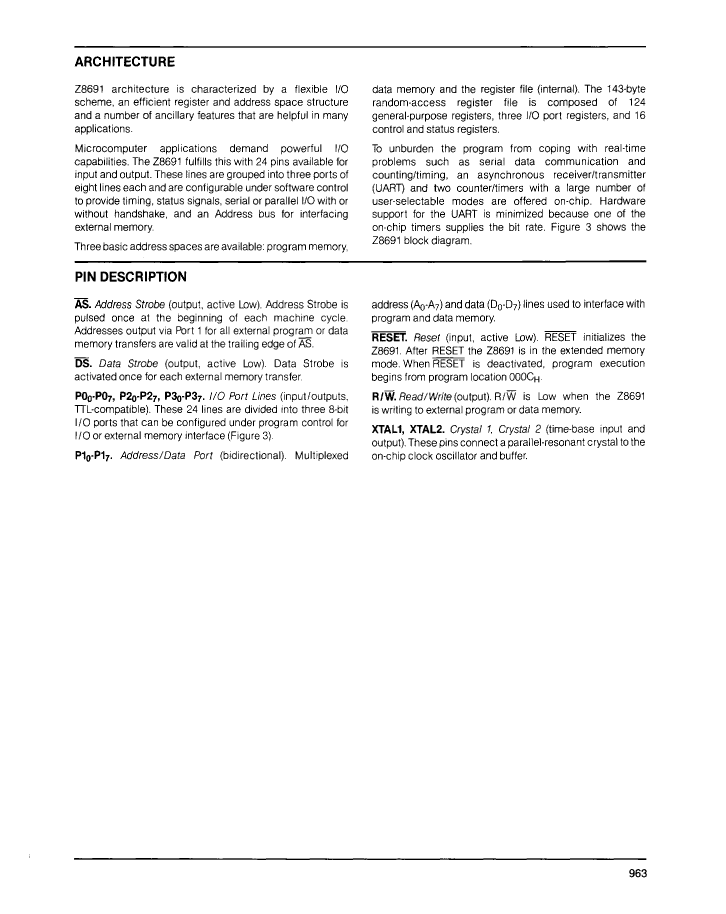

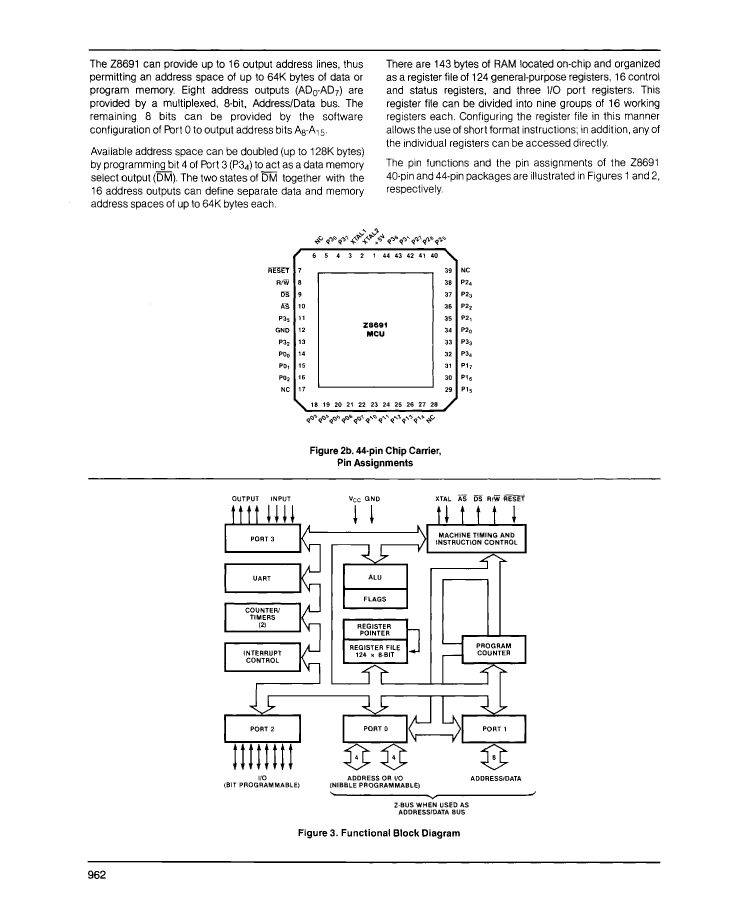

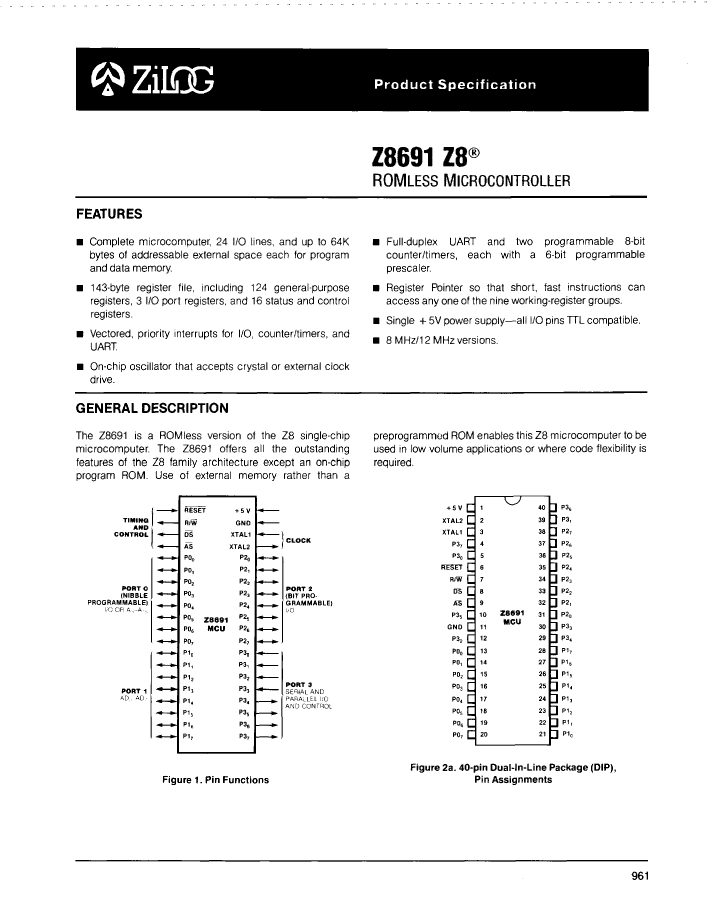

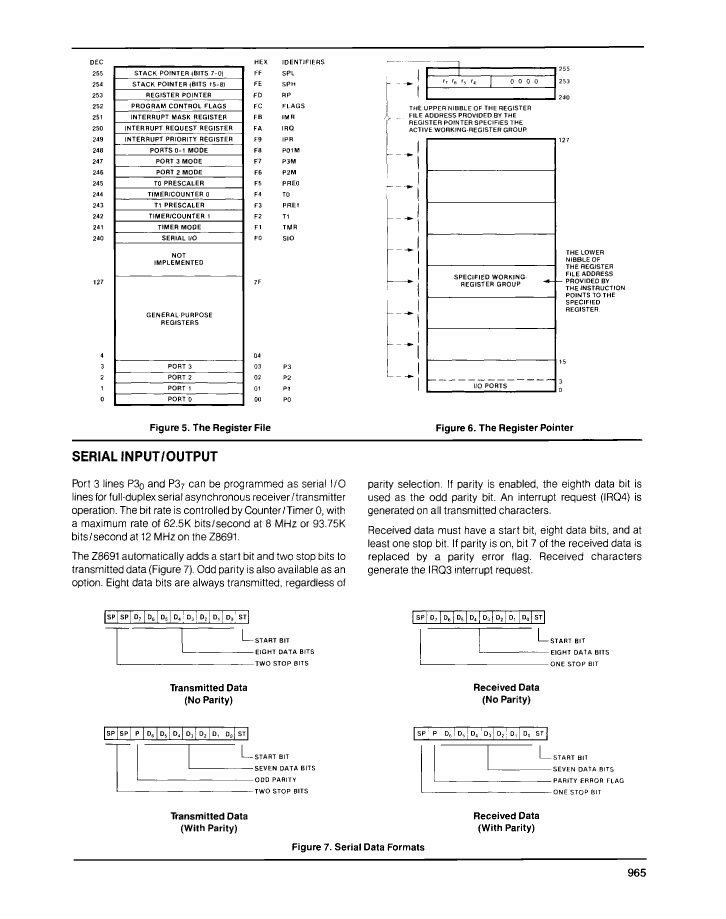

Preview

Download Datasheet

View All

Z0869112PEC Related Products

	Z0869112PEC	Z0869112VSC	Z0869112VEC	Z0869112PSC	Z0869108VSC	Z0869108VEC	Z0869108PEC	Z0869108PSC
Description	Microcontroller, 8-Bit, Z8 CPU, 12MHz, NMOS, PDIP40, PLASTIC, DIP-40	Microcontroller, 8-Bit, Z8 CPU, 12MHz, NMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, 12MHz, NMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, Z8 CPU, 12MHz, NMOS, PDIP40, PLASTIC, DIP-40	Microcontroller, 8-Bit, Z8 CPU, 8MHz, NMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, 8MHz, NMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, 8MHz, NMOS, PDIP40, PLASTIC, DIP-40	Microcontroller, 8-Bit, Z8 CPU, 8MHz, NMOS, PDIP40, PLASTIC, DIP-40
Parts packaging code	DIP	LCC	LCC	DIP	LCC	LCC	DIP	DIP
package instruction	PLASTIC, DIP-40	QCCJ, LDCC44,.7SQ	PLASTIC, LCC-44	DIP, DIP40,.6	PLASTIC, LCC-44	PLASTIC, LCC-44	PLASTIC, DIP-40	DIP, DIP40,.6
Contacts	40	44	44	40	44	44	40	40
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Has ADC	NO	NO	NO	NO	NO	NO	NO	NO
Address bus width	16	16	16	16	16	16	16	16
bit size	8	8	8	8	8	8	8	8
boundary scan	NO	NO	NO	NO	NO	NO	NO	NO
maximum clock frequency	12 MHz	12 MHz	12 MHz	12 MHz	8 MHz	8 MHz	8 MHz	8 MHz
DAC channel	NO	NO	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO	NO	NO
External data bus width	8	8	8	8	8	8	8	8
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO	NO	NO	NO	NO
JESD-30 code	R-PDIP-T40	S-PQCC-J44	S-PQCC-J44	R-PDIP-T40	S-PQCC-J44	S-PQCC-J44	R-PDIP-T40	R-PDIP-T40
low power mode	NO	NO	NO	NO	NO	NO	NO	NO
Number of external interrupt devices	4	4	4	4	4	4	4	4
Number of I/O lines	32	32	32	32	32	32	32	32
Number of serial I/Os	1	1	1	1	1	1	1	1
Number of terminals	40	44	44	40	44	44	40	40
Number of timers	2	2	2	2	2	2	2	2
On-chip data RAM width	8	8	8	8	8	8	8	8
Maximum operating temperature	100 °C	70 °C	100 °C	70 °C	70 °C	100 °C	100 °C	70 °C
PWM channel	NO	NO	NO	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	QCCJ	QCCJ	DIP	QCCJ	QCCJ	DIP	DIP
Package shape	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	CHIP CARRIER	IN-LINE	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (number of words)	124	124	124	124	124	124	124	124
speed	12 MHz	12 MHz	12 MHz	12 MHz	8 MHz	8 MHz	8 MHz	8 MHz
Maximum slew rate	180 mA	180 mA	180 mA	180 mA	180 mA	180 mA	180 mA	180 mA
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	YES	YES	NO	NO
technology	NMOS	NMOS	NMOS	NMOS	NMOS	NMOS	NMOS	NMOS
Temperature level	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	J BEND	J BEND	THROUGH-HOLE	J BEND	J BEND	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	QUAD	QUAD	DUAL	QUAD	QUAD	DUAL	DUAL
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Is it Rohs certified?	incompatible	incompatible	-	incompatible	incompatible	-	-	incompatible
CPU series	Z8	Z8	-	Z8	Z8	-	-	Z8
JESD-609 code	e0	e0	-	e0	e0	-	-	e0
Encapsulate equivalent code	DIP40,.6	LDCC44,.7SQ	-	DIP40,.6	LDCC44,.7SQ	-	-	DIP40,.6
power supply	5 V	5 V	-	5 V	5 V	-	-	5 V
RAM (bytes)	124	124	-	124	124	-	-	124
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm	1.27 mm	-	2.54 mm	1.27 mm	-	-	2.54 mm
Maker	-	-	-	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.
