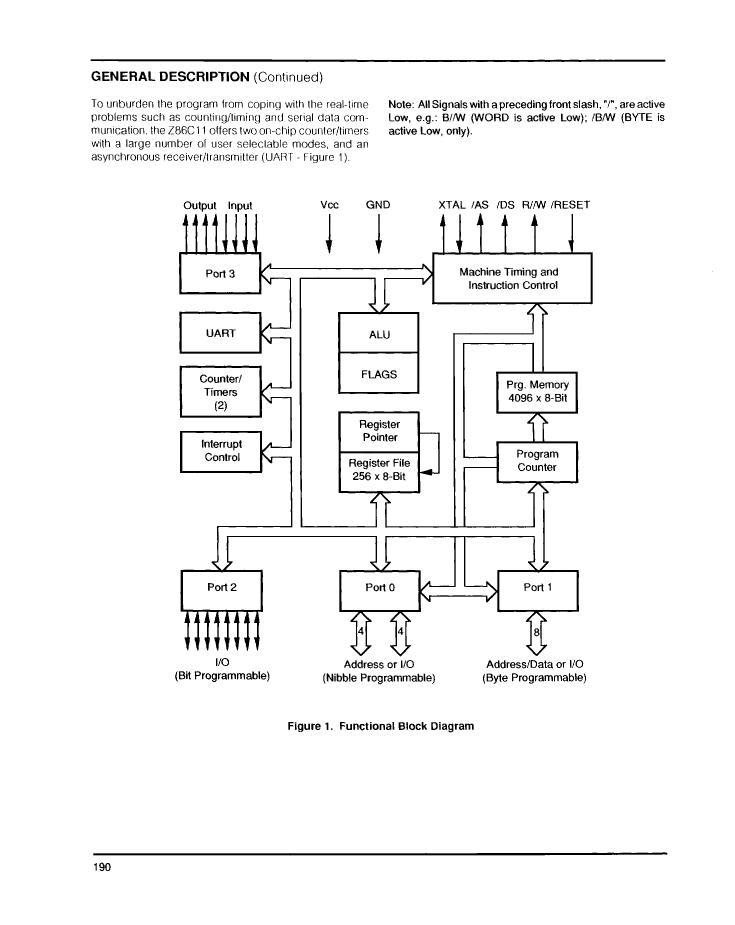

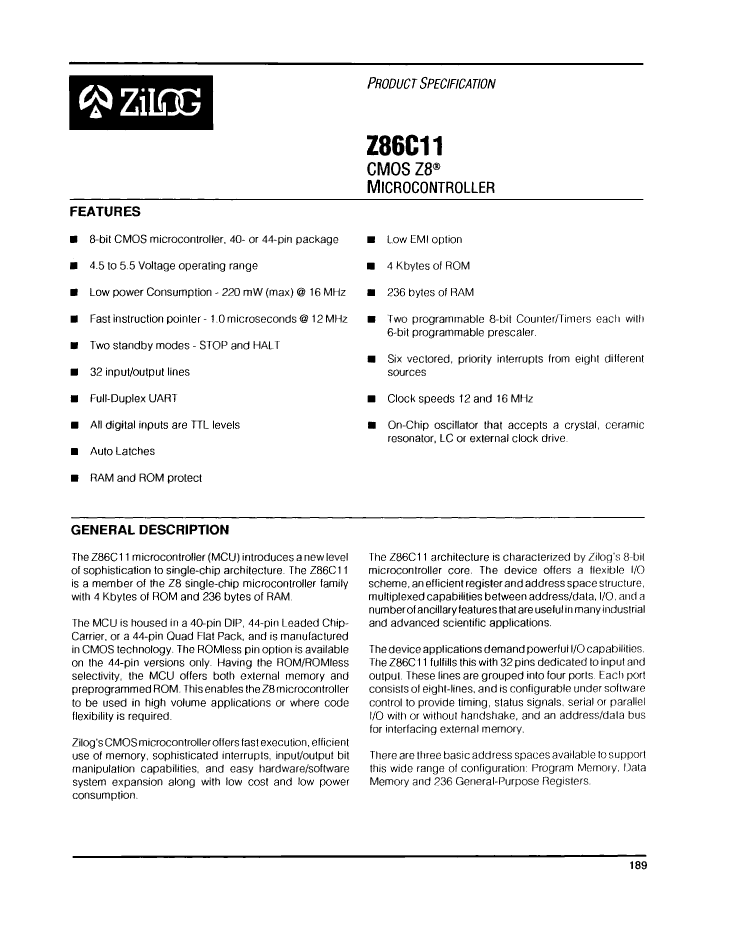

Microcontroller, 8-Bit, MROM, Z8 CPU, 12MHz, CMOS, PDIP40, PLASTIC, DIP-40

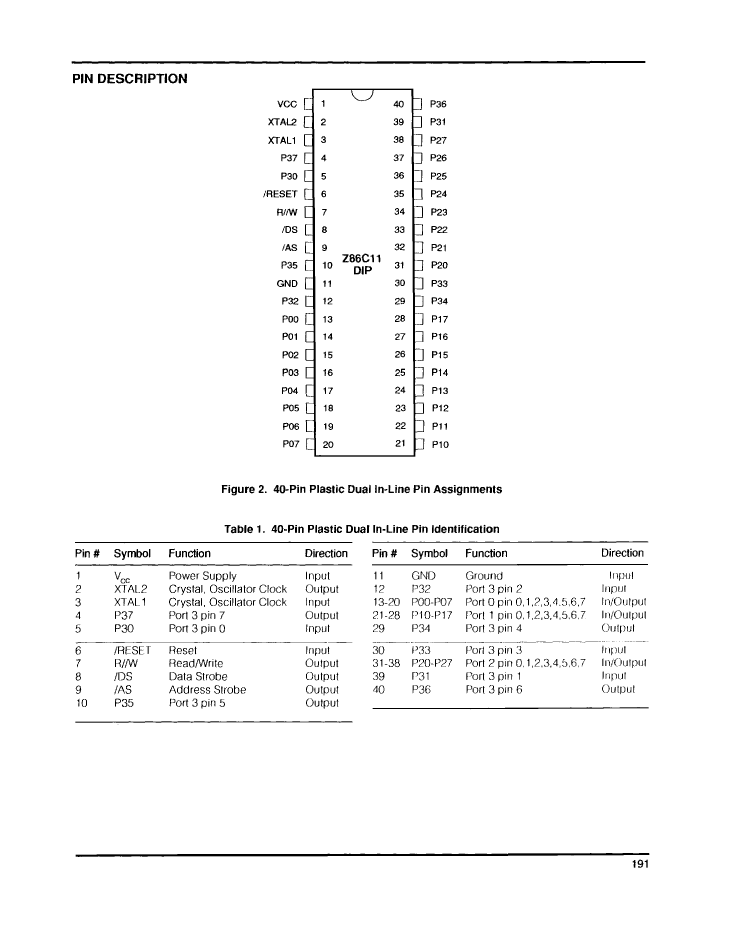

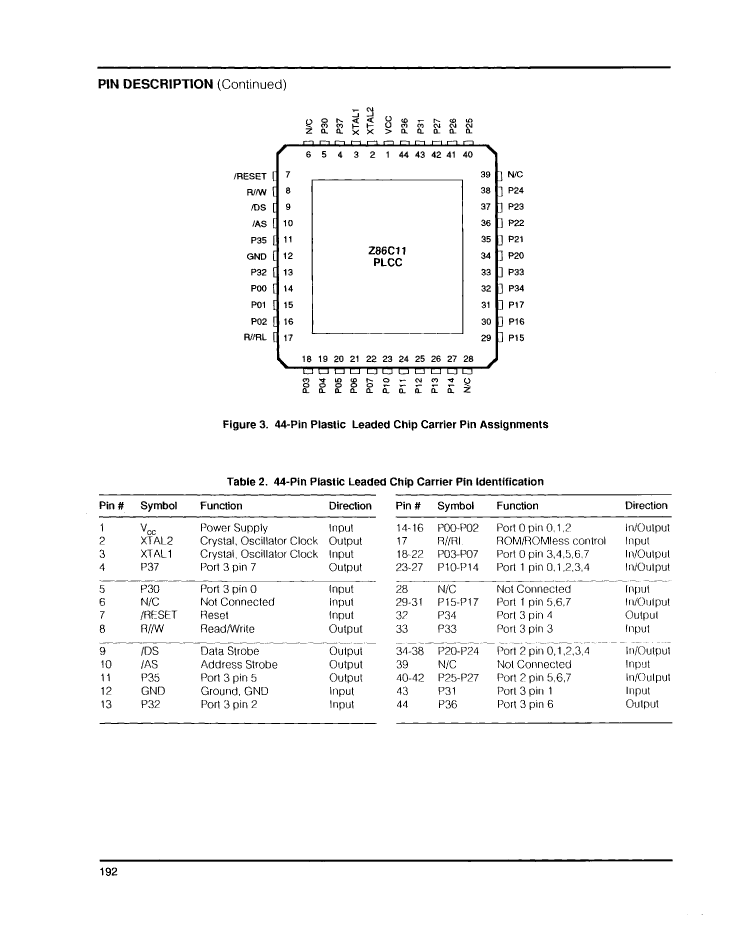

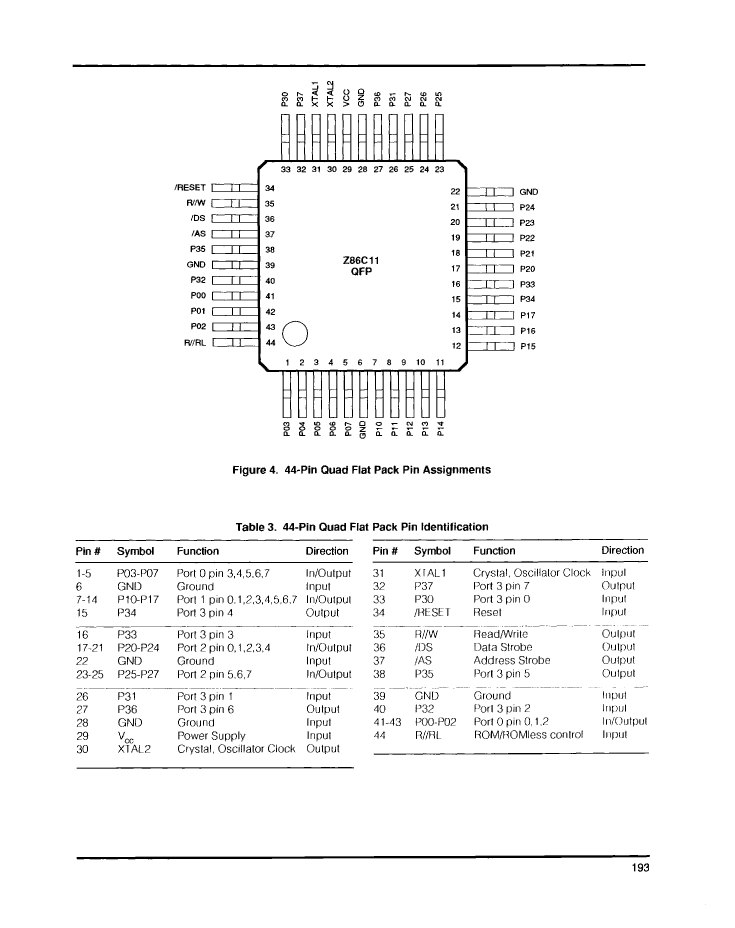

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Parts packaging code | DIP |
| package instruction | DIP, DIP40,.6 |
| Contacts | 40 |
| Reach Compliance Code | unknown |
| Has ADC | NO |
| Address bus width | 16 |
| bit size | 8 |
| CPU series | Z8 |
| maximum clock frequency | 12 MHz |
| DAC channel | NO |
| DMA channel | NO |
| External data bus width | 8 |
| JESD-30 code | R-PDIP-T40 |
| JESD-609 code | e0 |
| Number of I/O lines | 32 |
| Number of terminals | 40 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| PWM channel | NO |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP40,.6 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Certification status | Not Qualified |
| RAM (bytes) | 236 |
| rom(word) | 4096 |
| ROM programmability | MROM |
| speed | 12 MHz |
| Maximum slew rate | 30 mA |
| Maximum supply voltage | 5.5 V |
| Minimum supply voltage | 4.5 V |
| Nominal supply voltage | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| uPs/uCs/peripheral integrated circuit type | MICROCONTROLLER |
| Z86C1112PSCRXXX | Z86C1112VSCRXXX | Z86C1116FSCRXXX | Z86C1116PSCRXXX | Z86C1112FSCRXXX | Z86C1112VECRXXX | Z86C1112PECRXXX | |
|---|---|---|---|---|---|---|---|
| Description | Microcontroller, 8-Bit, MROM, Z8 CPU, 12MHz, CMOS, PDIP40, PLASTIC, DIP-40 | Microcontroller, 8-Bit, MROM, Z8 CPU, 12MHz, CMOS, PQCC44, PLASTIC, LCC-44 | Microcontroller, 8-Bit, MROM, Z8 CPU, 16MHz, CMOS, PQFP44, PLASTIC, QFP-44 | Microcontroller, 8-Bit, MROM, Z8 CPU, 16MHz, CMOS, PDIP40, PLASTIC, DIP-40 | Microcontroller, 8-Bit, MROM, Z8 CPU, 12MHz, CMOS, PQFP44, PLASTIC, QFP-44 | Microcontroller, 8-Bit, MROM, Z8 CPU, 12MHz, CMOS, PQCC44, PLASTIC, LCC-44 | Microcontroller, 8-Bit, MROM, Z8 CPU, 12MHz, CMOS, PDIP40, PLASTIC, DIP-40 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Parts packaging code | DIP | LCC | QFP | DIP | QFP | LCC | DIP |
| package instruction | DIP, DIP40,.6 | QCCJ, LDCC44,.7SQ | PLASTIC, QFP-44 | PLASTIC, DIP-40 | QFP, FL(UNSPEC) | QCCJ, LDCC44,.7SQ | DIP, DIP40,.6 |
| Contacts | 40 | 44 | 44 | 40 | 44 | 44 | 40 |
| Reach Compliance Code | unknown | unknown | unknow | unknow | unknow | unknow | unknown |
| Has ADC | NO | NO | NO | NO | NO | NO | NO |
| Address bus width | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| bit size | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| CPU series | Z8 | Z8 | Z8 | Z8 | Z8 | Z8 | Z8 |
| maximum clock frequency | 12 MHz | 12 MHz | 16 MHz | 16 MHz | 12 MHz | 12 MHz | 12 MHz |
| DAC channel | NO | NO | NO | NO | NO | NO | NO |
| DMA channel | NO | NO | NO | NO | NO | NO | NO |
| External data bus width | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| JESD-30 code | R-PDIP-T40 | S-PQCC-J44 | S-PQFP-G44 | R-PDIP-T40 | S-PQFP-G44 | S-PQCC-J44 | R-PDIP-T40 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| Number of I/O lines | 32 | 32 | 32 | 32 | 32 | 32 | 32 |
| Number of terminals | 40 | 44 | 44 | 40 | 44 | 44 | 40 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 105 °C | 105 °C |
| PWM channel | NO | NO | NO | NO | NO | NO | NO |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | QCCJ | QFP | DIP | QFP | QCCJ | DIP |
| Encapsulate equivalent code | DIP40,.6 | LDCC44,.7SQ | FL(UNSPEC) | DIP40,.6 | FL(UNSPEC) | LDCC44,.7SQ | DIP40,.6 |
| Package shape | RECTANGULAR | SQUARE | SQUARE | RECTANGULAR | SQUARE | SQUARE | RECTANGULAR |
| Package form | IN-LINE | CHIP CARRIER | FLATPACK | IN-LINE | FLATPACK | CHIP CARRIER | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| RAM (bytes) | 236 | 236 | 236 | 236 | 236 | 236 | 236 |
| rom(word) | 4096 | 4096 | 4096 | 4096 | 4096 | 4096 | 4096 |
| ROM programmability | MROM | MROM | MROM | MROM | MROM | MROM | MROM |
| speed | 12 MHz | 12 MHz | 16 MHz | 16 MHz | 12 MHz | 12 MHz | 12 MHz |
| Maximum slew rate | 30 mA | 35 mA | 35 mA | 35 mA | 35 mA | 35 mA | 35 mA |
| Maximum supply voltage | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | YES | YES | NO | YES | YES | NO |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | J BEND | GULL WING | THROUGH-HOLE | GULL WING | J BEND | THROUGH-HOLE |
| Terminal location | DUAL | QUAD | QUAD | DUAL | QUAD | QUAD | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| uPs/uCs/peripheral integrated circuit type | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER |
| Terminal pitch | 2.54 mm | 1.27 mm | - | 2.54 mm | - | 1.27 mm | 2.54 mm |
| Maker | - | Zilog, Inc. | Zilog, Inc. | Zilog, Inc. | Zilog, Inc. | Zilog, Inc. | - |
