Z86C1112PSC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z86C1112PSC

Z86C1112PSC: DescriptionMicrocontroller, 8-Bit, MROM, Z8 CPU, 12MHz, CMOS, PDIP40, PLASTIC, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size794KB，35 Pages; ManufacturerIXYS

Download Datasheet Parametric Compare View All

Z86C1112PSC Overview

Microcontroller, 8-Bit, MROM, Z8 CPU, 12MHz, CMOS, PDIP40, PLASTIC, DIP-40

Z86C1112PSC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	PLASTIC, DIP-40
Contacts	40
Reach Compliance Code	unknown
Has ADC	NO
Other features	RAM/ROM PROTECT; OPTIONAL LOW EMI MODE; 2 STANDBY MODES
Address bus width	16
bit size	8
boundary scan	NO
CPU series	Z8
maximum clock frequency	12 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PDIP-T40
JESD-609 code	e0
length	52.325 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	4
Number of I/O lines	32
Number of serial I/Os	1
Number of terminals	40
Number of timers	2
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	236
RAM (number of words)	256
rom(word)	4096
ROM programmability	MROM
Maximum seat height	4.24 mm
speed	12 MHz
Maximum slew rate	30 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

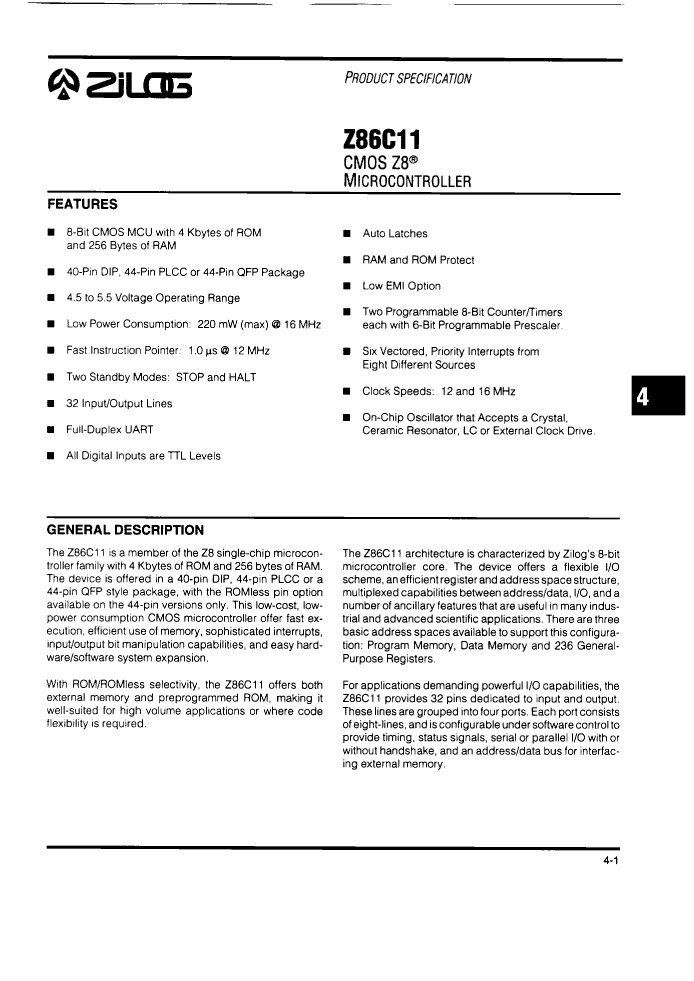

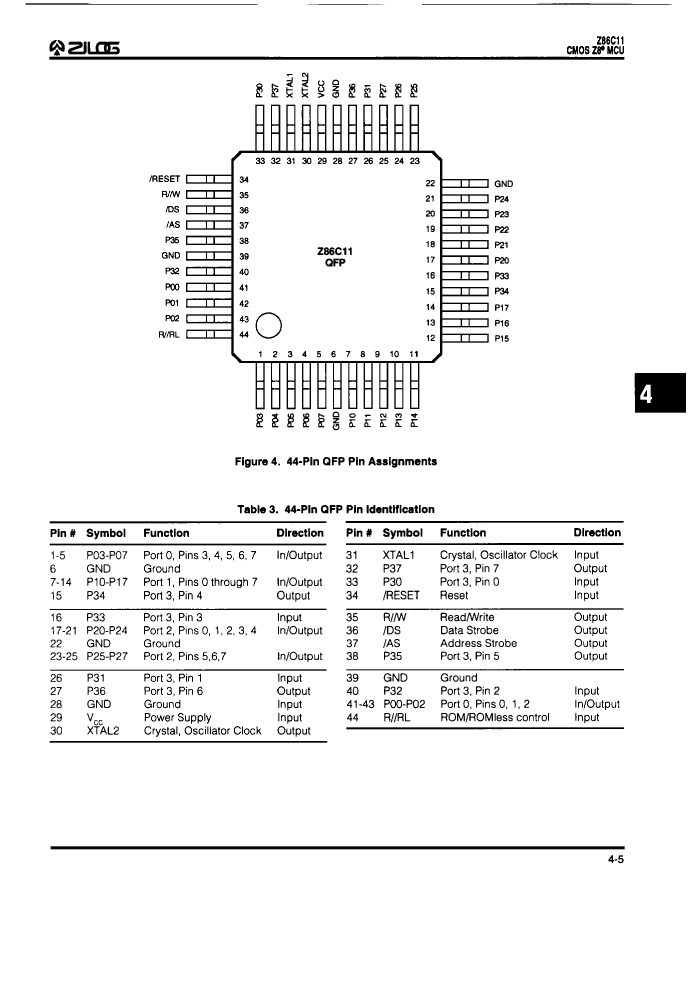

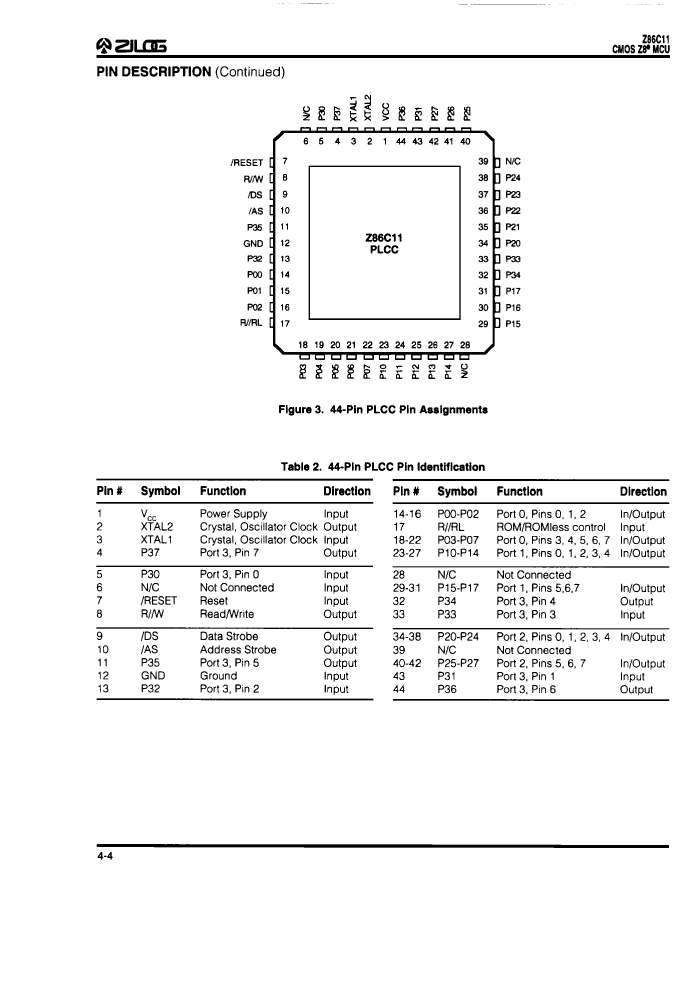

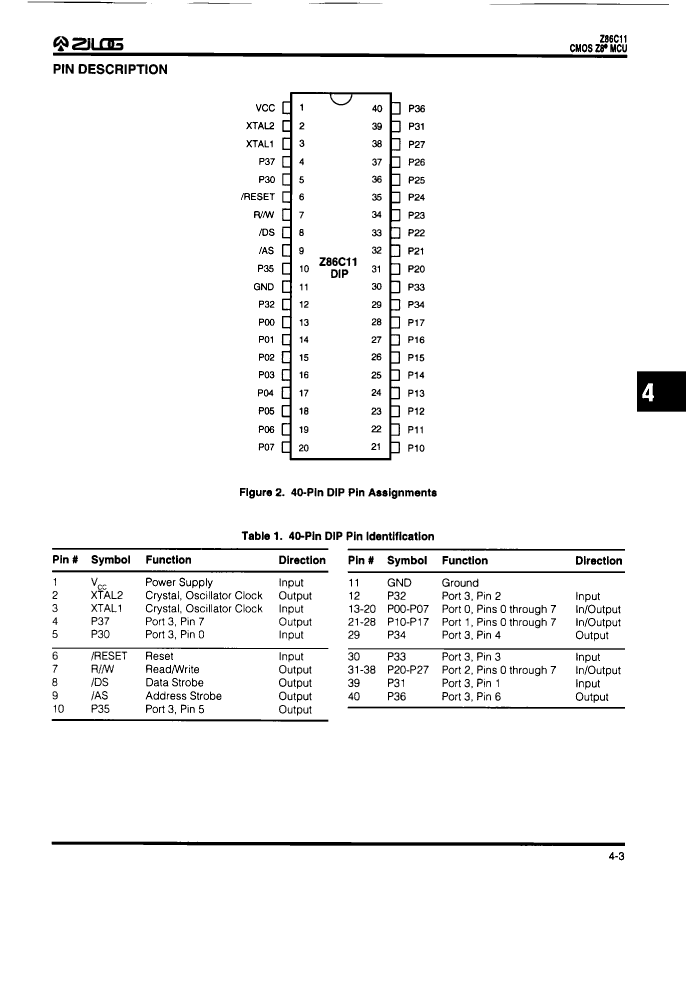

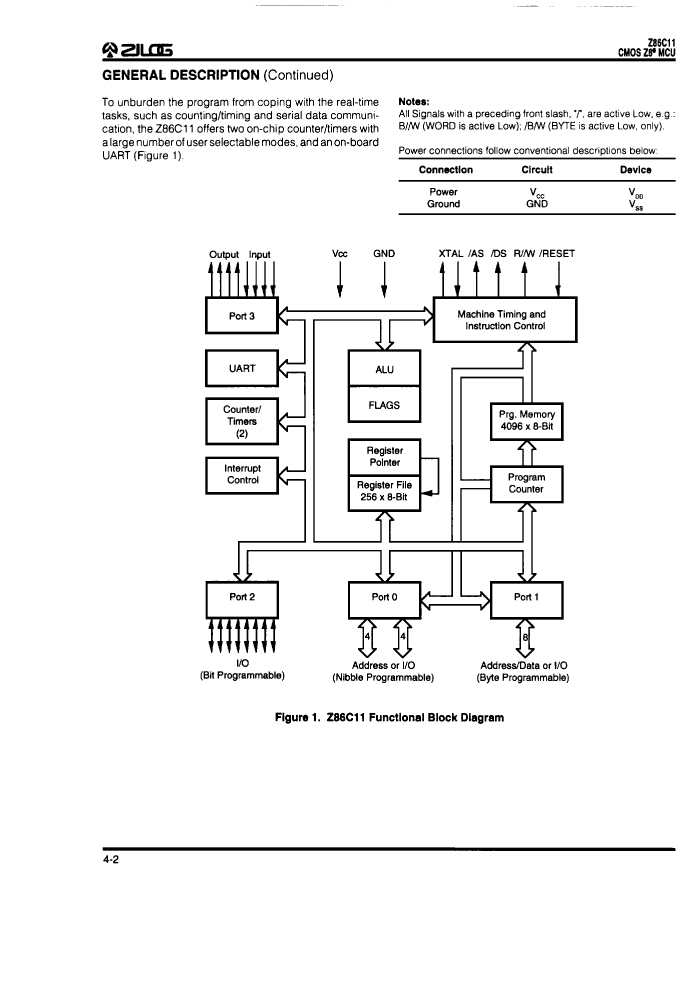

Preview

Download Datasheet

View All

Z86C1112PSC Related Products

	Z86C1112PSC	Z86C1112FSC	Z86C1112FSG	Z86C1112PSG
Description	Microcontroller, 8-Bit, MROM, Z8 CPU, 12MHz, CMOS, PDIP40, PLASTIC, DIP-40	Microcontroller, 8-Bit, MROM, Z8 CPU, 12MHz, CMOS, PQFP44, PLASTIC, QFP-44	Microcontroller, 8-Bit, MROM, 12MHz, CMOS, PQFP44, PLASTIC, QFP-44	Microcontroller, 8-Bit, MROM, 12MHz, CMOS, PDIP40, PLASTIC, DIP-40
Is it lead-free?	Contains lead	Contains lead	Lead free	Lead free
Parts packaging code	DIP	QFP	QFP	DIP
package instruction	PLASTIC, DIP-40	PLASTIC, QFP-44	PLASTIC, QFP-44	PLASTIC, DIP-40
Contacts	40	44	44	40
Reach Compliance Code	unknown	unknow	compli	compliant
Has ADC	NO	NO	NO	NO
Other features	RAM/ROM PROTECT; OPTIONAL LOW EMI MODE; 2 STANDBY MODES	RAM/ROM PROTECT; OPTIONAL LOW EMI MODE; 2 STANDBY MODES; OPTIONAL ROMLESS MODE	RAM/ROM PROTECT; OPTIONAL LOW EMI MODE; 2 STANDBY MODES; OPTIONAL ROMLESS MODE	RAM/ROM PROTECT; OPTIONAL LOW EMI MODE; 2 STANDBY MODES
Address bus width	16	16	16	16
bit size	8	8	8	8
boundary scan	NO	NO	NO	NO
maximum clock frequency	12 MHz	12 MHz	12 MHz	12 MHz
DAC channel	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO
External data bus width	8	8	8	8
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO
JESD-30 code	R-PDIP-T40	S-PQFP-G44	S-PQFP-G44	R-PDIP-T40
JESD-609 code	e0	e0	e3	e3
length	52.325 mm	10 mm	10 mm	52.325 mm
low power mode	YES	YES	YES	YES
Number of external interrupt devices	4	4	4	4
Number of I/O lines	32	32	32	32
Number of serial I/Os	1	1	1	1
Number of terminals	40	44	44	40
Number of timers	2	2	2	2
On-chip data RAM width	8	8	8	8
On-chip program ROM width	8	8	8	8
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
PWM channel	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	QFP	QFP	DIP
Package shape	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR
Package form	IN-LINE	FLATPACK	FLATPACK	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	225	260	225
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (number of words)	256	256	256	256
rom(word)	4096	4096	4096	4096
ROM programmability	MROM	MROM	MROM	MROM
Maximum seat height	4.24 mm	2.5 mm	2.5 mm	4.24 mm
speed	12 MHz	12 MHz	12 MHz	12 MHz
Maximum slew rate	30 mA	30 mA	30 mA	30 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Matte Tin (Sn)	TIN
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	0.8 mm	0.8 mm	2.54 mm
Terminal location	DUAL	QUAD	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	30	40	30
width	15.24 mm	10 mm	10 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Is it Rohs certified?	incompatible	incompatible	conform to	-
