NMC0603Y5V474Z16TRPF: DescriptionCeramic Capacitor, Multilayer, Ceramic, 16V, 80% +Tol, 20% -Tol, Y5V, -82/+22% TC, 0.47uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size42KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance; Related ProductsFound1parts with similar functions to NMC0603Y5V474Z16TRPF

Download Datasheet Parametric Compare View All

NMC0603Y5V474Z16TRPF Overview

Ceramic Capacitor, Multilayer, Ceramic, 16V, 80% +Tol, 20% -Tol, Y5V, -82/+22% TC, 0.47uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT

NMC0603Y5V474Z16TRPF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	, 0603
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	22 weeks
capacitance	0.47 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1 mm
JESD-609 code	e3
length	1.6 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PUNCHED
positive tolerance	80%
Rated (DC) voltage (URdc)	16 V
size code	0603
surface mount	YES
Temperature characteristic code	Y5V
Temperature Coefficient	-82/+22% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie
Terminal shape	WRAPAROUND
width	0.8 mm
Base Number Matches	1

Preview

Download Datasheet

View All

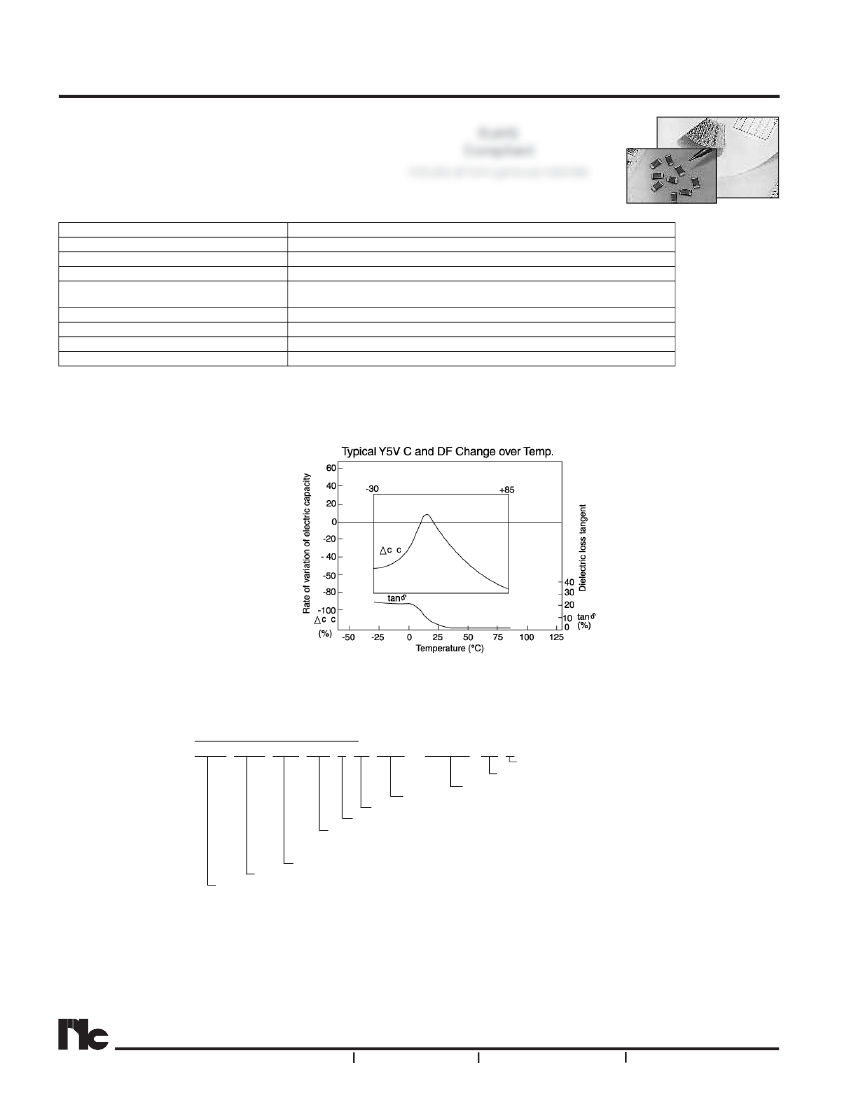

Multilayer Ceramic Chip Capacitors

FEATURES

• HIGH K DIELECTRIC

• HIGH CAPACITANCE DENSITY

• EXCELLENT MECHANICAL STRENGTH

• NICKEL BARRIER TERMINATIONS

RoHS

Compliant

Includes all homogeneous materials

*See Part Number System for Details

NMC Series Y5V

Capacitance Range

Capacitance Tolerance

Operating Temperature Range

Temperature Characteristics

Rated Voltages

Dissipation Factor

insulation Resistance

Dielectric Withstanding Voltage

Test Conditions (EIA-198-2E)

0.01μF ~ 0.82μF (see high CV datasheet for higher capacitance values)

+80%/-20% (Z)

-30°C ~ +85°C

+22%, -82% max. capacitance

Δ

over temperature range

4Vdc, 6.3Vdc, 16Vdc, 25Vdc, 50Vdc & 100Vdc

(see NMC-H Series for higher voltages)

(See Values Table)

10,000Megohms min. or 500Megohm/μF min. whichever is less @ +25°C

150% of Rated Voltage for 5 ±1 seconds, 50mA maximum current

1KHz, 1.0V ±0.2Vrms

PART NUMBER SYSTEM

NMC 0805 Y5V 103 Z 50 TRP or TRPLP 3K F

RoHS Compliant

Optional Reel Qty (3K=3,000pcs)

Tape & Reel (Embossed Plastic Carrier)

Tape & Reel (Punched carrier)

Voltage (Vdc)

Capacitance Tolerance Code (see chart)

Capacitance Code, expressed in pF, ﬁrst 2 digits are

signiﬁcant, 3rd digit is no. of zeros, “R” indicates

decimal for under 10pF

Temperature Characteristic

Size Code (see chart)

Series

®

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com

11

NMC0603Y5V474Z16TRPF Related Products

	NMC0603Y5V474Z16TRPF	NMC0603Y5V224Z16TRPF	NMC0402Y5V223Z16TRPF	NMC0603Y5V104Z25TRPF	NMC0603Y5V104Z50TRPLPF
Description	Ceramic Capacitor, Multilayer, Ceramic, 16V, 80% +Tol, 20% -Tol, Y5V, -82/+22% TC, 0.47uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT	Ceramic Capacitor, Multilayer, Ceramic, 16V, 80% +Tol, 20% -Tol, Y5V, -82/+22% TC, 0.22uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT	Ceramic Capacitor, Multilayer, Ceramic, 16V, 80% +Tol, 20% -Tol, Y5V, -82/+22% TC, 0.022uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT	Ceramic Capacitor, Multilayer, Ceramic, 25V, 80% +Tol, 20% -Tol, Y5V, -82/+22% TC, 0.1uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT	Ceramic Capacitor, Multilayer, Ceramic, 50V, 80% +Tol, 20% -Tol, Y5V, -82/+22% TC, 0.1uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Nichicon	Nichicon	Nichicon	Nichicon	Nichicon
package instruction	, 0603	CHIP, ROHS COMPLIANT	CHIP, ROHS COMPLIANT	CHIP, ROHS COMPLIANT	, 0603
Reach Compliance Code	compli	compli	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	0.47 µF	0.22 µF	0.022 µF	0.1 µF	0.1 µF
Capacitor type	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR
dielectric materials	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
JESD-609 code	e3	e3	e3	e3	e3
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
multi-layer	Yes	Yes	Yes	Yes	Yes
negative tolerance	20%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	TR, PUNCHED	TR, PUNCHED	TR, PAPER	TR, PUNCHED	TR, EMBOSSED PLASTIC
positive tolerance	80%	80%	80%	80%	80%
Rated (DC) voltage (URdc)	16 V	16 V	16 V	25 V	50 V
size code	0603	0603	0402	0603	0603
surface mount	YES	YES	YES	YES	YES
Temperature characteristic code	Y5V	Y5V	Y5V	Y5V	Y5V
Temperature Coefficient	-82/+22% ppm/°C	-82/+22% ppm/°C	-82/+22% ppm/°C	-82/+22% ppm/°C	-82/+22% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Factory Lead Time	22 weeks	17 weeks	17 weeks	22 weeks	-
high	1 mm	1 mm	-	1 mm	-
length	1.6 mm	1.6 mm	-	1.6 mm	-
Package form	SMT	SMT	-	SMT	-
width	0.8 mm	0.8 mm	-	0.8 mm	-
