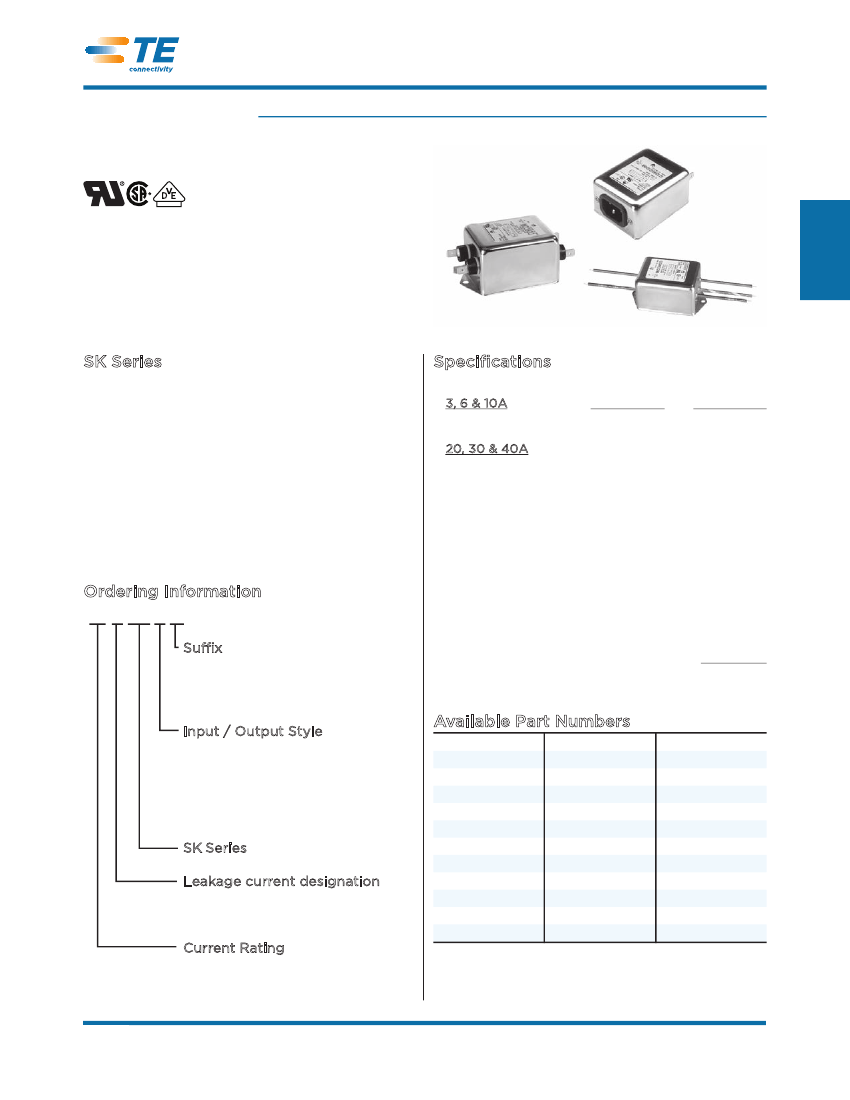

High Performance K Series RFI Line Filters for SMPS Emission Control
SK Series
UL Recognized
CSA Certified
VDE Approved
SK1
SK3
SK7/7M
1
RFI Power Line Filters
SK Series
• Designed to reduce conducted noise to
acceptable limits for equipment that must comply
with FCC / EN specifications
• Utilizes significantly higher element values than
the general purpose K Series which makes them
better suited for equipment with Line to Ground
and Line to Line conducted emissions including
those with switching power supplies
• ESK6C and VSK6C incorporate separate ground
circuit inductor to isolate the equipment chassis
from power line ground at RF frequencies
Specifications
Maximum leakage current each Line to Ground:
3, 6 & 10A
VSK Models
ESK Models
@120 VAC 60 Hz:
.4 mA
.21 mA
@250 VAC 50 Hz:
.7 mA
.36 mA
20, 30 & 40A
@120 VAC 60 Hz:
.75 mA
.3 mA
@250 VAC 50 Hz:
1.25 mA
.5 mA
Hipot rating (one minute):
Line to Ground:
Line to Line:
Rated Voltage (max):
Operating Frequency:
2250 VDC
1450 VDC
250 VAC
50/60 Hz
3 to 40A
Ordering Information
10 E SK 7 M
Suffix
M – Metric inserts
(style 7 only)
Omit for standard or none
C – Ground choke
(30ESK/VSK only)
Input / Output Style
1 – .250 [6.3] spade terminals
3 – Wire leads
6 – Threaded bolt
7 – IEC inlet*
(line side)
.250 [6.3] spade terminals
(load side)
Rated Current:
Operating Ambient Temperature Range
(at rated current Ir):
-10°C to +40°C
In an ambient temperature (Ta) higher than +40°C
the maximum operating current (Io) is calculated as
follows: Io = Ir
(85-Ta)/45
Available Part Numbers
3VSK1
3VSK3
3VSK7
3VSK7M
6VSK1
6VSK3
6VSK7
6VSK7M
10VSK1
10VSK3
10VSK7
10VSK7M
3ESK1
3ESK3
3ESK7
3ESK7M
6ESK1
6ESK3
6ESK7
6ESK7M
10ESK1
10ESK3
10ESK7
10ESK7M
20ESK6
20VSK6
30ESK6
30ESK6C
30VSK6
30VSK6C
40VSK6
SK Series
Leakage current designation
E – Low leakage
(<0.5 mA)
V – Standard
Current Rating
3, 6, 10, 20, 30 or 40A
*IEC 60320-1 C14 inlet mates with C13 connector
75
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
Corcom Product Guide
Catalog: 1654001
Issue Date: 06.2011
High Performance K Series Filters for SMPS Emission Control
(continued)
SK Series

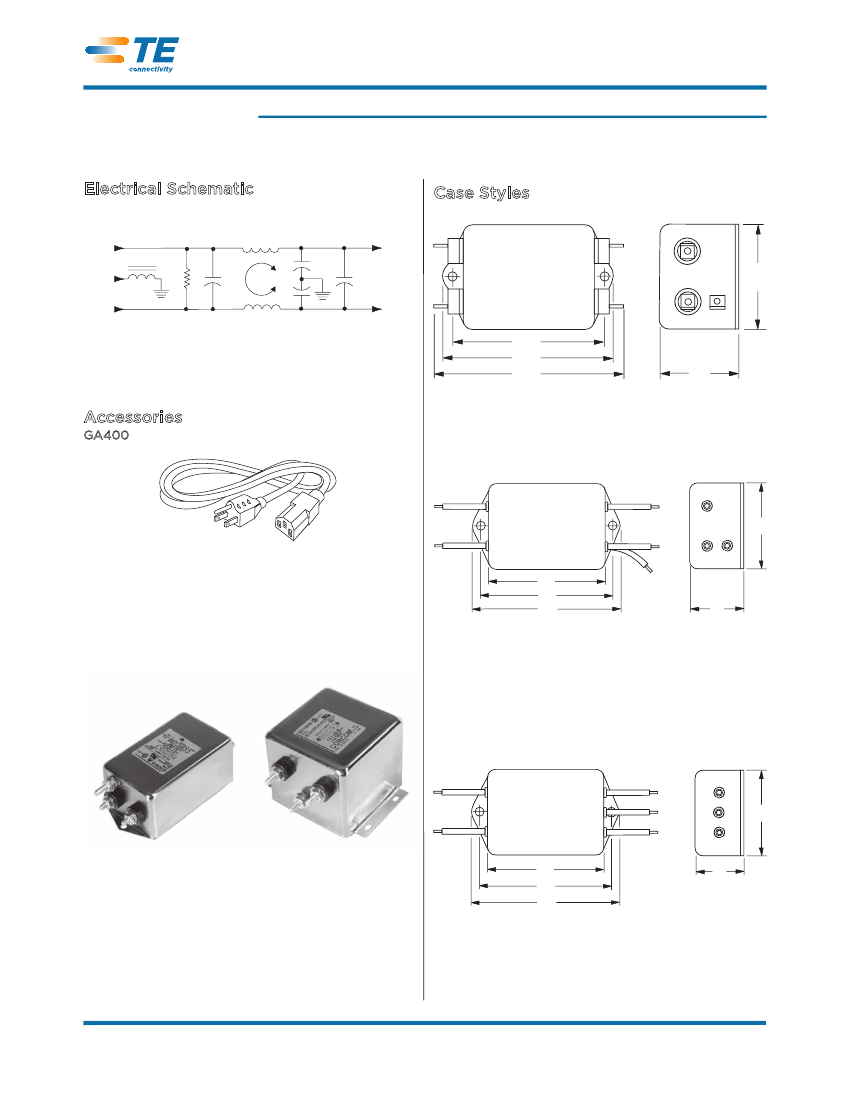

Electrical Schematic
LINE
LOAD
Case Styles
SK1
1
B
Accessories
GA400: NEMA 5-15P to IEC 60320-1 C-13 line cord
½
½½
D
E
A
C
SK3
(3A)
Blue
Blue
B
Brown
Brown
A
D
E
½
Green/
Yellow
C
SK3
(6 & 10A)
Blue
Blue
Grn/Yel
Brown
Brown
B
ESK6 / VSK6
A
D
E
½
C
½
76
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
Corcom Product Guide
Catalog: 1654001
Issue Date: 06.2011
High Performance K Series Filters for SMPS Emission Control
(continued)
SK Series

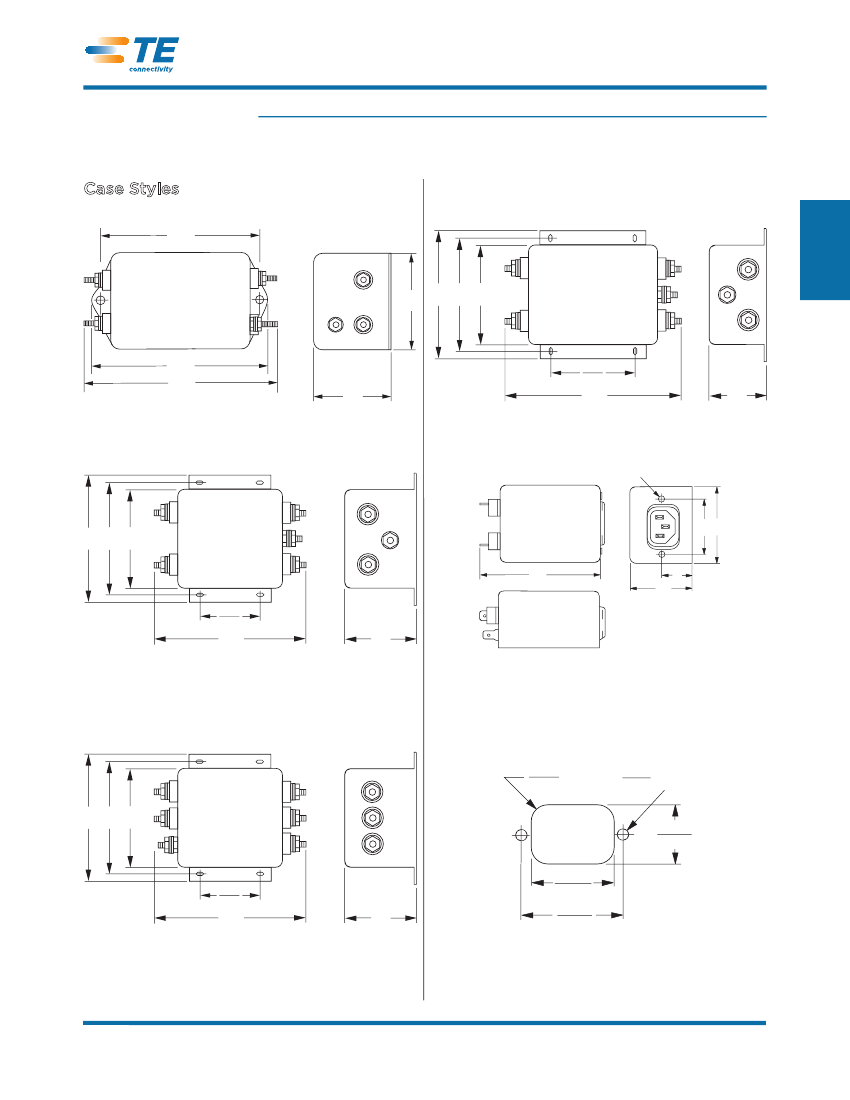

Case Styles
(continued)
SK6
(20A)
D
SK6
(40A)
1
B
E D B
RFI Power Line Filters
E
A
½
2.00
50.5
C
½
½
A
C
½
SK6
(30A)
SK7 & SK7M
Tapped insert
D B
E D B
A
C
1.50
38.1
E
A
½
C
½
½½
½
½
½
SK6C
(30A)
Recommended Panel Cutout
.235
R
5.96
.157
Dia. (2)
3.98
.910
23.11
1.295
32.89
1.575
40.01
½
E D B
1.50
38.1
A
½
C
½
77
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
Corcom Product Guide
Catalog: 1654001
Issue Date: 06.2011
High Performance K Series Filters for SMPS Emission Control
(continued)
SK Series

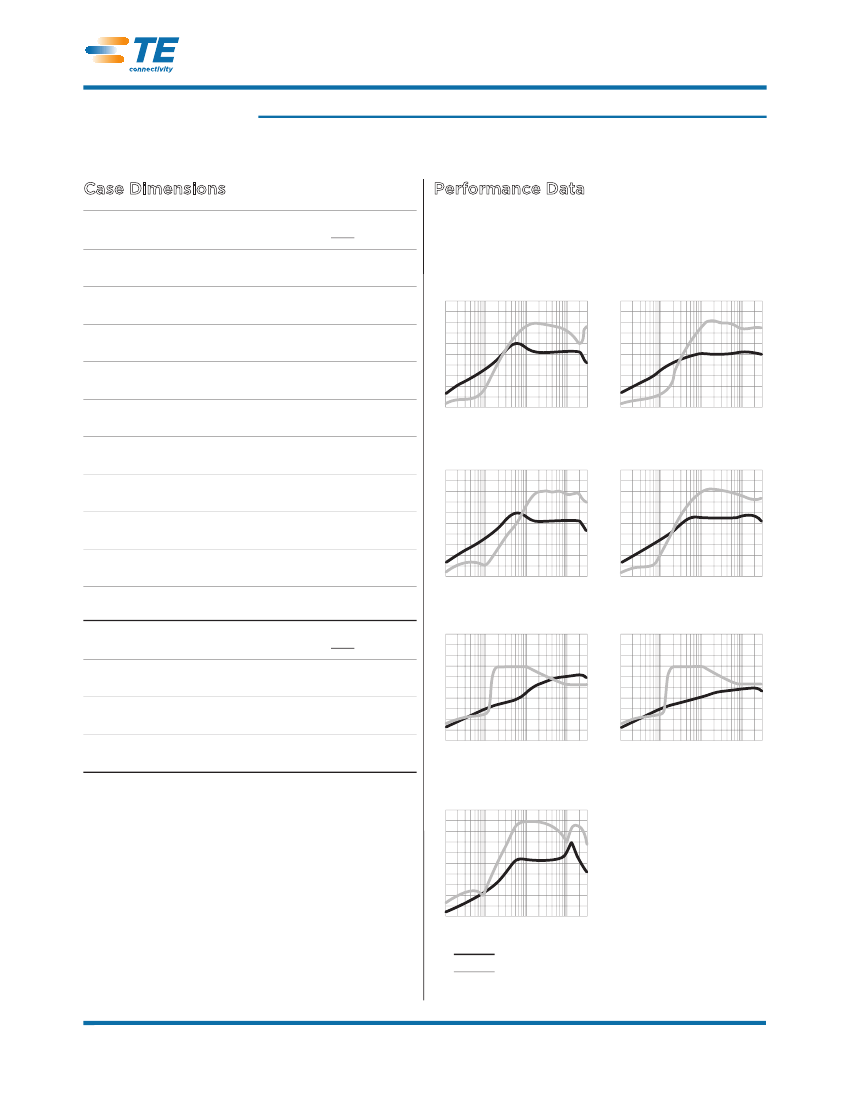

Case Dimensions
Part No.
3VSK1,
3ESK1
3VSK3,
3ESK3
3VSK7/7M,
3ESK7/7M
6VSK1,
6ESK1
6VSK3,
6ESK3
6VSK7/7M,
6ESK7/7M
10VSK1,
10ESK1
10VSK3,
10ESK3
10VSK7/7M,
10ESK7/7M
20VSK6,
20ESK6
Performance Data
B
A
C
D
E
Typical Insertion Loss
Measured in closed 50 Ohm system
Part No.
30VSK6,
30ESK6
30VSK6C,
30ESK6C
40VSK6
A
B
C
D
E
3 & 6VSK
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
3 & 6ESK
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
10 & 20VSK
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
10 & 20ESK
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
30VSK
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
30ESK
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
40VSK
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
Common Mode / Asymmetrical (L-G)
Differential Mode / Symmetrical (L-L)
78
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
Corcom Product Guide
Catalog: 1654001
Issue Date: 06.2011
High Performance K Series Filters for SMPS Emission Control
(continued)
SK Series
Performance Data
(continued)
Minimum Insertion Loss
Measured in closed 50 Ohm system
Common Mode / Asymmetrical (Line to Ground)
Differential Mode / Symmetrical (Line to Line)
1
RFI Power Line Filters
79
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
