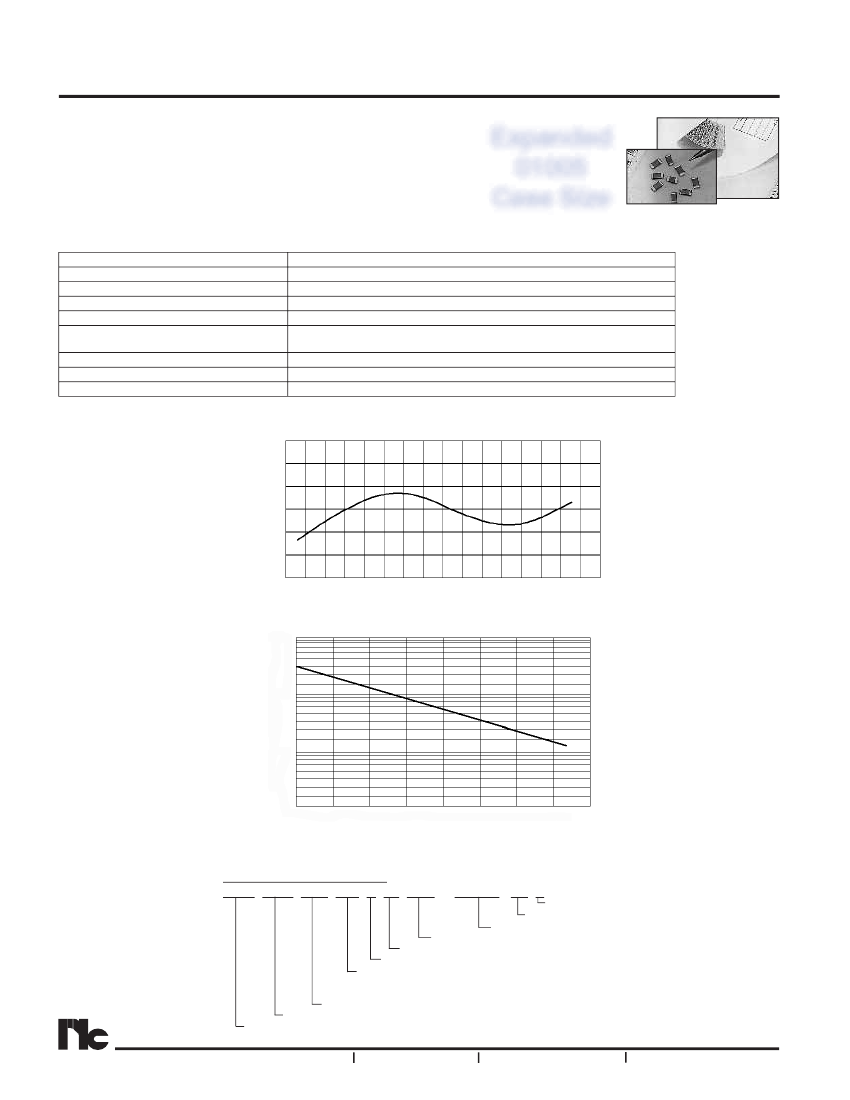

Multilayer Ceramic Chip Capacitors
FEATURES
• CLASS II DIELECTRIC, TEMPERATURE STABLE
• EXCELLENT FREQUENCY CHARACTERISTICS, NON-LINEAR
CAPACITANCE CHANGE
• NICKEL BARRIER TERMINATIONS AND EXCELLENT
MECHANICAL STRENGTH
CHARACTERISTICS
Capacitance Range
Capacitance Tolerance
Operating Temperature Range
Temperature Characteristics
Rated Voltages
Dissipation Factor
insulation Resistance
Dielectric Withstanding Voltage
Test Conditions (EIA-198-2E)
NMC Series X5R
Expanded
01005
Case Size
100pF ~ 0.82μF (see high CV datasheet for higher capacitance values)
±10% (K), ±20% (M)
-55°C ~ +85°C
±15%Δ max. over temperature range (with 0 Vdc applied)
6.3Vdc, 16Vdc & 25Vdc (see NMC-H Series for higher voltages)
3.5% max. (25Vdc) 5% max. (16Vdc), 7.5% (10Vdc), 10% (6.3Vdc)
@ 1.0Vrms and 1KHz, +25°C
10,000Megohms min. or 500Megohm/μF min. whichever is less @ +25°C
250% of Rated Voltage for 5 ±1 seconds, 50mA maximum current
1KHz, 1.0V ±0.2Vrms
Typical X5R Temperature Coefficient
20%
10%
%Δ°C
0%
-10%
-20%
-50 -40 -30 -20 -10 0 10 20 30 40 50 60 70 80 90
Insulation Resistance (Ohm - Farads)
Insulation Resistance vs. Temperature
10,000
1,000
100
0
+20
+30
+40
+50
+60
+70
+80
Temperature °C
PART NUMBER SYSTEM
NMC 0805 X5R 102 K 50 TRP or TRPLP 3K F
RoHS Compliant
Optional Reel Qty (3K=3,000pcs)
Tape & Reel (Embossed Plastic Carrier)
Tape & Reel (Punched carrier)
Voltage (Vdc)
Capacitance Tolerance Code (see chart)
Capacitance Code, expressed in pF, first 2 digits are
significant, 3rd digit is no. of zeros, “R” indicates
decimal for under 10pF
Temperature Characteristic
Size Code (see chart)
Series
®
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
