Z-Power LED X10490
Technical Data Sheet
SZFP6F0A
Description
Z-Power series is designed for high
current operation andhigh flux output
applications.
Z-Power LED's thermal management
perform exceeds other power LED solutions.
It incorporates state of the art SMD design and
Thermal emission material.
Full color Z-Power LED is using 4 RGBW power chips and
isolated thermal slug.
In case of the full color product used in architectural
lighting or decoration, it emits diverse colors(Full, Pastel) in
one package so that it can render a clear mixed color when
it is mixed with other colors.
SZFP6F0A
Features
• Super high Flux output
and high Luminance
• Designed for high
current operation
• Low thermal resistance
• SMT solderability
• Lead Free product
• RoHS compliant
Applications
• Automotive interior /
exterior lighting
• Architectural lighting
• Task lighting
• Decorative /
Pathway lighting
• Remote /
Solar powered lighting
• Household appliances
* The appearance and specifications of the product can be changed
for improvement without notice.
SZFP6F0A
Rev. 00
3
March. 2012
www.seoulsemicon.com
Document No. : SSC-QP-7-07-24 (Rev.00)
Z-Power LED X10490
Z-Power LED X10490
Technical Data Sheet
4
Full code of Z6 (SZFP6A0A)
1. Part Number Form : X
1
X
2
X
3
X
4
X
5
X
6
X
7
X
8
– X
9
X
10
X
11
X
12
X
13
X
14
X
15
X
16
X
1
X
2
X
3
X
4
X
5
X
6
X
7
X
8
X
9
X
10
X
11
X
12
X
13
X
14
X
15
X
16
Z-Power series number
Lens type
PCB type
Revision No.
Luminous flux (Red)
Luminous flux (Blue)
Luminous flux (Green)
Luminous flux (White)
Dominant Wavelength (Red)
Dominant Wavelength (Blue)
Dominant Wavelength
(Green)
Color bin (White)
Company
Package series
Color
P
6
F
0
A
-
-
-
-
-
-
-
-
S
Z
F
SSC
Z-Power
Full Color
Pure White
Z6 series
Flat White
Emitter
Rev0
-
-
-
-
-
-
-
-

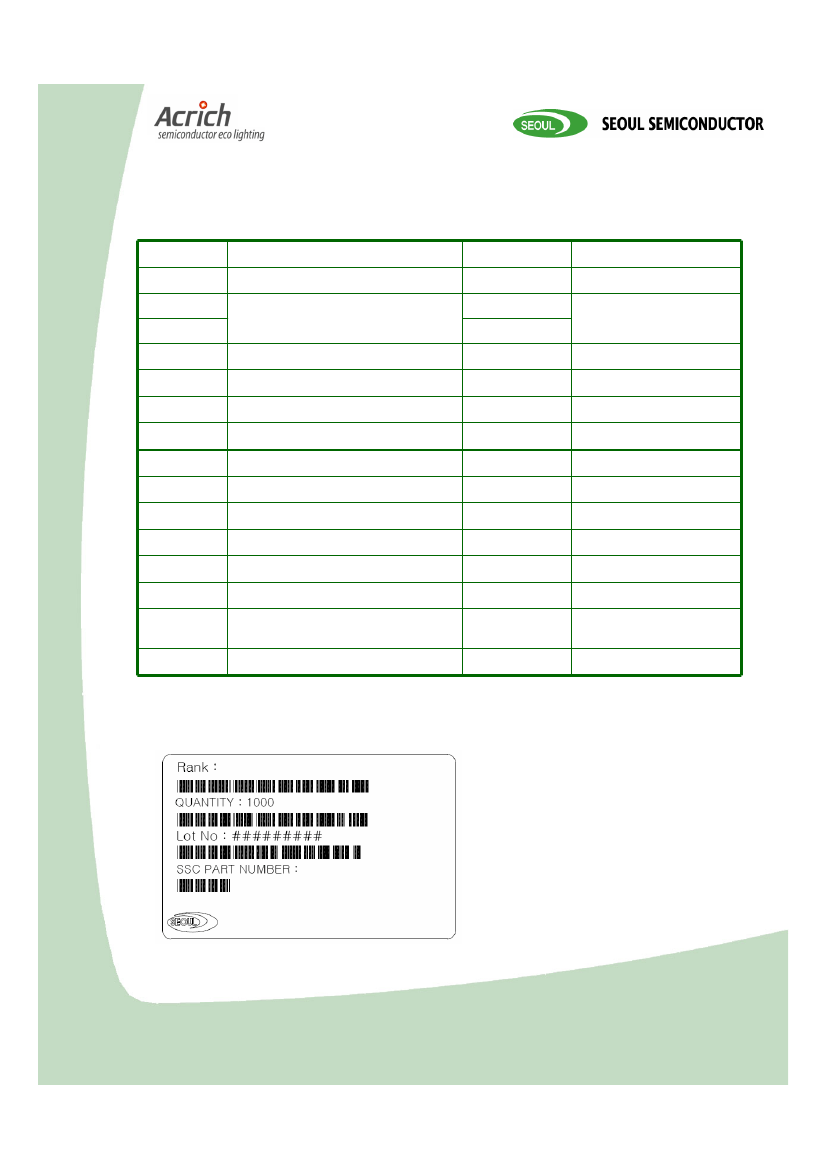

2. Sticker Diagram on Reel & Aluminum Vinyl Bag
X
9
X
10
X
11
X
12
X
13
X
14
X
15
X
16
X
1
X
2
X
3
X
4
X
5
X
6
X
7
X
8
X
1
X
2
X
3
X
4
X
5
X
6
X
7
X
8
SZFP6F0A
Rev. 01
July. 2012
www.seoulsemicon.com
Document No. : SSC-QP-7-07-24 (Rev.00)
NC
<Rear view>
Notes :
1. Tolerance is
±
0.2mm
2. Scale : none
3. NC PAD isn't connected to anode or cathode
*The appearance and specifications of the product may be changed for improvement without notice.
5
⑧
⑦
⑥
⑤
④
③
②
①
①
②
③
①
②
③
①
②
③
①
②
③
⑤
⑥
⑦
⑧
⑤
⑥
⑦
⑧
⑤
⑥
⑦
⑧
⑤
⑥
⑦
⑧
④
④
④
④
Z-Power LED X10490
Z-Power LED X10490
Technical Data Sheet

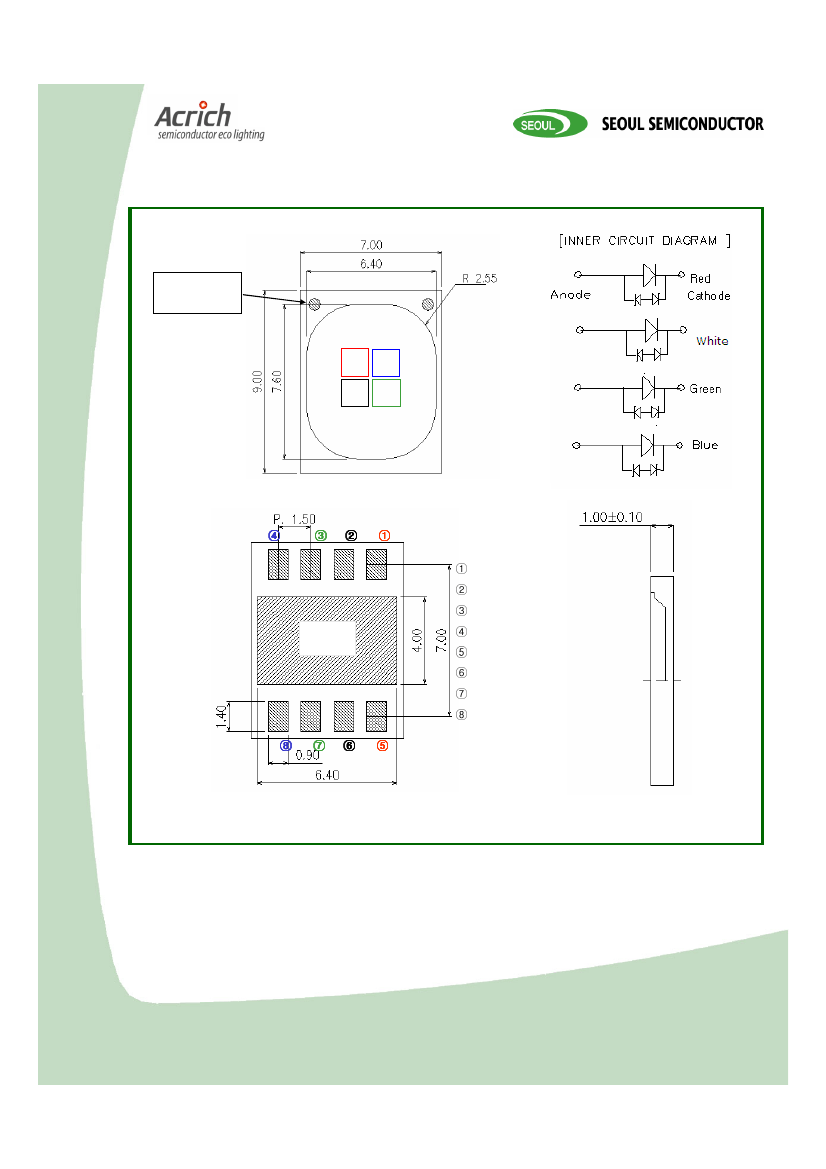

Outline Dimensions
Cathode
Mark
1
2
R
W
B
G
5
6
7
8
3
4
Red ( - )
White ( - )
Green ( - )
Blue ( - )
Red ( + )
White ( + )
Green ( + )
Blue ( + )
SZFP6F0A
Rev. 01
July. 2012
www.seoulsemicon.com
Document No. : SSC-QP-7-07-24 (Rev.00)
