Ceramic Trimmer
Capacitors
Cat.No.T13E-14
!Note
• Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
T13E.pdf
Aug.10,2012
EU RoHS Compliant
All the products in this catalog comply with EU RoHS.
EU RoHS is "the European Directive 2011/65/EU on the Restriction of the Use
of Certain Hazardous Substances in Electrical and Electronic Equipment."
For more details, please refer to our website 'Murata's Approach for EU RoHS'
(http://www.murata.com/info/rohs.html).
!Note
• Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
T13E.pdf
Aug.10,2012
CONTENTS
Part Numbering
Selection Guide of Ceramic Trimmer Capacitors
1
2
3
4
5
6
7
8
TZR1 Series
TZS2 Series
TZY2 Series
TZV2 Series
TZC3 Series
TZW4 Series
TZB4 Series
TZ03 Series
2
3
4
8
12
16
20
1
2
3
4
24
27
32
5
Packaging
Recommended Adjustment Tools
Qualified Standards
37
39
41
6
7
8
Bluetoothr is a registered trademark or trademark of Bluetooth SIG, Inc.
in the United States and other countries.
!Note
• Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
T13E.pdf
Aug.10,2012
o
Part Numbering
Ceramic Trimmer Capacitors
(Part Number)
qProduct
ID
Product ID
TZ
wSeries/Terminal
Code
03
B4
W4
C3
S2
Y2
V2
R1
Series/Terminal
6mm Size Lead Type
4mm Size SMD Type
4mm Size SMD Type
3mm Size SMD Type
2mm Size SMD Type (Height 1.0mm)
2mm Size SMD Type (Height 1.25mm)
2mm Size SMD Type (Height 1.45mm)
1mm Size SMD Type (Height 0.90mm)
yIndividual
Specifications
Code
001
110
169
eTemperature
Characteristics
Code
Z
R
K
P
Temperature Characteristics
NP0ppm/°C
N750ppm/°C
N1000ppm/°C
N1200ppm/°C
uPackaging
Code
B00
R00
R01*
rMaximum
Capacitance
Expressed by three-digit alphanumerics. The unit is pico-farad
(pF). The first and second figures are significant digits, and the
third figure expresses the number of zeros that follow the two
numbers. If there is a decimal point, it is expressed by the capital
letter "R". In this case, all figures are significant digits.
* TZB4 only.
TZ
q
Y2
w
R
e
200
r
A
t
001 R00
y
u
tTerminal
Shape
Code
Terminal Shape
Top Adjustment:
TZR1, TZS2, TZY2, TZV2,
TZC3, TZW4, TZB4
(SMD Type)
Top Adjustment:
TZB4
(SMD Type)
Rear Adjustment:
TZB4
(SMD Type)
Top Adjustment:
TZ03
(Lead Type)
Rear Adjustment:
TZ03
(Lead Type)
Trimmer Capacitors
A
B
E
F
N
Please refer to dimensions for terminal details.
Individual Specifications
TZR1, TZS2, TZY2, TZW4
Standard Type
TZV2, TZC3
Standard Type
TZ03
Standard Type
TZB4
No-cover Film Standard Type
TZB4
with Cover Film Standard Type
A10
B10
Packaging
Bulk
Reel (Taping ø180mm)
Reel (Taping ø330mm)
Please refer to ratings for tolerance of temperature characteristics.
2
!Note
• Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
• This catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
T13E.pdf
Aug.10,2012

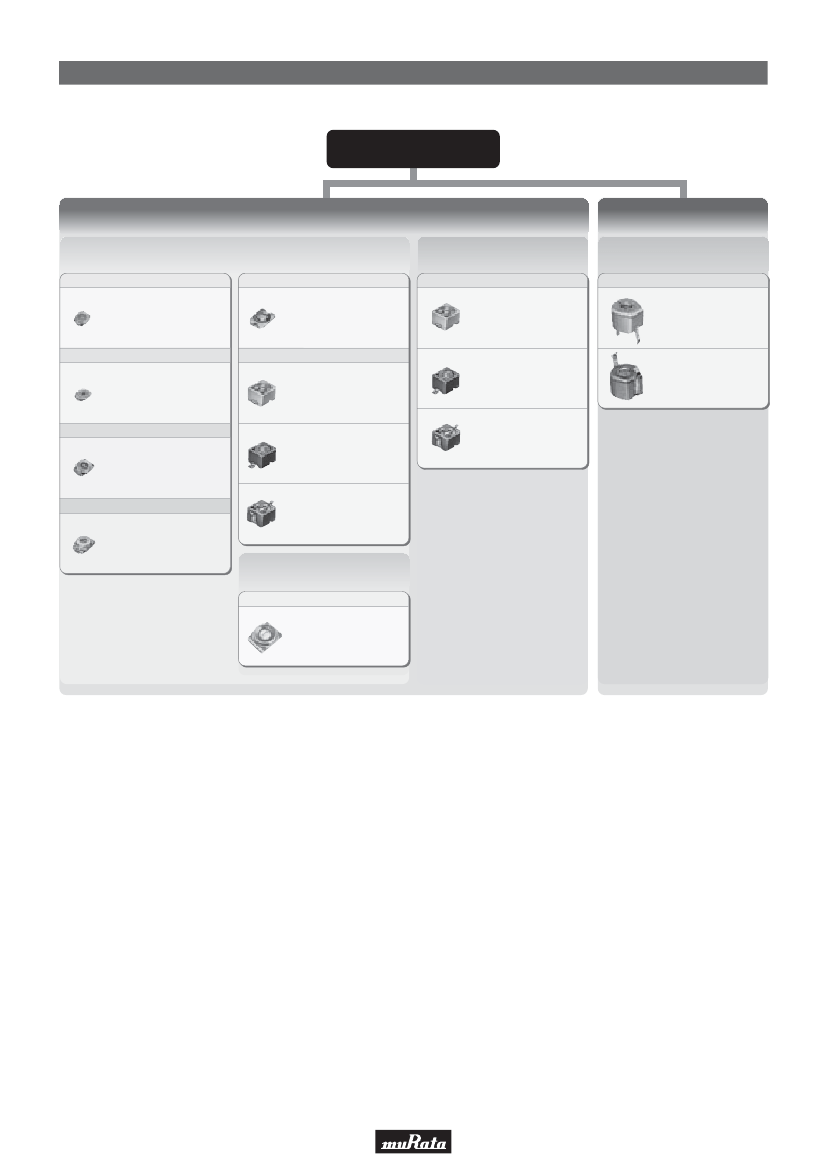

Selection Guide of Ceramic Trimmer Capacitors
Mounting Method?
Surface Mount
Reflow
Height 0.90mm max.
Height 1.7mm max.
PCB Insertion
Flow
Height 3.2mm max.
Manual Insertion
Height 5.3mm max.
TZR1
1.5(W) x 1.7(L)
TZC3
3.2(W) x 4.5(L)
TZB4_A
4.0(W) x 4.5(L)
(with cover film)
TZ03_F
6.0(W) x 6.0(L)
Height 1.00mm max.
Height 3.2mm max.
TZB4_B
TZS2
2.2(W) x 2.7(L)
TZB4_A
4.0(W) x 4.5(L)
4.0(W) x 4.5(L)
(with cover film)
TZ03_N
6.0(W) x 6.0(L)
Height 1.25mm max.
TZB4_E
TZB4_B
4.0(W) x 4.5(L)
(with cover film)
4.0(W) x 4.5(L)
TZY2
2.5(W) x 3.2(L)
Height 1.45mm max.
TZB4_E
4.0(W) x 4.5(L)
TZV2
2.3(W) x 3.2(L)
High Frequency Power
Height 2.6mm max.
TZW4
4.2(W) x 5.2(L)
All Ceramic Trimmer Capacitor products comply with RoHS and ELV.
