ISO 9001 CERTIFIED BY DSCC
M.S.KENNEDY CORP.
FEATURES:
FET INPUT HIGH SPEED VOLTAGE
FOLLOWER/BUFFER AMPLIFIER
0033
(315) 701-6751
4707 Dey Road Liverpool, N.Y. 13088
Industry Wide LH0033/EL2005 Replacement
Low Input Offset - 2mV
Low Input Offset Drift - 25µV/°C
FET Input, Low Input Current - 50pA
High Slew Rate - 1500V/µS
Wide Bandwidth - 140MHz
High Output Current - ±100mA
Available to DSCC SMD 5962-80014
MIL-PRF-38534 CERTIFIED
DESCRIPTION:
The MSK 0033(B) is a high speed, wide bandwidth voltage follower/buffer amplifier that is pin compatible with all
other 0033 designs. The FET input is cascaded to force the input characteristics to remain constant over the full input
voltage range. Significantly improved performance in sample and hold circuits is achieved since the DC bias current
remains constant with input voltage. The FET input also makes the MSK 0033 very accurate since it produces
extremely low input bias current, input offset voltage and input offset voltage drift specifications. Transistion times in
the range of 2.5 nS make the MSK 0033 fast enough for most high speed voltage follower/buffer amplifier applica-
tions.
EQUIVALENT SCHEMATIC

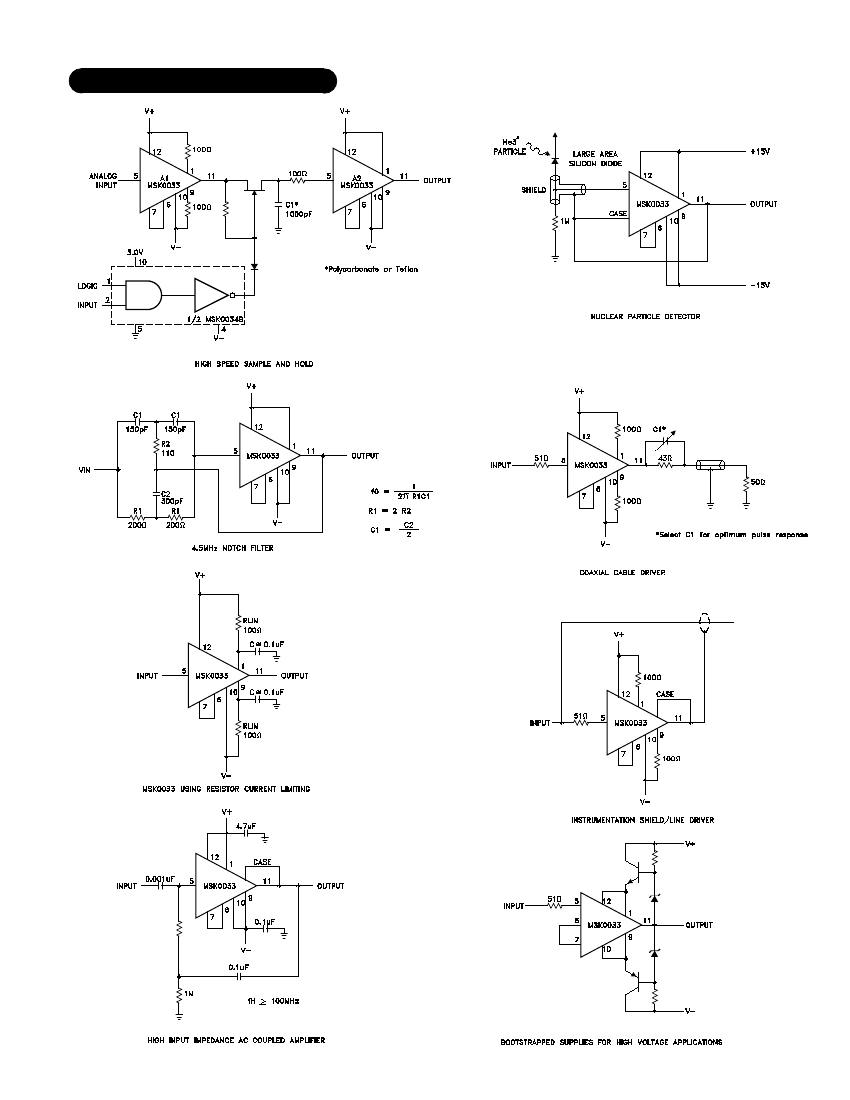

TYPICAL APPLICATIONS
Sample And Hold
Impedance Buffers For A to D's
High Speed Line Drivers
CRT Deflection Driver
1
2
3
4
5
6
PIN-OUT INFORMATION
Positive Driver Power
Supply
N/C
N/C
N/C
Input
Offset Preset
1
7
8
9
10
11
12
Offset Adjust
N/C
Negative Driver Power Supply
Negative Power Supply
Output
Positive Power Supply
Rev. B
7/00
ABSOLUTE MAXIMUM RATINGS
○
○
○
○
○
○
○
○
○
○
○
○
○
○
ELECTRICAL SPECIFICATIONS
Parameter
STATIC
Supply Voltage Range
Quiescent Current
INPUT
Offset Voltage
Offset Voltage Drift
Offset Adjust
Input Bias Current 9
Input Impedance 3
Power Supply Rejection Ratio 2
Input Noise Density 3
Input Noise Voltage 3
OUTPUT
Output Voltage Swing
Output Current
Settling Time to 1% 2 3
Bandwidth (-3dB) 3
TRANSFER CHARACTERISTICS
Slew Rate
Voltage Gain
V
OUT
=±10V
R
S
=100Ω V
IN
=1V
RMS
F=1KHz
4
4
1000
0.97
1500
0.99
-
-
1000
0.95
1500
0.98
-
-
V/µS
V/V
V
IN
=±14V R
L
=1KΩ
V
IN
=±10.5V R
L
=100Ω
2V step
V
IN
=1V
RMS
R
L
=1KΩ
4
4
-
-
±12
±90
-
-
±12.5
±110
25
140
-
-
-
-
±12
±90
-
-
±12.5
±110
25
140
-
-
-
-
V
mA
nS
MHz
Short Pin 6 to Pin 7 V
IN
=0V
Short Pin 6 to Pin 7 V
IN
=0V
Pin 6=open R
POT
=200Ω From Pin 7 to Pin 9
V
CM
=0V
Either Input
F=DC
±10V≤V
S
≤±20V
F=10Hz to 1KHz
F=1KHz
1
2,3
1,2,3
1
2,3
-
-
-
-
-
-
-
65
-
-
-
-
±2.0
±25
±50
±2
10
12
75
1.5
40
±10
±250
±100
±10
-
-
-
-
-
-
-
-
-
60
-
-
±5
-
Adjust to Zero
±50
±2
10
12
75
1.5
40
±500
-
-
-
-
-
±15
-
mV
µV/°C
mV
pA
nA
Ω
dB
µVRMS
nV/√Hz
3 8
Test Conditions
Group A
Subgroup
-
MSK 0033B
Min.
±10
-
Typ.
±15
±19
Max.
±18
±22
Min.
±10
-
MSK 0033
Typ.
±15
±19
Max.
±18
±25
Units
V
mA
V
IN
=0V
1
Adjust to Zero
NOTES:
Unless otherwise specified ±VCC = ±15 VDC.
Measured within a high speed amplifier feedback loop.
Devices shall be capable of meeting the parameter, but need not be tested. Typical parameters are for reference only.
Industrial grade devices shall be tested to subgroups 1 and 4 unless otherwise specified.
Military grade devices ('B' suffix) shall be 100% tested to subgroups 1,2,3 and 4.
Subgroup 5 and 6 testing available upon request.
Subgroup 1,4
T
A
=T
C
=+25°C
Subgroup 2,5
T
A
=T
C
=+125°C
Subgroup 3,6
T
A
=T
C
=-55°C
8 Electrical specifications are derated for power supply voltages other than ±15VDC.
9 Measurement made 0.5 seconds after application of power. Actual DC continuous test limit is 2.5 nA at 25°C
1
2
3
4
5
6
7
2
Rev. B 7/00
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
T
J
R
TH
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
±V
CC
I
OUT
V
IN
T
C
Supply Voltage
±20V
Output Current
±120mA
Differential Input Voltage
±20V
Case Operating Temperature
(MSK 0033B)
-55°C to +125°C
(MSK 0033)
-40°C to +85°C
○
○
○
T
ST
T
LD
Storage Temperature Range -65°C to +150°C
Lead Temperature Range
300°C
(10 Seconds)
Junction Temperature
175°C
Thermal Resistance
65°C/W
Junction to Case
Output Devices Only
APPLICATION NOTES
HEAT SINKING
To determine if a heat sink is necessary for your application
and if so, what type, refer to the thermal model and governing
equation below.
R
θSA
= ((T
J
- T
A
)/P
D
) - (R
θJC
) - (R
θCS
)
= ((125°C - 80°C) / .64W) - 65°C/W - .15°C/W
= 70.3 - 65.15
= 5.2°C/W
The heat sink in this example must have a thermal resistance
of no more than 5.2°C/W to maintain a junction temperature of
no more than +125°C.
Thermal Model:
OFFSET VOLTAGE ADJUST
See Figure 1. To externally null the offset voltage, connect a
200Ω potentiometer between Pins 7 and 10 and leave Pin 6
open. If offset null is not necessary, short Pin 6 to Pin 7 and
remove the 200Ω potentiometer. Do not connect Pin 7 to -
Vcc.
Governing Equation:
T
J
=P
D
x (R
θJC
+ R
θCS
+ R
θSA
) + T
A
Where
T
J
= Junction Temperature
P
D
= Total Power Dissipation
R
θJC
= Junction to Case Thermal Resistance
R
θCS
= Case to Heat Sink Thermal Resistance
R
θSA
= Heat Sink to Ambient Thermal Resistance
T
C
= Case Temperature
T
A
= Ambient Temperature
T
S
= Sink Temperature
Example:
This example demonstrates a worst case analysis for the buffer
output stage. This occurs when the output voltage is 1/2 the
power supply voltage. Under this condition, maximum power
transfer occurs and the output is under maximum stress.
Conditions:
V
CC
= ±16VDC
V
O
= ±8Vp Sine Wave, Freq. = 1KHz
R
L
= 100Ω
For a worst case analysis we will treat the ±8Vp sine wave
as an 8 VDC output voltage.
1.) Find Driver Power Dissipation
P
D
= (V
CC
-V
O
) (V
O
/R
L
)
= (16V-8V) (8V/100Ω)
= 640mW
2.) For conservative design, set T
J
=+125°C Max.
3.) For this example, worst case T
A
=+80°C
4.) R
θJC
= 65°C/W from MSK 0033B Data Sheet
5.) R
θCS
= 0.15°C/W for most thermal greases
6.) Rearrange governing equation to solve for R
θSA
CURRENT LIMITING
See Figure 1. If no current limit is required, short Pin 1 to Pin
12 and Pin 9 to Pin 10 and delete Q1 thru Q4 connections. Q1
through Q4 and the Rlim resistors form a current source current
limit scheme and current limit resistor values can be calculated
as follows:
+Rlim
≅
Vbe
-Rlim
≅
Vbe
Isc
Isc
Since current limit is directly proportional to the base-emitter
voltage drop of the 2N2222's and 2N2907's in the current
limit scheme, the current limit value will change slightly with
ambient temperature changes. The base-emitter voltage drop
will decrease as temperature increases causing the actual cur-
rent limit point to decrease.
POWER SUPPLY BYPASSING
Both the negative and the positive power supplies must be
effectively decoupled with a high and low frequency bypass
circuit to avoid power supply induced oscillation. An effective
decoupling scheme consists of a 0.1 microfarad ceramic ca-
pacitor in parallel with a 4.7 microfarad tantalum capacitor from
each power supply pin to ground.
3
Rev. B 7/00
