D..P/CRCW
Vishay
Thick Film, Rectangular, Precision Resistors
FEATURES
•
•
•
•
•
Metal glaze on high quality ceramic
Protective overglaze
Solder contacts on Ni barrier layer
Excellent stability in different environmental conditions
Low temperature coefficient and tight tolerances
STANDARD ELECTRICAL SPECIFICATIONS
POWER RATING LIMITING ELEMENT TEMPERATURE TOLERANCE RESISTANCE
E-SERIES
P
70
°
C
VOLTAGE MAX
COEFFICIENT
RANGE
%
Ω
INCH METRIC
W
V
ppm/
°
C
CEC 40401-802/EIA-575
100
0.5
10R – 1M0
96
D10P
50
0.25, 0.5, 1 100R – 1M0
96
CRCW0402
0402
1005
0.063
50
25
0.25, 0.5, 1 100R – 10K
96
100
0.5
10R – 10M
96
D11P
50
0.25
100R – 1M0
96
CRCW0603
0603
1608
0.1
75
50
0.5, 1
100R –10M
96
25
0.25, 0.5, 1 100R – 10K
96
100
0.5
10R – 10M
96
D12P
50
0.25
100R – 1M0
96
CRCW0805
0805
2012
0.125
150
50
0.5, 1
100R – 10M
96
25
0.25, 0.5, 1 100R – 10K
96
100
0.5
10R – 10M
96
D25P
50
0.25
100R – 1M0
96
CRCW1206
1206
3216
0.25
200
50
0.5, 1
100R – 10M
96
25
0.25, 0.5, 1 100R – 10K
96
CRCW1210
1210
3225
0.33
200
100
0.5
100R – 1M0
96
50
0.5
100R – 1M0
96
CRCW1218
1218
3246
1.0
200
100
0.5
100R – 2M2
96
50
0.5, 1
100R – 2M2
96
CRCW2010
2010
5025
0.5
400
100
0.5
10R – 10M
96
50
0.5, 1
100R – 10M
96
CRCW2512
2512
6332
1.0
500
100
0.5
10R – 10M
96
50
0.5, 1
100R – 10M
96
• Power rating depends on the max. temperature at the solder point,
• Ask about further value ranges
the component placement density and the substrate material
• Special terminations for conductive adhesive attachment on
• Marking and packaging: see appropriate catalog or web pages
request
MODEL
SIZE
TECHNICAL SPECIFICATIONS
PARAMETER
Rated Dissipation at 70°C
(CECC 40401 | EIA 575)
Limiting Element Voltage
2)
Insulation Voltage (1 min)
Thermal Resistance
Insulation Resistance
Category Temperature Range
Failure Rate
Weight / 1000pcs
1)
2)
UNIT
W
V
V
peak
K/W
Ω
°C
h
–1
g
D10P
CRCW0402
0.063
50
> 75
≤
870
1)
D11P
D12P
D25P
CRCW1210 CRCW1218
CRCW0603 CRCW0805 CRCW1206
0.1
0.125
0.25
0.33
1.0
75
> 100
≤
550
1)
150
> 200
≤
440
1)
200
> 300
≤
220
1)
> 10
9
- 55 / + 125
0.3 • 10
–9
10
200
> 300
≤
140
3)
200
> 300
3)
CRCW2010 CRCW2512
0.5
400
> 300
≤
88
3)
1.0
500
> 300
≤
65
3)
0.65
2
5.5
16
29.5
25.5
40.5
Measuring conditions in acc. to CECC 40401
Rated voltage: PxR
3)
Depending on solder pad dimensions
ORDERING INFORMATION
D-SERIES
D11P
MODEL
CRCW-SERIES
CRCW0603
MODEL
25
TC
ppm/°C
562R
RESISTANCE VALUE
Ω
0.5
TOLERANCE
±
%
PN
PACKAGING
PN-Papertape 20.000pcs
25R
RESISTANCE VALUE
Ω
±
1% = 3 sig. digits, plus multiplier
±
5% = 2 sig. digits, plus multiplier
Example:
49R9F = 49.9Ω,
±
1%
5R1J = 5.1Ω,
±
5%
3011F = 3.01KΩ,
±
1%
000Z = 0Ω Jumper
D
25
RT6
TOLERANCE
TC*
PACKAGING
±
%
ppm/°C
PN-Papertape 20,000 pcs
C =
±
0.25%
*NOTE: Entering a TC value in this
D =
±
0.5%
field is optional. If no TC specified
F =
±
1%
by the Customer, the default TC will be
highest listed for Tolerance specified.
www.vishay.com
40
For technical questions in Europe contact : ff1aresistors@vishay.com
For technical questions in Americas/Asia contact : ff2aresistors@vishay.com
Document Number 20009
Revision 18-Oct-02
www.DataSheet4U.com
D..P/CRCW
Thick Film, Rectangular, Precision

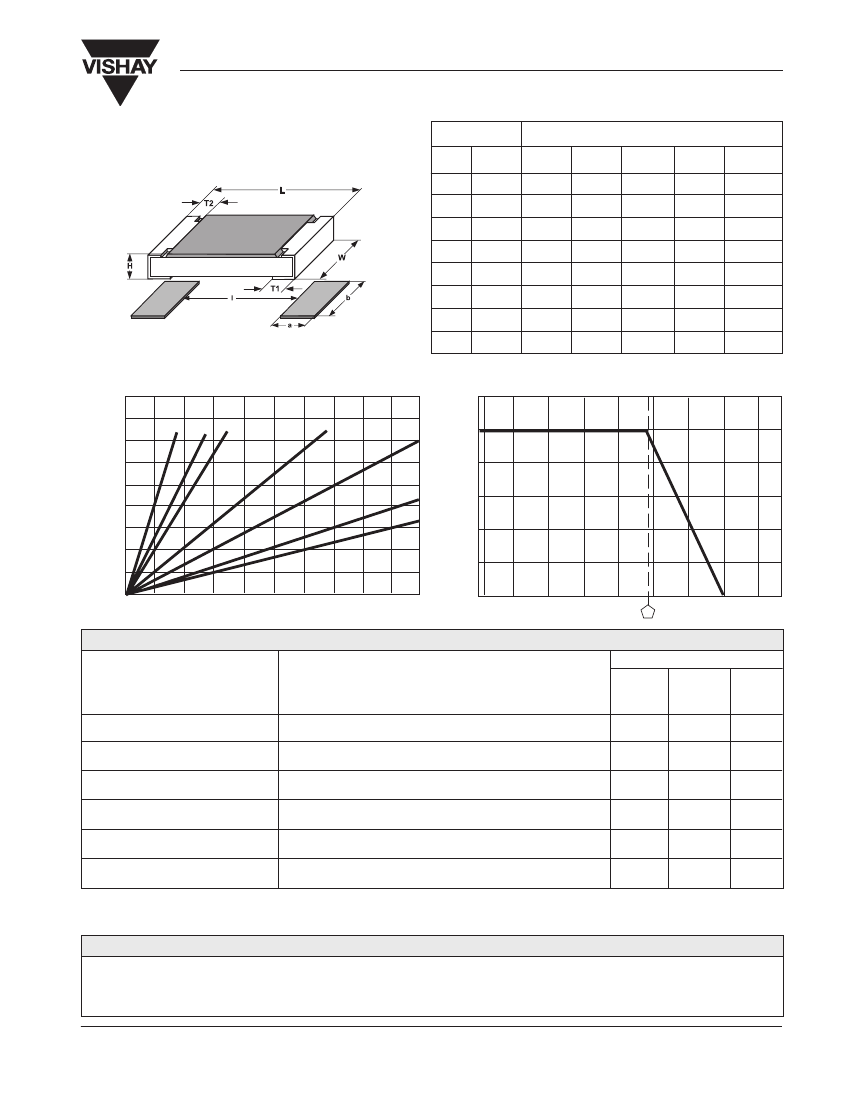

DIMENSIONS
SIZE
INCH METRIC
0402
0603
0805
1206
1210
1218
2010
1005
1608
2012
3216
3225
3246
5025
L
DIMENSIONS
[in millimeters]
W
H
T1
T2
Vishay
1.0
±0,05
0.5
±0.05
0.35
±0.05
0.25
±0.05
0.2.±0.1
1.55
– 0.05
0.85
±0.1
0.45
±0.05
0.3
±0.2
2.0
3.2
+ 0.20
– 0.10
+ 0.10
– 0.20
+ 0.10
0.3.±0.2
0.3.±0.2
0.4.±0.2
0.4.±0.2
0.4.±0.2
0.6.±0.2
1.25
±0.15
0.45
±0.05
0.3
1.6
±0.15
0.55
±0.05
0.45
±0.2
2.5
±0.2
0.55
±0.05
0.45
±0.2
4.6
±0.15
0.55
±0.05
0.45
±0.2
0.6
±0.2
+ 0.20
- 0.10
3.2
±0.2
3.2
+ 0.10
– 0.20
5.0
±0.15
2.5
±0.15
0.6
±0.05
2512
6332
6.3
±0.2
3.15
±0.15
0.6
±0.05
0.6
±0.2
0.6.±0.2
Dimensions 1210 to 2512 and solder-pad dimensions: see
standard chip resistors D..CRCW
Temperature Rise In
°
C
90
80
70
60
50
2010
40
30
20
10
0
0
0.1
0.2
0.3
0.4
0.5
2512
0402
0603 0805
1206
Rated Power In %
120
100
1210
80
60
40
20
0
- 55
-25
0
25
50
Temperature Rise
Power in W
Derating
75
100
125
150 175
70 Ambient Temperature in
°
C
PERFORMANCE
TEST RESULTS %
TEST
CONDITIONS OF TEST
0402
0603
≤ ±
1.0
≤ ±
1.0
≤ ±
0.25
≤ ±
0.25
≤ ±
1.0
≤ ±
0.25
0805
1206
1210
≤ ±
1.5
≤ ±
0.5
≤ ±
0.25
≤ ±
0.25
≤ ±
0.5
≤ ±
0.25
1218
2010
2512
≤ ±
1.0
≤ ±
1.0
≤ ±
0.5
≤ ±
0.5
≤ ±
1.0
≤ ±
0.5
Endurance Test at 70°C
IEC 60115-1 4.25.1
Endurance at UCT
IEC 60115-1 4.25.3
Overload Test
IEC 60115-1 4.13
Thermal Shock
IEC 60115-1 4.19 IEC 60068-2-14
Damp Heat Steady State
IEC 60115-1 4.24 IEC 60068-2-3
Resistance to Soldering Heat
IEC 60115-1 4.18 IEC 60068-2-20
1000 hours at 70°C, 1.5 hours "ON", 0.5 hours "OFF"
1000 hours at 125
°C
without load
Short time overload
2.5 x rated voltage or
≤
2 x limiting element voltage.
Rapid change between upper and lower category temperature
56 days at 40°C and 93% relative humidity
10 seconds at 260°C solder bath temperature
HF-CHARACTERISTIC / CURRENT NOISE / NON-LINEARITY AND PACKAGING:
see standard Chip resistors D...CRCW...
APPLICABLE SPECIFICATIONS
•
•
•
•
CECC40000 / 40400 / 40401
EN140400 / IEC 60115 – 1
EIA 575
MIL-PRF-55342
For technical questions in Europe contact : ff1aresistors@vishay.com
For technical questions in Americas/Asia contact : ff2aresistors@vishay.com
Document Number 20009
Revision 18-Oct-02
www.vishay.com
41
