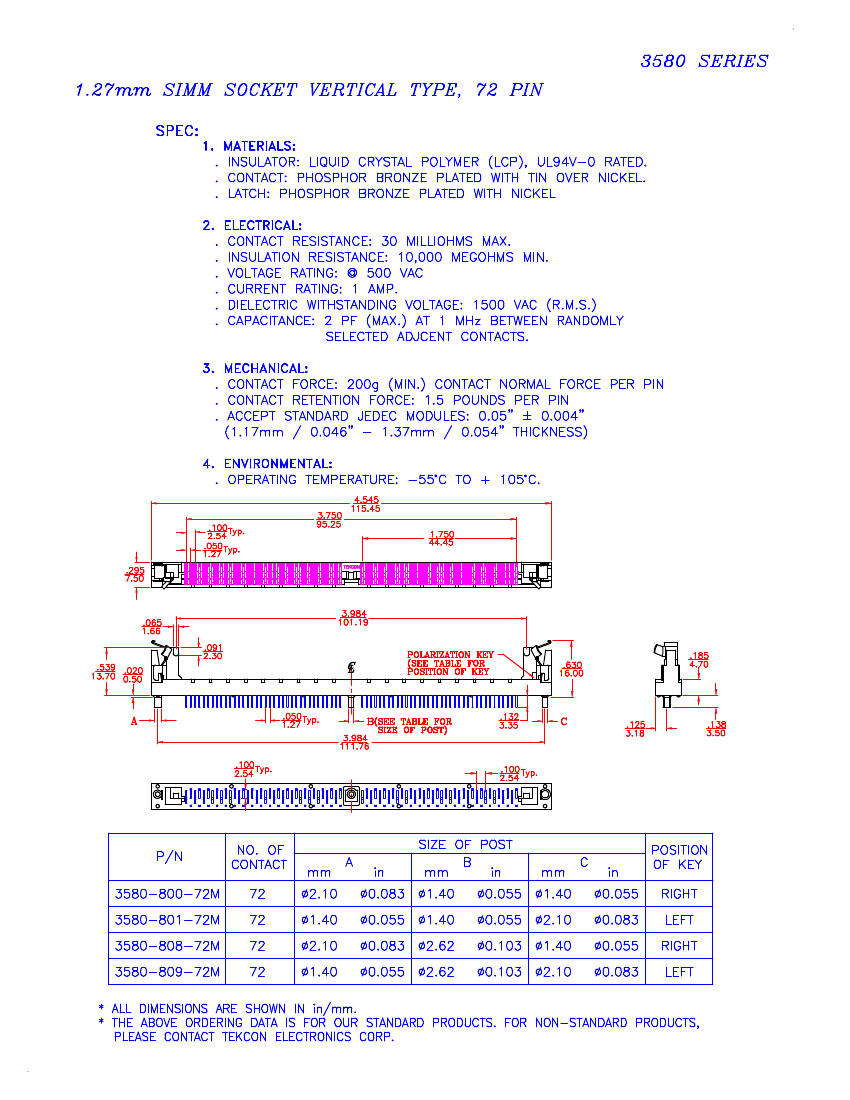

Card Edge Connector, 72 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Latch, Receptacle
| Parameter Name | Attribute value |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | METAL LATCH |
| Board mount options | LOCATING POSTS |
| body width | 0.295 inch |
| subject depth | 0.539 inch |
| body length | 4.545 inch |
| Body/casing type | RECEPTACLE |
| Connector type | CARD EDGE CONNECTOR |
| Contact to complete cooperation | SN ON NI |
| Contact completed and terminated | TIN OVER NICKEL |
| Contact material | PHOSPHOR BRONZE |
| Contact resistance | 30 mΩ |
| Contact style | BELLOWED TYPE |
| Dielectric withstand voltage | 1500VAC V |
| Insulation resistance | 10000000000 Ω |
| insulator material | LIQUID CRYSTAL POLYMER (LCP) |
| Manufacturer's serial number | 3580 |
| Plug contact pitch | 0.05 inch |
| Installation option 1 | LATCH |
| Installation option 2 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | STAGGERED |
| polarization key | LEFT |
| Rated current (signal) | 1 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.132 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 72 |
