CVK-1H470MG10-R-LF

Description
CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 50V, 47uF, SURFACE MOUNT, 3333, ROHS COMPLIANT
CategoryPassive components    capacitor
File Size187KB，1 Pages
ManufacturerCal-Chip Electronics
Environmental Compliance
Download Datasheet Parametric Compare View All

CVK-1H470MG10-R-LF Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 50V, 47uF, SURFACE MOUNT, 3333, ROHS COMPLIANT

CVK-1H470MG10-R-LF Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instruction, 3333
Reach Compliance Codecompliant
ECCN codeEAR99
capacitance47 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
dielectric materialsALUMINUM (WET)
leakage current0.0235 mA
Manufacturer's serial numberCVK
Installation featuresSURFACE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
Package shapeCYLINDRICAL PACKAGE
method of packingTR, 15 INCH
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)50 V
ripple current178 mA
size code3333
surface mountYES
Delta tangent0.12
Terminal shapeFLAT

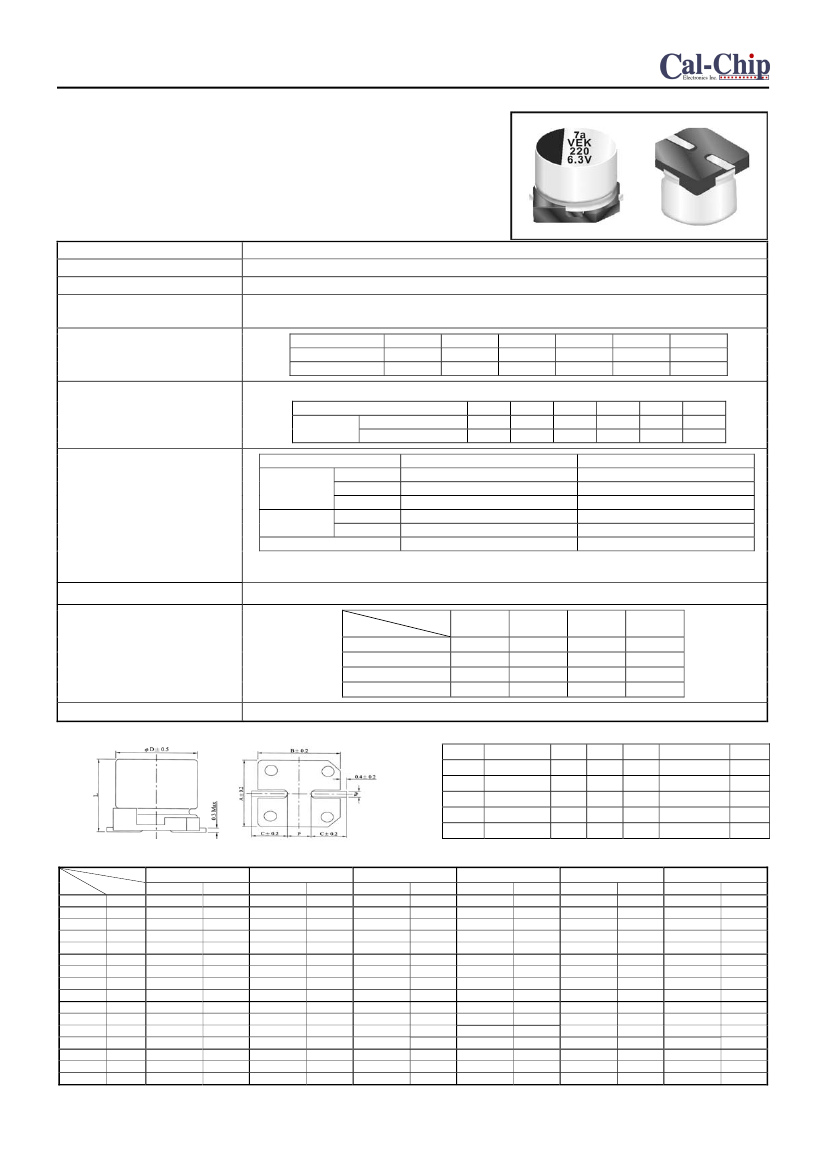

Preview

Download Datasheet
CVK
Features:
SMD Aluminum Electrolytic Capacitors
‧
4 ~ 10φ, 105
℃
, 2,000
~
5,000 hours assured
‧
Designed for surface mounting on high density PC board.
‧
RoHS Compliance
SPECIFICATIONS
Items
Operating Temperature Range
Capacitance Tolerance
Leakage Current (at 20℃)
Dissipation Factor
(Tanδat 120Hz, 20℃)
Performance
-55℃ ~ +105℃
±20%
I = 0.01CV or 3 (μA) whichever is greater (after 2 minutes)
Where, C= rated capacitance in
μF.
V = rated DC working voltage in V.
Rated Voltage
4½6.3φ
8½10φ
6.3
0.32
0.30
10
0.28
0.26
16
0.24
0.22
25
0.18
0.16
35
0.15
0.13
35
2
3
50
0.14
0.12
50
2
3
(at 120Hz, 20℃)
Low Temperature
Characteristics (at 120Hz)
Impedance ratio shall not exceed the values given in the table below.
Rated Voltage
6.3
10
16
25
Impedance
4
3
2
2
Z(-25℃)/Z(+20℃)
Ratio
8
5
4
3
Z(-40℃)/Z(+20℃)
Test Time
Load Life Test
2,000 Hrs(4 ~ 6.3φ)
5,000 Hrs(8 ~ 10φ)
6.3V
Within ±30% of initial value
Within ±30% of initial value
Capacitance
10 ~ 16V
Within ±25% of initial value
Within ±30% of initial value
Change
25 ~50V
Within ±20% of initial value
Within ±30% of initial value
Dissipation
6.3 ~ 16V
Less than 300% of specified value
Less than 300% of specified value
Factor
25 ~ 50V
Less than 200% of specified value
Less than 300% of specified value
Leakage Current
Within specified value
Within specified value
* The above specifications shall be satisfied when the capacitors are restored to 20℃after the rated voltage
applied for 2,000/5,000 hrs at 105℃.
Test time: 1,000 hrs; other items are the same as those for the load life test.
Freq.(Hz)
V.DC(V)
Under 16
25 ~ 35
50 ~ 63
100
50, 60
0.8
0.8
0.8
0.7
120
1.0
1.0
1.0
1.0
1K
1.15
1.25
1.35
1.35
10K up
1.25
1.40
1.50
1.50
Shelf Life Test
Ripple Current &
Frequency Multipliers
Standards
Satisfies Characteristic W of JIS C 5101-1, -18
DIAGRAM OF DIMENSIONS
LEAD SPACING AND DIAMETER
φD
4
5
6.3
8
10
L
5.7±0.3
5.7±0.3
5.7±0.3
10±0.5
10±0.5
A
4.3
5.3
6.3
8.4
10.4
B
4.3
5.3
6.3
8.4
10.4
C
2.0
2.3
2.7
3.0
3.3
W
0.5 to 0.8
0.5 to 0.8
0.5 to 0.8
0.7 to 1.1
0.7 to 1.1
Unit: mm
P±0.2
1.0
1.5
2.0
3.1
4.7
DIMENSION & PERMISSIBLE RIPPLE CURRENT
V.DC
μF
0.1
0.22
0.33
0.47
1
2.2
3.3
4.7
10
22
33
47
100
220
330
470
Content
0R1
R22
R33
R47
010
2R2
3R3
4R7
100
220
330
470
101
221
331
471
Dimension:
φD
× L(mm)
Ripple Current: mA/rms at 120 Hz,105°C
16V (1C)
φD×L
mA
6.3V (0J)
φD×L
mA
10V (1A)
φD×L
mA
25V (1E)
φD×L
mA
35V (1V)
φD×L
mA
50V (1H)
φD×L
4×5.7
4×5.7
4×5.7
4×5.7
4×5.7
4×5.7
4×5.7
5×5.7
6.3×5.7
8×10
8×10
8×10
10×10
mA
2
3
4
5
10
16
18
22
30
178
178
178
160
4×5.7
5×5.7
5×5.7
6.3×5.7
8×10
8×10
10×10
13
30
36
61
178
178
324
4×5.7
5×5.7
5×5.7
6.3×5.7
8×10
8×10
10×10
10×10
13
30
30
43
178
178
324
324
4×5.7
4×5.7
5×5.7
6.3×5.7
6.3×5.7
8×10
8×10
10×10
10×10
13
16
30
40
50
178
178
324
324
4×5.7
5×5.7
6.3×5.7
6.3×5.7
8×10
8×10
8×10
10×10
13
23
38
48
178
178
240
324
4×5.7
5×5.7
6.3×5.7
8×10
8×10
10×10
10×10
13
25
50
178
178
324
324
