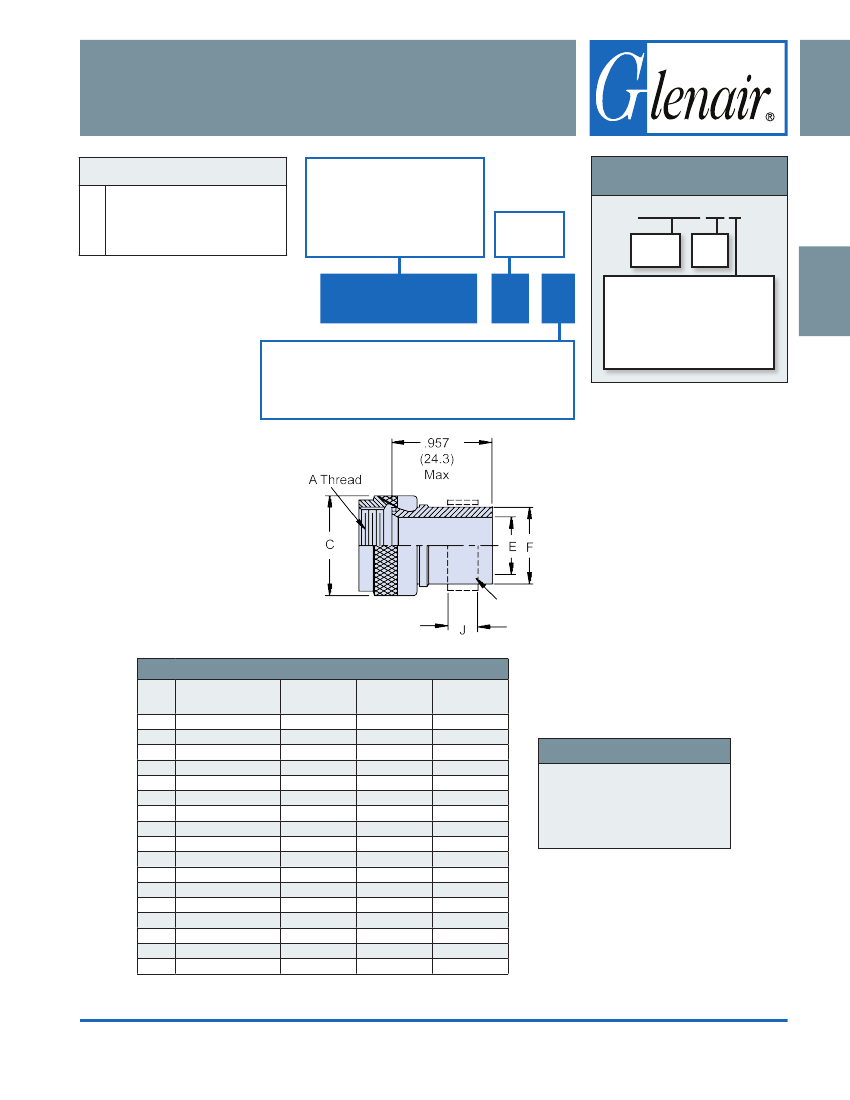

AS85049/26-1 and MS3419

Straight Crimp Ring Backshell and Crimp Ring

CONNECTOR DESIGNATOR:

Superseded

Part Number

Shell Size

(Table II)

AS50151 Series AS34001

MIL-DTL-26482 Series II

AS81703 Series III

MIL-DTL-83723 Series I & III

Basic Part Number

M85049/26-1

= Adapter Only

M85049/26-2

= Crimp Ring Only

M85049/26-3

= Adapter with

Crimp Ring

(See Page B-52 for Crimp Ring)

MS3419-21 C

Basic

Part No.

Shell

Size

M85049/26-1

(Material is Aluminum Only)

Electroless Nickel

= 500 Hr.

Cadmium Olive Drab

over Electroless Nickel

Finish

= Electroless Nickel

= 1,000 Hr. Cadmium Olive Drab over Electroless Nickel

= Aluminum, Nickel Fluorocarbon Polymer

= Aluminum, Zinc-Nickel, Black

M85049/26-2

Crimp Ring (See Page

B-52)

TABLE I: Adapter Shell Size,Thread, and Dimensions

Shell

Size

A Thread

Class 2B

.562 - 24 UNEF

.500 - 20 UNF

.625 - 24 UNEF

.750 - 20 UNEF

.875 - 20 UNEF

1.000 - 20 UNEF

1.062 - 18 UNEF

1.188 - 18 UNEF

1.313 - 18 UNEF

1.438 - 18 UNEF

1.750 - 18 UNS

2.000 - 18 UNS

2.250 - 16 UN

2.500 - 16 UN

2.750 - 16 UN

3.000 - 16 UN

1.500 - 18 UNEF

C Dia

Max

.670

.620

.730

.860

.980

1.110

1.220

1.350

1.470

1.590

1.970

2.220

2.470

2.720

2.970

3.220

1.650

(17.0)

(15.7)

(18.5)

(21.8)

(24.9)

(28.2)

(31.0)

(34.3)

(37.3)

(40.4)

(50.0)

(56.4)

(62.7)

(69.1)

(75.4)

(81.8)

(41.9)

Dia

.250

.325

.420

.540

.670

.789

.914

1.039

1.112

1.389

1.635

1.850

2.065

2.320

2.570

1.210

(6.4)

(8.3)

(10.7)

(13.7)

(17.0)

(20.0)

(23.2)

(26.4)

(28.2)

(35.3)

(41.5)

(47.0)

(52.5)

(58.9)

(65.3)

(30.7)

Dia

.337

.488

.500

.620

.750

.880

1.000

1.120

1.192

1.545

1.795

2.045

2.295

2.545

2.795

1.359

(8.6)

(12.4)

(12.7)

(15.7)

(19.1)

(22.4)

(25.4)

(28.4)

(30.3)

(39.2)

(45.6)

(51.9)

(58.3)

(64.6)

(71.0)

(34.5)

APPLICATION NOTES

For complete dimensions

see the applicable Military

Specification.

Metric dimensions (mm) are in

parentheses.

See Page B-52 for

AS85049/26-2 Crimp Ring

Dimensions in inches (millimeters) and are subject to change without notice.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-51

E-Mail: sales@glenair.com
