1N5400 THRU 1N5408
GENERAL PURPOSE RECTIFIERS
50V-1000V 3.0A
FEATURES :
*
*
*
*
*
Glass passivated chip
High current capability
High reliability
Low reverse current
Low forward voltage drop
GLASS PASSIVATED JUNCTION
SILICON RECTIFIERS
MECHANICAL DATA :

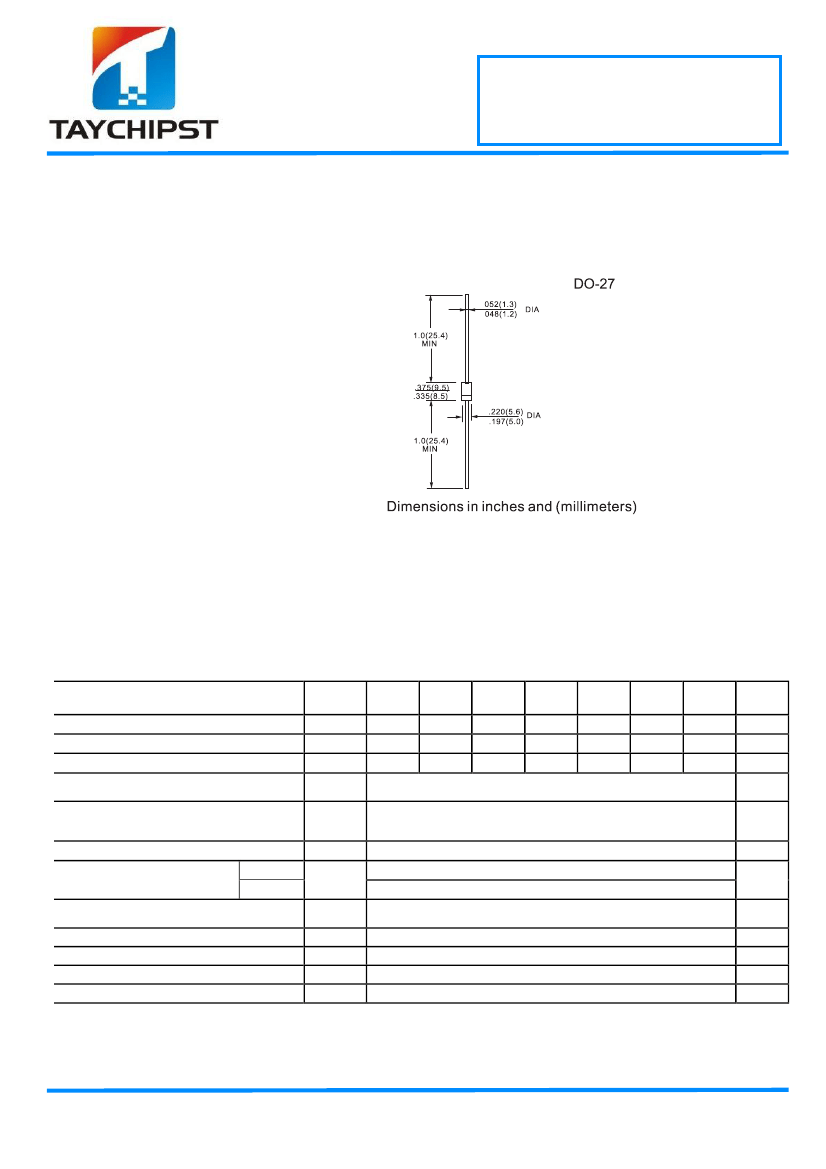

* Case : DO-201AD Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per MIL-STD-202,
Method 208 guaranteed
* Polarity : Color band denotes cathode end
* Mounting position : Any
* Weight : 1.16 grams
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 ambient temperature unless otherwise specified
Single Phase, half wave, 60Hz, resistive or inductive load
For capacitive load derate current by 20%
IN
IN
SYMBOLS
5400G 5401G
Maximum Repetitive Peak Reverse Voltage
V
RRM
50
100
Maximum RMS Voltage
V
RMS
35
70
Maximum DC Blocking Voltage
V
DC
50
100
Maximum Average Forward Rectified Current
0.375 (9.5mm) lead length at T
A
=75
Peak Forward Surge Current
8.3mS single half sine wave superimposed on
rated load (JEDEC method)
Maximum Instantaneous Forward Voltage at 3.0A
Maximum DC Reverse Current
at rated DC blocking Voltage at
T
A
= 25
T
A
= 125
•
•
•
IN
5402G
200
140
200
IN
5404G
400
280
400
3.0
125
1.1
5.0
50
30
IN
5406G
600
420
600
IN
5407G
800
560
800
IN
5408G
1000
700
1000
UNIT
Volts
Volts
Volts
Amp
Amps
Volts
µA
µA
pF
/W
I
(AV)
I
FSM
V
F
I
R
I
R(AV)
C
J
R
θJA
T
J
T
STG
Maximum Full Load Reverse Current, full cycle
Average 0.375(9.5mm) lead length at T
L
=75
Typical Junction Capacitance (NOTE 1)
Typical Thermal Resistance (NOTE 2)
Operating Temperature Range
Storage Temperature Range
40
30
(-55 to +150)
(-55 to +150)
Notes:
1.Measured at 1.0MHz and applied reverse voltage of 4.0 Volits.
2. Thermal Resistance from Junction to Ambient at. 375 (9.5mm)lead length, P.C. board mounted.
E-mail: sales@taychipst.com
1 of 2
Web Site: www.taychipst.com
1N5400 THRU 1N5408
GENNERAL PURPOSE RECTIFIERS
50V-1000V 3.0A

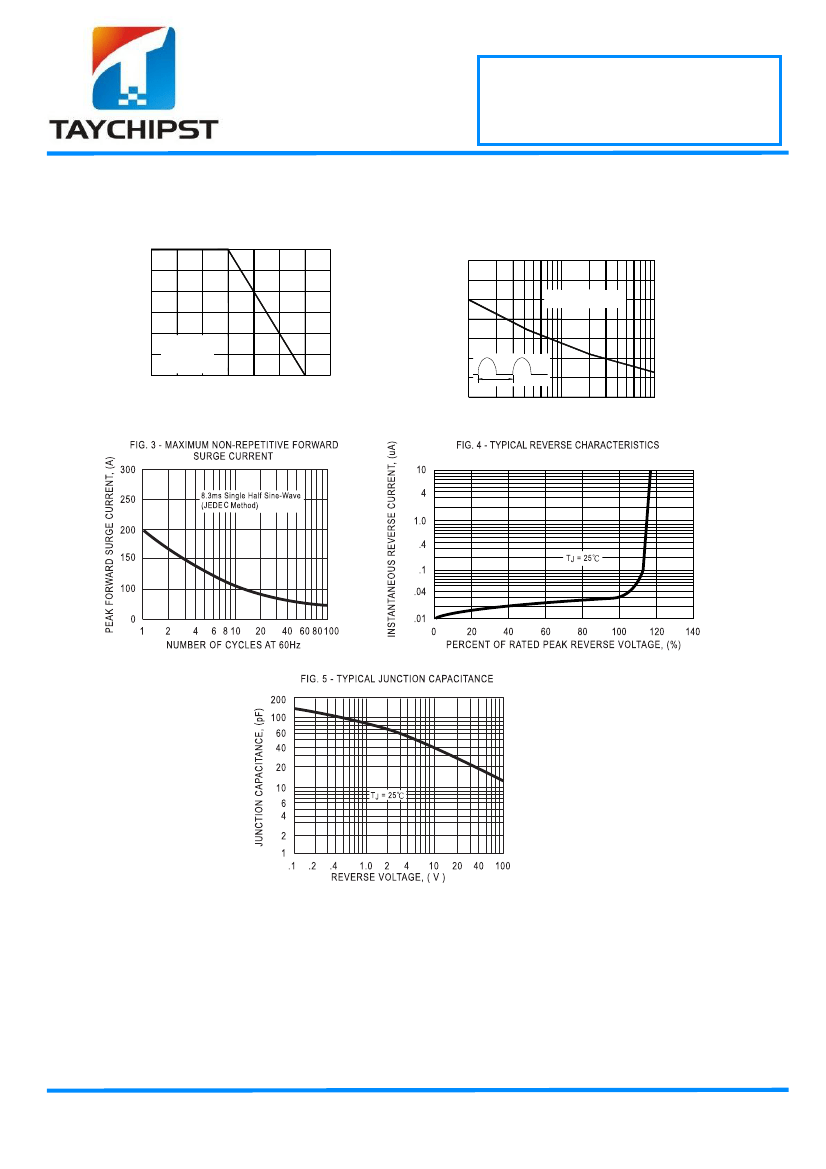

RATING AND CHRACTERISTIC CURVES IN5400
FIG.1-TYPICAL FORWARD CURRENT
DERATING CURVE
3.0
THRU 1N54008
FIG.2-MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
PEAK FORWARD SURGE
AVERAGE FORWARD CURRENT,
150
2.0
CURRENT, (A)
8.3ms Single Half Sine-Wave
(JEDEC Method) T= T
jmax
100
(A)
1.0
Single Phase
Half Wave 60Hz
Resistive or
Inductive Load
0.375″(9.5mm) Lead Length
50
0
0
25
50
75
100
125
150
175
0
1
2
4
6
8
10
20
40
60
100
1 Cycle
AMBIENT TEMPERATURE, ( C)
NUMBER OF CYCLES AT 60 Hz
E-mail: sales@taychipst.com
2 of 2
Web Site: www.taychipst.com
