1N5403 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> 1N5403

1N5403: Description3 A, 300 V, SILICON, RECTIFIER DIODE, DO-201AD; Categorysemiconductor Discrete semiconductor; File Size529KB，2 Pages; ManufacturerChenda; Websitehttp://www.szchenda.com

Download Datasheet Compare View All

1N5403 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1N5403	-	-	View	Buy Now

1N5403 Overview

3 A, 300 V, SILICON, RECTIFIER DIODE, DO-201AD

Preview

Download Datasheet

View All

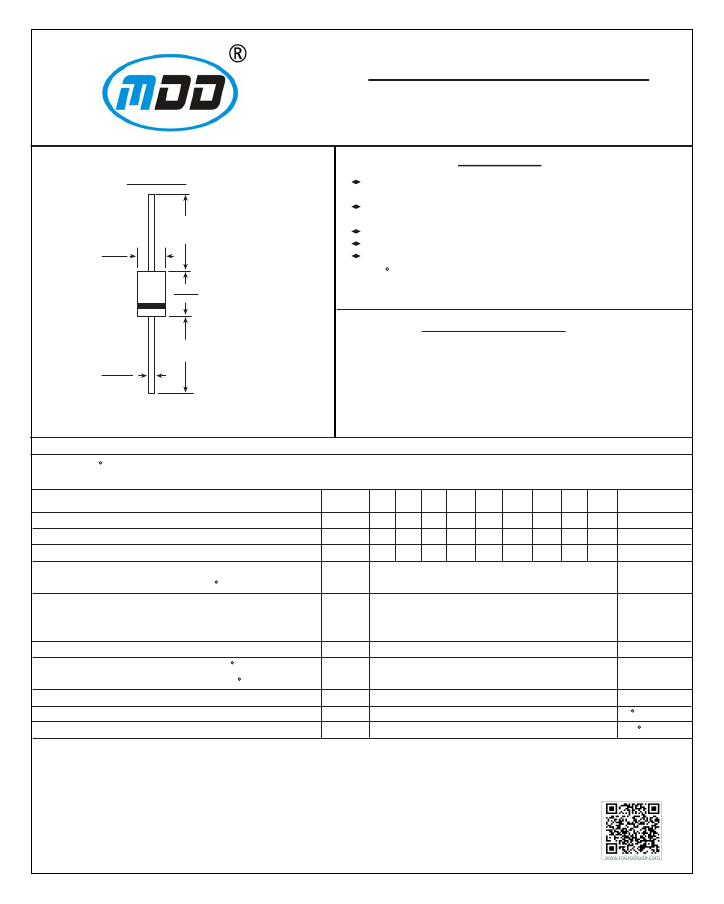

1N5400 THRU 1N5408

GENERAL PURPOSE SILICON RECTIFIER

Reverse Voltage - 50 to 1000 Volts

DO-201AD

Forward Current - 3.0 Amperes

FEATURES

The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

Construction utilizes void-free

molded plastic technique

Low reverse leakage

High forward surge current capability

High temperature soldering guaranteed:

250 C/10 seconds,0.375

”

(9.5mm) lead length,

5 lbs. (2.3kg) tension

1.0 (25.4)

MIN.

0.220 (5.6)

0.197(5.0)

DIA.

0.375(9.5)

0.285(7.2)

MECHANICAL DATA

1.0 (25.4)

MIN.

0.052 (1.3)

0.048 (1.2)

DIA.

Dimensions in inches and (millimeters)

Case:

JEDEC DO-201AD molded plastic body

Terminals:

Plated axial leads, solderable per MIL-STD-750,

Method 2026

Polarity:

Color band denotes cathode end

Mounting Position:

Any

Weight:0.04

ounce, 1.10 grams

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25 C ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

MDD Catalog Number

Maximum repetitive peak reverse voltage

Maximum RMS voltage

Maximum DC blocking voltage

Maximum average forward rectified current

0.375”(9.5mm) lead length at T

=75 C

Peak forward surge current

8.3ms single half sine-wave superimposed on

rated load (JEDEC Method)

Maximum instantaneous forward voltage at 3.0A

Maximum DC reverse current

=25 C

at rated DC blocking voltage

=100 C

Typical junction capacitance (NOTE 1)

Typical thermal resistance (NOTE 2)

Operating junction and storage temperature range

SYMBOLS

1N 1N

5400 5401 5402 5403 5404 5405 5406 5407 5408

UNITS

RRM

RMS

(AV)

100 200 300 400 500

70 140 210 280 350

100 200 300 400 500

3.0

600 800 1000 VOLTS

420 560 700 VOLTS

600 800 1000 VOLTS

Amps

FSM

STG

150

1.2

5.0

100

30.0

20.0

-65 to +175

Amps

Volts

C/W

Note:1.Measured

at 1MHz and applied reverse voltage of 4.0V D.C.

2.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted

1N5403 Related Products

	1N5403	1N5400	1N5401	1N5402	1N5404	1N5405	1N5406	1N5407	1N5408
Description	3 A, 300 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 50 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 100 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 200 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 400 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 500 V, SILICON, RECTIFIER DIODE, DO-201AD	3 A, 600 V, SILICON, RECTIFIER DIODE	3 A, SILICON, RECTIFIER DIODE, DO-201AD	RECTIFIER DIODE,1KV V(RRM),DO-204AE
Number of terminals	-	2	2	2	2	-	2	-	-
Number of components	-	1	1	1	1	-	1	-	-
Processing package description	-	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	GREEN, PLASTIC PACKAGE-2	-	LEAD FREE, PLASTIC, CASE 267-05, 2 PIN	-	-
state	-	ACTIVE	ACTIVE	DISCONTINUED	ACTIVE	-	DISCONTINUED	-	CONSULT MFR
packaging shape	-	round	round	round	round	-	round	-	-
Package Size	-	LONG FORM	LONG FORM	LONG FORM	LONG FORM	-	LONG FORM	-	-
Terminal form	-	Wire	Wire	Wire	Wire	-	Wire	-	-
terminal coating	-	MATTE Tin	tin	tin lead	PURE Tin	-	MATTE Tin	-	-
Terminal location	-	AXIAL	AXIAL	AXIAL	AXIAL	-	AXIAL	-	-
Packaging Materials	-	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy	-	Plastic/Epoxy	-	-
structure	-	single	single	single	single	-	single	-	-
Shell connection	-	isolation	isolation	isolation	isolation	-	isolation	-	-
Diode component materials	-	silicon	silicon	silicon	silicon	-	silicon	-	-
Diode type	-	rectifier diode	rectifier diode	rectifier diode	rectifier diode	-	rectifier diode	-	rectifier diode
application	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	EFFICIENCY	-	GENERAL PURPOSE	-	-
Phase	-	1	1	1	1	-	1	-	-
Maximum repetitive peak reverse voltage	-	50 V	100 V	200 V	400 V	-	600 V	-	-
Maximum average forward current	-	3 A	3 A	3 A	3 A	-	3 A	-	-
Maximum non-repetitive peak forward current	-	200 A	200 A	200 A	200 A	-	200 A	-	-
