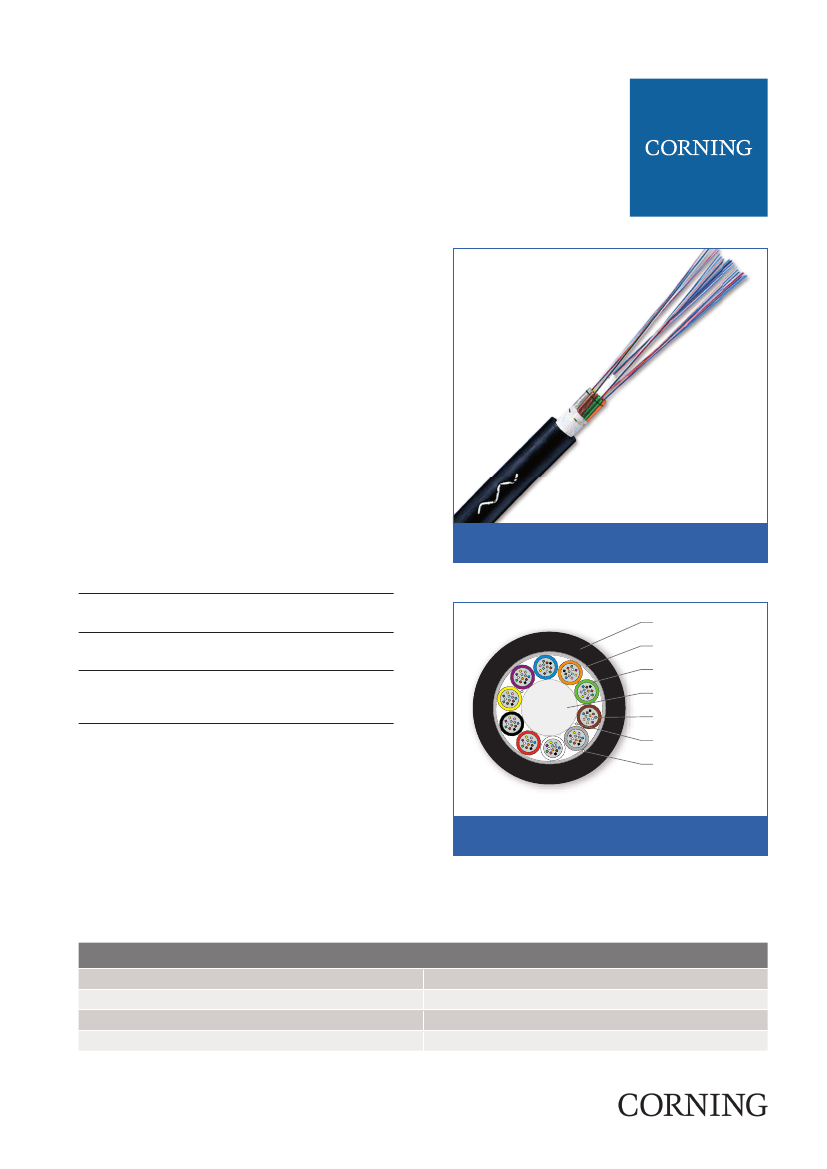

ALTOS
®
Loose Tube Outdoor Cable
10x12 G50 MMF ClearCurve
®
OM2 LT 2.3
Corning stranded loose tube cables are designed for out-
door use for campus, city and intercity backbones in duct
installations.
The loose-tube cable construction, by isolating the fibers
from installations and environmental rigors, provides
stable and highly reliable transmission parameters. The
buffer tubes and fibers in each tube are color-coded for
quick and easy identification.
The SZ-stranded construction further reduces installation
and environmental influences on the transmission param-
eters and allows mid-span access.
These cables are designed for installation in conduits,
ducts and on cable racks.
Features and Benefits
All-dielectric cable construction
Requires no grounding or bonding
UV and microbe resistant
Can be installed in ducts or conduits
Waterblocking technology
OSP (outdoor) applications
Fibres/buffer tubes colour coding to Telcordia-
Bellcore
Easy identification of the individual tubes and fibres
Dry cable core by means of water swellable elements
Allows efficient and craft-friendly cable preparation in
outdoor or indoor/outdoor applications
Part Number: 120TR4-T3138A20
LLDPE jacket,
black
Swellable
elements
Buffer tube, gel-filled
with 12 fibres
Dielectric central
member
Fibre,
250 µm
Swellable
elements
Ripcord
Standards
Waterblocking
IEC 60794-1-2 F5
Cross Section of Order Number: 120TR4-T3138A20
Specifications
General Specifications
Environment
Application
Cable Type
Product Type
Outdoor
Duct
Loose Tube
Dielectric
Product Specification 120TR4-T3138A20_EMEA_BEN
Page 1 | Revision date 2014-04-18
ALTOS
®
Loose Tube Outdoor Cable
10x12 G50 MMF ClearCurve
®
OM2 LT 2.3
Specifications
General Specifications
Fibre Category
Coding according to EN 60794-1-1 (DIN VDE 0888-100-1)
Previous Part Number
Previous coding following DIN VDE 0888-3
50 µm MM (OM2)
A-DQ(ZN)2Y
FWLT01-S0120-G001
A-DQ(ZN)2Y
Temperature Range
Installation and Assembly
Operation
Storage
-5 °C to 50 °C
-30 °C to 70 °C
-40 °C to 70 °C
Cable Design
Central Element
Central Element Diameter
Fibre Count
Fibre colouring
Fibres per Tube
Number of Tube Positions
Number of Active Tubes
Buffer tube colour coding
Buffer tube diameter
Tape
Number of Ripcords
Outer Jacket Material
Outer Jacket Colour
Outer Jacket Nominal Thickness
Cable Marking
Dielectric (Glass Reinforced Plastic) with Polyethylene coating
5.4 mm
120
Blue, orange, green, brown, grey, white, red, black, yellow,
violet, pink, turquoise
12
10
10
Blue, orange, green, brown, grey, white, red, black, yellow,
violet
2.25 mm
Water-swellable
1
Linear Low Density Polyethylene (LLDPE)
Black
1.5 mm
Meter Handset Sine CORNING Year
ALTOS<mt:sup>®</mt:sup> A-DQ(ZN)2Y 120 OM2CC
LT 2.3 Metre - Handset - Double Sine - CORNING - Year -
A-DQ(ZN)2Y 10x12G50/125 PRETIUM 150 ULTRA-BEND 7.5
Product Specification 120TR4-T3138A20_EMEA_BEN
Page 2 | Revision date 2014-04-18
ALTOS
®
Loose Tube Outdoor Cable
10x12 G50 MMF ClearCurve
®
OM2 LT 2.3
Mechanical Characteristics Cable
Nominal Outer Diameter
Weight
Min. Bend Radius Installation
Min. Bend Radius Operation
Max. Tensile Strength for Installation
Crush Resistance (reversible)
13.4 mm
131 kg/km
235 mm
200 mm
2700 N
2000 N/10cm
Chemical characteristics
RoHS
Free of hazardous substances according to RoHS 2002/95/
EG
Fibre Specifications
Optical Characteristics (cabled)
Fibre Name
Fibre Core Diameter
Fibre Category
Fibre Code
Wavelengths
Maximum Attenuation
Typical attenuation
Serial 1 Gigabit Ethernet
Serial 10 Gigabit Ethernet
Min. Overfilled Launch (OFL) Bandwidth
Minimum Effective Modal Bandwidth (EMB)
Induced attenuation @ 7.5 mm radius
Notes:
G50/125 ULTRA-BEND 7.5
50 µm
OM2
G
850 nm / 1300 nm
2.8 dB/km / 1.0 dB/km
2.4 dB/km / 0.8 dB/km
750 m / 600 m
150 m / -
700 MHz*km / 500 MHz*km
950 MHz*km / -
< 0.2 dB / -
1)
50 μm multimode fibre macrobend loss ≤ 0.2 dB at 850 nm for two turns around 7.5 mm radius mandrel
2)
Improved attenuation and bandwidth options available
3)
Bend-insensitive single-mode fibres available on request
4)
Contact a Corning Customer Care Representative for additional information
Product Specification 120TR4-T3138A20_EMEA_BEN
Page 3 | Revision date 2014-04-18
ALTOS
®
Loose Tube Outdoor Cable
10x12 G50 MMF ClearCurve
®
OM2 LT 2.3
Ordering Information
Part Number
Product Description
120TR4-T3138A20
ALTOS
®
Loose Tube Outdoor Cable 10x12 G50 MMF
ClearCurve
®
OM2 LT 2.3
Shipping Information
Maximum Delivery Length
4,000 m
Corning Optical Communications GmbH & Co. KG · Leipziger Strasse 121 · 10117 Berlin, GERMANY
00 800 2676 4641 · FAX: +49 30 5303 2335 · www.corning.com/opcomm/emea
A complete listing of the trademarks of Corning Optical Communications is available at www.corning.com/opcomm/emea/trade-
marks. Corning Optical Communications is ISO 9001 and ISO 14001 certified. © 2014 Corning Optical Communications. All
rights reserved.
