EEVFC1J471N

Description
CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 63V, 470uF, SURFACE MOUNT, CAN
CategoryPassive components    capacitor
File Size249KB，5 Pages
ManufacturerPanasonic
Websitehttp://www.panasonic.co.jp/semicon/e-index.html
Download Datasheet Parametric View All

EEVFC1J471N Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 63V, 470uF, SURFACE MOUNT, CAN

EEVFC1J471N Parametric

Parameter NameAttribute value
package instruction, 7875
Reach Compliance Codeunknown
ECCN codeEAR99
capacitance470 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
dielectric materialsALUMINUM (WET)
ESR55 mΩ
high21.5 mm
leakage current0.296 mA
length19.7 mm
Manufacturer's serial numberFC
Installation featuresSURFACE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
Package shapeCYLINDRICAL PACKAGE
Package formSMT
method of packingTAPE
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)63 V
ripple current2290 mA
seriesEEVFC(63 VOLT)
size code7875
surface mountYES
Delta tangent0.80
Terminal shapeFLAT
width19 mm

Preview

Download Datasheet

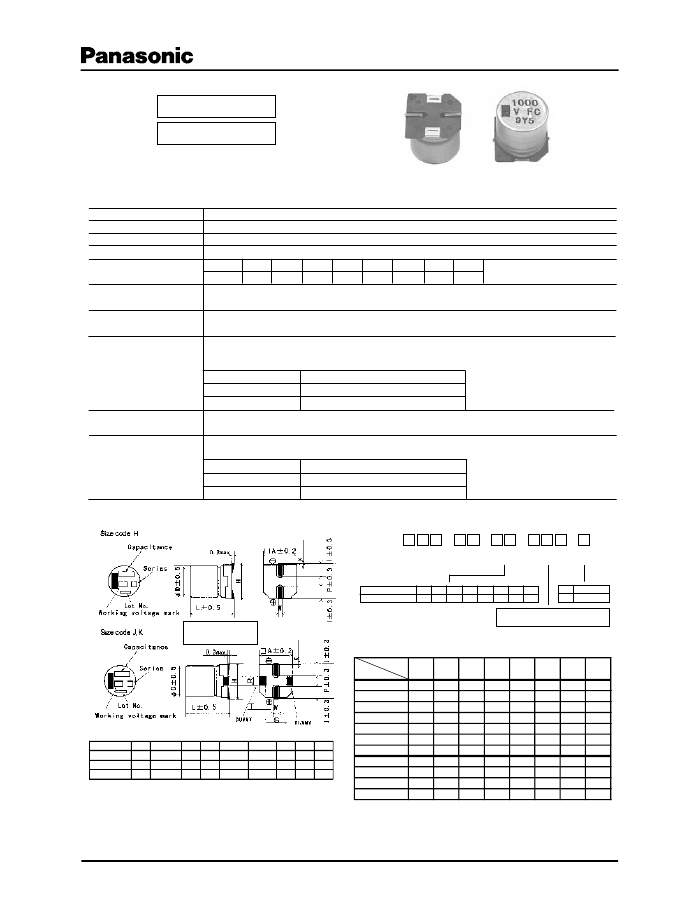

Aluminum Electrolytic Capacitors/FC Large
Surface Mount Type
Large Can Size
Series :
FC
Low Impedance
I
Features
G
Case size:
G
Life time:
•12.5x16.5
to
•18x21.5
5000 hours at 105
o
C
I
Specifications
Operating Temp. Range
Rated W.V. Range
Nominal Cap. Range
Capacitance Tolerance
Dissipation Factor
(at 120Hz, 20
o
C)
DC Leakage Current
Impedance (t) at
100kHz
-40 to +105
o
C
6.3 to 100 V .DC
47 to 6800¨F
±20 % (120Hz/+20
o
C)
W.V.
6.3
10
16
25
35
50
63
100
add 0.02 per 1000¨F for values
D.F.
0.22 0.19 0.16 0.14 0.12 0.10 0.08 0.07
greater than 1000¨F
I
Y
0.01CV or 3(¨A) after application of rated working voltage for 2 minutes at +20
o
C (whichever
is greater).
Refer to Standard Products table.
After applying DC voltage + specified ripple current (the sum of DC and ripple peak voltage
should not exceed rated working voltage) for 5000 hours at +105±2
o
C and then being
stabilized at +20
o
C, capacitors shall meet the following limits.
Capacitance change ±20% of the initial measured value
D.F.
Y
200% of the initial specified value
DC leakage current
Y
initial specified value
After storage for 1000 hours at +105±2
o
C with no voltage applied and then being stabilized at
+20
o
C, capacitors shall meet the limits specified in “Endurance”. (With voltage treatment)
After reflow soldering (refer to Application Guidelines) and then being stabilized at +20
o
C,
capacitor shall meet the following limits.
Capacitance change ±10% of the initial measured value
D.F.
Y
initial specified value
DC leakage current
Y
initial specified value
Endurance
Shelf Life
Resistance to Soldering
Heat
I
Marking
I
Dimensions in mm (not to scale)
I
Part Numbering System
E E V
Product
code
F C
Series
code
R.W. voltage
code
Capacitance
code
Taping
code
R.W voltage code
R.W. voltage (V)
0J
6.3
1A
10
1C
16
1E
25
1V
35
1H
50
1J
63
2A
100
Q
N
W=32mm
W=44mm
[dia D[16]
Products with two terminals
are available upon request.
The first 2 figures are actual values
and third denotes the number of zeros.
I
Standard Products
W.V.
Cap.(
¨
F)
47
68
100
220
330
470
1000
2200
3300
4700
6800
6.3
(0J)
10
(1A)
16
(1C)
25
(1E)
35
(1V)
50
(1H)
63
(1J)
H16
H16
J16
K16
K21
100
(2A)
H16
H16
J16
K16
K21
(mm)
Case size
•D
•12.5
•16
•18
A
13.5
17.0
19.0
H
15.0 MAX
19.0 MAX
21.0 MAX
I
4.7
5.5
6.5
P
4.4
6.7
6.7
W
0.9±0.3
1.2±0.3
1.2±0.3
K
0.7±0.3
0.7±0.3
0.7±0.3
R
4.5
5.0
5.0
S
9.5
12.0
14.0
T
3.6
2.5
3.5
Case Size Code
H16 =
•12.5x16.5L
K16 =
•18x16.5L
J16 =
•16x16.5L
K21 =
•18x21.5L
J16
K16
K21
K21
H16
J16
K16
K21
K21
J16
K16
K21
H16
K16
K21
H16
J16
K16
K21
H16
J16
K16
K21
