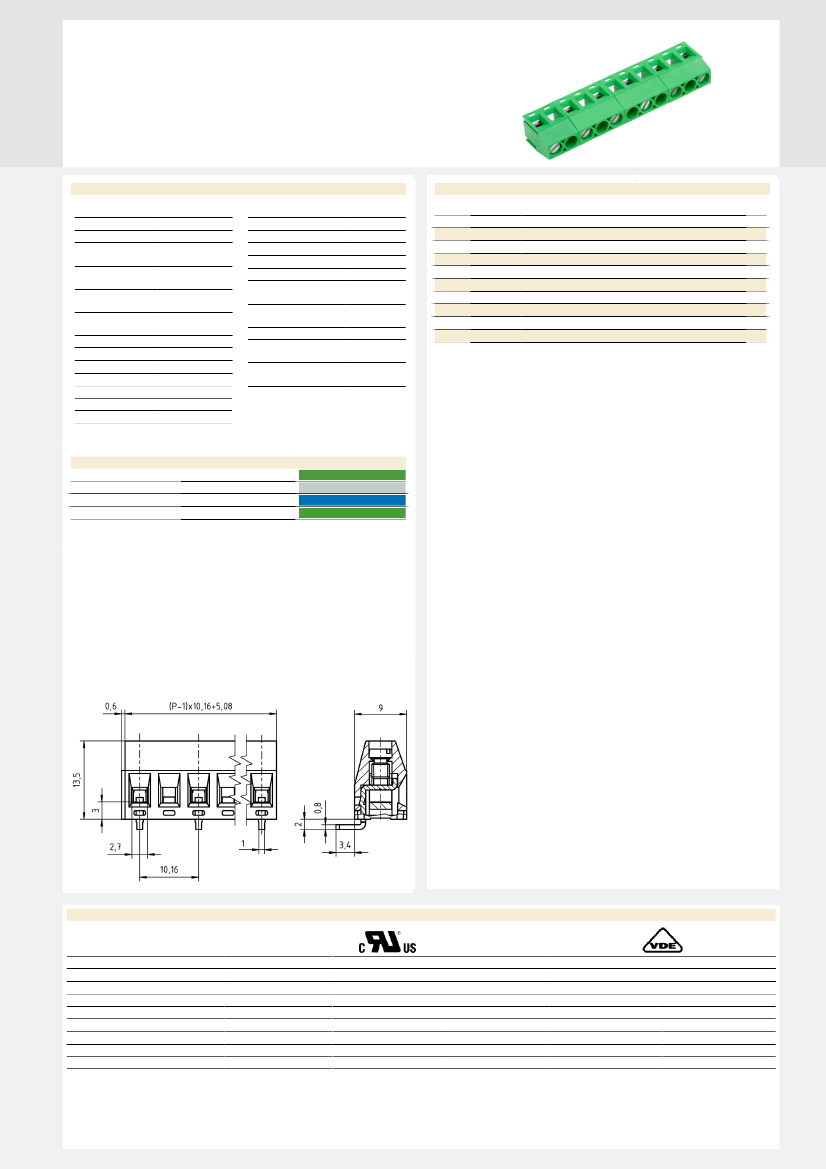

PDF
Preview

50350040221E

Description
Barrier Strip Terminal Block
CategoryThe connector
File Size267KB，1 Pages
ManufacturerAPEM
Download Datasheet Parametric Compare View All

50350040221E Overview

Barrier Strip Terminal Block

50350040221E Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
ECCN codeEAR99
Manufacturer's serial number50350
Terminal and terminal strip typesBARRIER STRIP TERMINAL BLOCK

Preview

Download Datasheet
Lift |
Spacing 10.16 mm
AKZ350/..-10.16-H-GREEN
Technical Data
Wire Sizes
Solid min
solid max
Stranded (flexible)
min
Stranded (flexible)
max
0.14 mm²
2.5 mm²
0.14 mm²
1.5 mm²
Insulating Material
Material
Flammability Class
Temperatures
Operating Temperature
Wave Soldering Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
Reflow Process
Soldering Temperature,
recommended
Peak Soldering Time,
recommended
Leere Zeile
-
-
265 °C
3-4 s
-30 °C - 105 °C
PA 6.6
UL 94 V-0
Order Data (Spacing mm)
Poles
2
3
4
5
6
7
8
9
10
11
12
Width (mm)
15.84
26.00
36.16
46.32
56.48
66.64
76.80
86.96
97.12
107.28
117.44
Article Designation
AKZ350/2-10.16-H-GREEN
AKZ350/3-10.16-H-GREEN
AKZ350/4-10.16-H-GREEN
AKZ350/5-10.16-H-GREEN
AKZ350/6-10.16-H-GREEN
AKZ350/7-10.16-H-GREEN
AKZ350/8-10.16-H-GREEN
AKZ350/9-10.16-H-GREEN
AKZ350/10-10.16-H-GREEN
AKZ350/11-10.16-H-GREEN
AKZ350/12-10.16-H-GREEN
Article Number
50350020221F
50350030221F
50350040221E
50350050221E
50350060221D
50350070221D
50350080221D
50350090221D
50350100221D
50350110221D
50350120221D
PU
200
200
100
100
50
50
50
50
50
50
50
Stranded with Ferrule 0.25 mm²
min
Stranded with Ferrule 1.5 mm²
max
Dimensions
Stripped Length
PCB Hole Diameter
Materials
Clamp
Screw
Solder Tag
Brass
Steel
Copper Alloy
6.0 mm
1.3 mm
Colours
GREEN
LIGHT GREY
BLUE
LIGHT GREEN
RAL6018
RAL7035
RAL5015
similar RAL 6018
RAL6018
RAL7035
RAL5015
similar RAL 6018
Colours according to RAL, there may be variations on colour due to production conditions.
Special colours on request.
Ratings
Usegroup
Rated Voltage
Rated Current
Rated Wire Size
solid
stranded
Torque
Screw Size
Test Voltage
B
300 V
16 A
AWG 22-12
AWG 22-12
0.45 Nm
M3
1.6 kV
C
150 V
16 A
AWG 22-12
AWG 22-12
0.45 Nm
M3
1.6 kV
D
300 V
10 A
AWG 22-12
AWG 22-12
0.45 Nm
M3
1.6 kV
min
0.5 mm²
0.5 mm²
1000 V
24 A
max
2.5 mm²
1.5 mm²
0.50 Nm
M3
3.5 kV
