DTS-32N-Q-T/R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> DTS-32N-Q-T/R

DTS-32N-Q-T/R: DescriptionSpecial Switch, 0.5A, 12VDC, Solder Terminal, Through Hole-straight; CategoryMechanical and electronic products switch; File Size2MB，2 Pages; ManufacturerAPEM

Download Datasheet Parametric View All

DTS-32N-Q-T/R Overview

Special Switch, 0.5A, 12VDC, Solder Terminal, Through Hole-straight

DTS-32N-Q-T/R Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator color	BROWN
Actuator length	0.059 inch
Actuator type	PUSHBUTTON
body width	3.5052 mm
body height	3.5052 mm
Body length or diameter	5.9944 mm
Maximum contact current (DC)	0.5 A
Contact (DC) maximum rated R load	0.5A@12VDC
Maximum contact voltage (DC)	12 V
Electrical life	50000 Cycle(s)
Manufacturer's serial number	DTS
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
surface mount	NO
Terminal length	0.138 inch
Termination type	SOLDER

Preview

Download Datasheet

View All

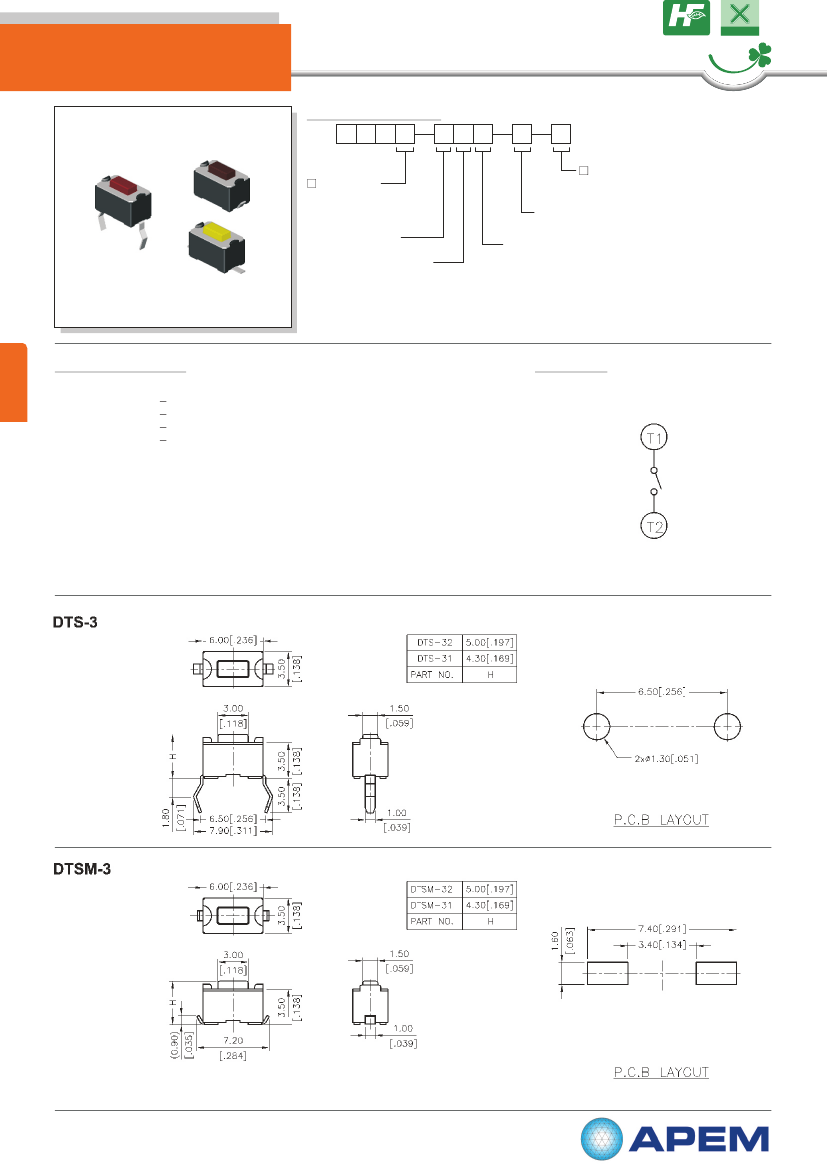

DTS-3,DTSM(L)-3

SERIES

3.5x6 Through Hole & SMT Type

Tactile Switch

HOW TO ORDER

Halogen Free

LEAD FREE

RoHS

Compliant

:Through Hole

M:S.M.T/J-bend outward

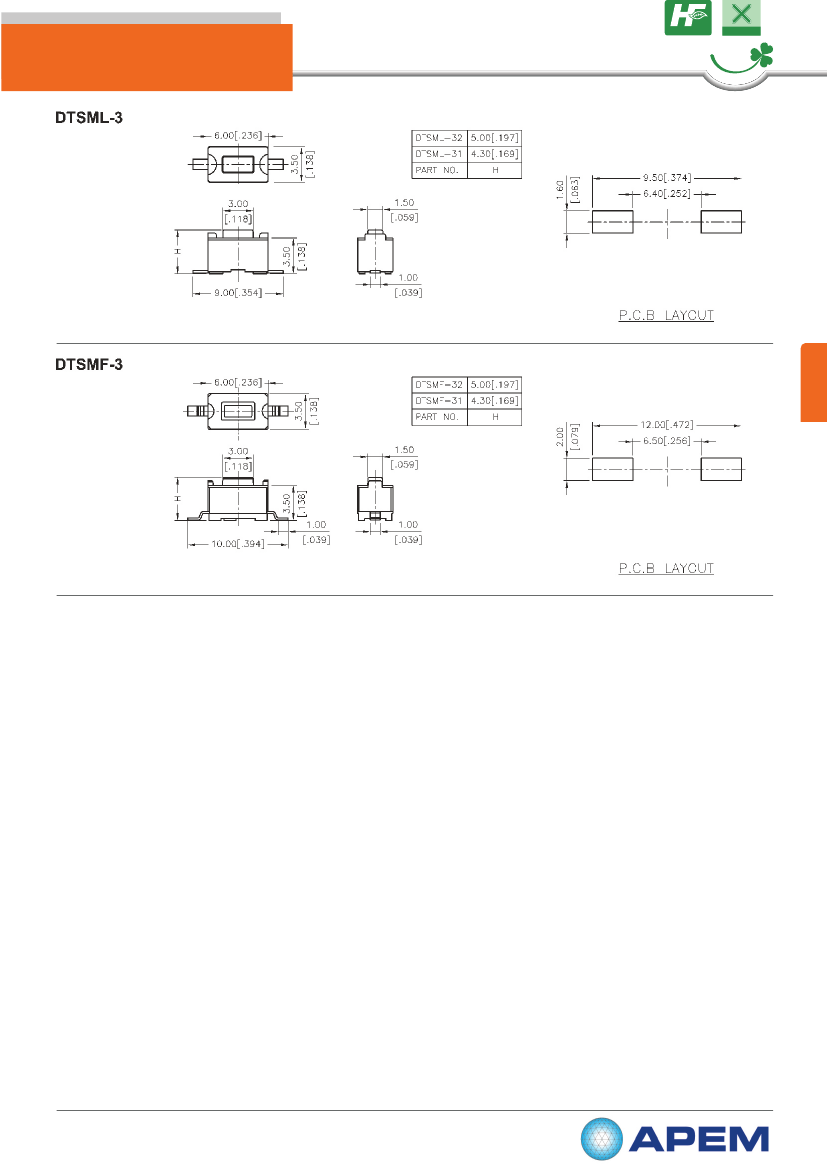

ML:S.M.T/Flat

MF:S.M.T/Gull-wing

3.5x6mm

Dimension H:

1=4.3mm

2=5.0mm

=Bag(Through Hole Only)

B=Tube Package

T/R=Tape & Reel

Q=Halogen Free

Operating Force:

N=Brown, 160gf

R=Red, 260gf

S=Salmon, 320gf

Y=Yellow, 520gf >Not Available For Halogen Free

SPECIFICATION

MECHANICAL

Operation Force: 520+130gf Yellow(Y)

320+80gf Salmon(S)

260+50gf Red(R)

160+50gf Brown(N)

Stroke: 0.25+0.2/-0.1mm

ENVIRONMENTAL

Operation Temperature Range: -25C to +70C

Storage Temperature Range: -30C to +80C

ELECTRICAL

Electrical Life:

50,000 cycles for 160gf

30,000 cycles for 260gf, 320gf, 520gf

Rating: 50mA, 12VDC

PACKAGE

Tube: 135 pcs/tube

DTSM(L)-31: 1800 pcs/reel

DTSM(L)-32: 1600 pcs/reel

Bulk: 1000 pcs/bag

CIRCUIT

TACT SWITCH

www.dip.com.tw
