DTSP-24S-V datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> DTSP-24S-V

Preview

DTSP-24S-V: DescriptionSpecial Switch, 0.5A, 12VDC, Solder Terminal, Through Hole-straight; CategoryMechanical and electronic products switch; File Size3MB，2 Pages; ManufacturerAPEM

Download Datasheet Parametric View All

DTSP-24S-V Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DTSP-24S-V	-	-	View	Buy Now

DTSP-24S-V Overview

Special Switch, 0.5A, 12VDC, Solder Terminal, Through Hole-straight

DTSP-24S-V Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator color	SALMON
Actuator length	0.118 inch
Actuator type	PUSHBUTTON
body width	12.0142 mm
body height	3.5052 mm
Body length or diameter	12.0142 mm
Maximum contact current (DC)	0.5 A
Contact (DC) maximum rated R load	0.5A@12VDC
Maximum contact voltage (DC)	12 V
Electrical life	100000 Cycle(s)
Manufacturer's serial number	DTS(A)-2
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
surface mount	NO
Terminal length	0.138 inch
Termination type	SOLDER

Preview

Download Datasheet

View All

DTS(A)-2 SERIES

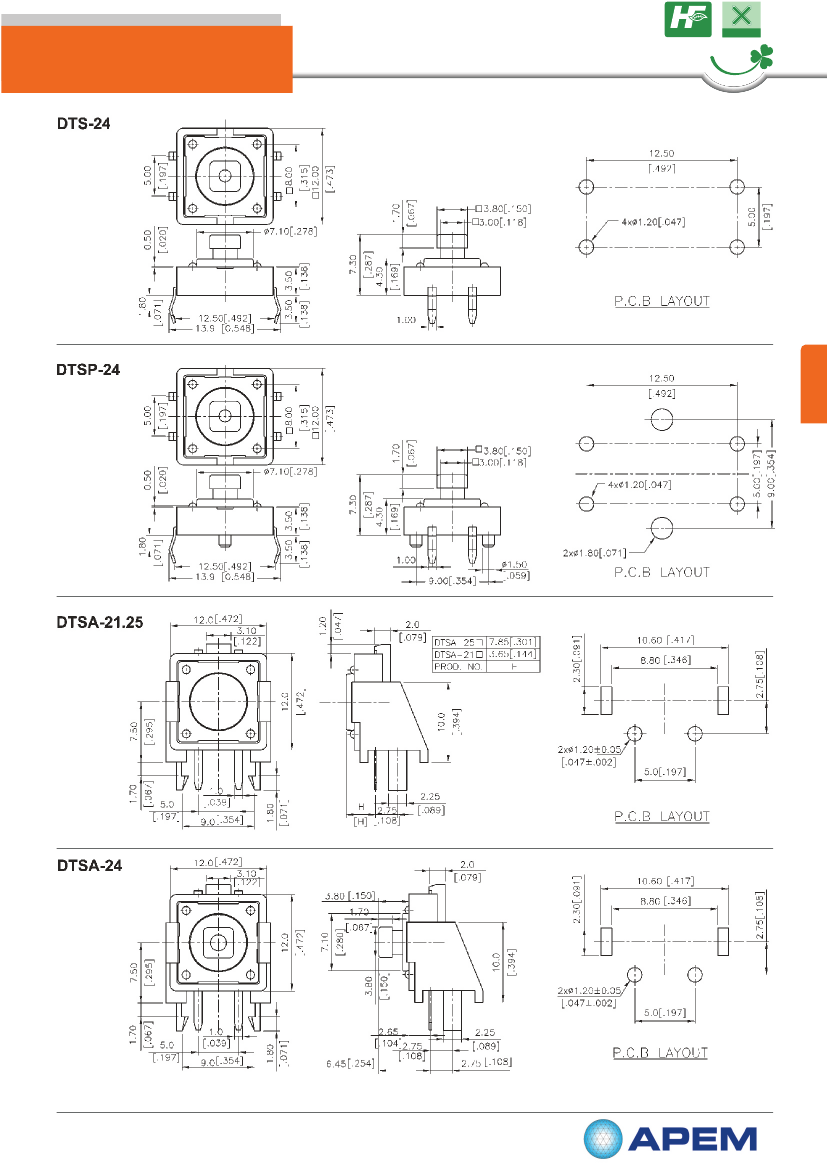

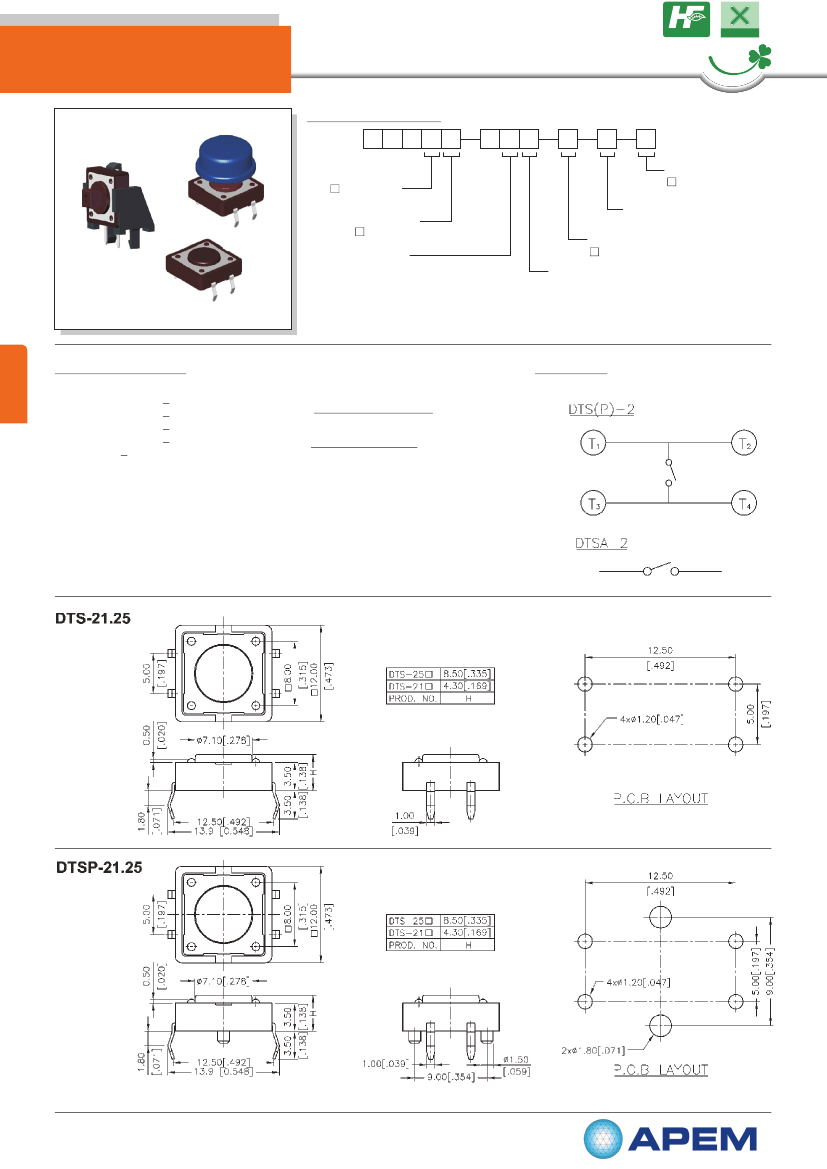

12x12

Through Hole & Right Angle Type

HOW TO ORDER

D

T

S

2

Halogen Free

LEAD FREE

Pb

RoHS

Compliant

=Without Post

P=With Post

A=Right Angle

=Through Hole

Dimension H:

*Please Refer To Drawing Below.

Package:

= Bulk pack

B = Tube

V=RoHS & Lead Free Solderable

Q=Halogen Free

S=Stainless Steel Dome (only for N, R)

=Phosphor Bronze Dome

Operating Force :

N=Brown, 160gf

R=Red, 260gf

S=Salmon, 320gf

Y=Yellow, 520gf >Not Available For Halogen Free

SPECIFICATION

MECHANICAL

Operation Force: 520 + 130gf Yellow(Y)

320 + 80gf Salmon(S)

260 + 50gf Red(R)

160 + 50gf Brown(N)

Stroke : 0.35 + 0.1mm

ENVIRONMENTAL

o

Operation Temperature Range : -25C to +70C

o

Storage Temperature Range : -30C to +80C

ELECTRICAL

Electrical Life:

*Phosphor Bronze Dome

100,000 cycles for 520gf, 320gf, 260gf

200,000 cycles for 160gf

*Stainless Steel Dome

300,000 cycles for 520gf, 320gf

500,000 cycles for 260gf

1,000,000 cycles for 100gf, 160gf

Rating: 50mA , 12VDC

PACKAGE

DTS-2: 500 pcs/bag

DTS-2: 40 pcs/tube

DTSA-2: 250 pcs/bag

CIRCUIT

TACT SWITCH

47

www.dip.com.tw
