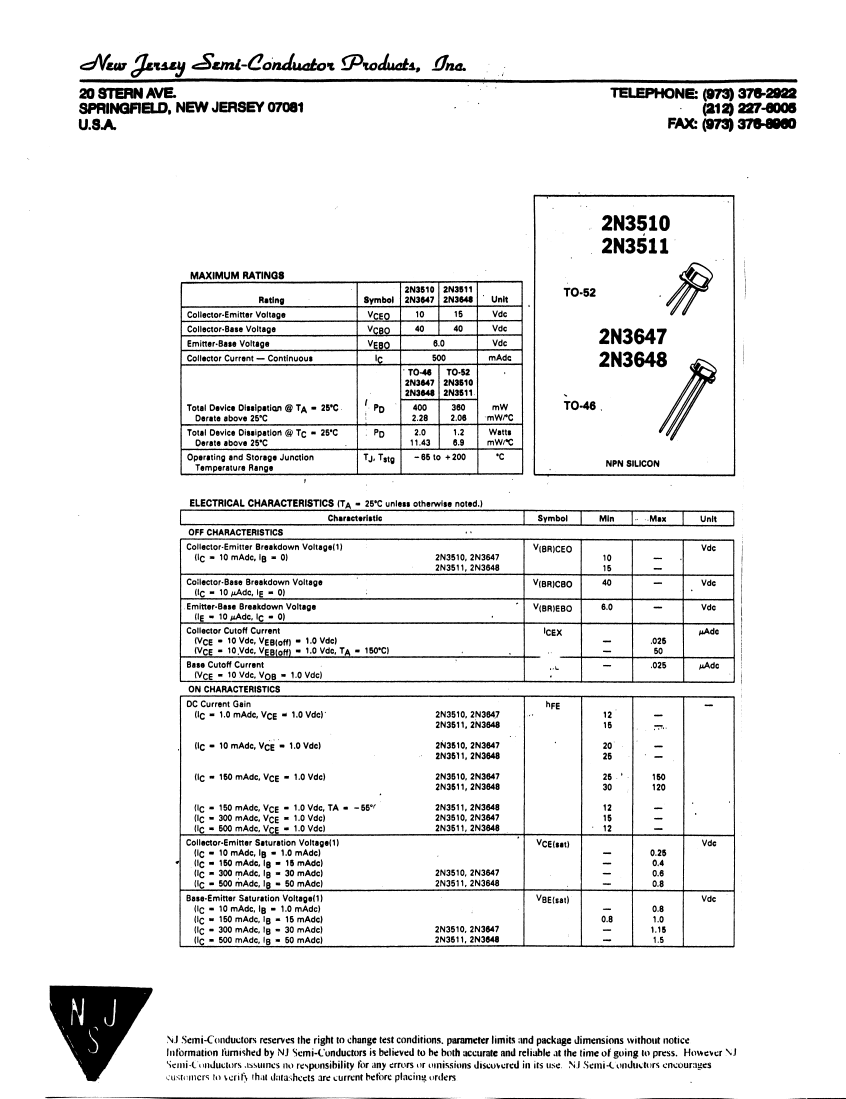

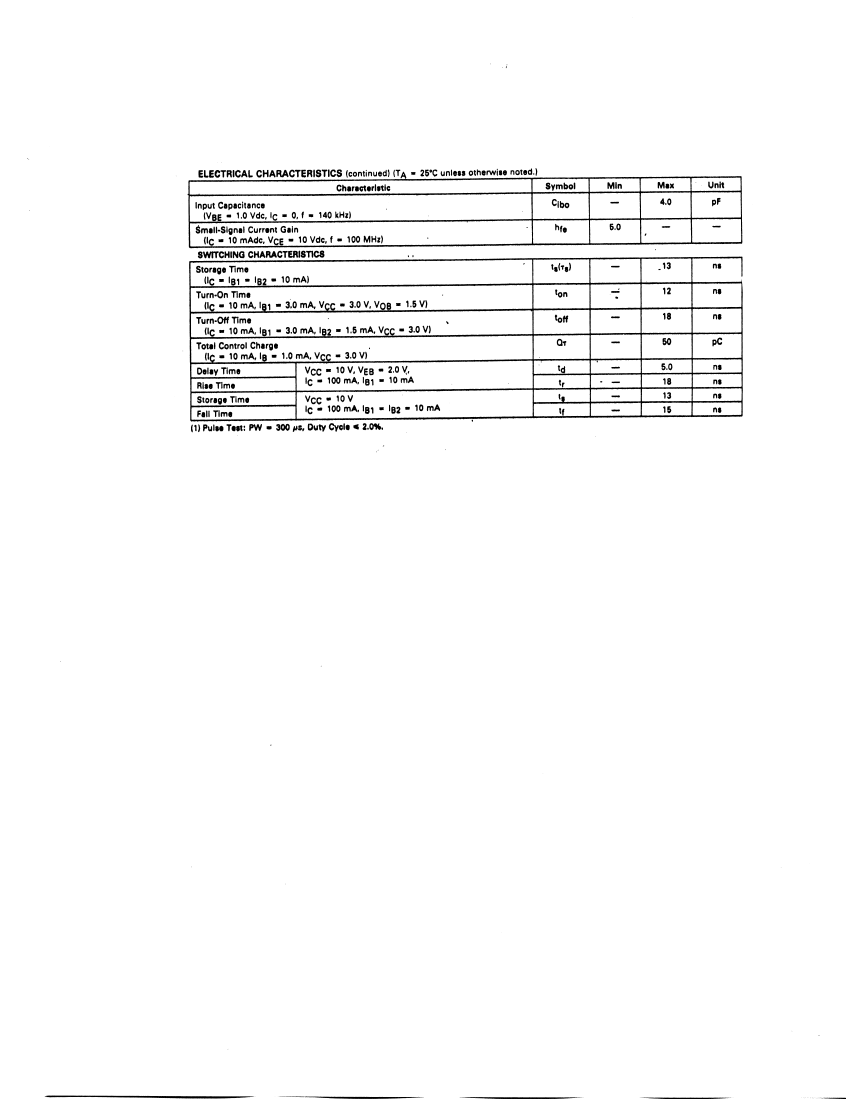

2N3648 datasheet, PDF - EEWORLD Datasheet

2N3648: DescriptionSPRINGFIELD, NEW JERSEY 07081; CategoryDiscrete semiconductor The transistor; File Size184KB，2 Pages; ManufacturerNew Jersey Semiconductor; Websitehttp://www.njsemi.com

Download Datasheet Parametric Compare View All

2N3648 Overview

SPRINGFIELD, NEW JERSEY 07081

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	CYLINDRICAL, O-MBCY-W3
Reach Compliance Code	unknow
Maximum collector current (IC)	0.5 A
Collector-emitter maximum voltage	30 V
Configuration	SINGLE
JESD-30 code	O-MBCY-W3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	NPN
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Transistor component materials	SILICON
Nominal transition frequency (fT)	250 MHz
Base Number Matches	1

	2N3648	2N3510	2N3511	2N3647
Description	SPRINGFIELD, NEW JERSEY 07081	SPRINGFIELD, NEW JERSEY 07081	SPRINGFIELD, NEW JERSEY 07081	SPRINGFIELD, NEW JERSEY 07081
Reach Compliance Code	unknow	unknow	unknow	unknow
Base Number Matches	1	1	1	1
package instruction	CYLINDRICAL, O-MBCY-W3	-	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3
Collector-emitter maximum voltage	30 V	-	150 V	30 V
Configuration	SINGLE	-	SINGLE	SINGLE
JESD-30 code	O-MBCY-W3	-	O-MBCY-W3	O-MBCY-W3
Number of components	1	-	1	1
Number of terminals	3	-	3	3
Package body material	METAL	-	METAL	METAL
Package shape	ROUND	-	ROUND	ROUND
Package form	CYLINDRICAL	-	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	NPN	-	NPN	NPN
Terminal form	WIRE	-	WIRE	WIRE
Terminal location	BOTTOM	-	BOTTOM	BOTTOM
Transistor component materials	SILICON	-	SILICON	SILICON
Nominal transition frequency (fT)	250 MHz	-	150 MHz	250 MHz
