AWHW2-50A-0202-T-R datasheet, PDF

Datasheet> All Categories > The connector> The connector> AWHW2-50A-0202-T-R

AWHW2-50A-0202-T-R: DescriptionBoard Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size61KB，1 Pages; ManufacturerASSMANN; Websitehttps://www.assmann.com/en/about-assmann/

Download Datasheet Parametric View All

AWHW2-50A-0202-T-R Overview

Board Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Receptacle,

AWHW2-50A-0202-T-R Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.213 inch
subject depth	0.348 inch
body length	2.256 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
insulator material	POLYESTER
Manufacturer's serial number	AWHW
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	50

Preview

Download Datasheet

View All

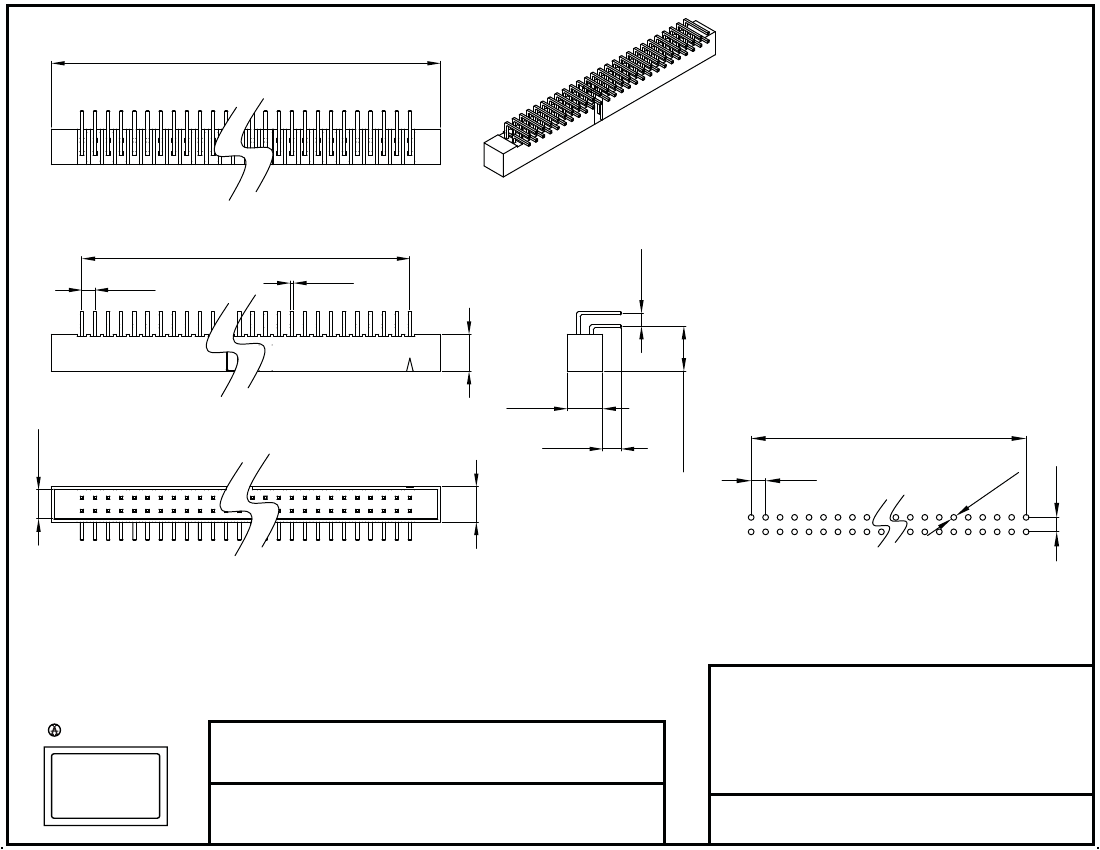

57.3 ±0.20

Material:

• Insulator: Polyester, UL 94V-0

• Contact Material: Copper Alloy

• Finish: Gold Plated

• Standard: Gold flash, PA6T

49.0±0.20

2.0

0.5

Electrical:

• Current Rating: 1Amp

• Insulation Resistance: 5,000M

Min.

• Dielectric Withstanding: 500V AC

5.6

• Operating Temperature: -40°C ~ +105°C

5.4

4.4

2.8

6.85±0.25

49.0±0.20

5.4

0.8

Recommended P.C. Board

Tolerances: ±0.05mm

Hole Layout

Unit: MM±0.30MM

= Assmann logo

ITEM NO.

TITLE

RoHS

Compliant

AWHW2-50A-0202-T-R

IDC Box Header Right Angle - 2.00MM Pitch,

Gold flash

, 50 Contacts

1840 W. Drake Drive, Suite 101 • Tempe, AZ 85283

Toll Free: 1-877-277-6266 • Email: info@usa-assmann.com

THIS DRAWING IS UNPUBLISHED

All International Rights Reserved

Electronics, Inc.

ASSMANN
