UNISONIC TECHNOLOGIES CO., LTD
2N40
Preliminary
Power MOSFET
2A, 400V N-CHANNEL
POWER MOSFET
DESCRIPTION
The UTC
2N40
is an N-channel mode power MOSFET using
UTC’ s advanced technology to provide customers with a minimum
on-state resistance, stable off–state characteristics and superior
switching performance. It also can withstand high energy pulse in
the avalanche.
The UTC
2N40
is usually used in general purpose switching
applications, motor control circuits and switched mode power supply.
FEATURES
* High switching speed
* R
DS(ON)
=3.4Ω @ V
GS
=10V
* 100% avalanche tested
SYMBOL
2.Drain
1.Gate
3.Source
ORDERING INFORMATION
Ordering Number
Lead Free
Halogen Free
2N40L-TA3-T
2N40G-TA3-T
Pin Assignment: G: Gate D: Drain
S: Source
Package
TO-220
Pin Assignment
1
2
3
G
D
S
Packing
Tube
Note:
www.unisonic.com.tw
Copyright © 2011 Unisonic Technologies Co., Ltd
1 of 5
QW-R502-524.b
2N40
Preliminary
Power MOSFET
ABSOLUTE MAXIMUM RATINGS
(T
C
=25°C, unless otherwise specified)
PARAMETER
SYMBOL
RATINGS
UNIT
Drain-Source Voltage
V
DSS
400
V
Gate-Source Voltage
V
GSS
±30
V
Continuous
I
D
2
A
Drain Current
7
A
Pulsed
I
DM
Avalanche Current
I
AR
2.5
A
Single Pulsed Avalanche Energy
E
AS
100
mJ
Power Dissipation
P
D
25
W
Linear Derating Factor
△
P
D
/
△
T
mb
0.2
W/°C
Junction Temperature
T
J
150
°C
Storage Temperature
T
STG
-55 ~ 150
°C
Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
THERMAL DATA
PARAMETER
Junction to Ambient
Junction to Case
SYMBOL
θ
JA
θ
JC
RATINGS
62.5
5
UNIT
°C/W
°C/W
ELECTRICAL CHARACTERISTICS
(T
J
=25°C, unless otherwise specified)
PARAMETER
SYMBOL
TEST CONDITIONS
OFF CHARACTERISTICS
Drain-Source Breakdown Voltage
BV
DSS
I
D
=250µA, V
GS
=0V
Breakdown Voltage Temperature
△
BV
DSS
/
△
T
J
V
DS
=V
GS
, I
D
=250µA
Coefficient
Drain-Source Leakage Current
I
DSS
V
DS
=400V, V
GS
=0V
Forward
V
GS
=+30V, V
DS
=0V
Gate- Source Leakage Current
I
GSS
Reverse
V
GS
=-30V, V
DS
=0V
ON CHARACTERISTICS
Gate Threshold Voltage
V
GS(TH)
V
DS
=V
GS
, I
D
=250µA
Static Drain-Source On-State Resistance
R
DS(ON)
V
GS
=10V, I
D
=1.25A
DYNAMIC PARAMETERS
Input Capacitance
C
ISS
V
GS
=0V, V
DS
=25V, f=1.0MHz
Output Capacitance
C
OSS
Reverse Transfer Capacitance
C
RSS
SWITCHING PARAMETERS
Total Gate Charge
Q
G(TOT)
V
GS
=10V, V
DS
=320V, I
D
=2.5A
Gate to Source Charge
Q
GS
Gate to Drain Charge
Q
GD
Turn-ON Delay Time
t
D(ON)
V
DD
=200V, I
D
=2.5A, R
G
=24Ω,
Rise Time
t
R
R
D
=78
Ω
Turn-OFF Delay Time
t
D(OFF)
Fall-Time
t
F
SOURCE- DRAIN DIODE RATINGS AND CHARACTERISTICS
Maximum Body-Diode Continuous Current
I
S
T
C
=25°C
Maximum Body-Diode Pulsed Current
I
SM
Drain-Source Diode Forward Voltage
V
SD
I
S
=2.5A, V
GS
=0V
Body Diode Reverse Recovery Time
t
rr
I
S
=2.5A, V
GS
=0V, dI/dt=100A/µs
Body Diode Reverse Recovery Charge
Q
RR
MIN TYP MAX UNIT
400
0.45
V
V/°C
1
25
µA
+10 +200 nA
-10 -200 nA
2.0
3.0
240
44
26
20
2
8
10
25
46
25
25
3
12
4.0
3.4
V
Ω
pF
pF
pF
nC
nC
nC
ns
ns
ns
ns
A
A
V
ns
µC
2.5
10
1.2
200
2.0
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 5
QW-R502-524.b
2N40

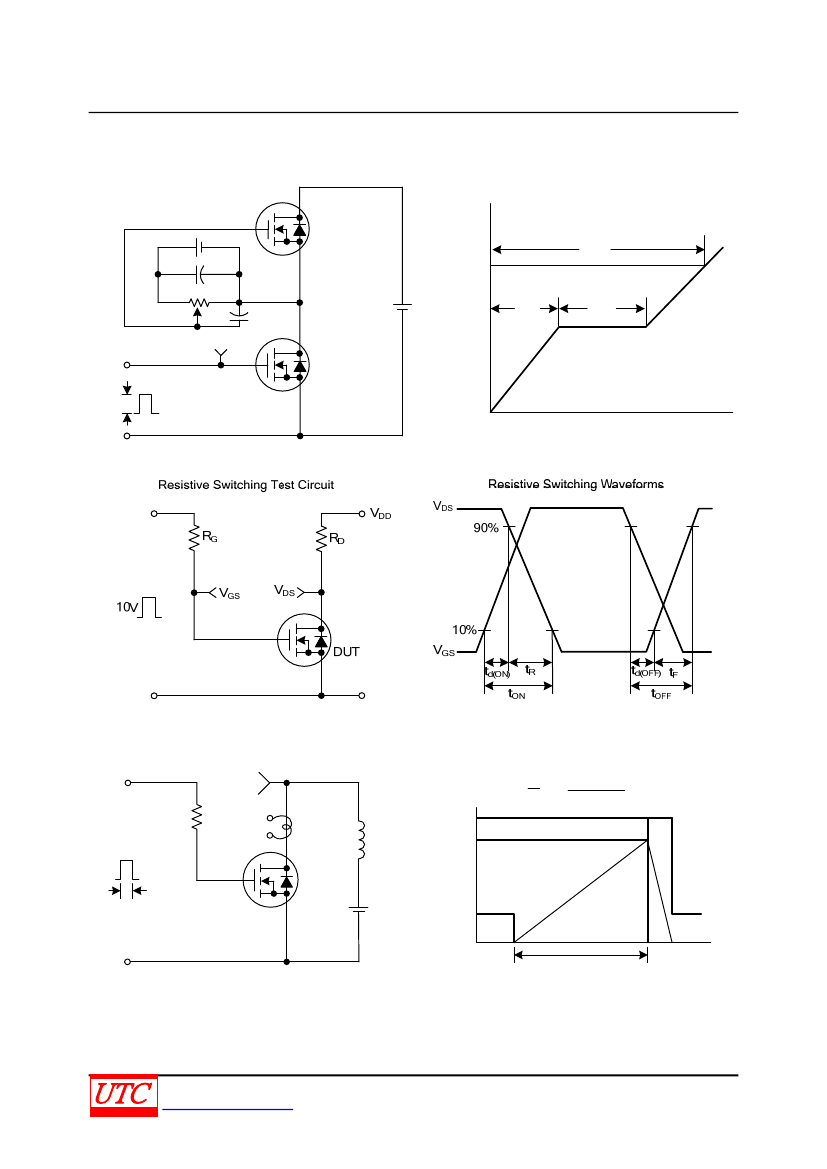

Gate Charge Test Circuit
Preliminary
Power MOSFET
TEST CIRCUITS AND WAVEFORMS
Gate Charge Waveforms
V
GS
Q
G
Same Type
as DUT
12V
200nF
50kΩ
V
GS
DUT
3mA
300nF
V
DS
10V
Q
GS
Q
GD
Charge
Unclamped Inductive Switching Test Circuit
V
DS
R
G
I
D
Unclamped Inductive Switching Waveforms
E
AS
= 1 LI
AS2
2
BV
DSS
L
I
AS
I
D
(t)
BV
DSS
BV
DSS
-V
DD
10V
t
P
DUT
V
DD
V
DD
V
DS
(t)
Time
t
P
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
3 of 5
QW-R502-524.b
2N40
Preliminary
Power MOSFET
TEST CIRCUITS AND WAVEFORMS(Cont.)
Peak Diode Recovery dv/dt Test Circuit & Waveforms
DUT
R
G
+
V
DS
L
-
I
SD
V
GS
V
DD
Driver
Same Type
as DUT
dv/dt controlled by R
G
I
SD
controlled by pulse period
V
GS
(Driver)
D=
Gate Pulse Width
Gate Pulse Period
10V
I
FM
, Body Diode Forward Current
I
SD
(DUT)
I
RM
Body Diode Reverse Current
V
DS
(DUT)
di/dt
Body Diode Recovery dv/dt
V
SD
V
DD
Body Diode Forward
Voltage Drop
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
4 of 5
QW-R502-524.b
2N40
Preliminary
Power MOSFET
UTC assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or
other parameters) listed in products specifications of any and all UTC products described or contained
herein. UTC products are not designed for use in life support appliances, devices or systems where
malfunction of these products can be reasonably expected to result in personal injury. Reproduction in
whole or in part is prohibited without the prior written consent of the copyright owner. The information
presented in this document does not form part of any quotation or contract, is believed to be accurate
and reliable and may be changed without notice.
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
5 of 5
QW-R502-524.b
