254301MS028G519Z0 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 254301MS028G519Z0

Preview

254301MS028G519Z0: DescriptionBoard Connector, 28 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size184KB，1 Pages; ManufacturerSUYIN-USA; Websitehttp://www.suyinusa.com

Download Datasheet Parametric View All

254301MS028G519Z0 Overview

Board Connector, 28 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle

254301MS028G519Z0 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SLIM BOX PACKAGE WITHOUT CAP
body width	0.1 inch
subject depth	0.2 inch
body length	1.4 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	254301MS
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.128 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	28

Preview

Download Datasheet

View All

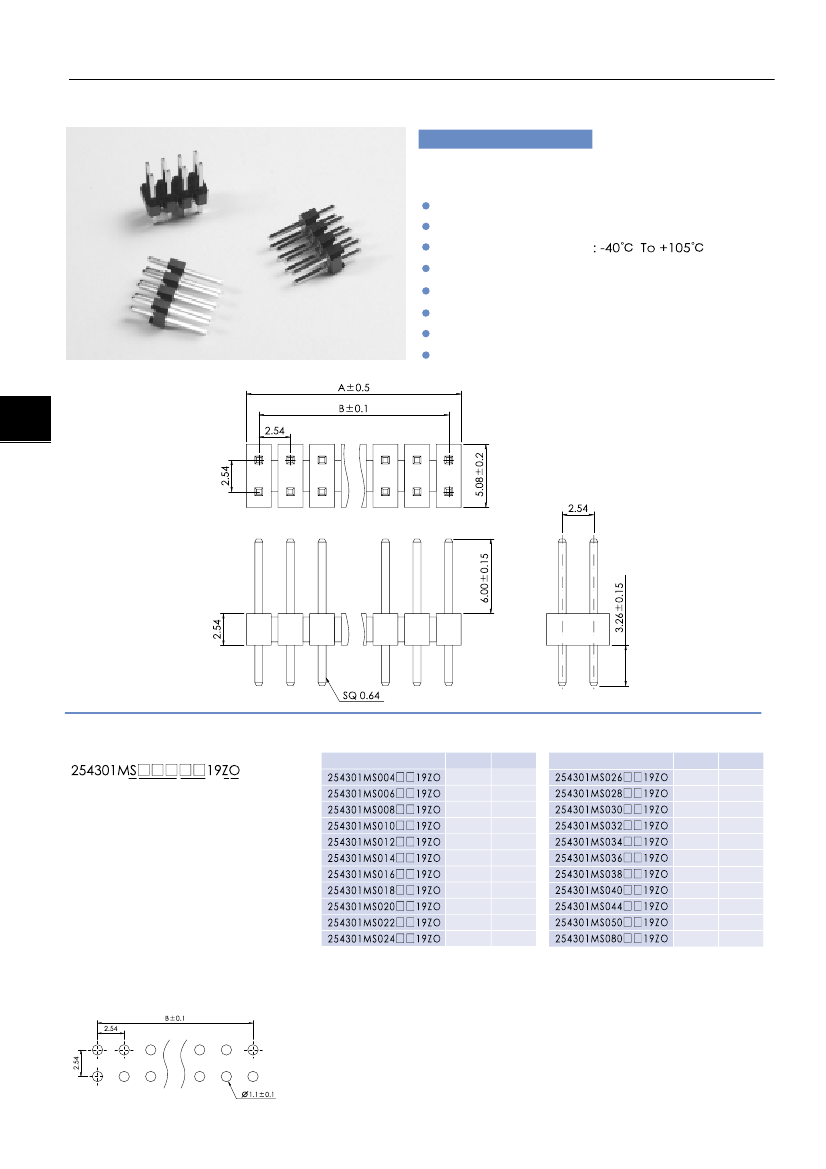

2.54 X 2.54mm PITCH DUAL ROW

HEADER EASY BREAKABLE STRAIGHT DIP TYPE

254301MS Series

Mates With SUYIN 254100, 254900, 254901, 254906 Series

Specifications:

4~80 Circuits

Insulator Material

Operating Type Range

Terminal Material

Platings

Max. Current Rating

Max. Voltage Rating

Dielectric Strength

: Brass

: Gold Plated

: 1.5A

: 250V AC

: 500V AC (Min. 60 Seconds)

: P.B.T UL94V-0

2.54

mm

Order Information

1

2

3

45

Dimension Information

SUYIN P/NO.

DIM.A

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

DIM.B

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

SUYIN P/NO.

DIM.A

33.02

35.56

38.10

40.64

43.18

45.72

48.26

50.80

55.88

63.50

101.6

DIM.B

30.48

33.02

35.56

38.10

40.64

43.18

45.72

48.26

53.34

60.96

99.06

1. 'S'

:

Straight DIP Type

2. No. of Pins

3. Plating

4. Color 'Z'

:

Black

5. Package

'O'

:

Slim Box Without CAP

Reference Page 11

Recommended P.C.B. Layout

142
