2N5886: Description25 A, NPN, Si, POWER TRANSISTOR, TO-3; Categorysemiconductor Discrete semiconductor; File Size39KB，3 Pages; ManufacturerJinmei; Websitehttp://www.jmnic.com/

Download Datasheet Parametric Compare View All

2N5886 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2N5886	-	-	View	Buy Now

2N5886 Overview

25 A, NPN, Si, POWER TRANSISTOR, TO-3

2N5886 Parametric

Parameter Name	Attribute value
Number of terminals	2
Transistor polarity	NPN
Maximum collector current	25 A
Processing package description	TO-3, 2 PIN
state	ACTIVE
packaging shape	ROUND
Package Size	FLANGE MOUNT
Terminal form	PIN/PEG
Terminal location	BOTTOM
Packaging Materials	METAL
structure	SINGLE
Number of components	1
Transistor component materials	SILICON
Transistor type	GENERAL PURPOSE POWER
Minimum DC amplification factor	20
Rated crossover frequency	4 MHz

Preview

Download Datasheet

View All

Product Specification

www.jmnic.com

Silicon NPN Power Transistors

DESCRIPTION

・With

TO-3 package

・Complement

to type 2N5883 2N5884

APPLICATIONS

・They

are intended for use in power linear

and switching applications

PINNING

1

2

3

Base

Emitter

Collector

DESCRIPTION

2N5885 2N5886

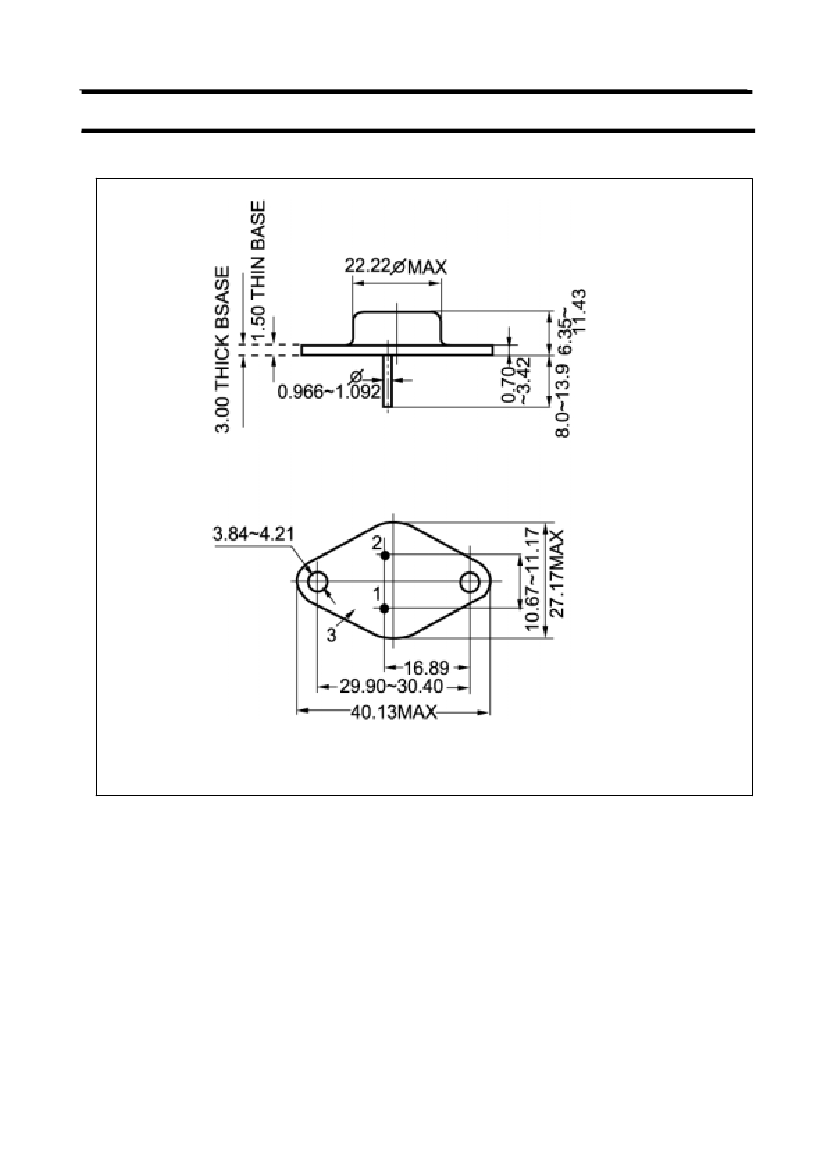

Fig.1 simplified outline (TO-3) and symbol

Absolute maximum ratings(Ta=

℃)

SYMBOL

V

CBO

PARAMETER

2N5885

Collector-base voltage

2N5886

V

CEO

V

EBO

I

C

I

CM

I

B

P

D

T

j

T

stg

Collector-emitter

voltage

Emitter-base voltage

Collector current

Collector current-peak

Base current

Total Power Dissipation

Junction temperature

Storage temperature

T

C

=25℃

2N5885

Open base

2N5886

Open collector

80

5

25

50

7.5

200

-65~200

V

A

W

℃

Open emitter

80

60

V

CONDITIONS

VALUE

60

V

UNIT

THERMAL CHARACTERISTICS

SYMBOL

R

th j-c

PARAMETER

Thermal resistance junction to case

VALUE

0.875

UNIT

℃/W

JMnic

2N5886 Related Products

	2N5886	2N5885
Description	25 A, NPN, Si, POWER TRANSISTOR, TO-3	25 A, NPN, Si, POWER TRANSISTOR, TO-3
Number of terminals	2	2
Transistor polarity	NPN	NPN
Maximum collector current	25 A	25 A
Processing package description	TO-3, 2 PIN	TO-3, 2 PIN
state	ACTIVE	ACTIVE
packaging shape	ROUND	ROUND
Package Size	FLANGE MOUNT	FLANGE MOUNT
Terminal form	PIN/PEG	PIN/PEG
Terminal location	BOTTOM	BOTTOM
Packaging Materials	METAL	METAL
structure	SINGLE	SINGLE
Number of components	1	1
Transistor component materials	SILICON	SILICON
Transistor type	GENERAL PURPOSE POWER	GENERAL PURPOSE POWER
Minimum DC amplification factor	20	20
Rated crossover frequency	4 MHz	4 MHz
