Model 140
Vishay Spectrol
(12.7 mm) Single - Turn Wirewound
Bushing Mount Type Precision Potentiometer
FEATURES
•
Ohmic value range: 50
Ω
up to 20 kΩ
•
Smallest size available: 12.7 mm
•
Mechanical stops on request
•
High torque and sealed versions available
1
/
2
"
RoHS
COMPLIANT
ELECTRICAL SPECIFICATIONS
PARAMETER
Total Resistance
Tolerance
Absolute Minimum Resistance
Linearity (Independent)
Noise
Power Rating
Insulation Resistance
Dielectric Strength
Electrical Angle
End Voltage
50
Ω
to 20 kΩ
±5%
Linearity x total resistance or
0.5
Ω,
whichever is greater
± 1.0 %
100
Ω
ENR
2 W at 40 °C ambient derating linearly to zero at 125 °C
1000 MΩ min. 500 V
DC
1000 V
RMS
, 60 Hz
320° ± 5°
Linearity x total applied voltage for total resistance above 20
Ω;
2.0 % of total applied voltage for 20
Ω
and below
MATERIAL SPECIFICATIONS
Shaft
Housing
Rear Lid
Terminals
Mounting Hardware
Lockwasher Internal Tooth:
Panel Nut:
Stainless steel, non magnetic
non-passivated
Aluminum, anodized
Molded glass filled
thermoset plastic
Brass, gold plated
Steel, nickel plated.
Brass, nickel plated
ENVIRONMENTAL SPECIFICATIONS
Vibration
Shock
Salt Spray
Rotational Life
Load Life
Temperature Range
20 G thru 2000 Hz
50 g
96 h
500 000
shaft revolutions
900 h
- 55 °C to + 125 °C (operating)
ORDERING INFORMATION/DESCRIPTION
140B
MODEL
0
MECHANICAL OPTIONS
0.
Stops, slotted shaft (std)
1.
Plain shaft
2.
Shaft lock
3.
Continuous rotation
4.
Combination 1 and 2
5.
Combination 1 and 3
6.
Combination 2 and 3
7.
Combination 1, 2 and 3
0
SPECIAL FEATURE
0.
Standard torque
1.
Center tap (10K max. Rt)
2.
High torque
3.
Sealed construction
4.
Combination 1 and 2
5.
Combination 1 and 3
6.
Combination 2 and 3
7.
Combination 1, 2 and 3
20K
OHMIC VALUE
BO10
PACKAGING
Box of 10 pieces
SAP PART NUMBERING GUIDELINES
140B
MODEL
7
MECHANICAL OPTION
From 0 to 7
0
FEATURE
From 0 to 7
103
OHMIC VALUE
103 = 10K
B10
PACKAGING
Box of
10 pieces
www.vishay.com
88
For technical questions, contact: sfer@vishay.com
Document Number: 57097
Revision: 28-Jun-07
Model 140
(12.7 mm) Single - Turn Wirewound
Bushing Mount Type Precision Potentiometer

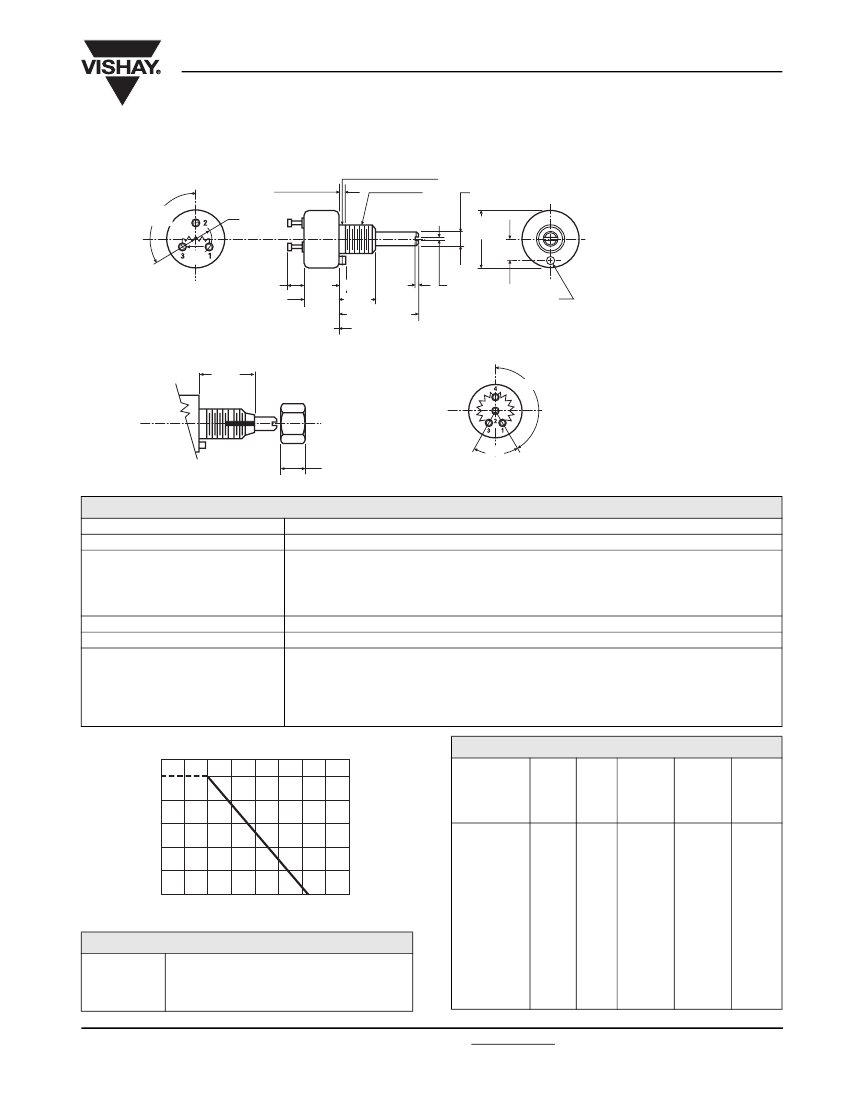

DIMENSIONS
in inches (millimeters)
0.062 WIDE
IMPERFECT
THR’O AREA
120°
TYP.
1
/
2
"
Vishay Spectrol
Ø 0.250 MTG. (6.10)
1/4 - 32
UNEF - 2A
THREAD
Ø 0.1248
- 0.0003
(3.17)
Ø 0.500
(12.70)
0.187
(4.75)
0.031
(0.79)
+ 0.0000
0.133 R
(3.38)
CW
+ 0.000
- 0.003
0.152
(3.86)
0.056
(1.42)
0.305
(7.75)
± 0.015
0.312
(7.92)
0.031
(0.79)
± 0.010
0.700 (17.78)
MTG. FACE
Ø 0.062
(1.57)
SHAFT LOCK OPTION
0.500
(12.70)
CENTER TAP OPTION
150°
60°
INTEGRAL SHAFT LOCK
0.218
TOLERANCES: UNLESS
OTHERWISE NOTED.
DECIMALS ± 0.005 ANGLES ± 2 °
CENTER TAP AVAILABLE AS
SPEC STANDARD FEATURE
MECHANICAL SPECIFICATIONS
PARAMETER
Rotation
Bearing Type
Torque (Maximums)
Starting
Running
Dead Zone
Weight
Stop Strength
Runouts (Maximum)
Shaft (TIR)
Pilot Dia. (TIR)
Lateral (TIR)
Shaft End Play
Shaft Radial Play
330° ± 5°
SLEEVE BEARING
0.2 oz. - in (14.40 g - cm)
0.2 oz. - in (14.40 g - cm)
Not applicable
0.1 oz. maximum (2.84 g)
5 in - lbs (5.76 kg - cm) static
0.002" (0.05 cm)
0.002" (0.05 cm)
0.003" (0.08 cm)
0.006" (0.15 cm)
0.003" (0.08 cm)
POWER RATING CHART
RATED POWER IN W
2
RESISTANCE ELEMENT DATA
STD
RESISTANCE
VALUES
(Ω)
50
MAXIMUM MAXIMUM
WIRE
RESO- OHMS CURRENT VOLTAGE
TEMP.
LUTION PER
AT 40 °C ACROSS
COEF.
(%)
TURN AMBIENT
COIL
(ppm/°C)
(mA)
(V)
0.542
0.431
0.361
0.312
0.255
0.197
0.170
0.147
0.105
0.271
0.431
0.722
1.56
2.55
3.94
8.50
14.7
21.0
200.0
141.0
100.0
63.2
44.7
31.6
20.0
14.1
10.0
10.0
14.1
20.0
31.6
44.7
63.2
100.0
141.0
200.0
20
20
20
20
20
20
20
20
20
1
100
200
0
0
20
40
60
80 100 120 140 160
500
1K
2K
AMBIENT TEMPERATURE IN °C
MARKING
Unit
Identification
Units shall be marked with manufacturer’s
name, model number, resistance value and
tolerance, circuit diagram, terminal
identification, linearity and data code.
5K
10K
20K
Document Number: 57097
Revision: 28-Jun-07
For technical questions, contact: sfer@vishay.com
www.vishay.com
89
