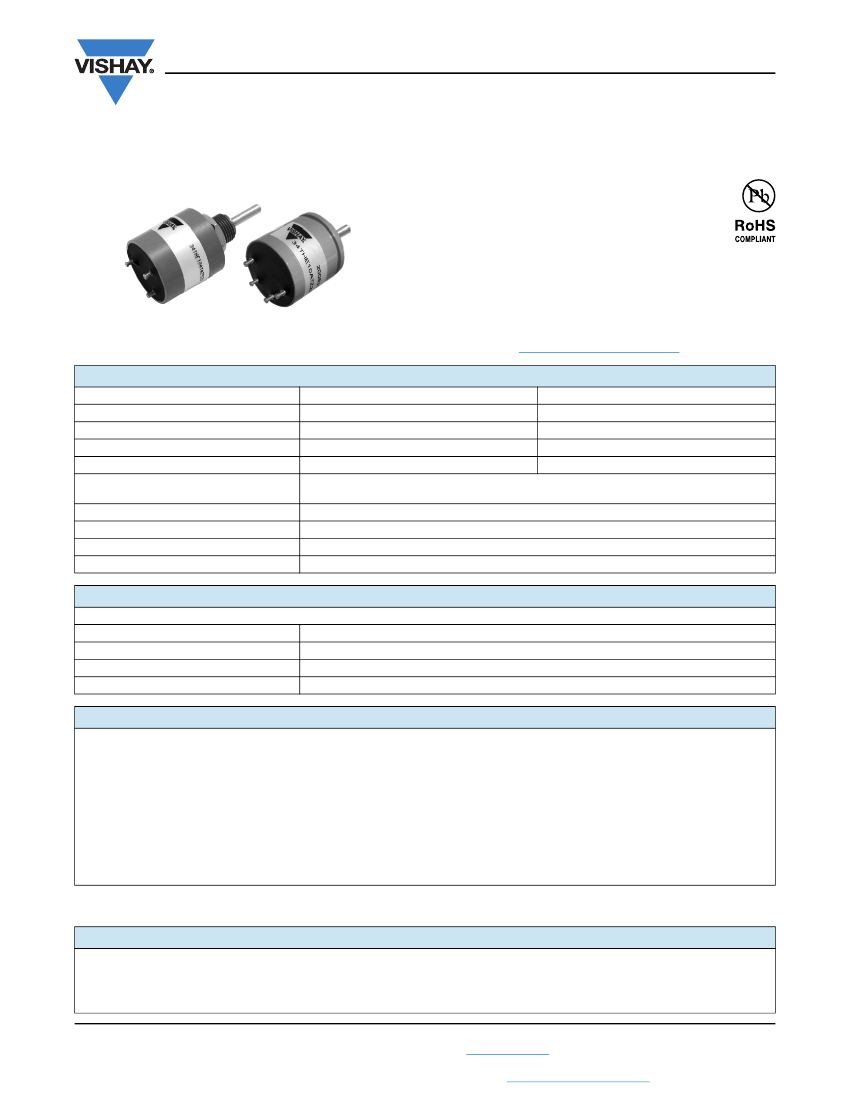

Vishay Spectrol
Ten Turns Servo or Bushing Mount Hall Effect
Sensor in Size 09 (22.2 mm)
FEATURES
• All electrical angles available up to: 3600°
• Accurate linearity down to: ± 0.5 %
• Very long life: 50M cycles for servo, 10M cycles
for bushing
• Non contacting technology: Hall effect; true power on
sensor
• Model dedicated to applications requiring long life
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
ELECTRICAL SPECIFICATIONS
PARAMETER
Electrical angle
Linearity
Supply voltage
Supply current
Output signal
Over voltage protection
Reverse voltage protection
Load resistance recommended
Hysteresis static
STANDARD
10 turns 3600°
±1%
5 V
DC
± 10 %
< 16 mA for single
SPECIAL
Any other angle upon request
± 0.5 %
Other upon request
< 32 mA for redundant
Analog ratiometric 1 % to 99 % of V
supply
(other on request)
or PWM 1 kHz, 10 % to 90 % duty cycle or SPI binary on 5 V or binary on 3.3 V
+ 20 V
DC
- 10 V
DC
Min. 1 k for analog output and PWM output
10° on drive shaft
MECHANICAL SPECIFICATIONS
PARAMETER
Mechanical travel
Bearing type
Standard
Resolution
3600° continuous
A sleeve bearing for bushing model/2 ball bearings for servo model
IP 50; other on request
12 bits for analog and PWM, 14 bits for SPI
ORDERING INFORMATION/DESCRIPTION
34 THE
MODEL
B
MOUNTING
TYPE
B:
Bushing
S:
Servo
1
NUMBER OF
SIGNALS
A
LINEARITY
T
OUTPUT
TYPE
T:
Turrets
Z:
Custom
W:
Wires
A
OUTPUT
SIGNAL
2S22
SHAFT
TYPE
XXXX
BO 1
e1
SPECIAL
LEAD
PACKAGING
REQUEST
FINISH
Box of
1 piece
1:
Single
A:
± 1 %
2:
Redundant
B:
± 0.5 %
(crossed laws)
A:
Analog CW
2:
3.175 mm
B:
Analog CCW
9:
Special
C:
PWM CW
P:
Plain
D:
PWM CCW
S:
Slotted
E:
SPI CW
(1)
Z:
Other type
F:
SPI CCW
(1)
Z:
Other output
Shaft length from mounting face standard: 22 mm
Note
(1)
SPI output
output type: Wires
SAP PART NUMBERING GUIDELINES
34 THE
MODEL
S
SERVO
TYPE
2
2 OUTPUT
SIGNALS
B
LINEARITY
B: ± 0.5 %
Revision: 02-Apr-12
Document Number: 57114
1
For technical questions, contact:
sfer@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T
OUTPUT
TYPE
C
OUTPUT
SIGNAL
2P12
SHAFT
TYPE
XXXX
SPECIAL
REQUEST

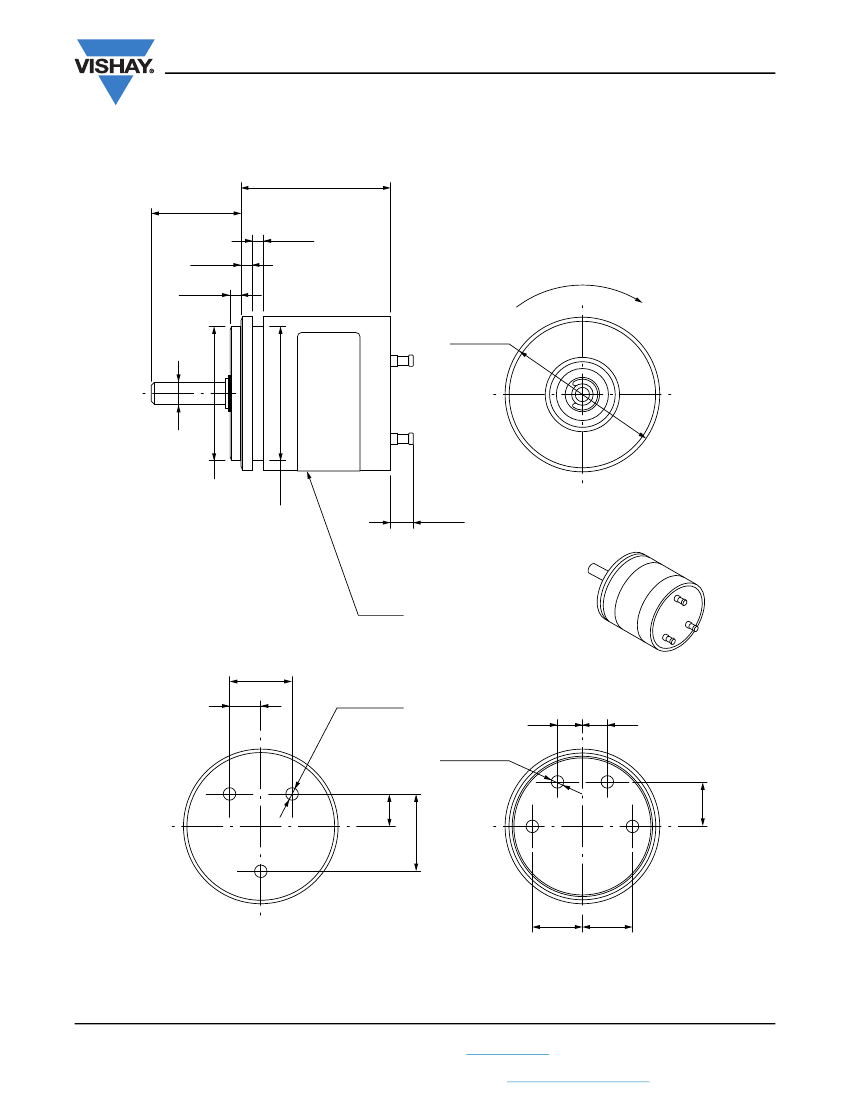

34 THE
www.vishay.com
V
OUT
ANALOG
Single
Output
99 %
Vishay Spectrol
Output
S1
V
out
(% V
supply
)
50 %
1%
0°
1800°
3600°
Direction of Running (°)
Redundant Output
99 %
Output
S1
V
out
(% V
supply
)
50 %
Output
S2
1%
0°
1800°
3600°
Direction of Running (°)
V
OUT
PWM
V
out
(% V
supply
)
97 % min.
T high
CW
Duty Cycle =
T
high
T
T low
1.5 % max.
0
T: Periodicity
Time
V
OUT
SPI
Notice on demand
Revision: 02-Apr-12
Document Number: 57114
2
For technical questions, contact:
sfer@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
34 THE
www.vishay.com
Vishay Spectrol
MECHANICAL SPECIFICATIONS
PARAMETER
Mounting type
Housing
Shaft guiding
Shaft
Outputs
Mechanical travel
STANDARD
Servo mounting type or bushing mount
(delivered with nut and washer)
Anodized aluminum
2 ball bearings for servo and sleeve bearing for bushing
Stainless steel Ø 3.175
Turrets
3600° and no stop
Other on request
Other on request
SPECIAL
ENVIRONMENTAL SPECIFICATIONS
Operating temperature range
Life
Rotational speed (max.)
Immunity to radiated electromagnetic disturbances
Immunity to power frequency magnetic field
Radiated electromagnetic emissions
Electrostatic discharges
Sine vibration on 3 axes
Mechanical shocks on 3 axes
- 40 °C; + 85 °C
> 10M of cycles for bushing
> 50M of cycles for servo
1200 rpm
200 V/m 150 kHz/1 GHz, IEC 62132-2 part 2 (level A)
200 A/m 50 Hz/60 Hz, EN 61000-4-8 (level A)
30 MHz/1 GHz < 30 dBμV/m, EN 61000-6-4 (level A)
Contact discharges: ± 4 kV
Air discharges: ± 8 kV, EN 61000-4-2
1.5 mm or 20
g
from 10 Hz to 2000 Hz
50
g,
11 ms, half sine
Revision: 02-Apr-12
Document Number: 57114
3
For technical questions, contact:
sfer@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
34 THE
www.vishay.com

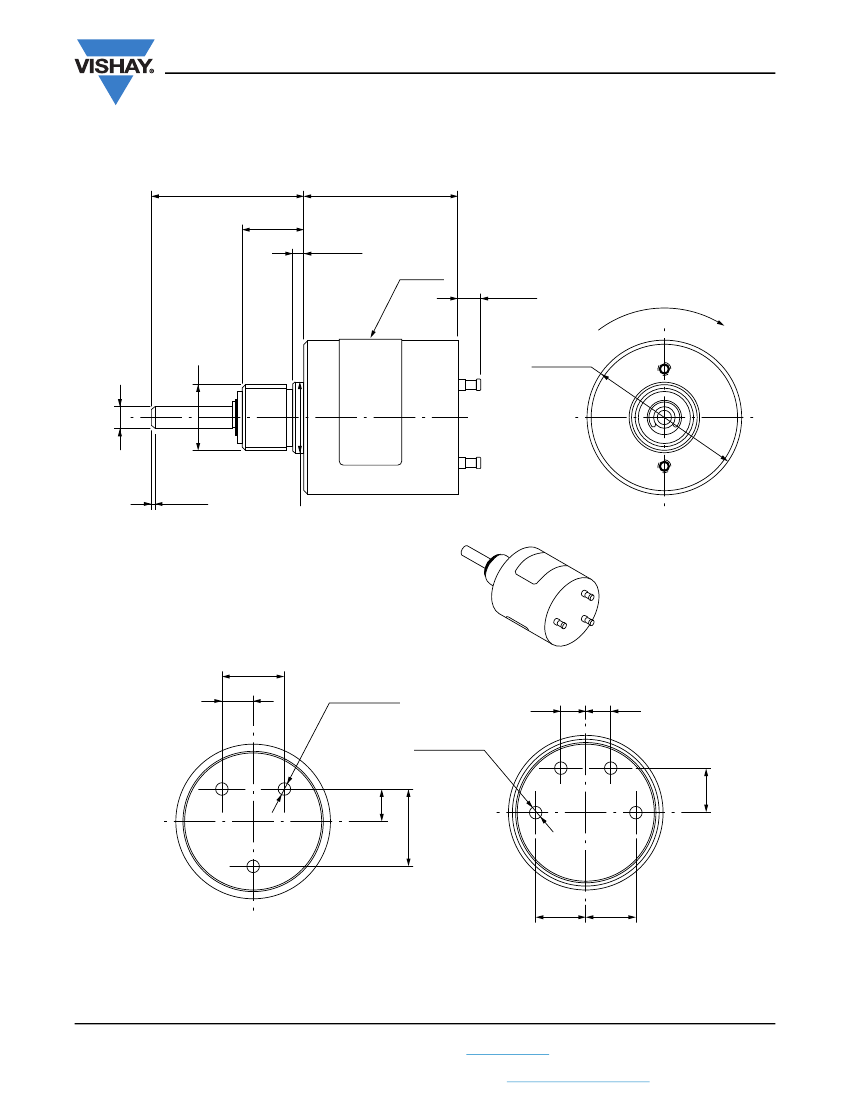

DIMENSIONS
in millimeters
Vishay Spectrol
22 ± 0.8
22.1 ± 0.5
8.9 ± 0.2
1.6 ± 0.1
Label
3.2 ± 0.5
CW
Ø 3.175
+ 0/- 0.013
Ø 9.52 pas 0.79
3/8 - 32 UNEF 2A
Ø 22.2 ± 0.25
0.5 at 45°
Ø 10.3
+ 0/- 0.02
Viewed from shaft side
9
4.5
3 x Ø 1.7 ± 0.2
3.6
3.6
4 x Ø 1.7 ± 0.2
+
-
S2
4.7
+
11.2
S1
-
6.3
S
7.2
Single output
7.2
Redundant output
Revision: 02-Apr-12
Document Number: 57114
4
For technical questions, contact:
sfer@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
34 THE
www.vishay.com
DIMENSIONS
in millimeters
Vishay Spectrol
21.1 ± 0.5
12.7 ± 0.8
1.6 ± 0.1
1.6 ± 0.1
CW
1.6 ± 0.1
Ø 22.2 ± 0.25
Ø 3.175
+ 0/- 0.013
Ø 19.05
+ 0/- 0.025
Ø 19.4 ± 0.25
3.2 ± 0.5
Label
9
4.5
3 x Ø 1.7 ± 0.2
3.6
3.6
4 x Ø 1.7 ± 0.2
+
-
4.7
11.2
S
+
S2
S1
-
6.3
7.2
Single output
7.2
Redundant output
Revision: 02-Apr-12
Document Number: 57114
5
For technical questions, contact:
sfer@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
