UNISONIC TECHNOLOGIES CO., LTD
2SA1627A
PNP EPITAXIAL SILICON
TRANSISTOR
DESCRIPTION
PNP SILICON TRANSISTOR
The UTC
2SA1627A
is designed for general purpose
amplifier and high speed switching applications.
FEATURES
* High voltage
* Low collector saturation voltage.
* High-speed switching

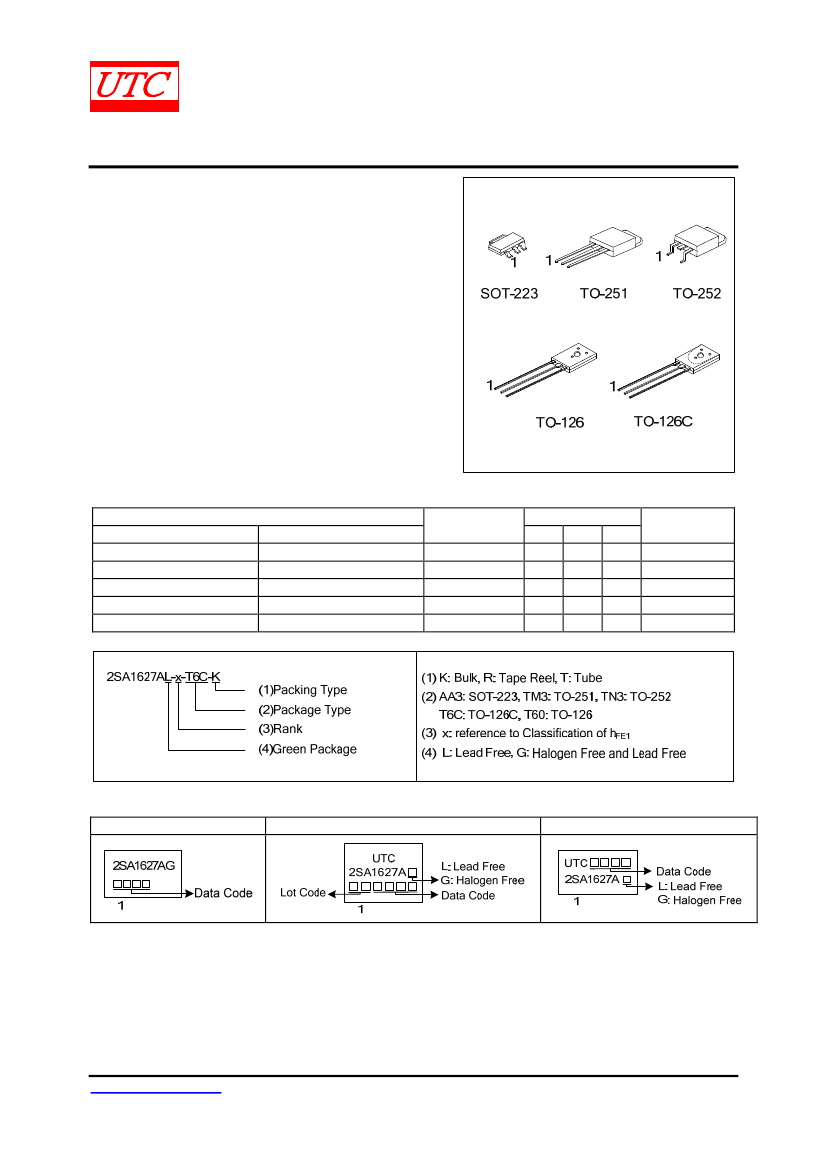

ORDERING INFORMATION
Package
SOT-223
TO-251
TO-252
TO-126
TO-126C
Pin Assignment
1
2
3
B
C
E
B
C
E
B
C
E
E
C
B
E
C
B
Packing
Tape Reel
Tube
Tape Reel
Bulk
Bulk
Ordering Number
Lead Free
Halogen Free
-
2SA1627AG-x-AA3-R
2SA1627AL-x-TM3-T
2SA1627AG-x-TM3-T
2SA1627AL-x-TN3-R
2SA1627AG-x-TN3-R
2SA1627AL-x-T60-K
2SA1627AG-x-T60-K
2SA1627AL-x-T6C-K
2SA1627AG-x-T6C-K
Note: Pin Assignment: E: Emitter C: Collector
B: Base
MARKING
SOT-223
TO-251 / TO-252
TO-126 / TO-126C
www.unisonic.com.tw
Copyright © 2014 Unisonic Technologies Co., Ltd
1 of 4
QW-R217-004.G
2SA1627A
PARAMETER
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
SYMBOL
V
CBO
V
CEO
V
EBO
PNP SILICON TRANSISTOR
ABSOLUTE MAXIMUM RATINGS
(T
A
=25°C, unless otherwise specified)
RATINGS
UNIT
-600
V
-600
V
-7.0
V
SOT-223
0.8
Collector Power Dissipation
TO-251/TO-252
P
C
1.9
W
TO-126/TO-126C
1.0
Collector Current (DC)
I
C
-1.0
A
Collector Current (Pulse) (Note 2)
I
CP
-2.0
A
Junction Temperature
T
J
150
C
Storage Temperature
T
STG
-55 ~ +150
C
Notes: 1. Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
2. P
W
≦10ms,
Duty Cycle≦50%
ELECTRICAL CHARACTERISTICS
(T
A
=25C, unless otherwise specified)
SYMBOL
I
CBO
I
EBO
h
FE1
h
FE2
V
CE(SAT)
V
BE(SAT)
f
T
C
OB
t
ON
T
SYG
t
F
TEST CONDITIONS
V
CB
= -600V, I
E
=0
V
EB
= -7.0V, I
C
=0
V
CE
= -5.0V, I
C
= -0.1A
V
CE
= -5.0V, I
C
= -0.5A
I
C
= -0.3A, I
B
= -0.06A
I
C
= -0.3A, I
B
= -0.06A
V
CE
= -10V, I
E
=0.1A
V
CB
= -10V, I
E
=0, f=1.0MHz
I
C
=-0.5A, R
L
=500Ω,
I
B1
= -I
B2
= -0.1A, V
CC
=-250V
MIN
TYP MAX UNIT
-10
µA
-10
µA
58
120
19
-0.28 -1.5
V
-0.85 -1.2
V
28
MHz
42
50
pF
0.1
0.5
µs
3.5
5.0
µs
0.08 0.5
µs
PARAMETER
Collector Cut-Off Current
Emitter Cut-Off Current
DC Current Gain (Note 2)
Collector-Emitter Saturation Voltage(Note)
Base-Emitter Saturation Voltage(Note)
Gain Bandwidth Product
Output Capacitance
Turn-On Time
Storage Time
Fall Time
Note: Pulsed PW≦350µs, Duty Cycle≦2%
30
4
10
CLASSIFICATION OF h
FE1
RANK
RANGE
M
30-60
L
40-80
K
60-120
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 4
QW-R217-004.G
2SA1627A
PNP SILICON TRANSISTOR
TYPICAL CHARACTERISTICS
Collector Current vs.
Collector to Emitter Voltage
2.0
mA
DC Current Gain vs. Collector Current
1000
300
DC Current Gain, h
FE
100
30
10
3
1
-0.002 -0.005 -0.02
-0.1 -0.2 -0.5 -1.0 -2.0
-0.01
-0.05
Collector Current, I
C
(A)
Collector and Base Saturation Voltage
vs. Collector Current
I
C
=5I
B
V
BE(SAT)
V
CE
=-5.0V
-100
Collector Current, I
C
(mA)
-80
-60
-40
-20
0
0
I
B
=1.8mA
I
B
=1.6mA
I
B
=1.4mA
I
B
=1.2mA
I
B
=1.0mA
I
B
=0.8mA
I
B
=0.6mA
I
B
=0.4mA
I
B
=0.2mA
I
B
=
-2.0
-6.0
-10
-4.0
-8.0
Collector to Emitter Voltage, V
CE
(V)
Collector Current vs.
Base to Emitter Voltage
V
CE
=-5.0V
-1.0
-0.3
-0.1
-3.0
-1.0
-0.3
-0.03
-0.01
-0.003
-0.1
V
CE(SAT)
0 -0.2 -0.4 -0.6 -0.8 -1.0 -1.2 -1.4 -1.6
Base to Emitter Voltage, V
BE
(V)
Output Capacitance vs.
Collector to Base Voltage
-0.03
-0.005 -0.01 -0.02 -0.05 -0.1 -0.2
Collector Current, I
C
(A)
-0.5
Collector Power Dissipation
vs. Ambient Temperature
1.2
1.0
0.8
0.6
0.4
0.2
0
Free Air
200
100
50
20
10
5.0
2.0
-3.0
I
E
=0
-10
-30
-100
-300
Collector to Base Voltage, V
CB
(V)
0
25
75
100 125 150
50
Ambient Temperature, T
A
( )
3 of 4
QW-R217-004.G
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2SA1627A
PNP SILICON TRANSISTOR
TYPICAL CHARACTERISTICS(Cont.)
Turn Off Time vs. Collector Current
Gain Bandwidth Product, f
T
(MHz)
5.0
Switching Time, t
SW
(µs)
t
STG
2.0
1.0
0.5
0.2
0.1
-0.03
t
F
-0.1
-0.3
-1.0
Collector Current, I
C
(A)
-3.0
I
C
/I
B
=5
V
CE
=-250V
I
B1
=I
B2
100
50
20
10
5.0
2.0
1.0
-0.002
Gain Bandwidth Product vs.
Collector Current
V
CB
=-5.0V
-0.005 -0.01 -0.02 -0.05 -0.1 -0.2
Collector Current, I
C
(mA)
