2SA1930: DescriptionSilicon PNP Power Transistor; CategoryDiscrete semiconductor The transistor; File Size63KB，2 Pages; ManufacturerNew Jersey Semiconductor; Websitehttp://www.njsemi.com

Download Datasheet Parametric View All

2SA1930 Overview

Silicon PNP Power Transistor

2SA1930 Parametric

Parameter Name	Attribute value
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknow
Maximum collector current (IC)	2 A
Collector-emitter maximum voltage	180 V
Configuration	SINGLE
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	PNP
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Transistor component materials	SILICON
Nominal transition frequency (fT)	200 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

E.IIS.U

ne.

TELEPHONE: (973) 376-2922

(212)227-6005

FAX: (973) 376-8960

20 STERN AVE.

SPRINGFIELD, NEW JERSEY 07081

U.S.A.

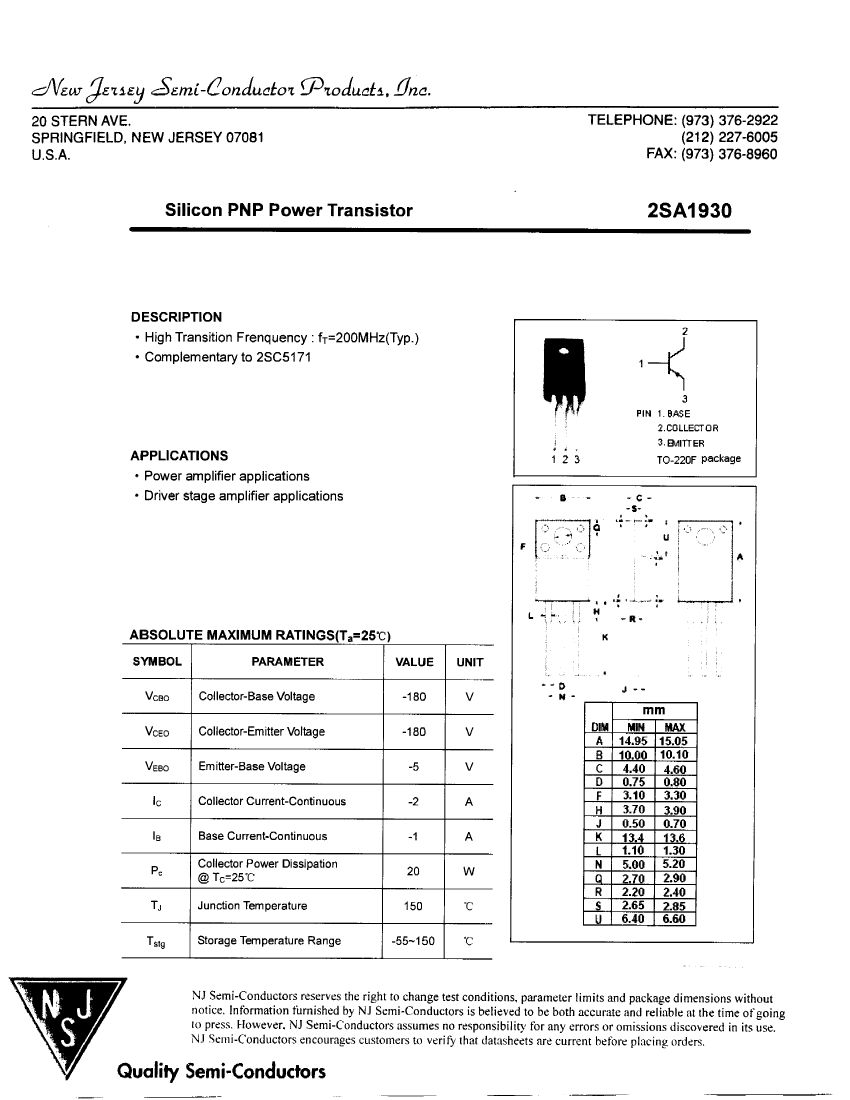

Silicon PNP Power Transistor

2SA1930

DESCRIPTION

• High Transition Frenquency : fr=200MHz(Typ.)

• Complementary to 2SC5171

APPLICATIONS

• Power amplifier applications

• Driver stage amplifier applications

PIN 1.BASE

2.COLLECTOR

3. EMITTER

1 2 3

- C-

TO-220F package

ABSOLUTE MAXIMUM RATINGS(T

=25'C)

SYMBOL

VCBO

VCEO

VEBO

-s-

U I

i F,

'-*

; i

i ,_L -

- R-

"-V;,U

PARAMETER

Collector-Base Voltage

Collector-Emitter Voltage

Emitter-Base Voltage

Collector Current-Continuous

Base Current-Continuous

Collector Power Dissipation

@ T

=25'C

Junction Temperature

Storage Temperature Range

VALUE

-180

-5

-2

-1

150

-55-150

UNIT

°C

.-D

- N-

J --

WIN

DIM

14.95

10.00

4.40

0.75

MAX

15.05

10.10

4.60

0.80

3.30

3.90

0.70

13.6

1.30

5.20

2.90

2.40

2.85

6.60

3.10

3.70

0.50

13.4

1.10

5.00

2.70

2.20

2.65

6.40

Tstg

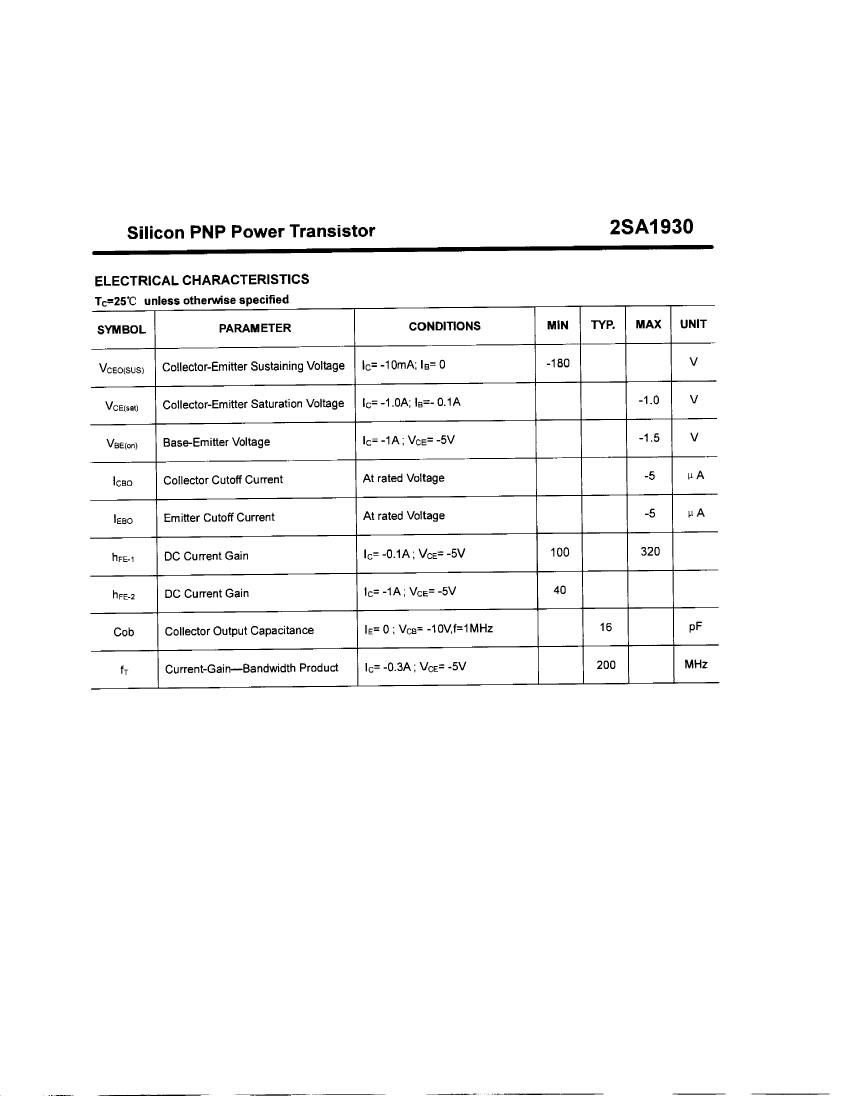

NJ Semi-Conductors reserves the right to change test conditions, parameter limits and package dimensions without

notice. Information furnished by NJ Semi-Conductors is believed to be both accurate and reliable nt the time of going

to press. However, NJ Semi-Conductors assumes no responsibility for any errors or omissions discovered in its use.

NJ Semi-Conductors encourages customers to verify that datasheets are current before placing orders.
