2SA2029 / 2SA1774EB / 2SA1774 / 2SA1576UB / 2SA1576A / 2SA1037AK
Datasheet
PNP -150mA -50V General Purpose Transistors
lOutline
Parameter
Value

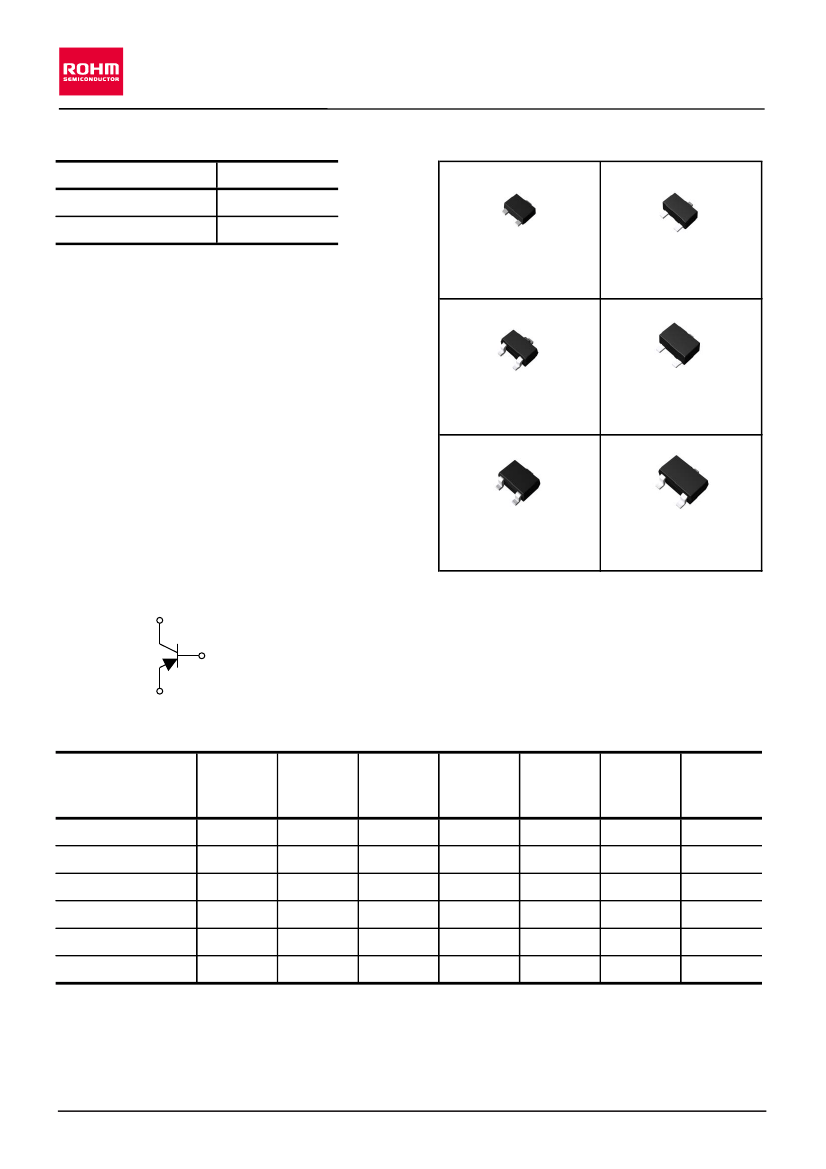

VMT3
Collector
Base
Emitter
Base
Emitter
EMT3F
Collector
V
CEO
I
C
-50V
-150mA
lFeatures
1) General Purpose.
2) Complementary NPN Types :
2SC5658 (VMT3) / 2SC4617EB (EMT3F)
/ 2SC4617 (EMT3) / 2SC4081UB (UMT3F)
/ 2SC4081 (UMT3) / 2SC2412 (SMT3)
3) Complex transistors :
EMT1 / EMT2 / EMT3 (EMT6)
/ UMT1N / UMT2N (UMT6)
/ IMT1A / IMT2A / IMT3A (SMT6)
4) Lead Free/RoHS Compliant.
2SA2029
(SC-105AA)
EMT3
Collector
Base
Emitter
UMT3F
2SA1774EB
(SC-89)
Collector
Base
Emitter
2SA1774
SOT-416 (SC-75A)
UMT3
Collector
Base
Emitter
SMT3
2SA1576UB
(SC-85)
Collector
Base
Emitter
2SA1576A
SOT-323 (SC-70)
2SA1037AK
SOT-346 (SC-59)
lInner
circuit
Collector
lApplications
Base
Switching circuit, LED driver circuit
Emitter
lPackaging
specifications
Part No.
2SA2029
2SA1774EB
2SA1774
2SA1576UB
2SA1576A
2SA1037AK
*1 x : h
FE
rank
Package
VMT3
EMT3F
EMT3
UMT3F
UMT3
SMT3
Package
size
(mm)
1212
1616
1616
2021
2021
2928
Taping
code
T2L
TL
TL
TL
T106
T146
Basic
Reel size Tape width
ordering
(mm)
(mm)
unit (pcs)
180
180
180
180
180
180
8
8
8
8
8
8
8,000
3,000
3,000
3,000
3,000
3,000
Marking
Fx
*1
Fx
*1
Fx
*1
Fx
*1
Fx
*1
Fx
*1
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
1/12
2013.05 - Rev.A
2SA2029 / 2SA1774EB / 2SA1774 / 2SA1576UB / 2SA1576A / 2SA1037AK
lAbsolute
maximum ratings
(Ta = 25°C)
Parameter
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
2SA2029
2SA1774EB
2SA1774
2SA1576UB
2SA1576A
2SA1037AK
Symbol
V
CBO
V
CEO
V
EBO
I
CP *1
I
C
Values
-60
-50
-6
-200
-150
150
P
D *2
200
T
j
T
stg
150
-55
to
+150
Data Sheet
Unit
V
V
V
mA
mA
mW
Power dissipation
mW
°C
°C
Junction temperature
Range of storage temperature
lElectrical
characteristics(Ta
= 25C)
Parameter
Collector-emitter
breakdown voltage
Collector-base
breakdown voltage
Emitter-base
breakdown voltage
Collector cut-off current
Emitter cut-off current
Collector-emitter
saturation voltage
DC current gain
Transition frequency
Output capacitance
*1 P
W
=10ms Single Pulse
*2 Each terminal mounted on a reference footprint
lh
FE
rank categories
Rank
h
FE
Q
120 to 270
R
180 to 390
S
270 to 560
Symbol
BV
CEO
BV
CBO
BV
EBO
I
CBO
I
EBO
V
CE(sat)
h
FE
f
T
C
ob
Conditions
I
C
=
-1mA
I
C
=
-50mA
I
E
=
-50mA
V
CB
=
-60V
V
EB
=
-6V
I
C
=
-50mA,
I
B
=
-5mA
Min.
-50
-60
-6
-
-
-
120
-
-
Typ.
-
-
-
-
-
-
-
140
4.0
Max.
-
-
-
-100
-100
-0.5
560
-
5.0
Unit
V
V
V
nA
nA
V
-
MHz
pF
V
CE
=
-6V,
I
C
=
-1mA
V
CE
=
-12V,
I
E
= 2mA
f=100MH
Z
V
CB
=
-12V,
I
E
= 0mA
f = 1MHz
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
2/12
2013.05 - Rev.A
2SA2029 / 2SA1774EB / 2SA1774 / 2SA1576UB / 2SA1576A / 2SA1037AK
lElectrical
characteristic curves(Ta
= 25°C)
Data Sheet

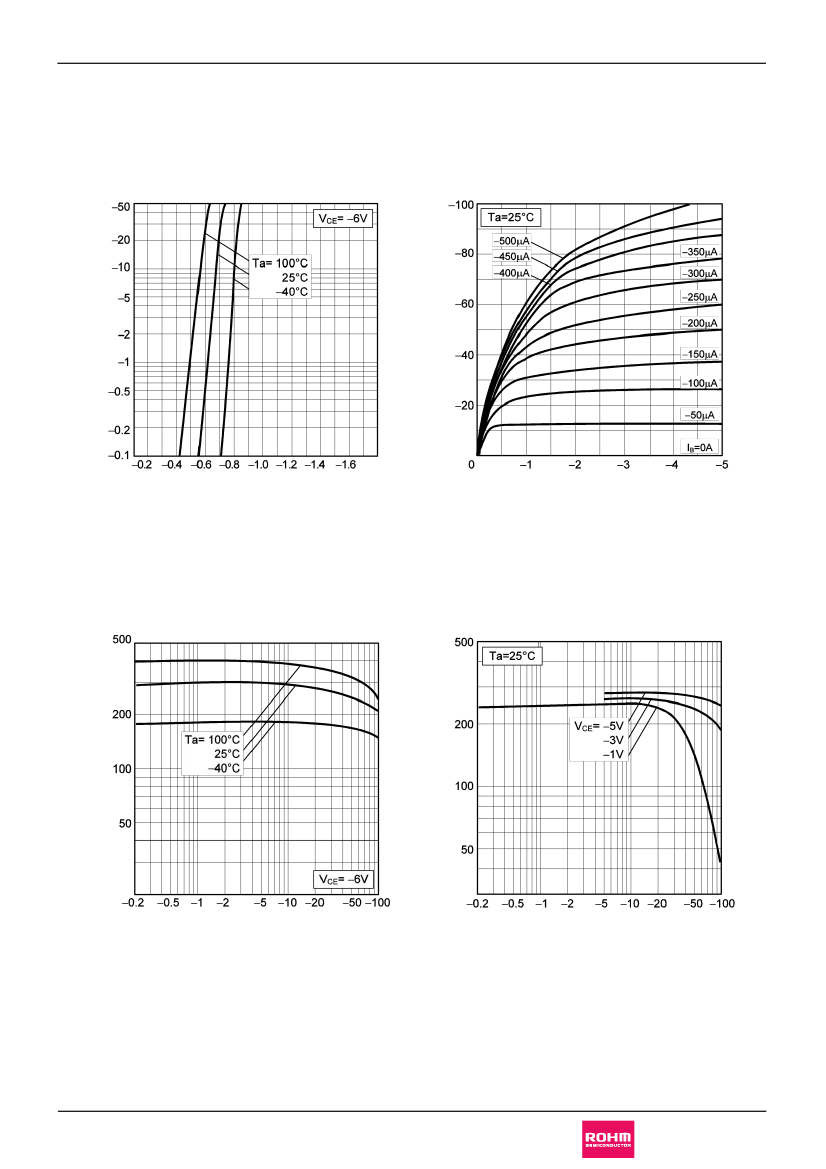

Fig.1 Ground Emitter Propagation Characteristics
Fig.2 Typical Output Characteristics
COLLECTOR CURRENT : I
C
[mA]
BASE TO EMITTER VOLTAGE : V
BE
[V]
COLLECTOR CURRENT : I
C
[A]
COLECTOR TO EMITTE VOLTAGE : V
CE
[V]
Fig.3 DC Current Gain vs. Collector Current(I)
Fig.4 DC Current Gain vs. Collector Current(II)
DC CURRENT GAIN : h
FE
COLLECTOR CURRENT : I
C
[mA]
DC CURRENT GAIN : h
FE
COLLECTOR CURRENT : I
C
[mA]
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
3/12
2013.05 - Rev.A
2SA2029 / 2SA1774EB / 2SA1774 / 2SA1576UB / 2SA1576A / 2SA1037AK
lElectrical
characteristic curves(Ta
= 25°C)
Data Sheet

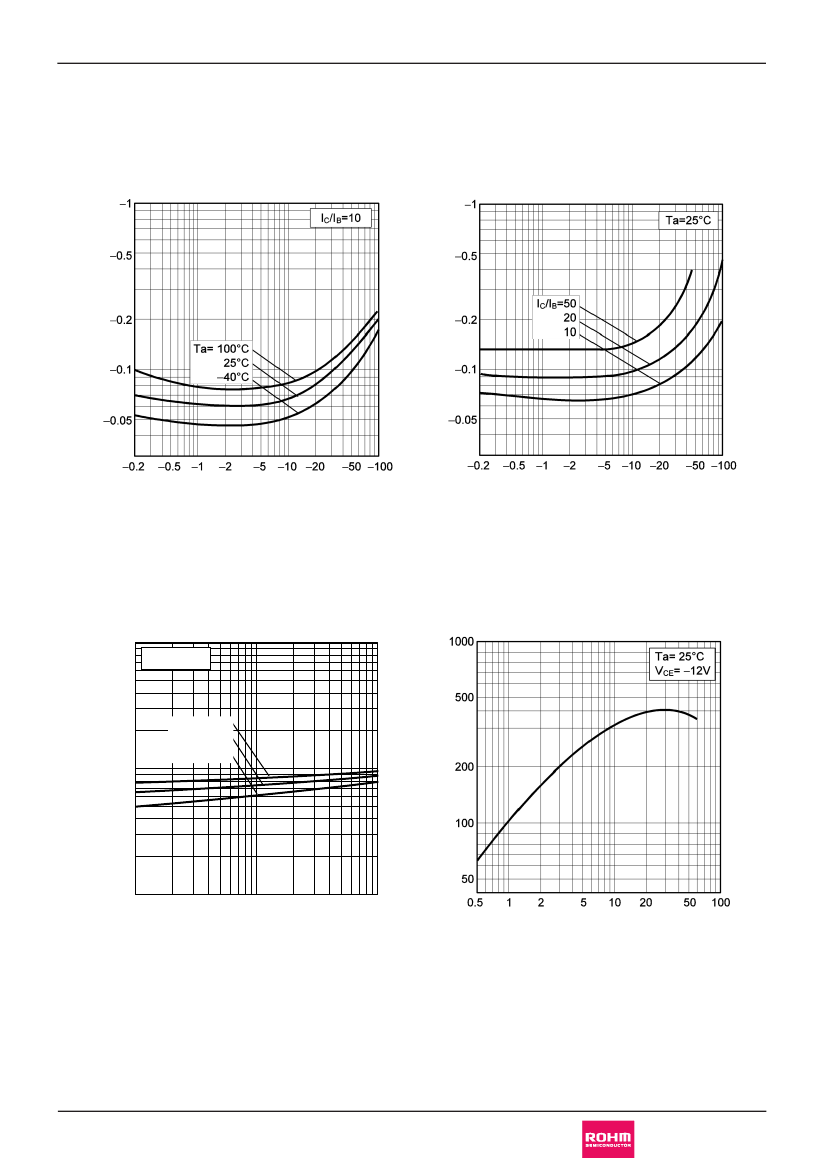

Fig.5 Collector-Emitter Saturation Voltage
vs. Collector Current (I)
Fig.6 Collector-Emitter Saturation Voltage
vs. Collector Current (II)
COLLECTOR CURRENT : I
C
[mA]
COLLECTOR-EMITTER
SATURATION VOLTAGE : V
CE(sat)
[V]
COLLECTOR-EMITTER
SATURATION VOLTAGE : V
CE(sat)
[V]
COLLECTOR CURRENT : I
C
[mA]
Fig.7 Base-Emitter Saturation Voltage
vs. Collector Current
-10
Fig.8 Gain Bandwidth Product
vs. Emitter Current
TRANSITION FREQUENCY : f
T
[MHz]
I
C
/ I
B
= 10/1
BASE-EMITTER
SATURATION VOLTAGE : V
BE(sat)
[V]
Ta=
-40ºC
25ºC
100ºC
-1
-0.1
-1
-10
-100
COLLECTOR CURRENT : I
C
[mA]
EMITTER CURRENT :I
E
[mA]
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
4/12
2013.05 - Rev.A
2SA2029 / 2SA1774EB / 2SA1774 / 2SA1576UB / 2SA1576A / 2SA1037AK
lElectrical
characteristic curves(Ta
= 25°C)

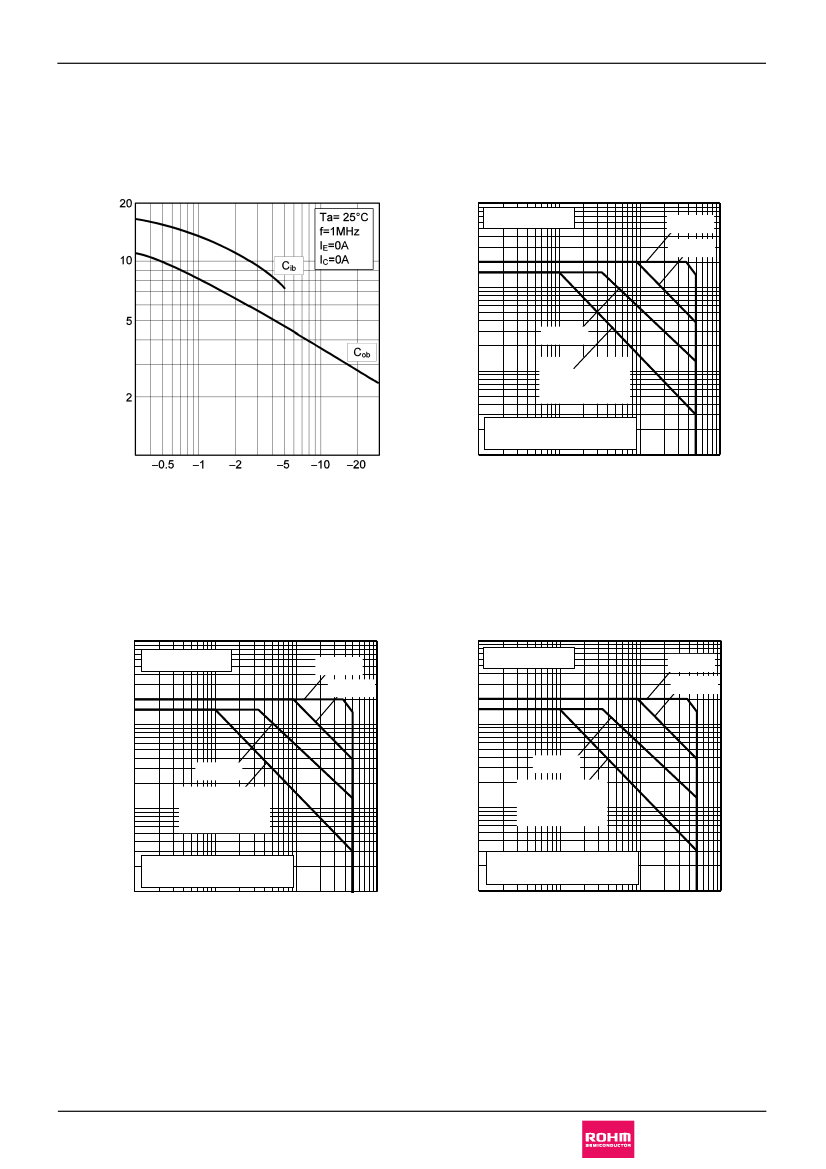

Fig.9 Emitter input capacitance vs.
Emitter-Base Voltage
Collector output capacitance vs.
Collector-Base Voltage
COLLECTOR OUTPUT CAPACITANCE : Cob [pF]
EMITTER INPUT CAPACITANCE : Cib [pF]
Data Sheet
Fig.10 Safe Operating Area
-1000
2SA2029
1ms
10ms
-100
COLLECTOR CURRENT : I
C
[mA]
100ms
-10
DC
(Mounted on a
reference land)
Ta=25ºC
Single non repetitive pulse
-1
-0.1
-1
-10
-100
COLLECTOR - BASE VOLTAGE : V
CB
[V]
EMITTER - BASE VOLTAGE : V
EB
[V]
COLLECTOR TO EMITTER VOLTAGE : V
CE
[ V]
Fig.11 Safe Operating Area
-1000
2SA1774EB
1ms
Fig.12 Safe Operating Area
-1000
2SA1774
1ms
10ms
-100
100ms
-10
DC
(Mounted on a
reference land)
COLLECTOR CURRENT : I
C
[mA]
10ms
-100
100ms
-10
DC
(Mounted on a
reference land)
Ta=25ºC
Single non repetitive pulse
-1
-0.1
-1
-10
-100
COLLECTOR CURRENT : I
C
[mA]
Ta=25ºC
Single non repetitive pulse
-1
-0.1
-1
-10
-100
COLLECTOR TO EMITTER VOLTAGE : V
CE
[V]
COLLECTOR TO EMITTER VOLTAGE : V
CE
[V]
www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
5/12
2013.05 - Rev.A
