Ordering number : EN7920B
2SA2124
SANYO Semiconductors
DATA SHEET
2SA2124
Applicaitons
•
PNP Epitaxial Planar Silicon Transistor
High-Current Switching Applications
Voltage regulators, relay drivers, lamp drivers, electrical equipment
Features
•
•
Adoption of MBIT processes
Large current capacity
•
•
Low collector-to-emitter saturation voltage
High-speed switching
Specifications
Absolute Maximum Ratings
at Ta=25°C
Parameter
Collector-to-Base Voltage
Collector-to-Emitter Voltage
Emitter-to-Base Voltage
Collector Current
Collector Current (Pulse)
Symbol
VCBO
VCEO
VEBO
IC
ICP
Conditions
Ratings
--30
--30
-
-6
-
-2
-
-5
Unit
V
V
V
A
A
Continued on next page.
Package Dimensions
unit : mm (typ)
7007B-004
Top View
4.5
1.6
1.5
Product & Package Information
• Package
: PCP
• JEITA, JEDEC
: SC-62, SOT-89, TO-243
• Minimum Packing Quantity : 1,000 pcs./reel
2SA2124-TD-E
Packing Type: TD
Marking
1.0
TD
1
0.4
0.5
1.5
3.0
2
3
0.4
Electrical Connection
2
0.75
1
1 : Base
2 : Collector
3 : Emitter
Bottom View
3
SANYO : PCP
http://www.sanyosemi.com/en/network/
O1712 TKIM TC-00002827/80509 TKIM TC-00002048/D2004EA TSIM TB-00000072 No.7920-1/7
AX
LOT No.
2.5
4.0
2SA2124
Continued from preceding page.
Parameter
Base Current
Collector Dissipation
Junction Temperature
Storage Temperature
Symbol
IB
PC
Tj
Tstg
When mounted on ceramic substrate (450mm
×0.8mm)
Tc=25°C
2
Conditions
Ratings
--400
1.3
3.5
150
-
-55 to +150
Unit
mA
W
W
°C
°C
Electrical Characteristics
at Ta=25°C
Parameter
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Gain-Bandwidth Product
Collector-to-Emitter Saturation Voltage
Base-to-Emitter Saturation Voltage
Collector-to-Base Breakdown Voltage
Collector-to-Emitter Breakdown Voltage
Emitter-to-Base Breakdown Voltage
Output Capacitance
Turn-ON Time
Storage Time
Fall Time
Symbol
ICBO
IEBO
hFE1
hFE2
fT
VCE(sat)
VBE(sat)
V(BR)CBO
V(BR)CEO
V(BR)EBO
Cob
ton
tstg
tf
Conditions
VCB=--30V, IE=0A
VEB=--4V, IC=0A
VCE=--2V, IC=--100mA
VCE=--2V, IC=--1.5A
VCE=--10V, IC=--300mA
IC=--1.5A, IB=--75mA
IC=--1.5A, IB=--75mA
IC=--10μA, IE=0A
IC=--1mA, RBE=∞
IE=--10μA, IC=0A
VCB=--10V, f=1MHz
See specified Test Circuit.
-
-30
--30
--6
17
45
200
23
200
65
440
--0.2
--0.95
--0.4
--1.2
MHz
V
V
V
V
V
pF
ns
ns
ns
Ratings
min
typ
max
--0.1
--0.1
560
Unit
μA
μA
Switching Time Test Circuit
PW=20μs
D.C.≤1%
INPUT
IB1
IB2
VR
50Ω
RB
IC
OUTPUT
RL
+
470μF
VCC= --12V
+
220μF
VBE=5V
IC=20IB1= --20IB2= --0.5A
Ordering Information
Device
2SA2124-TD-E
Package
PCP
Shipping
1,000pcs./reel
memo
Pb Free
No.7920-2/7
2SA2124
--2.0
--1.8

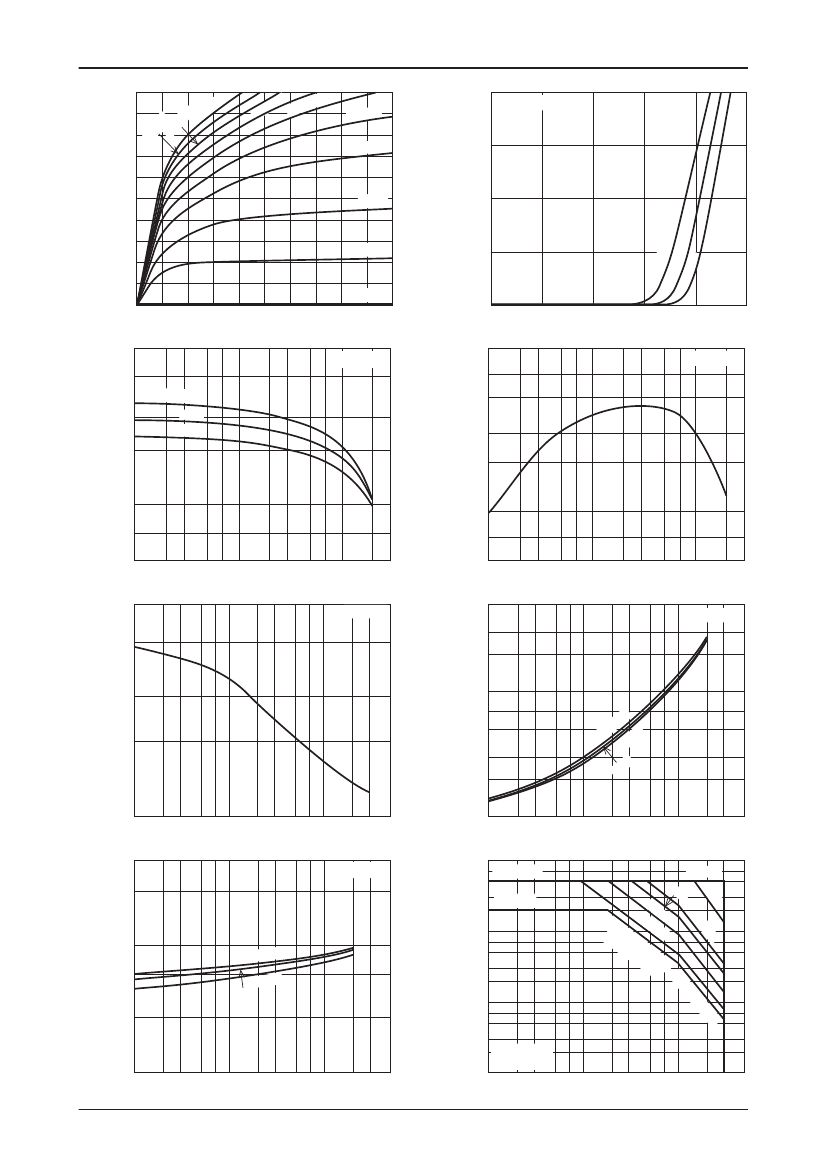

IC -- VCE
--3
5m
A
--3
0m
--2.0
IC -- VBE
VCE= --2V
0m
--4
A
mA
--20mA
--25
--15mA
Collector Current, IC -- A
--1.4
--1.2
--1.0
--0.8
--0.6
--10mA
Collector Current, IC -- A
--1.6
A
--1.5
--5mA
--1.0
--2mA
--0.4
--0.2
0
0
--0.2
--0.4
--0.6
--0.8
--1.0
--1.2
--1.4
--0.5
IB=0mA
--1.6
--1.8
--2.0
0
0
--0.2
--0.4
--0.6
Ta=
75
°
C
25
°
C
--25
°
C
--0.8
--1.0
IT07249
Collector-to-Emitter Voltage, VCE -- V
7
5
IT07248
1000
Base-to-Emitter Voltage, VBE -- V
hFE -- IC
f T -- IC
VCE= --2V
Gain-Bandwidth Product, f T -- MHz
7
5
VCE= --10V
Ta=75
°
C
DC Current Gain, hFE
3
25
°C
--25
°
C
3
2
2
100
100
7
5
--0.01
7
5
--0.01
2
3
5
7 --0.1
2
3
5
7 --1.0
2
3
2
3
5
7 --0.1
2
3
5
7 --1.0
2
3
Collector Current, IC -- A
7
IT07250
5
3
2
Cob -- VCB
Collector Current, IC -- A
IT07251
VCE(sat) -- IC
f=1MHz
Collector-to-Emitter
Saturation Voltage, VCE(sat) -- V
IC / IB=20
Output Capacitance, Cob -- pF
5
3
--0.1
7
5
3
2
2
=7
Ta
C
5
°
5
°
--2
°
C
25
C
10
--0.1
2
3
5
7 --1.0
2
3
5
7 --10
2
3
5
--0.01
--0.01
2
3
5
7 --0.1
2
3
5
7 --1.0
2
3
5
Collector-to-Base Voltage, VCB -- V
3
IT07252
--10
7
5
3
VBE(sat) -- IC
Collector Current, IC -- A
IT07253
ASO
IC / IB=20
Base-to-Emitter
Saturation Voltage, VBE(sat) -- V
2
ICP= --5A
IC= --2A
<10μs
1m
10
m
Di
10
s
ssi
0m
p
s
DC
ation
op
Lim
era
ite
tio
d
n
10
s
0
μ
s
Collector Current, IC -- A
2
--1.0
7
5
3
2
--0.1
7
5
3
2
50
s
0
μ
--1.0
Ta= --25
°
C
7
25
°
C
5
75
°
C
S
/B
mi
Li
ted
3
--0.01
2
3
5
7 --0.1
2
3
5
7 --1.0
2
3
5
--0.01
--0.1
Tc=25
°
C
Single Pulse
2
3
5
7 --1.0
2
3
5
7 --10
2
3
5
Collector Current, IC -- A
IT07254
Collector-to-Emitter Voltage, VCE -- V
IT07255
No.7920-3/7
2SA2124
1.4
1.3
1.2
PC -- Ta
M
ou
4.0
3.5
PC -- Tc
Collector Dissipation, PC -- W
1.0
nt
ed
Collector Dissipation, PC -- W
on
3.0
2.5
2.0
1.5
1.0
0.5
0
ac
er
0.8
am
ic
b
oa
0.6
rd
(4
50
m
0.4
m
2
✕
0.
8m
m
0.2
0
0
20
40
60
80
100
120
)
140
160
0
20
40
60
80
100
120
140
160
Ambient Temperature, Ta --
°
C
IT07256
Case Temperature, Tc --
°
C
IT08355
No.7920-4/7
2SA2124

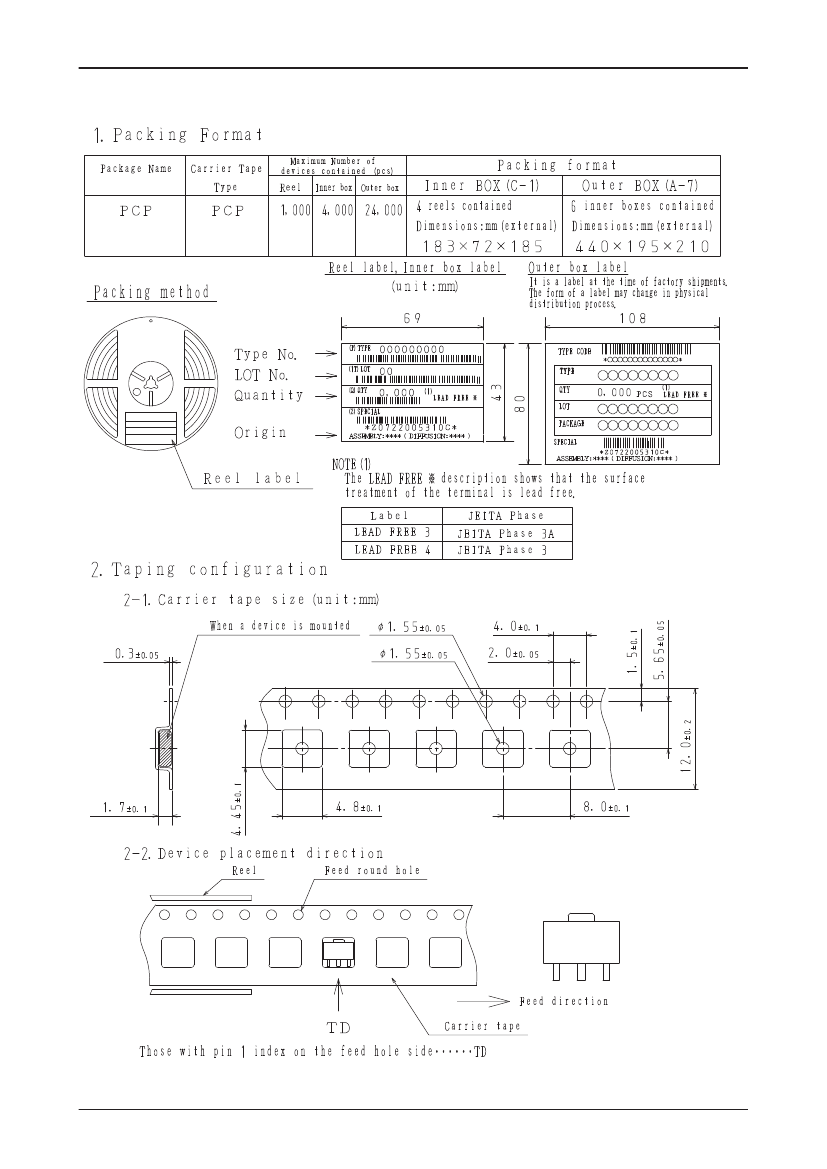

Bag Packing Specification
2SA2124-TD-E
No.7920-5/7
