Ordering number : ENA0583
2SA2202
SANYO Semiconductors
DATA SHEET
2SA2202
Applications
•
PNP Epitaxial Planar Silicon Transistor
High-Voltage Switching Applications
DC / DC converters, relay drivers, lamp drivers, motor drivers, flash.
Features
•
•
•
•
•
Adoption of FBET, MBIT processes.
Large current capacitance.
Low collector-to-emitter saturation voltage.
High-speed switching.
High allowable power dissipation.
Specifications
Absolute Maximum Ratings
at Ta=25°C
Parameter
Collector-to-Base Voltage
Collector-to-Emitter Voltage
Collector-to-Emitter Voltage
Emitter-to-Base Voltage
Collector Current
Collector Current (Pulse)
Base Current
Collector Dissipation
Junction Temperature
Storage Temperature
Symbol
VCBO
VCES
VCEO
VEBO
IC
ICP
IB
PC
Tj
Tstg
Mounted on a ceramic board (250mm
✕0.8mm)
2
Conditions
Ratings
--100
--100
--100
--7
--2
--3
--400
1.3
3.5
150
--55 to +150
Unit
V
V
V
V
A
A
mA
W
W
°C
°C
Tc=25°C
Electrical Characteristics
at Ta=25°C
Parameter
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Gain-Bandwidth Product
Output Capacitance
Symbol
ICBO
IEBO
hFE
fT
Cob
Conditions
VCB=-
-80V, IE=0A
VEB=-
-4V, IC=0A
VCE=-
-5V, IC=--100mA
VCE=-
-10V, IC=--500mA
VCB=-
-10V, f=1MHz
200
300
23
Ratings
min
typ
max
--1
--1
400
MHz
pF
Unit
µA
µA
Marking : RC
Continued on next page.
Any and all SANYO Semiconductor products described or contained herein do not have specifications
that can handle applications that require extremely high levels of reliability, such as life-support systems,
aircraft's control systems, or other applications whose failure can be reasonably expected to result in
serious physical and/or material damage. Consult with your SANYO Semiconductor representative
nearest you before using any SANYO Semiconductor products described or contained herein in such
applications.
SANYO Semiconductor assumes no responsibility for equipment failures that result from using products
at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition
ranges, or other parameters) listed in products specifications of any and all SANYO Semiconductor
products described or contained herein.
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
D2706EA TI IM TC-00000421 No. A0583-1/4

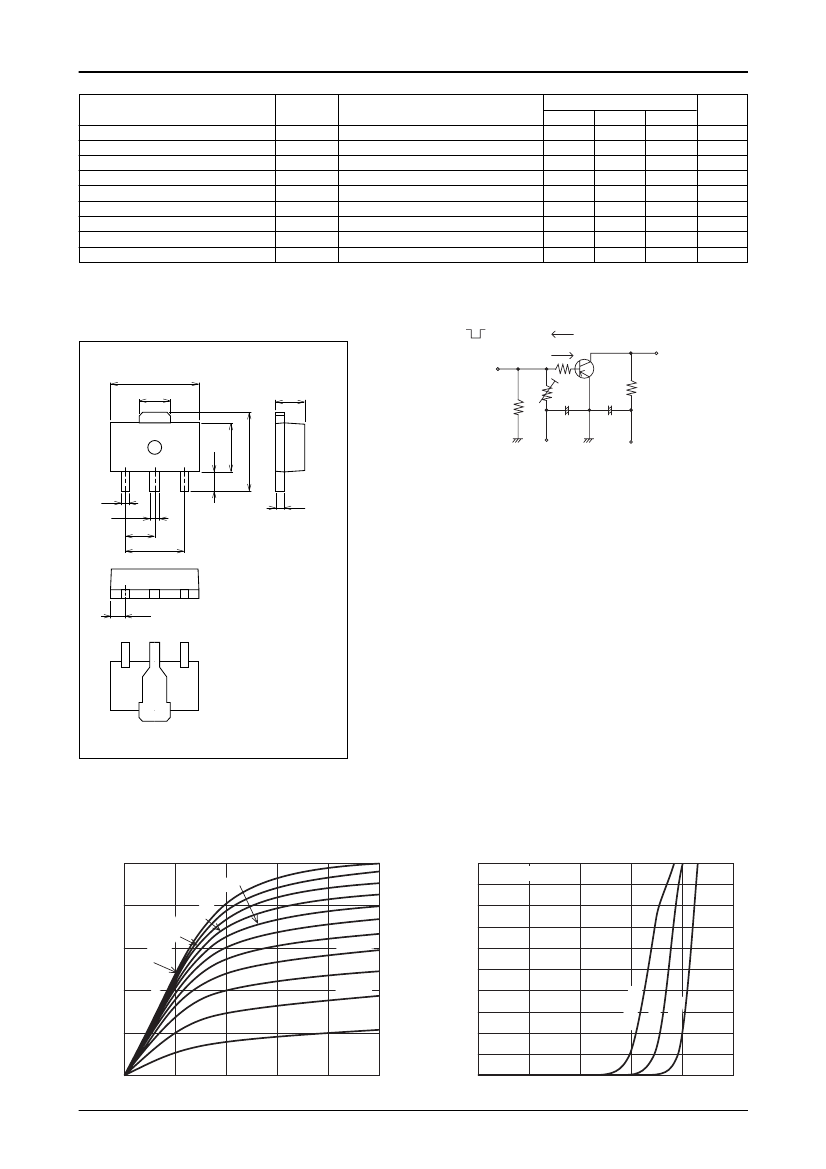

2SA2202
Continued from preceding page.
Parameter
Collector-to-Emitter Saturation Voltage
Base-to-Emitter Saturation Voltage
Collector-to-Base Breakdown Voltage
Collector-to-Emitter Breakdown Voltage
Collector-to-Emitter Breakdown Voltage
Emitter-to-Base Breakdown Voltage
Turn-ON Time
Storage Time
Fall Time
Symbol
VCE(sat)
VBE(sat)
V(BR)CBO
V(BR)CES
V(BR)CEO
V(BR)EBO
ton
tstg
tf
Conditions
IC=--1A, IB=--100mA
IC=--1A, IB=--100mA
IC=--10µA, IE=0A
IC=--100µA, RBE=0Ω
IC=--1mA, RBE=∞
IE=--10µA, IC=0A
See specified Test Circuit.
See specified Test Circuit.
See specified Test Circuit.
--100
--100
--100
--7
40
600
30
Ratings
min
typ
--120
--0.85
max
--240
--1.2
Unit
mV
V
V
V
V
V
ns
ns
ns
Package Dimensions
unit : mm (typ)
7007A-004
Top View
4.5
1.6
1.5
Switching Time Test Circuit
PW=20µs
D.C.≤1%
INPUT
VR
50Ω
RB
+
220µF
+
470µF
VCC= --50V
RL
IB1
IB2
OUTPUT
2.5
1.0
4.0
VBE=5V
IC= --10IB1=10IB2= --0.5A
0.4
1
0.4
0.5
1.5
2
3
3.0
0.75
1 : Base
2 : Collector
3 : Emitter
Bottom View
SANYO : PCP
--2.0
IC -- VCE
2
--1
0m
A
--2.0
--1.8
--1.6
--1.4
--1.2
--1.0
IC -- VBE
VCE= --5V
0m
Collector Current, IC -- A
--1.2
0m
A
--1
--100mA
--80mA
--60mA
--18
--40mA
--20mA
Ta=75
°
C
mA
--0.8
Collector Current, IC -- A
--1.6
60
mA
--1
4
A
--0.8
--0.6
--0.4
--0.2
--20
0
--0.4
IB= --5mA
0
0
--0.1
--0.2
--0.3
--0.4
--0.5
IT11879
0
0
--0.2
--0.4
--0.6
--0.8
--1.0
IT11880
Collector-to-Emitter Voltage, VCE -- V
Base-to-Emitter Voltage, VBE -- V
--25
°
C
25
°
C

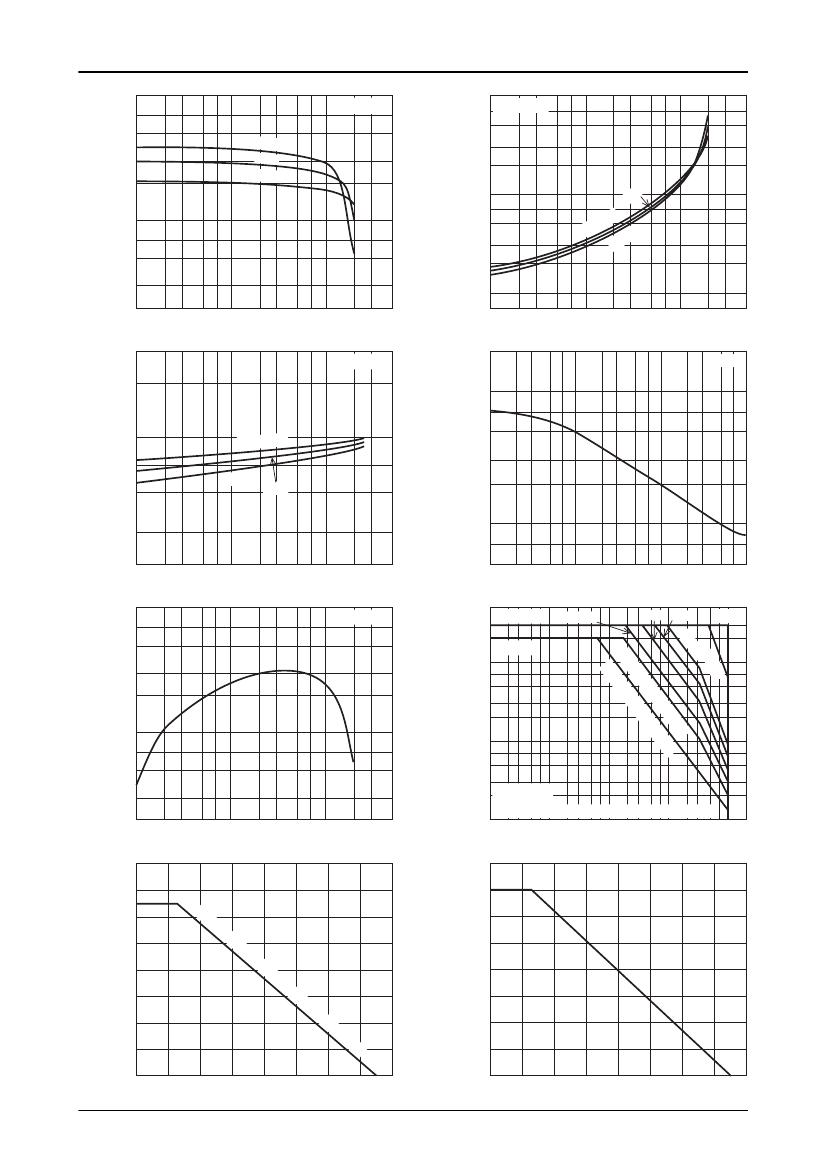

No. A0583-2/4
