Solid Tantalum Surface Mount T
ANTAMOUNT®
,
Molded Case, Hi-Rel COTS, Low ESR, Built-In-Fuse

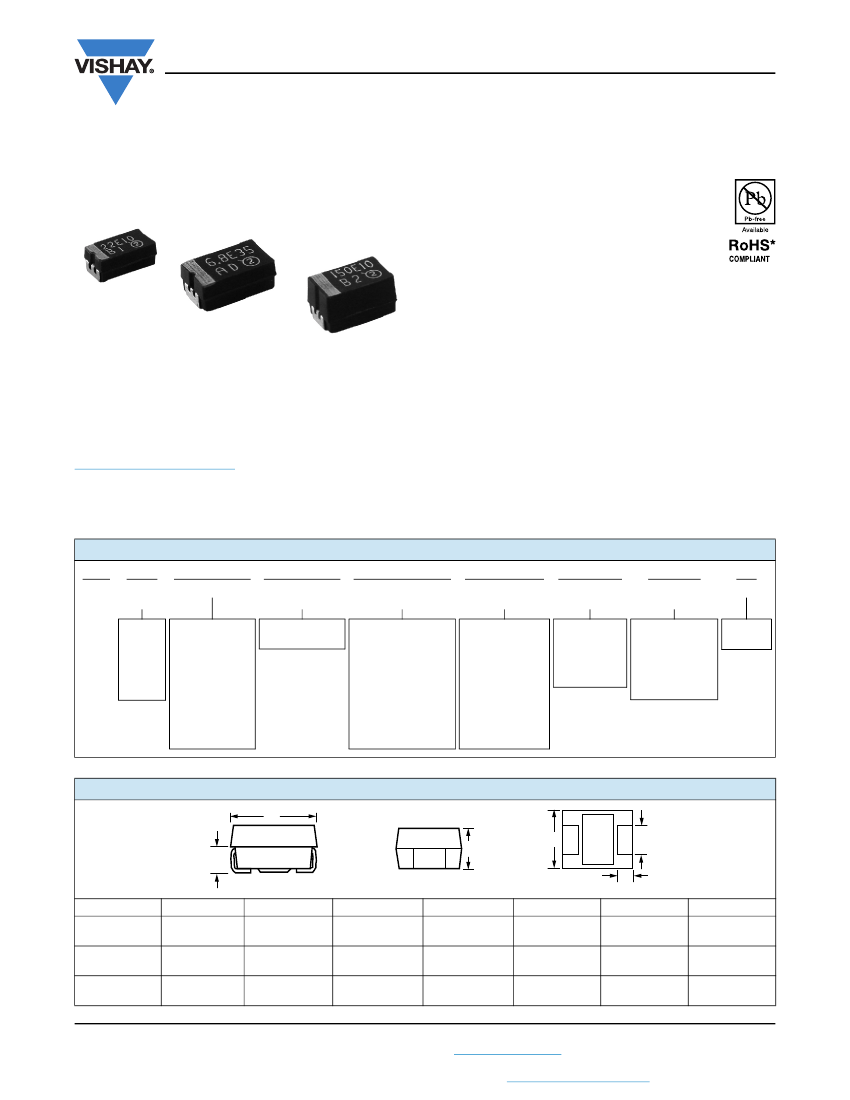

FEATURES
• Terminations: 100 % matte tin, standard,
tin/lead available
• Molded case available in three case sizes
• Compatible with “High Volume” automatic
pick and place equipment
• High ripple current carrying capability
• Meets EIA 535BAAC case sizes
• Weibull grading and surge current test options per
MIL-PRF-55365
• Standard and low ESR options
• Compliant to RoHS Directive 2002/95/EC
• Moisture sensitivity level 1
Note
*
Pb containing terminations are not RoHS compliant, exemptions
may apply
PERFORMANCE CHARACTERISTICS
www.vishay.com/doc?40088
Operating Temperature:
- 55 °C to + 125 °C
(Above 85 °C voltage derating is required)
Capacitance Range:
0.47 μF to 470 μF
Capacitance Tolerance:
± 10 %, ± 20 %
Voltage Rating:
4 V
DC
to 50 V
DC
ORDERING INFORMATION
T86
TYPE
D
CASE
CODE
See
Ratings
and
Case
Codes
Table
107
CAPACITANCE
K
CAPACITANCE
TOLERANCE
K = ± 10 %
M = ± 20 %
010
DC VOLTAGE
RATING AT + 85 °C
This is expressed
in V. To complete
the three-digit
block, zeros
precede the
voltage rating.
A decimal point
is indicated
by an “R”
(6R3 = 6.3 V).
E
TERMINATION/
PACKAGING
C = Matte tin/
7" (178 mm) reel
H = Matte tin/
7" (178 mm),
1/2 reel
E = Tin/lead/
7" (178 mm) reel
L = Tin/lead/
7" (178 mm),
1/2 reel
A
RELIABILITY
LEVEL
A = 1.0 %
B = 0.1 %
S = Hi-Rel
standard
Z = Non-ER
A
SURGE
CURRENT
A = 10 cycles
at + 25 °C
B = 10 cycles at
- 55 °C/+ 85 °C
S = 3 cycles
at + 25 °C
S
ESR
This is
expressed in
picofarads.
The first two
digits are the
significant
figures. The
third is the
number of
zeros to follow.
S = Std.
L = Low
DIMENSIONS
in inches [millimeters]
L
W
T
H
(MIN.)
H
P
T
W
CASE CODE
C
D
E
EIA SIZE
6032-28
7343-31
7343-43
L
0.236 ± 0.012
[6.0 ± 0.30]
0.287 ± 0.012
[7.3 ± 0.30]
0.287 ± 0.012
[7.3 ± 0.30]
W
0.126 ± 0.012
[3.2 ± 0.30]
0.169 ± 0.012
[4.3 ± 0.30]
0.169 ± 0.012
[4.3 ± 0.30]
H
0.098 ± 0.012
[2.5 ± 0.30]
0.110 ± 0.012
[2.8 ± 0.30]
0.157 ± 0.012
[4.0 ± 0.30]
P
0.051 ± 0.012
[1.3 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
T
W
0.087 ± 0.004
[2.2 ± 0.10]
0.094 ± 0.004
[2.4 ± 0.10]
0.094 ± 0.004
[2.4 ± 0.10]
T
H
(MIN.)
0.039
[1.0]
0.039
[1.0]
0.039
[1.0]
Revision: 03-Jan-12
Document Number: 40145
1
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T86
www.vishay.com
Vishay Sprague
RATINGS AND CASE CODES
μF
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
C
C
D
D
D/E
E
C
C
C
C/D
C/D
D/E
D
D/E
E
C
C
C
C/D
C/D
D/E
D
D/E
E
C
C
C
C/D
C/D
D/E
D
E
E
C
C
C
C/D
D
D/E
E
E
C
C
C
C
C/D
D
D/E
E
C
C
C
C/D
D
D/E
D/E
E
4V
6.3 V
10 V
16 V
20 V
25 V
35 V
50 V
C
C
C
C
C/D
C/D
D
D/E

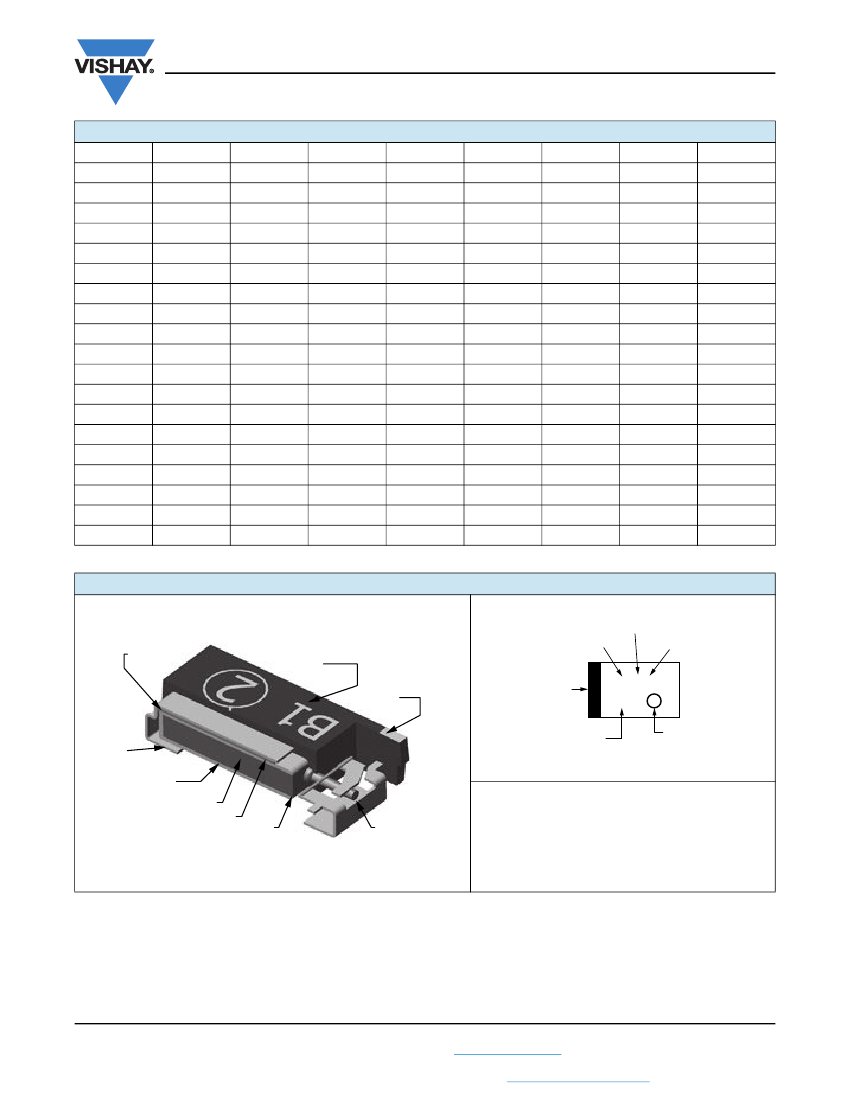

CONSTRUCTION AND MARKING
Indicates
Fused Product
Silver
Adhesive
Capacitance
μF
Epoxy
Encapsulation
Anode
Polarity Bar
Solderable
Cathode
Termination
MnO
2
/Carbon/
Silver
Coating
Sintered
Tantalum
Pellet
Leadframe
Fusible
Wire
Solderable
Anode
Termination
Polarity
Band
Voltage
22E10
XX
2
Vishay
Sprague
Logo
Date Code
C, D, E, Cases
Marking:
Capacitor marking includes an anode (+) polarity band,
capacitance in microfarads and the voltage rating.
The Vishay Sprague
®
trademark is included if space
permits. Capacitors rated at 6.3 V are marked 6 V.
A manufacturing date code is marked on all capacitors.
Capital letter “E” stands for lead (Pb)-free terminations
small cap letter “e” stands for SnPb
Revision: 03-Jan-12
Document Number: 40145
2
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T86
www.vishay.com
Vishay Sprague
STANDARD (S)
MAX. ESR
AT + 25 °C
100 kHz
()
1.40
0.80
0.60
0.60
0.60
0.50
0.50
1.80
1.80
1.40
1.30
0.90
0.80
0.70
0.70
0.70
0.60
0.60
0.50
0.50
1.80
1.80
1.40
1.30
0.90
1.00
0.70
0.70
0.70
0.60
0.60
0.50
0.50
2.00
1.80
1.40
LOW (L)
MAX. ESR
AT + 25 °C
100 kHz
()
0.40
0.40
0.30
0.40
0.30
0.30
0.25
0.60
0.60
0.60
0.60
0.45
n/a
0.35
0.35
0.30
0.30
0.30
0.30
0.30
n/a
0.60
0.50
0.40
0.40
n/a
0.40
0.35
0.35
0.30
0.30
0.40
0.30
0.60
0.70
n/a
STANDARD RATINGS
CAPACITANCE
(μF)
CASE CODE
PART NUMBER
MAX. DC
LEAKAGE
AT + 25 °C
(μA)
MAX. DF
AT + 25 °C
120 Hz
(%)
4 V
DC
AT + 85 °C; 2.7 V
DC
AT + 125 °C
68
100
150
220
330
330
470
15
22
33
47
47
68
68
100
100
150
220
220
330
10
15
22
33
33
47
47
68
68
100
150
150
220
6.8
10
15
C
C
D
D
D
E
E
C
C
C
C
D
C
D
D
E
D
D
E
E
C
C
C
C
D
C
D
D
E
D
D
E
E
C
C
C
T86C686(1)004(2)(3)(4)(5)
T86C107(1)004(2)(3)(4)(5)
T86D157(1)004(2)(3)(4)(5)
T86D227(1)004(2)(3)(4)(5)
T86D337(1)004(2)(3)(4)(5)
T86E337(1)004(2)(3)(4)(5)
T86E477(1)004(2)(3)(4)(5)
T86C156(1)6R3(2)(3)(4)(5)
T86C226(1)6R3(2)(3)(4)(5)
T86C336(1)6R3(2)(3)(4)(5)
T86C476(1)6R3(2)(3)(4)(5)
T86D476(1)6R3(2)(3)(4)(5)
T86C686(1)6R3(2)(3)(4)S
T86D686(1)6R3(2)(3)(4)(5)
T86D107(1)6R3(2)(3)(4)(5)
T86E107(1)6R3(2)(3)(4)(5)
T86D157(1)6R3(2)(3)(4)(5)
T86D227(1)6R3(2)(3)(4)(5)
T86E227(1)6R3(2)(3)(4)(5)
T86E337(1)6R3(2)(3)(4)(5)
T86C106(1)010(2)(3)(4)S
T86C156(1)010(2)(3)(4)(5)
T86C226(1)010(2)(3)(4)(5)
T86C336(1)010(2)(3)(4)(5)
T86D336(1)010(2)(3)(4)(5)
T86C476(1)010(2)(3)(4)S
T86D476(1)010(2)(3)(4)(5)
T86D686(1)010(2)(3)(4)(5)
T86E686(1)010(2)(3)(4)(5)
T86D107(1)010(2)(3)(4)(5)
T86D157(1)010(2)(3)(4)(5)
T86E157(1)010(2)(3)(4)(5)
T86E227(1)010(2)(3)(4)(5)
T86C685(1)016(2)(3)(4)(5)
T86C106(1)016(2)(3)(4)(5)
T86C156(1)016(2)(3)(4)S
2.7
4.0
6.0
8.8
13.2
13.2
18.8
0.9
1.1
1.6
2.3
2.3
3.3
3.3
6.0
6.0
9.0
13.2
13.2
19.8
1.0
1.5
2.2
3.3
3.3
4.7
4.7
6.8
6.8
10.0
15.0
15.0
22.0
1.1
1.6
2.4
8
8
8
8
15
8
16
6
6
6
6
6
6
6
8
8
8
8
8
8
6
6
6
6
6
6
6
6
6
8
8
8
8
6
6
6
6.3 V
DC
AT + 85 °C; 4 V
DC
AT + 125 °C
10 V
DC
AT + 85 °C; 7 V
DC
AT + 125 °C
16 V
DC
AT + 85 °C; 10 V
DC
AT + 125 °C
Note
• Part number definitions:
(1) Capacitance tolerance codes: K, M
(2) Terminations and packaging codes: C, H, E, L
(3) Reliability level: A, B, S, Z
(4) Surge current: A, B, S
(5) ESR: L, S
Revision: 03-Jan-12
Document Number: 40145
3
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T86
www.vishay.com
Vishay Sprague
STANDARD (S)
MAX. ESR
AT + 25 °C
100 kHz
()
1.30
0.90
1.00
0.70
0.70
0.70
0.60
0.60
0.40
2.00
1.90
1.60
1.40
0.90
0.70
0.70
0.70
0.60
0.60
2.80
2.30
1.90
1.60
1.40
1.00
0.80
0.70
0.70
0.60
3.80
2.90
2.00
1.80
1.20
1.00
0.80
LOW (L)
MAX. ESR
AT + 25 °C
100 kHz
()
0.70
0.45
0.50
0.35
0.35
0.35
0.30
0.30
n/a
1.00
0.60
0.80
n/a
0.45
0.35
0.40
0.40
0.30
0.30
n/a
2.10
1.00
0.60
0.60
0.50
0.40
0.35
0.35
0.30
2.60
n/a
n/a
n/a
0.60
0.50
0.50
STANDARD RATINGS
CAPACITANCE
(μF)
CASE CODE
PART NUMBER
MAX. DC
LEAKAGE
AT + 25 °C
(μA)
MAX. DF
AT + 25 °C
120 Hz
(%)
16 V
DC
AT + 85 °C; 10 V
DC
AT + 125 °C
22
22
33
33
47
47
68
100
150
4.7
6.8
10
15
15
22
33
33
47
68
2.2
3.3
4.7
6.8
10
10
15
22
22
33
1.5
2.2
3.3
4.7
4.7
6.8
10
C
D
C
D
D
E
D
E
E
C
C
C
C
D
D
D
E
E
E
C
C
C
C
C
D
D
D
E
E
C
C
C
C
D
D
D
T86C226(1)016(2)(3)(4)(5)
T86D226(1)016(2)(3)(4)(5)
T86C336(1)016(2)(3)(4)(5)
T86D336(1)016(2)(3)(4)(5)
T86D476(1)016(2)(3)(4)(5)
T86E476(1)016(2)(3)(4)(5)
T86D686(1)016(2)(3)(4)(5)
T86E107(1)016(2)(3)(4)(5)
T86E157(1)016(2)(3)(4)S
T86C475(1)020(2)(3)(4)(5)
T86C685(1)020(2)(3)(4)(5)
T86C106(1)020(2)(3)(4)(5)
T86C156(1)020(2)(3)(4)S
T86D156(1)020(2)(3)(4)(5)
T86D226(1)020(2)(3)(4)(5)
T86D336(1)020(2)(3)(4)(5)
T86E336(1)020(2)(3)(4)(5)
T86E476(1)020(2)(3)(4)(5)
T86E686(1)020(2)(3)(4)(5)
T86C225(1)025(2)(3)(4)S
T86C335(1)025(2)(3)(4)(5)
T86C475(1)025(2)(3)(4)(5)
T86C685(1)025(2)(3)(4)(5)
T86C106(1)025(2)(3)(4)(5)
T86D106(1)025(2)(3)(4)(5)
T86D156(1)025(2)(3)(4)(5)
T86D226(1)025(2)(3)(4)(5)
T86E226(1)025(2)(3)(4)(5)
T86E336(1)025(2)(3)(4)(5)
T86C155(1)035(2)(3)(4)(5)
T86C225(1)035(2)(3)(4)S
T86C335(1)035(2)(3)(4)S
T86C475(1)035(2)(3)(4)S
T86D475(1)035(2)(3)(4)(5)
T86D685(1)035(2)(3)(4)(5)
T86D106(1)035(2)(3)(4)(5)
3.5
3.5
5.3
5.3
7.5
7.5
10.9
16.0
24.0
0.9
1.4
2.0
3.0
3.0
4.4
6.6
6.6
9.4
13.6
0.6
0.8
1.2
1.7
2.5
2.5
3.8
5.5
5.5
8.3
0.5
0.8
1.2
1.6
1.6
2.4
3.5
6
6
6
6
6
6
6
8
10
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
20 V
DC
AT + 85 °C; 13 V
DC
AT + 125 °C
25 V
DC
AT + 85 °C; 17 V
DC
AT + 125 °C
35 V
DC
AT + 85 °C; 23 V
DC
AT + 125 °C
Note
• Part number definitions:
(1) Capacitance tolerance codes: K, M
(2) Terminations and packaging codes: C, H, E, L
(3) Reliability level: A, B, S, Z
(4) Surge current: A, B, S
(5) ESR: L, S
Revision: 03-Jan-12
Document Number: 40145
4
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T86
www.vishay.com
Vishay Sprague
STANDARD (S)
MAX. ESR
AT + 25 °C
100 kHz
()
0.80
0.70
0.70
0.60
6.70
5.90
4.40
5.00
2.80
2.10
2.40
2.00
1.10
0.90
0.90
LOW (L)
MAX. ESR
AT + 25 °C
100 kHz
()
0.50
0.50
0.50
0.40
n/a
n/a
2.70
3.20
n/a
0.90
1.60
n/a
n/a
n/a
n/a
STANDARD RATINGS
CAPACITANCE
(μF)
CASE CODE
PART NUMBER
MAX. DC
LEAKAGE
AT + 25 °C
(μA)
MAX. DF
AT + 25 °C
120 Hz
(%)
35 V
DC
AT + 85 °C; 23 V
DC
AT + 125 °C
10
15
15
22
0.47
0.68
1.0
1.5
2.2
2.2
3.3
3.3
4.7
6.8
6.8
E
D
E
E
C
C
C
C
C
D
C
D
D
D
E
T86E106(1)035(2)(3)(4)(5)
T86D156(1)035(2)(3)(4)(5)
T86E156(1)035(2)(3)(4)(5)
T86E226(1)035(2)(3)(4)(5)
T86C474(1)050(2)(3)(4)S
T86C684(1)050(2)(3)(4)S
T86C105(1)050(2)(3)(4)(5)
T86C155(1)050(2)(3)(4)(5)
T86C225(1)050(2)(3)(4)S
T86D225(1)050(2)(3)(4)(5)
T86C335(1)050(2)(3)(4)(5)
T86D335(1)050(2)(3)(4)S
T86D475(1)050(2)(3)(4)S
T86D685(1)050(2)(3)(4)S
T86E685(1)050(2)(3)(4)S
3.5
5.3
5.3
7.7
0.5
0.5
0.5
0.8
1.1
1.1
1.7
1.7
2.4
3.4
3.4
6
6
6
6
4
4
4
6
6
6
6
6
6
6
6
50 V
DC
AT + 85 °C; 33 V
DC
AT + 125 °C
Note
• Part number definitions:
(1) Capacitance tolerance codes: K, M
(2) Terminations and packaging codes: C, H, E, L
(3) Reliability level: A, B, S, Z
(4) Surge current: A, B, S
(5) ESR: L, S
RECOMMENDED VOLTAGE DERATING GUIDELINES
(for temperatures below + 85 °C)
STANDARD CONDITIONS. FOR EXAMPLE: OUTPUT FILTERS
Capacitor Voltage Rating
4.0
6.3
10
16
20
25
35
50
SEVERE CONDITIONS. FOR EXAMPLE: INPUT FILTERS
Capacitor Voltage Rating
4.0
6.3
10
16
20
25
35
50
Operating Voltage
2.5
3.3
5.0
8.0
10
12
15
24
Operating Voltage
2.5
3.6
6.0
10
12
15
24
28
Revision: 03-Jan-12
Document Number: 40145
5
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
京公网安备 11010802033920号
EEWORLD
