Ordering number : ENA1089A
2SC5488A
SANYO Semiconductors
DATA SHEET
2SC5488A
Features
•
•
•
•
•
NPN Epitaxial Planar Silicon Transistor
VHF to UHF Wide-Band Low-Noise
Amplifier Applications
Low-noise
: NF=1.0dB typ (f=1GHz)
High gain
:
⏐
S21e
⏐
2
=12dB typ (f=1GHz)
High cut-off frequency : fT=7GHz typ
Ultrasmall, slim flat-lead package (1.4mm×0.8mm×0.6mm)
Halogen free compliance
Specifications
Absolute Maximum Ratings
at Ta=25°C
Parameter
Collector-to-Base Voltage
Collector-to-Emitter Voltage
Emitter-to-Base Voltage
Collector Current
Collector Dissipation
Junction Temperature
Storage Temperature
Symbol
VCBO
VCEO
VEBO
IC
PC
Tj
Tstg
Conditions
Ratings
20
10
2
70
100
150
-
-55 to +150
Unit
V
V
V
mA
mW
°C
°C
Package Dimensions
unit : mm (typ)
7029A-002
1.4
0.3
0.25
3
0 to 0.02
0.1
Product & Package Information
• Package
: SSFP
• JEITA, JEDEC
: SC-81
• Minimum Packing Quantity : 8,000 pcs./reel
2SC5488A-TL-H
Packing Type: TL
Marking
1.4
0.8
LOT No.
LOT No.
0.3
1
2
LN
0.45
0.6
0.2
TL
Electrical Connection
1
2
0.07
1 : Base
2 : Emitter
3 : Collector
1
3
0.07
3
SANYO : SSFP
2
http://semicon.sanyo.com/en/network
71112 TKIM/60408AB TIIM TC-00001389 No. A1089-1/7
2SC5488A
Electrical Characteristics
at Ta=25°C
Parameter
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Gain-Bandwidth Product
Output Capacitance
Reverse Transfer Capacitance
Forward Transfer Gain
Noise Figure
Symbol
ICBO
IEBO
hFE
fT
Cob
Cre
⏐S21e⏐
1
⏐S21e⏐
2
NF
2
2
Conditions
VCB=10V, IE=0A
VEB=1V, IC=0A
VCE=5V, IC=20mA
VCE=5V, IC=20mA
VCB=10V, f=1MHz
VCE=5V, IC=20mA, f=1GHz
VCE=2V, IC=3mA, f=1GHz
VCE=5V, IC=7mA, f=1GHz
Ratings
min
typ
max
1.0
10
90
5
7
0.7
0.45
9
12
8.5
1.0
1.8
1.2
200
Unit
μA
μA
GHz
pF
pF
dB
dB
dB
Ordering Information
Device
2SC5488A-TL-H
Package
SSFP
Shipping
8,000pcs./reel
memo
Pb Free and Halogem Free
No. A1089-2/7
2SC5488A
3
2
hFE -- IC
VCE=5V
Gain-Bandwidth Product, fT -- GHz
2
fT -- IC
VCE=5V
10
7
5
DC Current Gain, hFE
100
7
5
3
2
3
2
10
7
5
3
5
7 1.0
2
3
5
7
10
2
3
5
7 100
2
IT01363
1.0
7
5
7 1.0
2
3
5
7
10
2
3
5
7 100
2
IT01364
Collector Current, IC -- mA
3
2
Cob -- VCB
f=1MHz
Reverse Transfer Capacitance, Cre -- pF
Collector Current, IC -- mA
3
2
Cre -- VCB
f=1MHz
Output Capacitance, Cob -- pF
1.0
7
5
3
2
1.0
7
5
3
2
0.1
7
5
7 0.1
2
3
5
7 1.0
2
3
5
7
10
2
3
0.1
7
5
7 0.1
2
3
5
7 1.0
2
3
5
7
10
2
3
Collector-to-Base Voltage, VCB -- V
12
IT01365
14
NF -- IC
Collector-to-Base Voltage, VCB -- V
S21e
2
-- I
IT01366
⏐
⏐
C
Forward Transfer Gain,
⏐
S21e
⏐
2
-- dB
VCE=5V
f=1GHz
f=1GHz
12
10
Noise Figure, NF -- dB
10
8
6
6
4
4
2
2
0
0
3
5
7 1.0
2
3
5
7 10
2
3
5
Collector Current, IC -- mA
120
7 100
2
IT01368
3
5
7 1.0
2
3
2V
5
7 10
8
V
CE
=
5V
2
3
5
PC -- Ta
Collector Current, IC -- mA
7 100
2
IT01367
Collector Dissipation, PC -- mW
100
80
60
40
20
0
0
20
40
60
80
100
120
140
160
Ambient Temperature, Ta --
°C
IT01369
No. A1089-3/7
2SC5488A
S Parameters (Common emitter)
VCE=5V, IC=7mA, ZO=50
Ω
Freq(MHz)
100
200
400
600
800
1000
1200
1400
1600
1800
2000
⏐
S11
⏐
0.786
0.677
0.546
0.492
0.473
0.465
0.457
0.451
0.449
0.454
0.460
∠
S11
-40.7
-72.4
-112.7
-135.2
-150.0
-160.0
-169.5
-176.2
177.8
172.5
167.1
⏐
S21
⏐
17.507
13.998
9.061
6.442
5.005
4.073
3.449
2.989
2.658
2.378
2.154
∠
S21
151.3
131.4
108.6
96.1
87.3
80.4
74.0
68.6
63.8
58.4
54.0
⏐
S12
⏐
0.028
0.046
0.064
0.076
0.087
0.099
0.111
0.124
0.138
0.151
0.166
∠
S12
70.1
58.0
49.6
49.3
50.8
52.6
54.0
55.2
56.6
56.7
56.7
⏐
S22
⏐
0.898
0.739
0.525
0.423
0.374
0.346
0.332
0.321
0.319
0.313
0.311
∠
S22
-20.4
-33.4
-43.7
-46.7
-44.4
-49.7
-51.6
-54.1
-56.2
-60.0
-63.2
VCE=5V, IC=20mA, ZO=50
Ω
Freq(MHz)
100
200
400
600
800
1000
1200
1400
1600
1800
2000
⏐
S11
⏐
0.601
0.497
0.435
0.419
0.414
0.413
0.413
0.411
0.413
0.416
0.422
∠
S11
-65.8
-103.7
-139.6
-156.6
-166.6
-174.0
178.6
173.8
169.6
165.1
160.3
⏐
S21
⏐
28.967
19.309
10.891
7.461
5.695
4.613
3.870
3.345
2.960
2.655
2.406
∠
S21
137.1
116.6
98.6
89.3
82.5
77.0
71.8
66.9
62.7
58.0
54.0
⏐
S12
⏐
0.023
0.035
0.050
0.065
0.081
0.098
0.114
0.131
0.148
0.165
0.182
∠
S12
64.1
57.0
58.7
61.3
63.1
63.8
63.9
63.6
63.2
61.8
60.6
⏐
S22
⏐
0.757
0.534
0.345
0.280
0.251
0.235
0.226
0.221
0.220
0.219
0.218
∠
S22
-32.9
-50.3
-50.3
-50.7
-51.3
-52.9
-55.1
-57.7
-60.2
-64.8
-68.3
VCE=2V, IC=3mA, ZO=50
Ω
Freq(MHz)
100
200
400
600
800
1000
1200
1400
1600
1800
2000
⏐
S11
⏐
0.888
0.815
0.690
0.616
0.584
0.566
0.555
0.546
0.541
0.545
0.547
∠
S11
-30.2
-56.4
-96.0
-120.7
-138.0
-150.7
-161.2
-169.3
-176.4
177.1
170.9
⏐
S21
⏐
9.280
8.218
6.074
4.517
3.610
2.995
2.540
2.213
1.982
1.774
1.614
∠
S21
158.6
141.3
116.7
101.4
90.4
81.9
74.2
67.5
62.0
55.9
50.9
⏐
S12
⏐
0.038
0.067
0.098
0.112
0.120
0.125
0.131
0.137
0.143
0.152
0.163
∠
S12
73.6
60.5
45.1
38.4
35.8
35.7
36.5
38.4
40.7
42.5
44.7
⏐
S22
⏐
0.949
0.849
0.657
0.539
0.475
0.434
0.410
0.393
0.391
0.382
0.381
∠
S22
-15.1
-26.9
-41.1
-47.6
-51.2
-54.5
-57.5
-60.7
-64.0
-67.8
-72.1
No. A1089-4/7
2SC5488A

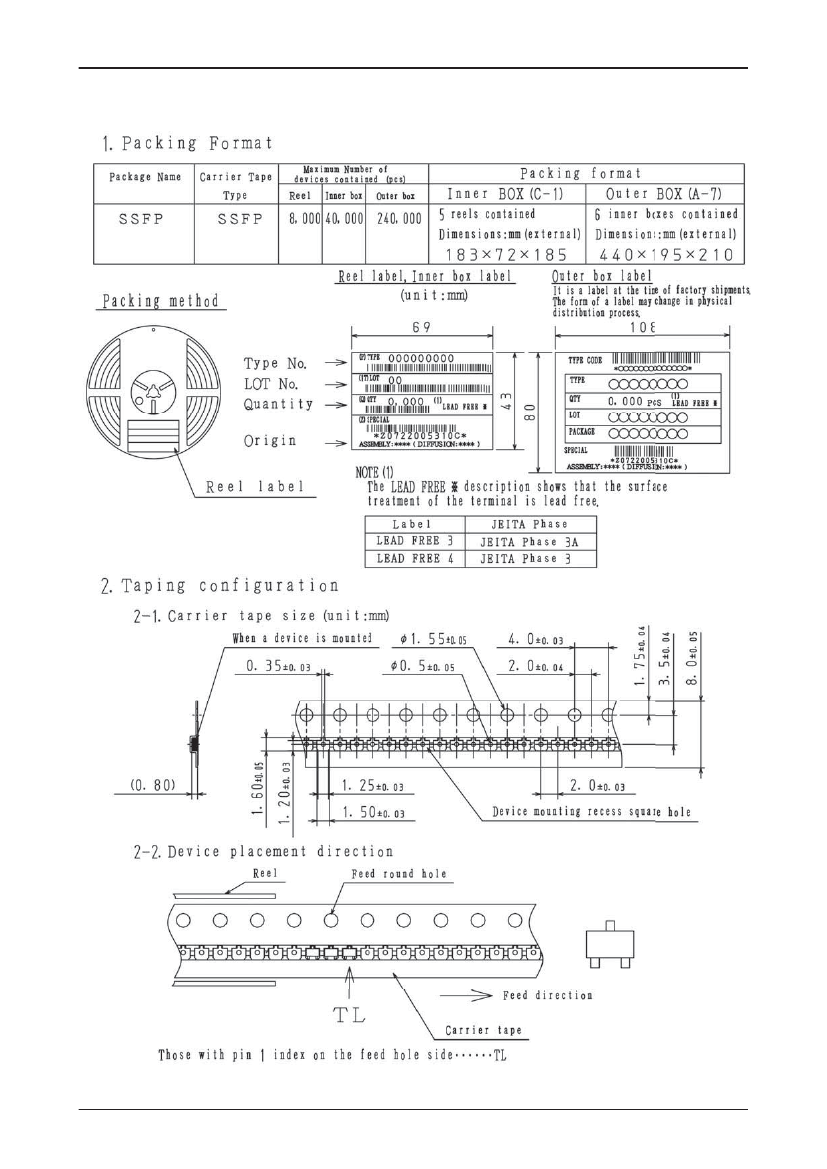

Embossed Taping Specification
2SC5488A-TL-H
No. A1089-5/7
