4N23A datasheet, PDF - EEWORLD Datasheet

4N23A: Description1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER; CategoryLED optoelectronic/LED; File Size255KB，2 Pages; ManufacturerNew Jersey Semiconductor; Websitehttp://www.njsemi.com

Download Datasheet Parametric Compare View All

4N23A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	4N23A	-	-	View	Buy Now

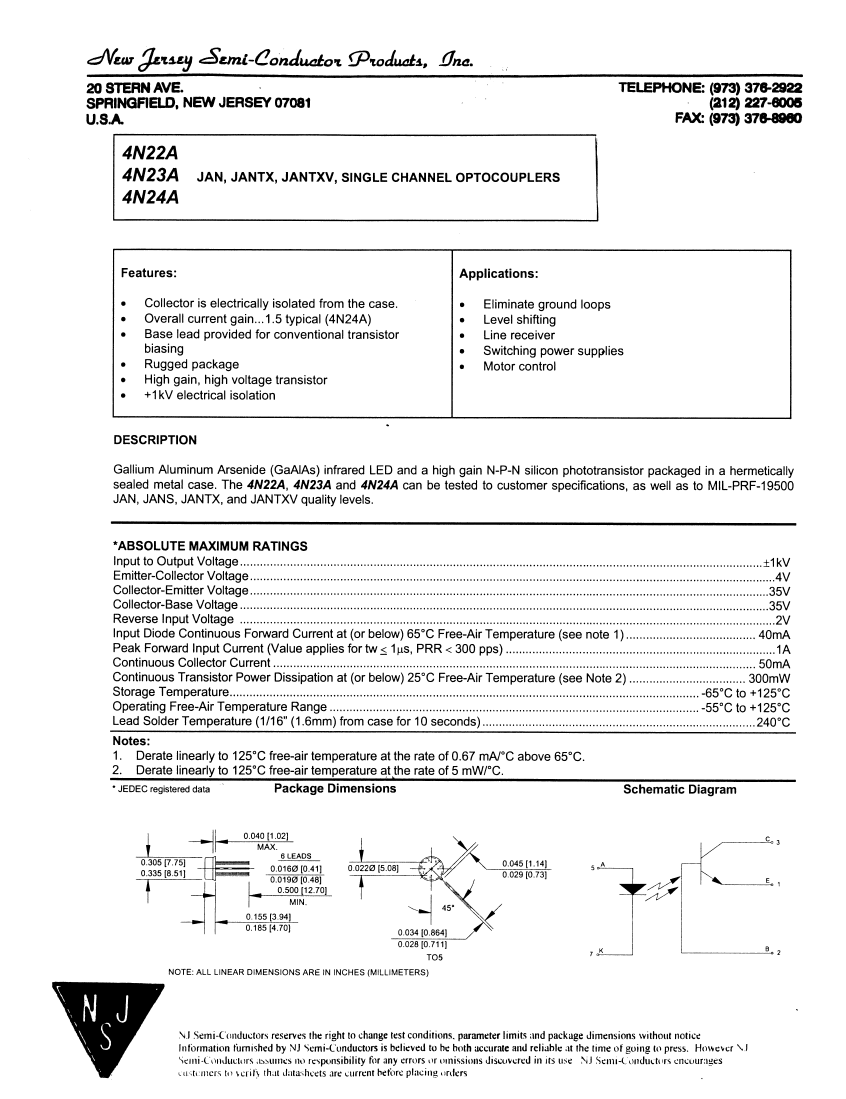

1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER

Parameter Name	Attribute value
Maximum operating temperature	125 Cel
Minimum operating temperature	-55 Cel
Number of functions	1
state	DISCONTINUED
terminal coating	tin lead
structure	single
Optoelectronic device type	transistor output
Minimum Coll-emtr Bkdn voltage	35 V
Maximum collector dark current	100 nA
Rated current transfer ratio	80 %
Maximum input control current	40 mA
Maximum insulation voltage	1000 V

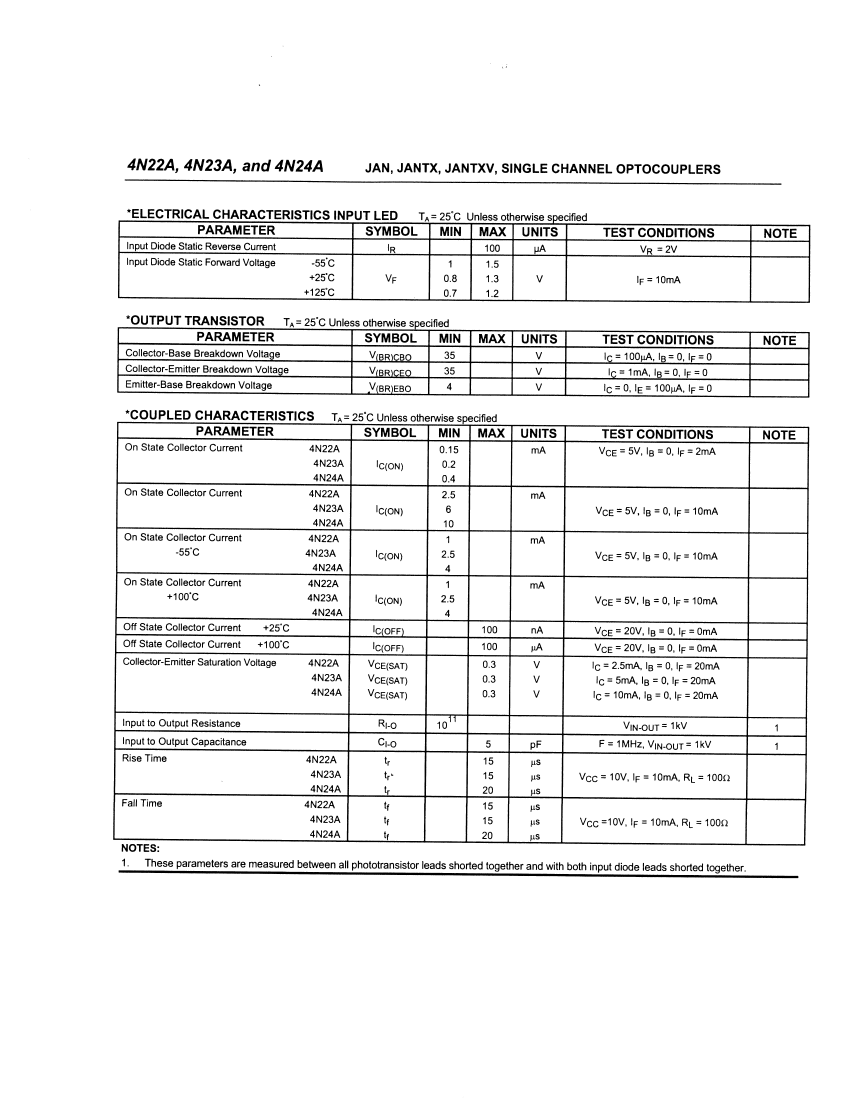

	4N23A	4N22A	4N24A
Description	1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER	1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER	1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER
Maximum operating temperature	125 Cel	125 Cel	125 Cel
Minimum operating temperature	-55 Cel	-55 Cel	-55 Cel
Number of functions	1	1	1
state	DISCONTINUED	DISCONTINUED	ACTIVE
structure	single	single	SINGLE
Optoelectronic device type	transistor output	transistor output	TRANSISTOR OUTPUT
Minimum Coll-emtr Bkdn voltage	35 V	35 V	40 V
Maximum collector dark current	100 nA	100 nA	100 nA
Rated current transfer ratio	80 %	80 %	100 %
Maximum input control current	40 mA	40 mA	40 mA
Maximum insulation voltage	1000 V	1000 V	1000 V
terminal coating	tin lead	tin lead	-
