MHV13C475MAB4A: DescriptionCeramic Capacitor, Multilayer, Ceramic, 25V, 20% +Tol, 20% -Tol, X7R, 15% TC, 4.7uF, Surface Mount, 2824, CHIP; CategoryPassive components capacitor; File Size105KB，1 Pages; ManufacturerAVX

Download Datasheet Parametric View All

MHV13C475MAB4A Overview

Ceramic Capacitor, Multilayer, Ceramic, 25V, 20% +Tol, 20% -Tol, X7R, 15% TC, 4.7uF, Surface Mount, 2824, CHIP

MHV13C475MAB4A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	, 2824
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	4.7 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	3.45 mm
JESD-609 code	e0
length	7.3 mm
Manufacturer's serial number	MH
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, 13 INCH
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
series	MH
size code	2824
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal shape	J BEND
width	6.1 mm

Preview

Download Datasheet

View All

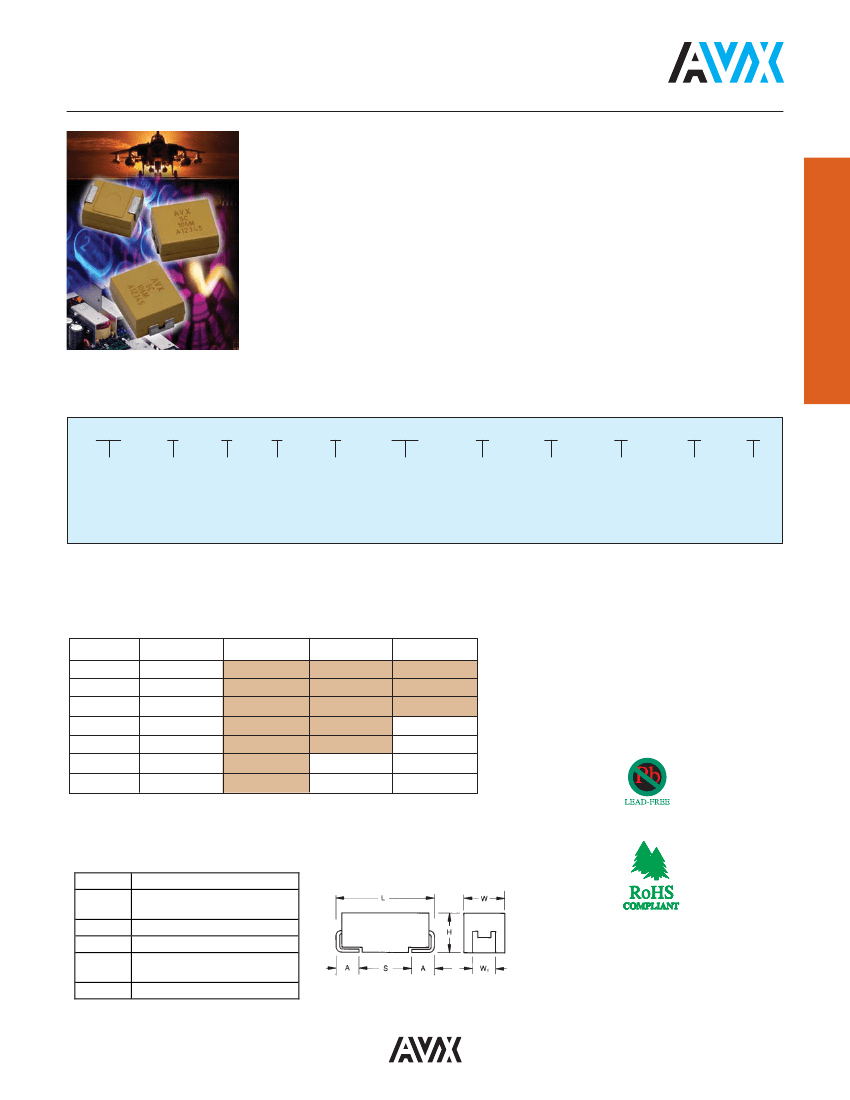

MH Ceramic Capacitor

Lead Free Ceramic Capacitor in Molded SM Leadframe

AVX are pleased to introduce the MH range of multi layer ceramic capacitors. The MH components

are surface mount molded parts with a multi layer ceramic insert.

MH capacitors combine the ceramic attributes of very low ESR, non polar construction, excellent

high frequency behavior, excellent voltage stress capabilities and wide temperature range; with the

enhanced mechanical protection of a molded case.

The MH range provides a lead free solution to customers who have previously been unable to use

large case ceramic capacitors because of mechanical stressing concerns.

For those applications where a Tin termination is not acceptable , a Tin/Lead termination is

available.

HOW TO ORDER

MH Series

Case

Size

see table

below

MLCC

Count

Voltage

3 = 25V

5 = 50V

1 = 100V

Dielectric

C = X7R

475

Capacitance

Code (In pF)

2 Sig. Digits

+ Number of

Zeros

Capacitance

Tolerance

K = ±10%

M = ±20%

Failure

Rate

A = Not

Applicable

Terminations

T = Tin Plated

B = Tin/Lead

Plated

Packaging

2 = 7" Reel

4 = 13" Reel

6 = Waffle

Pack

Special

Code

Std.

Product

MH X7R RANGE

Cap μF

25V

50V

100V

PACKAGING QUANTITY

7" Reels

13" Reels

Waffle Pack

400

1500

108

225

335

475

685

106

156

226

2.2

3.3

4.7

6.8

LEAD-FREE COMPATIBLE

COMPONENT

"V" CASE DIMENSIONS:

millimeters (inches)

S Min

7.3

0.20 (0.287

0.008)

6.1

0.20 - 0.10

(0.24

0.008 – 0.004)

3.45

0.30 (0.136

0.012)

3.1

0.20 (0.120

0.008)

1.4

0.30 - 0.20

(0.055

0.012 – 0.008)

4.40 (0.173)

TS 16949, ISO 14001
