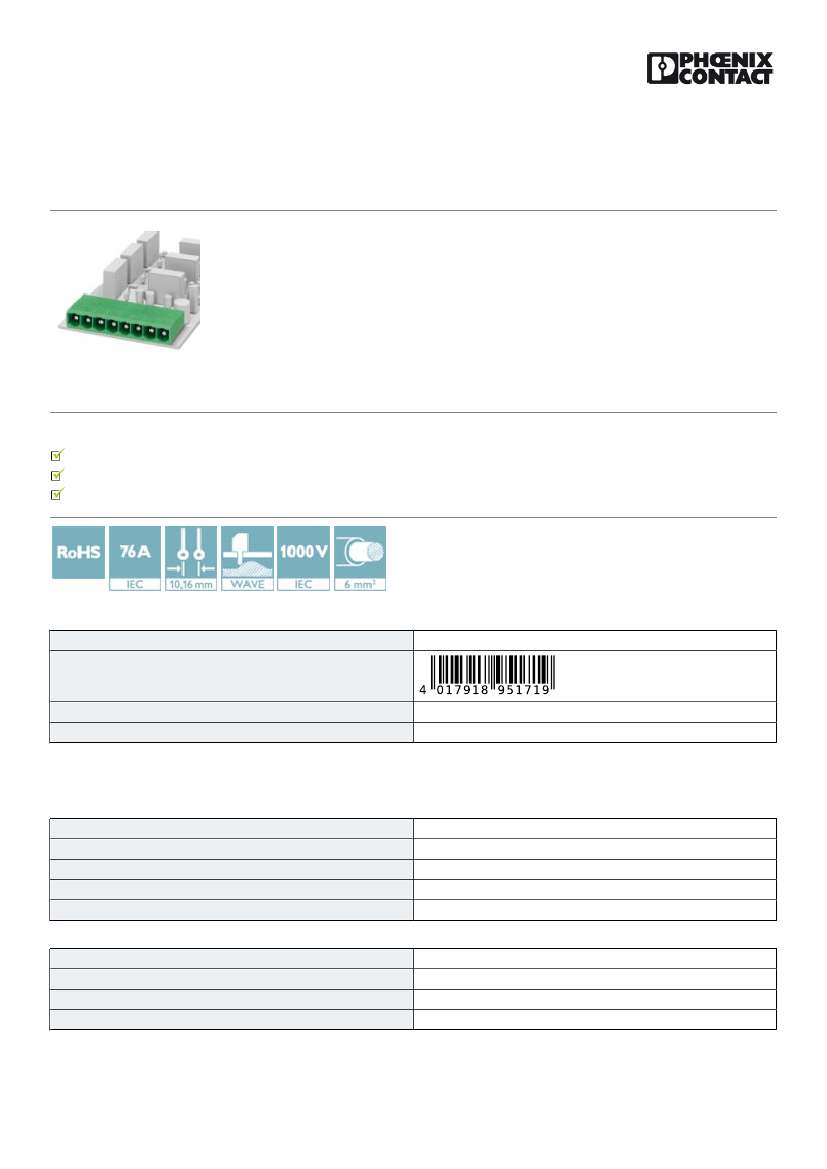

Feed-through header - PC 6-16/ 4-G-10,16 GTBU - 1981021
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB headers, nominal current: 76 A, rated voltage (III/2): 1000 V, number of positions: 4, pitch: 10.16 mm,
color: gentian blue, contact surface: Silver, mounting: Wave soldering
The figure shows an 8-position
version
Your advantages
Well-known mounting principle allows worldwide use
Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Easy PCB replacement thanks to plug-in modules
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
4017918951719
85366930
1
Technical data
Dimensions
Pitch
Dimension a
Height
Length of the solder pin
Pin dimensions
10.16 mm
30.48 mm
14 mm
5 mm
1 x 1.2 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
PC 6-16/..-G
I
8 kV
8 kV
01/19/2019 Page 1 / 3
https://www.phoenixcontact.com/in/products/1981021
Feed-through header - PC 6-16/ 4-G-10,16 GTBU - 1981021
Technical data
General
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Maximum load current
Color
Number of positions
6 kV
630 V
1000 V
1000 V
EN-VDE
76 A (41 A in combination with PC 6 plug)
76 A
gentian blue
4
Standards and Regulations
Connection in acc. with standard
EN-VDE
CUL
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
272607xx
27260701
27260701
27260700
27260700
27440402
27440402
27440402
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
ETIM 6.0
EC001121
EC002637
EC002637
EC002637
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211810
39121409
39121409
39121409
39121409
01/19/2019 Page 2 / 3
https://www.phoenixcontact.com/in/products/1981021
Feed-through header - PC 6-16/ 4-G-10,16 GTBU - 1981021
Approvals
Approvals
Approvals
IECEE CB Scheme / SEV / EAC / cULus Recognized
Ex Approvals
Approval details
IECEE CB Scheme
Nominal voltage UN
Nominal current IN
http://www.iecee.org/
CH-8077
1000 V
76 A
SEV
Nominal voltage UN
Nominal current IN
https://www.electrosuisse.ch/de/meta/shop/produktezertifikate.html
1000 V
76 A
IK-3431
EAC
D
600 V
5A
B
300 V
66 A
B.01742
cULus Recognized
Nominal voltage UN
Nominal current IN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-20040202
C
300 V
66 A
