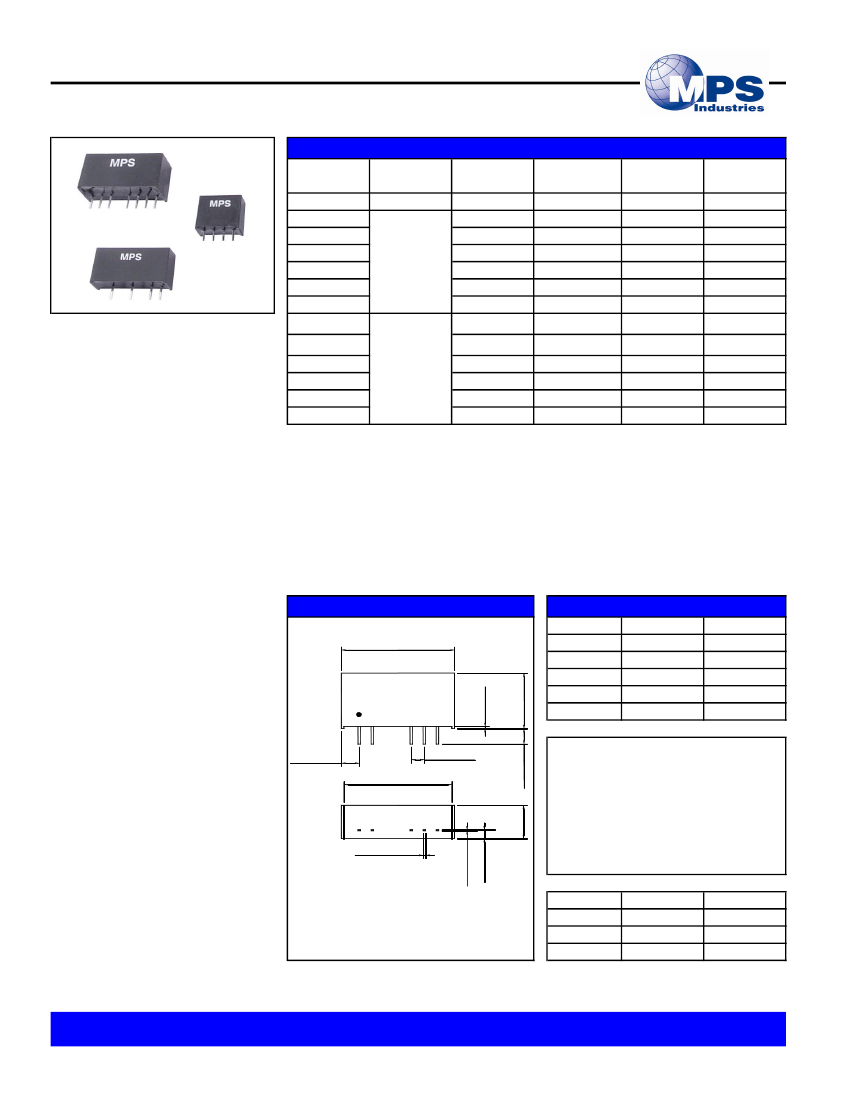

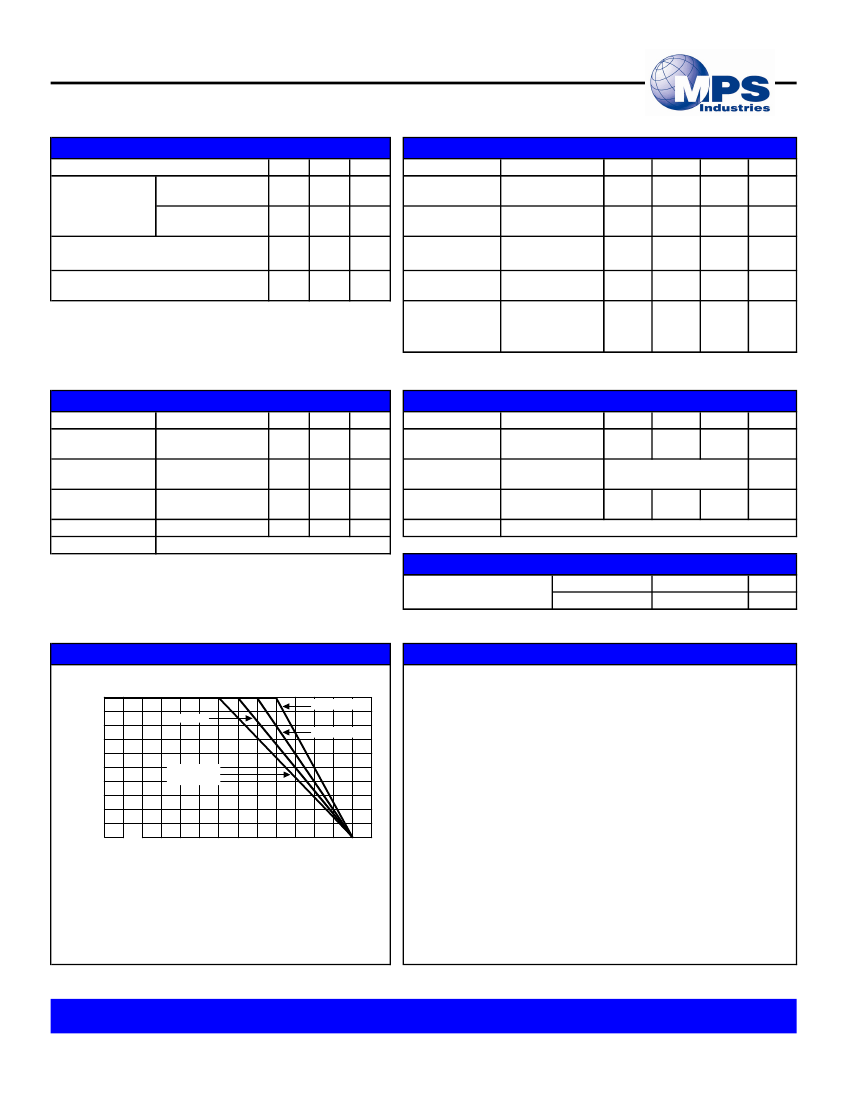

ADC400 SERIES
1W, Ultra-High Isolation SIP, Single & Dual Output DC/DC Converters
Selection Guide
Model
Number
ADC401
ADC402
ADC403
ADC404
ADC405
ADC406
ADC411
5
(4.5 - 5.5)
Input
Voltage
VDC
Output
Voltage
VDC
5
12
15
±5
±12
±15
5
12
12
(10.8 - 13.2)
15
±5
±12
±15
Output
Current
mA
200
80
65
±100
±40
±35
200
80
65
±100
±40
±35
Efficiency
% Typ.
66
66
66
66
72
73
66
66
66
66
74
75
Load
Regulation
% Max.
10
8
8
10
8
8
10
8
8
10
8
8
Key Features
•
•
•
•
•
•
•
•
•
•
Efficiency up to 75%
6000VDC Isolation
MTBF > 2,000,000 Hours
Low Cost
Input 5 and 12VDC
Output 5, 12, 15,
±5, ±12 and ±15VDC
Temperature Performance
-25°C to +70°C
UL 94V-0 Package Material
Internal SMD Construction
Industry Standard Pin-out
ADC412
ADC413
ADC414
ADC415
ADC416
MPS Industries ADC400 1W
DC/DC's are specially designed
to provide ultra-high levels of
isolation 6000VDC in a miniature
SIP package.
The series consists of 12 models
with input voltages of 5V and
12VDC which offers standard
output voltages of 5V, 12V,
15VDC in both single and dual
output configurations.
The ADC400 series is an excellent
selection for a variety of applications
including distributed power
systems, mixed analog/digital
subsystems, portable test
equipments, local power networks
and battery backed systems.
Mechanical Dimensions
22.0 [0.87]
Pin Connections
Pin
1
2
5
12.5 [0.49]
Singles
+Vin
-Vin
-Vout
No Pin
+Vout
Duals
+Vin
-Vin
-Vout
Common
+Vout
0.5 [0.02]
6
7
Case Size –
3.5 [0.14]
21.0 [0.83]
2.54 [0.100]
3.5 [0.14]
22.0x7.5x12.5mm (0.87x0.30x0.49inch)
Case Material –
7.5 [0.30]
1
2
5
6
7
Non-Conductive Black Plastic
Weight –
3.9g (0.14Oz)
Tolerance
Millimeters
X.X±0.25
X.XX±0.13
Pin
±0.05
Inches
X.XX±0.01
X.XXX±0.005
±0.002
2463 208th Street, Ste. 205
Torrance, CA 90501
Tel: (310) 533-1455
Fax: (310) 533-1853
0.25 [0.010]
2.0 [0.08]
0.50 [0.020]
http://www.mpsind.com
E-mail: sales@mpsind.com
ADC400 SERIES
1W, Ultra-High Isolation SIP, Single & Dual Output DC/DC Converters
Absolute Maximum Ratings
Parameter
Input Surge Voltage
(1000mS)
5VDC Input Models
12VDC Input Models
General Characteristics
Min.
-0.7
-0.7
---
---
Max. Units
9
18
260
650
VDC
VDC
°C
mW
Parameter
Isolation
Voltage
Isolation
Resistance
Isolation
Capacitance
Switching
Frequency
MTBF
Conditions
60 Seconds
500VDC
100kHz, 1V
Min.
6000
10
---
50
Typ.
---
---
15
80
---
Max.
---
---
20
100
---
Units
VDC
GΩ
pF
kHz
MHrs
Lead Temperature
(1.5mm from case for 10sec.)
Internal Power Dissipation
Exceeding the unit absolute maximum ratings could cause damage.
These are not continuous operating ratings.
MIL-HDBK-217F
@25°C
Ground Benign
2
Environmental Characteristics
Parameter
Operating
Temperature
Operating
Temperature
Storage
Temperature
Humidity
Cooling
Output Characteristics
Max. Units
70
90
125
°C
°C
°C
%
Parameter
Line Regulation
Load Regulation
Ripple & Noise
Short Circuit
Conditions
For Vin Change of
1%
Io = 20% to 100%
20MHz BW
Min.
---
Typ.
±1.2
Max.
±1.5
Units
%
%
mV P-P
Conditions
Ambient
Case
Min.
-25
-25
-40
See Selection Guide
---
100
150
---
95
Free-Air Convection
0.5 Second Max.
Maximum Capacitive Load
Models by Output Voltage
(Each Output on Duals)
Singles
680
Duals
220
Units
uF
Derating Curve
100
80
Output Power (%)
100LFM
200LFM
400LFM
Notes:
1. Specifications typical at Ta=+25°C, resistive load, nominal input
voltage, rated output current unless otherwise noted.
2. These power converters require a minimum output load to maintain
specified regulation.
3. Operation under no-load conditions will not damage these modules;
however, they may not meet all specifications listed.
4. All DC/DC converters should be externally fused at the front end for
protection.
5. Other input and output voltage may be available, please contact
factory.
6. All specifications subject to change without notice.
7. For detailed data sheet, please visit our website.
60
Natural
convection
40
20
0
-25
¡ã
50
60
70
80
]
90
100
110
Ambient Temperature
2463 208th Street, Ste. 205
Torrance, CA 90501
Tel: (310) 533-1455
Fax: (310) 533-1853
http://www.mpsind.com
E-mail: sales@mpsind.com
