SL3-099-S105/01-55: DescriptionBoard Connector, 99 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size294KB，1 Pages; ManufacturerE-tec Interconnect Ltd.; Environmental Compliance

Download Datasheet Parametric View All

SL3-099-S105/01-55 Overview

Board Connector, 99 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, ROHS COMPLIANT

SL3-099-S105/01-55 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
body width	0.3 inch
subject depth	0.1 inch
body length	3.3 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	SL
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Rated current (signal)	3 A
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	99
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

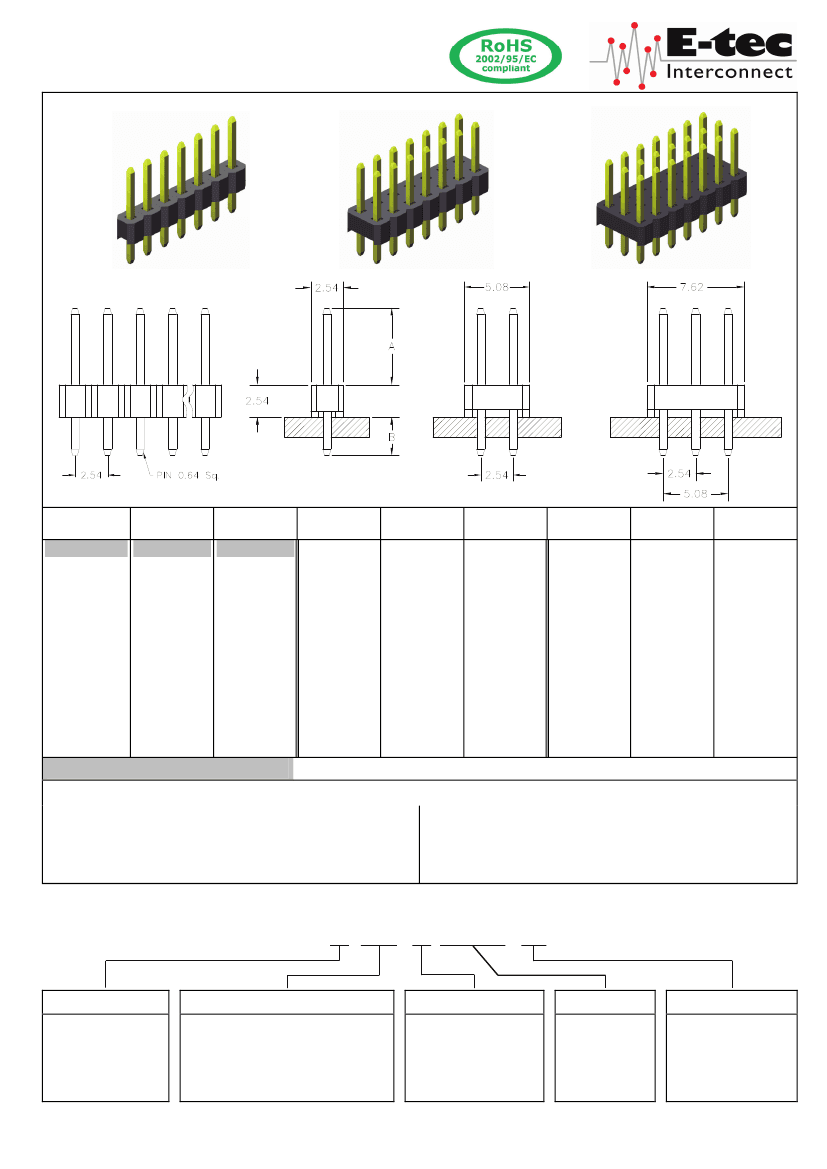

2.54mm pitch

- THT -

Pin Header

straight

Pin code

116 / 01

076 / 01

125 / 04

105 / 05

108 / 10

105 / 01

108 / 12

108 / 11

108 / 02

139 / 01

108 / 01

113 / 02

100 / 01

DIM “A”

mm/inch

DIM “B”

mm/inch

Pin code

105 / 04

108 / 09

147 / 06

147 / 02

125 / 01

125 / 02

135 / 05

140 / 03

140 / 02

155 / 01

184 / 03

155 / 06

159 / 06

DIM “A”

mm/inch

DIM “B”

mm/inch

Pin code

168 / 01

176 / 02

184 / 10

186 / 01

184 / 02

216 / 07

184 / 01

185 / 04

204 / 01

228 / 01

261 / 01

240 / 02

245 / 01

DIM “A”

mm/inch

DIM “B”

mm/inch

6.00/.236

3.40/.124

3.30/.123

4.20/.165

4.30/.169

5.00/.197

5.50/.216

5.70/.224

5.80/.228

6.00/.236

3.10/.122

2.70/.106

6.70/.264

3.60/.142

4.00/.157

3.00/.118

3.30/.130

2.80/.110

2.54/.100

5.70/.224

2.50/.098

3.00/.118

1.50/.059

6.00/.236

6.10/.240

7.00/.276

7.50/.295

8.00/.315

8.50/.335

9.00/.354

9.80/.386

10.50/.413

10.80/.425

2.00/.079

2.16/.085

6.10/.240

5.11/.201

3.00/.118

2.54/.100

2.80/.110

3.00/.118

2.54/.100

3.15/.124

5.11/.201

2.20/.087

2.54/.100

11.00/.433

11.80/.465

12.30/.484

12.40/.488

12.60/.496

12.80/.504

12.90/.508

13.00/.512

14.90/.586

17.30/.681

17.80/.700

18.50/.728

19.00/.748

3.30/.130

3.60/.142

3.80/.150

3.00/.118

6.30/.248

3.00/.118

5.80/.228

3.00/.118

Standard dimension & pin code

Many other dimensions available on request

SPECIFICATIONS

Current rating

Insulator resistance

Withstanding voltage

Breakdown voltage

3A

1000 MΩ min.

500 V AC

1800 V

RMS

min.

Operating temperature

Insulator material

(RoHS compliant)

Contact material

(RoHS compliant)

- 40°C to +105°C

P.B.T. or Nylon UL 94 V-0

Standard :

P.B.T

.

Brass

How to order

SL x - xxx - S xxx/xx -

55

Rows

1

=

2

=

3

=

single row

dual row

triple row

Nbr of pins

single row =

dual row =

triple row =

002

004

009

to

040

080

120

S

SH

Insulator

= P.B.T.

= Nylon

Pin code

See above

table

Plating

55

= gold

(standard)

99

= tin

(leadfree)

95

=

tin/gold

(tin leadfree)

Other platings on request

59
