8356-3-11-1-2: DescriptionBoard Connector, 11 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size136KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

8356-3-11-1-2 Overview

Board Connector, 11 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle

8356-3-11-1-2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.087 inch
subject depth	0.132 inch
body length	0.566 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number	8356
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.3114 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	11

Preview

Download Datasheet

View All

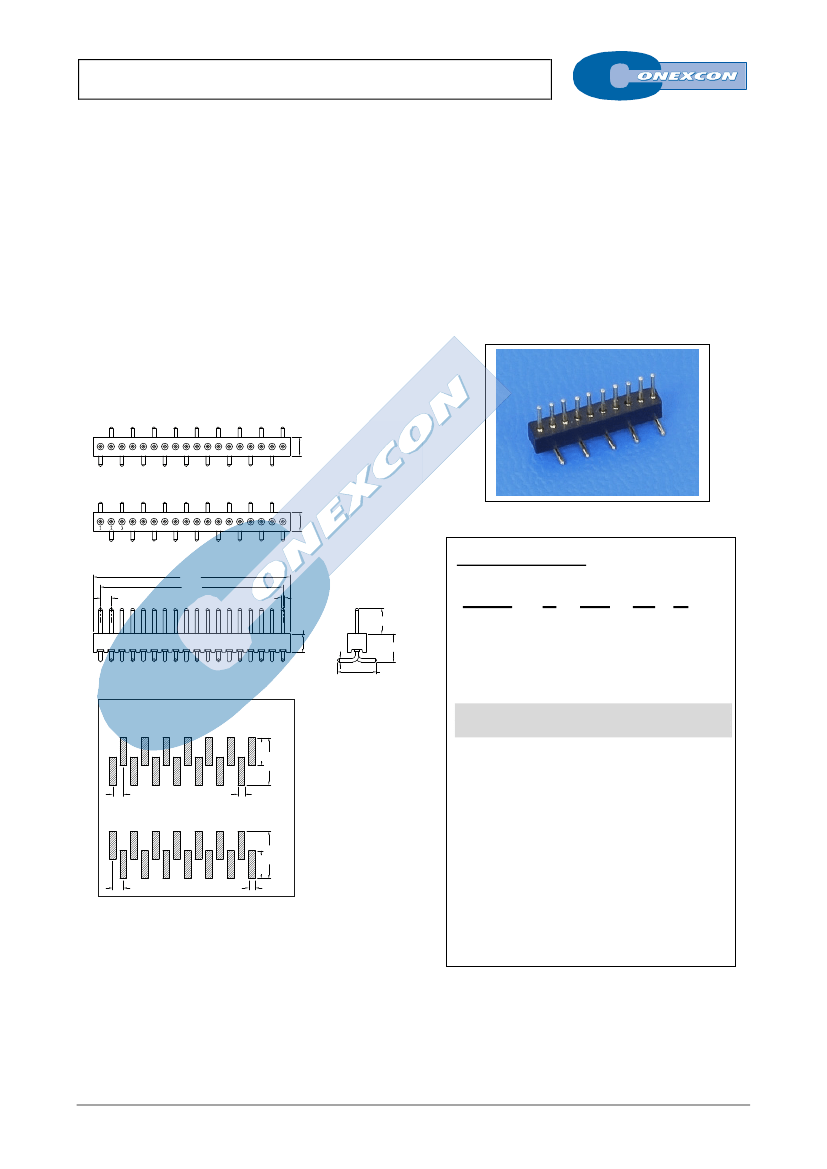

SINGLE ROW SMT VERTICAL PIN HEADER

8356 SERIES.

1.27 mm. (0.050”) pitch. Machined contact.

General Features

Electrical Features



Available in 2 through 40 circuits

Mates with sockets 1.27mm. pitch 8360, 8363 and

8366 series

0.41 round pin in contact area with different plating



Voltage rating: < 100V

Current rating: < 1 A

Contact resistance: < 10 mΩ

Dielectric withstanding Voltage: 1000 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features

Durability: 500 Cycles



Insulator: PPS black + 30% GF UL 94 V-0

Contact: Brass

Operating temperature. -40ºC to +105ºC

RoHS compliant

Dimension Information

1

2

3

TYPE 1

TYPE 2

2.20

Ordering Information:

B

±0.30

A

±0.20

1.27±0.10

2.20±0.15

ø0.41

8356 - T- XX- S- E

3.00±0.20

ø0.41

1

2

3

4

5

3.35±0.20

4.63±0.2

1. Connector Series

2. (T) Contact Plating

RECOMMENDED PCB LAYOUT

Type 1

(Tolerance ±0.05)



3.30

5.60

3.30

5.60

T =

3.

Gold flash over 30-50µ" Ni overall

Recommended Finish

T =

15.

15µ" selec. gold over 30-50µ" Ni overall

T =

16.

30µ" selec. gold over 30-50µ" Ni overall

1.27

0.80

3. (XX) Number of circuits

Available in 2 through 40 circuits

Type 2

4. (S) Contacts Configuration

1.27

0.80



S =

1.

Type 1

S =

2.

Type 2

5. (E) Packing Options

E =

1.

Tube + Pad

E =

2.

Reel + Pad

Dimensions:

(In mm.)

A

= 1.27 x (XX*-1)

B

= 1.27 x (XX*)+0.41

* XX

(Number of circuits)

A-XX

FULL LINE CATALOGUE
