810E-8P6CGCB-L: DescriptionTelecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size189KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

810E-8P6CGCB-L Overview

Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

810E-8P6CGCB-L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.461 inch
subject depth	0.551 inch
body length	0.705 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact style	TELCOM, MODULAR
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	810
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
PCB contact pattern	STAGGERED
Plating thickness	30u inch
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.032 mm
Termination type	SOLDER
Total number of contacts	8

Preview

Download Datasheet

View All

M

odular Jack

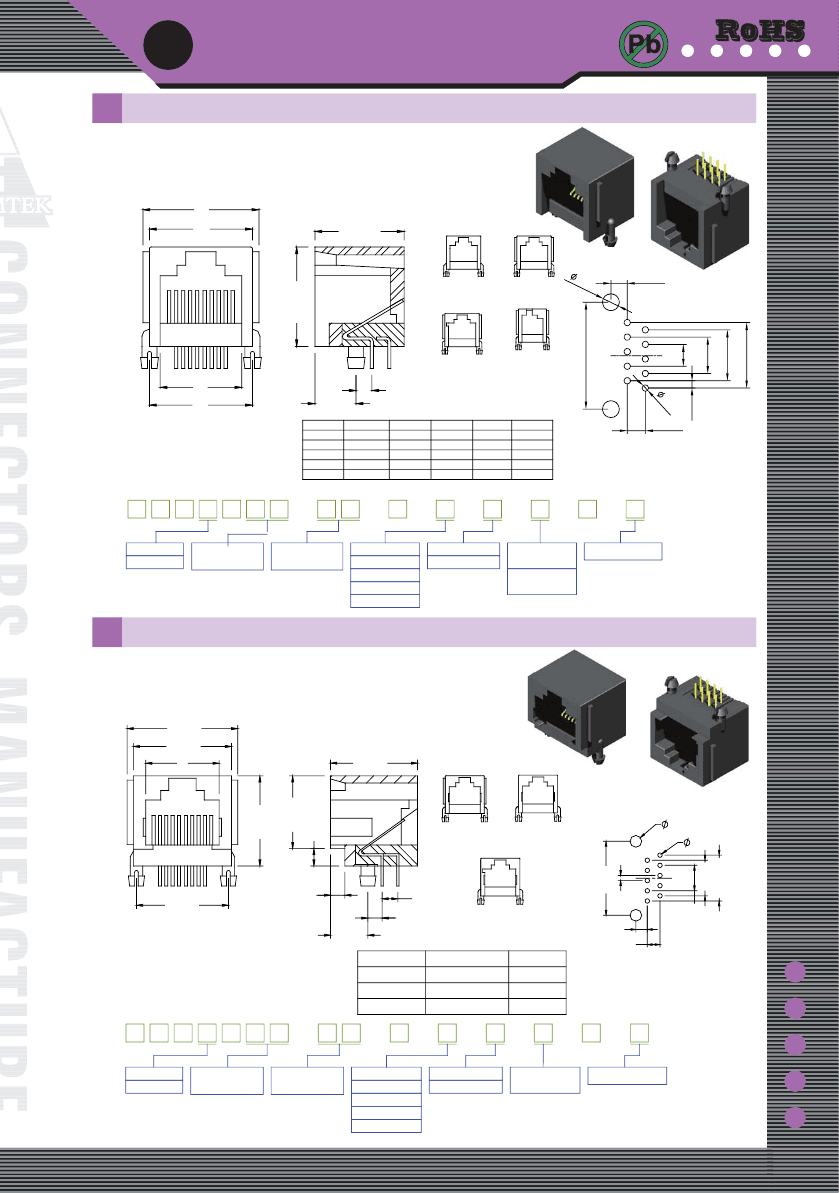

Modular Jack Side Entry H=14.5 W=13.10

Material&Finish

Housing:Glass Fiber, PBT, UL 94V-0, Black

Contact :0.45mm Thickness Phosphor Bronze,

Gold Plating Over Nickel on Contact Area.

D

A

13.10

14.50

W itho u t E ar

With Ear

B

C

6.00

Positions

Contacts

2.30

A

10.00

12.20

15.00

W ith Ke yw ay

(8 P & 1 0 P Only)

Side Latch

(6P Only)

4P

(6P)4P

6P

8P

10P

4C

2C/4C/6C

8C

10C

B

7.85

9.90

11.85

C

10.00

12.00

15.00

D

12.00

14.20

16.90

Recommended PCB Layout

(PCB TOLERANCE ±0.05)

Order Information

6 2 8 X - X P

N :W itho ut E ar

E :W ith E ar

N u m b e r o f Positions

(4P ,6 P ,8P ,1 0P )

X C

-

G old P lated

G A :G o ld 6 u "

G B :G o ld 1 5 u "

G C :G o ld 3 0 u "

G D :G o ld 5 0 u "

X

K :W ith K e yw ay

(8P O nly)

D :Side Latch

(6P O nly)

-

L

L :R o H S + P B T

N um ber of Contacts

(2 C ,4 C ,6 C ,8C ,10C )

B :B la ck Insulator

Y:G ra y In su la tor

Modular Jack Side Entry H=14.5 W=14.0

Material&Finish

Housing:P.B.T, UL 94V-0, Black

Contact :0.45mm Thickness Phosphor Bronze,

Gold Plated Over Nickel on Contact Area.

17.90

16.00

A

14.50

11.70

14.00

2.80

W ith E ar

W ith out E ar

2.55

0.90

14.80

1.02

8P8C

10P10C

W ith Ke yw ay

6.00

Position

(8P)6P

Order Information

8P

10P

Contacts

2C/4C/6C

2C/4C/6C/8C

10C

A

10.00

12.10

2.30

2.54

8

1 0 X

- X P

X C

-

G old P lated

G A :G o ld 6 u "

G B :G o ld 1 5u"

G C :G o ld 3 0 u "

G D :G o ld 5 0 u "

X

K :W ith K e yw ay

(8P O nly)

-

L

L :R o H S + P B T

N :W itho ut E ar

E :W ith E ar

N u m b e r o f Positions

(6P,8P ,1 0P )

N um be r of Con ta cts

(4C,6C,8C ,10C )

B :B lack In sulator

Y:G ray Insu lator

www.amtek-co.com.tw

8P6C

14.80

2.30

2.54

2.30

8-17
