FCE10SGE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> FCE10SGE

FCE10SGE: DescriptionCard Edge Connector, 10 Contact(s), 2 Row(s), 0.1 inch Pitch, IDC Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size102KB，1 Pages; ManufacturerAdam Tech

Download Datasheet Parametric Compare View All

FCE10SGE Overview

Card Edge Connector, 10 Contact(s), 2 Row(s), 0.1 inch Pitch, IDC Terminal, Locking, Black Insulator

FCE10SGE Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.394 inch
subject depth	0.677 inch
body length	1.498 inch
Connector type	CARD EDGE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
Durability	500 Cycles
Insulation resistance	3000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	FCE
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	10

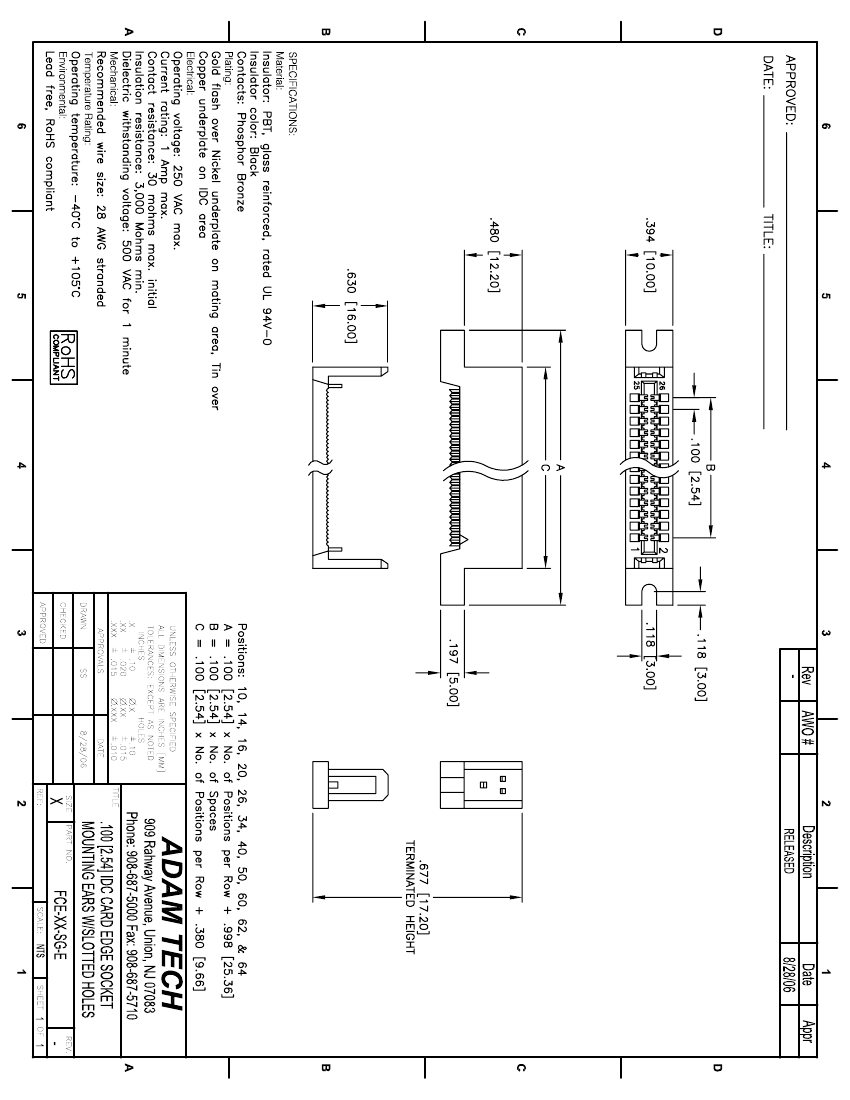

Preview

Download Datasheet

View All

FCE10SGE Related Products

	FCE10SGE	FCE26SGE	FCE34SGE	FCE20SGE	FCE50SGE	FCE64SGE
Description	Card Edge Connector, 10 Contact(s), 2 Row(s), 0.1 inch Pitch, IDC Terminal, Locking, Black Insulator	Card Edge Connector, 26 Contact(s), 2 Row(s), 0.1 inch Pitch, IDC Terminal, Locking, Black Insulator	Card Edge Connector, 34 Contact(s), 2 Row(s), 0.1 inch Pitch, IDC Terminal, Locking, Black Insulator	Card Edge Connector, 20 Contact(s), 2 Row(s), 0.1 inch Pitch, IDC Terminal, Locking, Black Insulator	Card Edge Connector, 50 Contact(s), 2 Row(s), 0.1 inch Pitch, IDC Terminal, Locking, Black Insulator	Card Edge Connector, 64 Contact(s), 2 Row(s), 0.1 inch Pitch, IDC Terminal, Locking, Black Insulator
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	0.394 inch	0.394 inch	0.394 inch	0.394 inch	0.394 inch	0.394 inch
subject depth	0.677 inch	0.677 inch	0.677 inch	0.677 inch	0.677 inch	0.677 inch
body length	1.498 inch	2.298 inch	2.698 inch	1.998 inch	3.498 inch	4.198 inch
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Durability	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles
Insulation resistance	3000000000 Ω	3000000000 Ω	3000000000 Ω	3000000000 Ω	3000000000 Ω	3000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	FCE	FCE	FCE	FCE	FCE	FCE
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	10	26	34	20	50	64
