MJ9V-88ABXX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> MJ9V-88ABXX

MJ9V-88ABXX: DescriptionTelecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack; CategoryThe connector The connector; File Size183KB，1 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

MJ9V-88ABXX Overview

Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack

MJ9V-88ABXX Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	SPLIT BOARD LOCK
body width	0.52 inch
subject depth	0.618 inch
body length	0.65 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	1400VAC V
Durability	500 Cycles
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	MJ9V
Installation option 1	LOCKING
Installation option 2	MOUNTING FLANGE
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
Plating thickness	6u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRASS
Terminal length	0.106 inch
Terminal pitch	2.032 mm
Termination type	SOLDER
Total number of contacts	8

Preview

Download Datasheet

View All

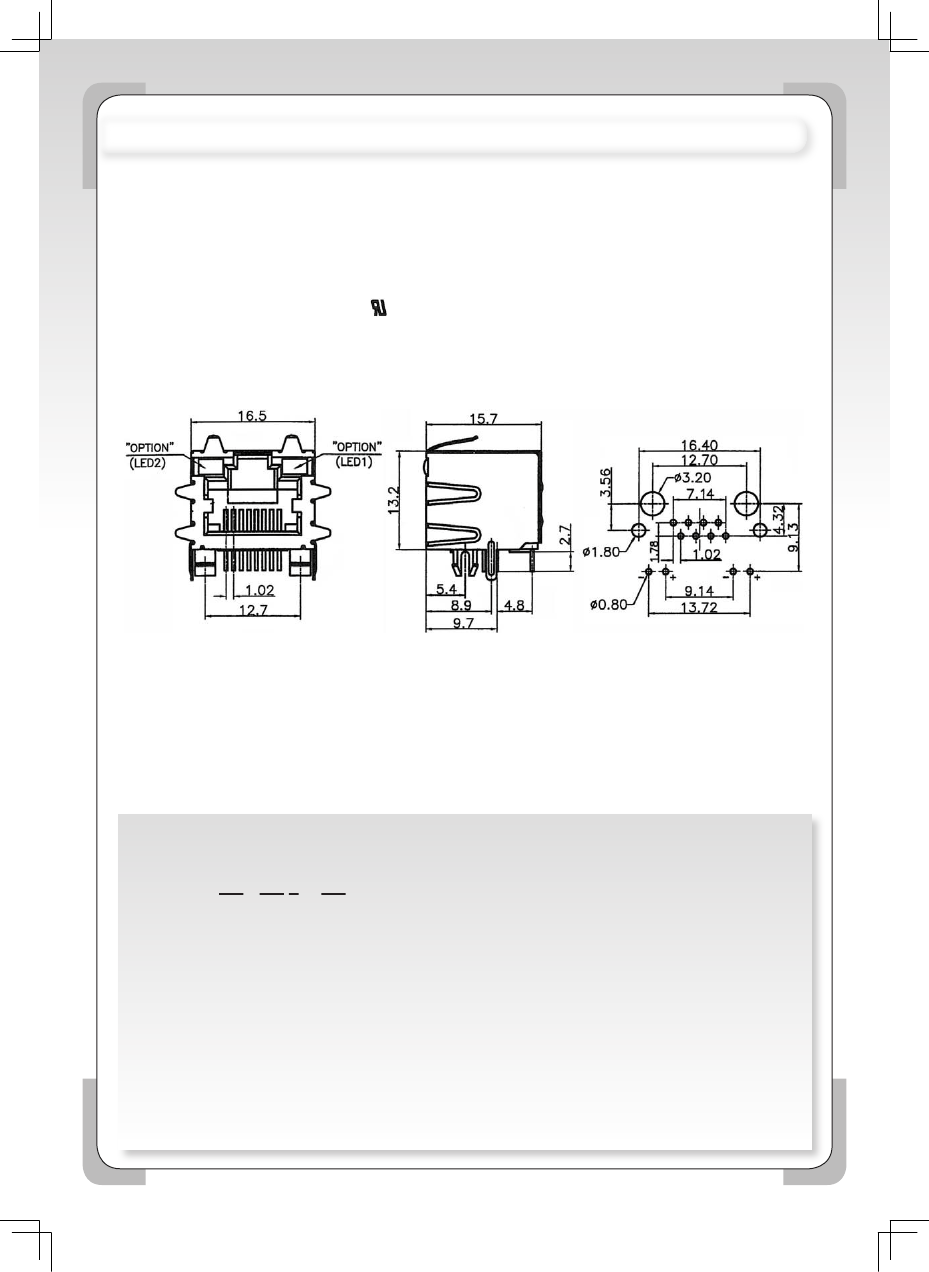

SIDE ENTRY UP LATCH MODULAR PCB JACK WITH LED 8P PROFILE=13.20MM

(FULLY SHIELDED)

SPECIFICATIONS

Insulation Resistance:

500MΩ

Min.

Contact Resistance:

20mΩ

Max.

Rating Current:

1.5A Max.

Rating Voltage:

120V AC.

Dielectric Voltage:

1000 Vrms 60 Sec. Min.

Temperature Range:

-40ºc / +85ºc

Durability:

500 Mating cycles Min.

MATERIALS

Housing:

PBT Glass Filled (UL 94V-0)

Soldering Temperature:

235ºc

Color:

Black

Spring Wire:

Phosphor Bronze

Gold plating Over Nickel

Shield:

Brass plating Nickel Alloy

All materials must be RoHS compliant.

Recommended P.C.Board Layout

(Component Side Shown)

ORDERING INFORMATION:

P/N M J x x - 8 8 x B x x

2 3 4

1. TYPE OF PANEL GROUNDS (TABS):

"9T" NO TAB

"9U" TOP TABS

"9V" SIDE TABS

"9W" TOP TABS & SIDE TABS

2. NO. OF POSITIONS & CONTACTS:

"88" 8P8C

3. CONTACT FINISH:

"A" 6 MICROINCH GOLD

"B" 15 MICROINCH GOLD

"C" 30 MICROINCH GOLD

"D" 50 MICROINCH GOLD

4. COLORS OF LED:

"XX" W/O LED

"NY" LED1: GREEN, LED2: YELLOW

"NN" LED1: GREEN, LED2: GREEN

"YN" LED1: YELLOW, LED2: GREEN

"YY" LED1: YELLOW, LED2: YELLOW
