BB02-HC071-KB1-603000-6T datasheet, PDF

Datasheet> All Categories > The connector> The connector> BB02-HC071-KB1-603000-6T

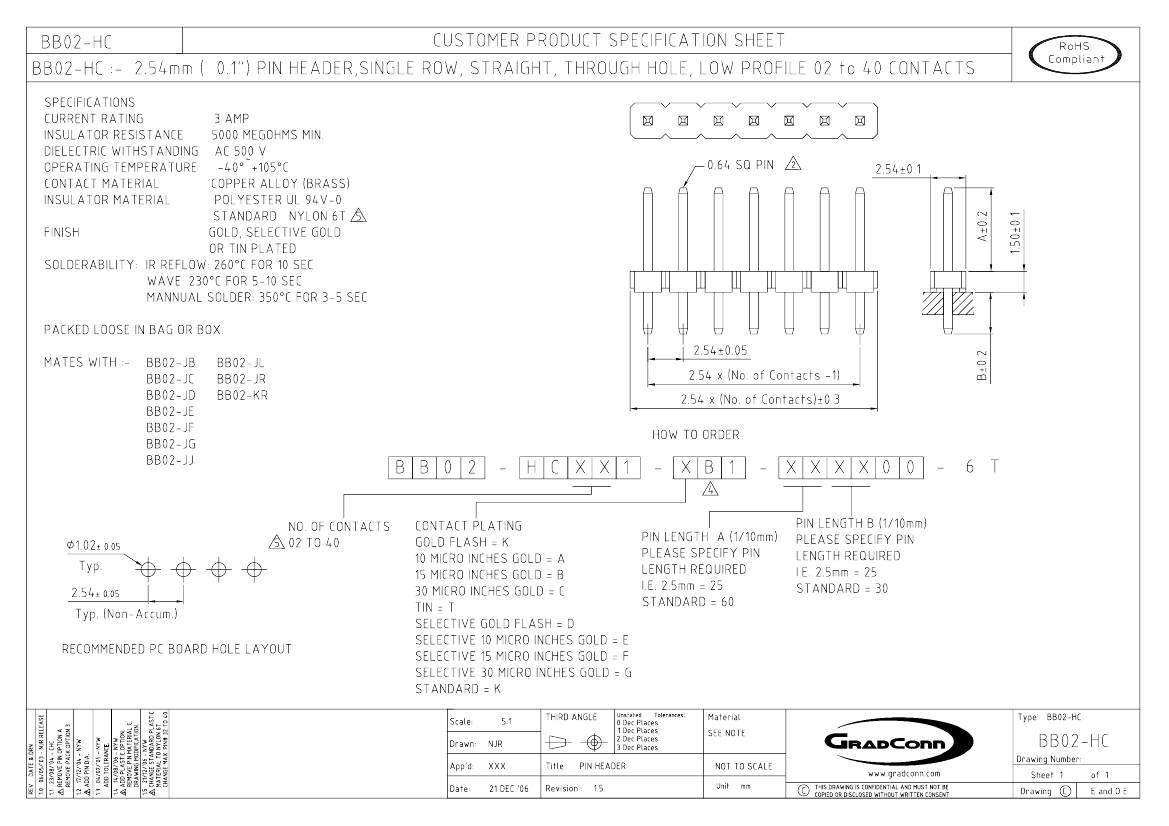

BB02-HC071-KB1-603000-6T: DescriptionBoard Connector, 7 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size80KB，1 Pages; ManufacturerGradConn Ltd

Download Datasheet Parametric Compare View All

BB02-HC071-KB1-603000-6T Overview

Board Connector, 7 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

BB02-HC071-KB1-603000-6T Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLAINT, BOX PACKAGING
body width	0.1 inch
subject depth	0.059 inch
body length	0.7 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
insulator material	NYLON
Manufacturer's serial number	BB02-HC
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	7

Preview

Download Datasheet

View All

BB02-HC071-KB1-603000-6T Related Products

	BB02-HC071-KB1-603000-6T	BB02-HC021-KB1-603000-6T	BB02-HC041-KB1-603000-6T	BB02-HC051-KB1-603000-6T	BB02-HC091-KB1-603000-6T	BB02-HC061-KB1-603000-6T	BB02-HC081-KB1-603000-6T	BB02-HC111-KB1-603000-6T
Description	Board Connector, 7 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Connector, 11 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	ROHS COMPLAINT, BOX PACKAGING	ROHS COMPLAINT, BOX PACKAGING	ROHS COMPLAINT, BOX PACKAGING	ROHS COMPLAINT, BOX PACKAGING	ROHS COMPLAINT, BOX PACKAGING	ROHS COMPLAINT, BOX PACKAGING	ROHS COMPLAINT, BOX PACKAGING	ROHS COMPLAINT, BOX PACKAGING
body width	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
subject depth	0.059 inch	0.059 inch	0.059 inch	0.059 inch	0.059 inch	0.059 inch	0.059 inch	0.059 inch
body length	0.7 inch	0.2 inch	0.4 inch	0.5 inch	0.9 inch	0.6 inch	0.8 inch	1.1 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU	AU	AU	AU	AU
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	BB02-HC	BB02-HC	BB02-HC	BB02-HC	BB02-HC	BB02-HC	BB02-HC	BB02-HC
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	7	2	4	5	9	6	8	11
