NOTE: All specifications in this datasheet are measured at an ambient temperature of 25°C, humidity<75%, nominal input voltage and at
rated output load unless otherwise specified.
Input Specifications
Parameters
Voltage range
Filter
Absolute Maximum Rating
Peak Input Voltage time
No Load Input Current
5 Vin
12 Vin
15 Vin
24 Vin
50
Nominal
5
12
15
24
Typical
4.5-5.5
10.8-13.2
13.5-16.5
21.6-26.4
Capacitor
Maximum
Units
VDC
9
18
20
30
100
VDC
ms
mA
Isolation Specifications
Parameters
Tested I/O voltage
Resistance
Capacitance
Conditions
3 sec
Typical
>1000
60
Maximum
1000, 3000
Units
VDC
MOhm
pF
Output Specifications
Parameters
Voltage accuracy
Short Circuit protection
Line voltage regulation
www.aimtec.com
F 051e R12.A
Conditions
For 1.0% of Vin
Typical
+2, -4
Momentary (1sec).
1.2
Tel: +1 514 620 2722
2 of 5
Maximum
Units
%
% of Vin
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM2D-RZ
2 Watt | DC-DC Converter
Output Specifications (continued)
Parameters
Load voltage regulation
Temperature coefficient
Ripple & Noise
Minimum Load Current
Conditions
Load 10~100%
20MHz Bandwidth
Typical
±5
±0.02
50
10
Maximum
Units
%
%/
o
C
mV p-p
% of Max
General Specifications
Parameters
Switching frequency
Operating temperature
Storage temperature
Maximum case temperature
Cooling
Humidity
Case material
Weight
Dimensions (L x W x H)
MTBF
Maximum soldering temperature
Conditions
100% load
Typical
70
-40 to +85
-40 to +125
Maximum
Units
KHz
o
C
o
C
o
C
% RH
g
o
100
Free Air Convection
95
Plastic UL94V-0
2.8
0.76 x 0.28 x 0.39 inch
19.50 x 7.20 x 10.00 mm
>1.9 Mhrs (MIL-HDBK -217F, Ground Benign, t=+25
o
C)hours
1.5mm from case for 10 sec
260
C
Safety Specifications
Parameters
Agency Approval
CE
EN55022: 2006 + A1: 2007, Class B
EN55024: 1998 + A1: 2001 + A2:2003
IEC61000-4-2:2008
IEC61000-4-3: 2006 + A1: 2007
IEC61000-4-4, 2004
IEC61000-4-6: 2008
IEC61000-4-8: 1993 + A1:2000
Standards
Pin Out Specifications
Pin
1
2
4
5
6
7
1000 VDC
Single
+ V Input
- V Input
- V Output
No pin
+ V Output
No pin
Dual
+ V Input
- V Input
- V Output
Common
+ V Output
No pin
3000 VDC
Single
+ V Input
- V Input
No pin
-V Output
No pin
+V Output
Dual
+ V Input
- V Input
No pin
-V Output
Common
+V Output
www.aimtec.com
F 051e R12.A
Tel: +1 514 620 2722
3 of 5
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM2D-RZ
2 Watt | DC-DC Converter
Dimensions

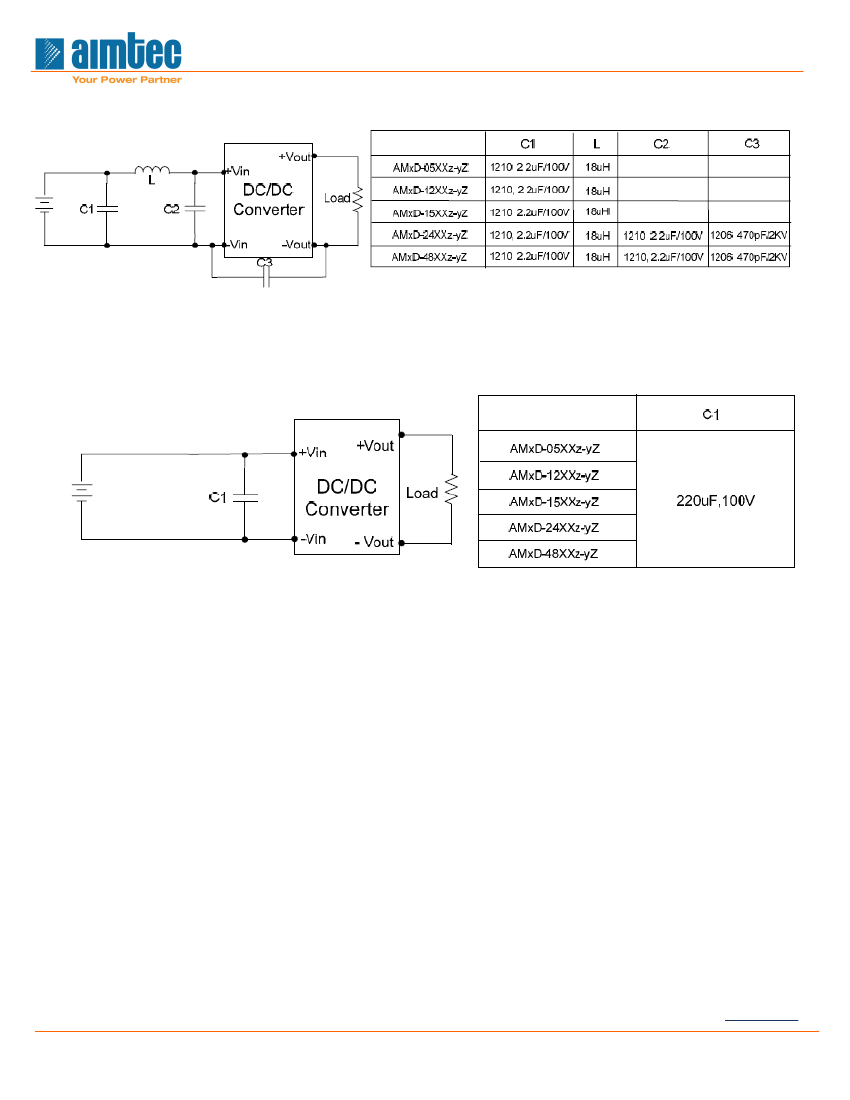

Application Circuit
Input Voltage
(VDC)
5
12
15
24
C1
2.2uF/100V
2.2uF/100V
2.2uF/100V
2.2uF/100V
L
18uH
18uH
18uH
18uH
C2
N/A
N/A
N/A
2.2uF/100V
C3
N/A
N/A
N/A
470pF/2KV
www.aimtec.com
F 051e R12.A
Tel: +1 514 620 2722
4 of 5
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM2D-RZ
2 Watt | DC-DC Converter
Conducted Emissions
EFT
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled
by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary based on the
date manufactured.
3.
Mechanical drawings and specifications are for reference only.
4
. All specifications are measured at an ambient temperature of 25°C, humidity<75%,
nominal input voltage and at rated output load unless otherwise specified.
5.
Aimtec may not have conducted destructive testing or chemical analysis on all internal components
and chemicals at the time of publishing this document. CAS numbers and other limited information are considered proprietary and may not be available for release.
6.
This
product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications which necessitate
specific safety and regulatory standards other the ones listed in this
datasheet
.
7.
Warranty is in accordance with Aimtec’s standard Terms of Sale available at www.aimtec.com.
