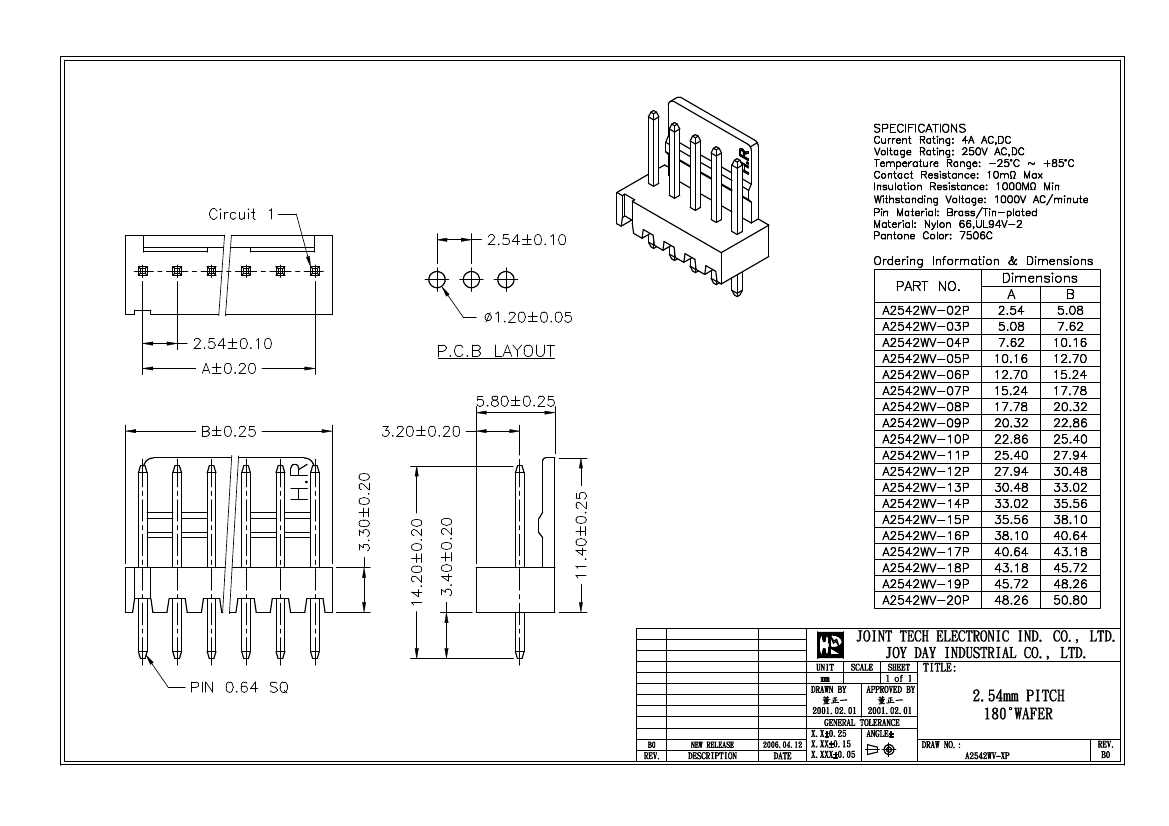

A2542WV-07P

Description
Board Connector, 7 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle
CategoryThe connector    The connector
File Size109KB,1 Pages
ManufacturerJoint Tech Electronic Industrial Co., Ltd.
Download Datasheet Parametric View All

A2542WV-07P Overview

Board Connector, 7 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle

A2542WV-07P Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.228 inch
subject depth0.449 inch
body length0.7 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN
Contact completed and terminatedTIN
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage1000VAC V
Insulation resistance1000000000 Ω
insulator materialNYLON
Manufacturer's serial numberA2542
Plug contact pitch0.1 inch
Installation option 1LOCKING
Installation option 2FRICTION LOCK
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
PCB contact patternRECTANGULAR
Rated current (signal)4 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.134 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts7
