NOTE: All specifications in this datasheet are measured at an ambient temperature of 25°C, humidity<75%, nominal input voltage and at
rated output load unless otherwise specified
Safety Specifications
Standards
Designed to meet IEC 60950-1
EN55032, class B, with the recommended EMI circuit
IEC61000-4-2(ESD) Criteria A
IEC61000-4-3(Radiated immunity) Criteria A
IEC61000-4-4(EFT) Criteria A, with the recommended EFT/Surge external circuit
IEC61000-4-5(Surge) Criteria A, with the recommended EFT/Surge external circuit
IEC61000-4-6(CS) Criteria A
IEC61000-4-8(PFMF) Criteria A
Safety

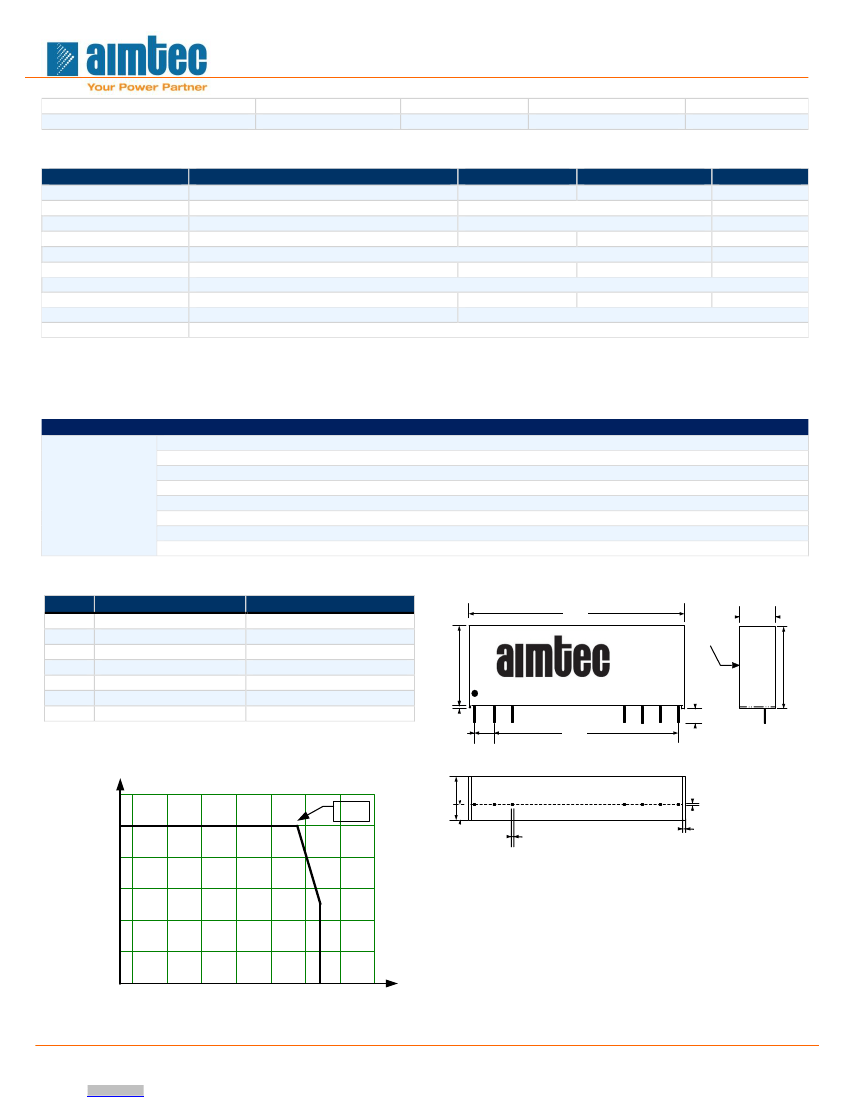

Pin Out Specifications
Pin
1
2
3
9
10
11
12
Dimensions
3000 and 5200VDC
+V Input
-V Input
N.C.
N.C.
-V Output
+V Output
N.C.
32.00
(1.26)
PRINTED
FACE
14.00
(0.55)
14.00
(0.57)
8.00
(0.32)
1000VDC
+V Input
N.C.
N.C.
N.C.
-V Output
+V Output
-V Input
0.50
(0.02)
2.54
(0.10)
27.94
(1.10)
3.05
(0.12)
Derating
Free Air Convection
71 º C
8.00
(0.32)
3.81
(0.15)
0.50
(0.02)
0.25
(0.01)
0.50
(0.02)
100
80
60
40
Safe Operating Area
20
0
- 25
- 20
0
20
40
60
80
85
100
Ambient Temperature
º C
Input Reflected Ripple Test Circuit
www.aimtec.com
F 051e R6.E
Tel: +1 514 620 2722
3 of 5

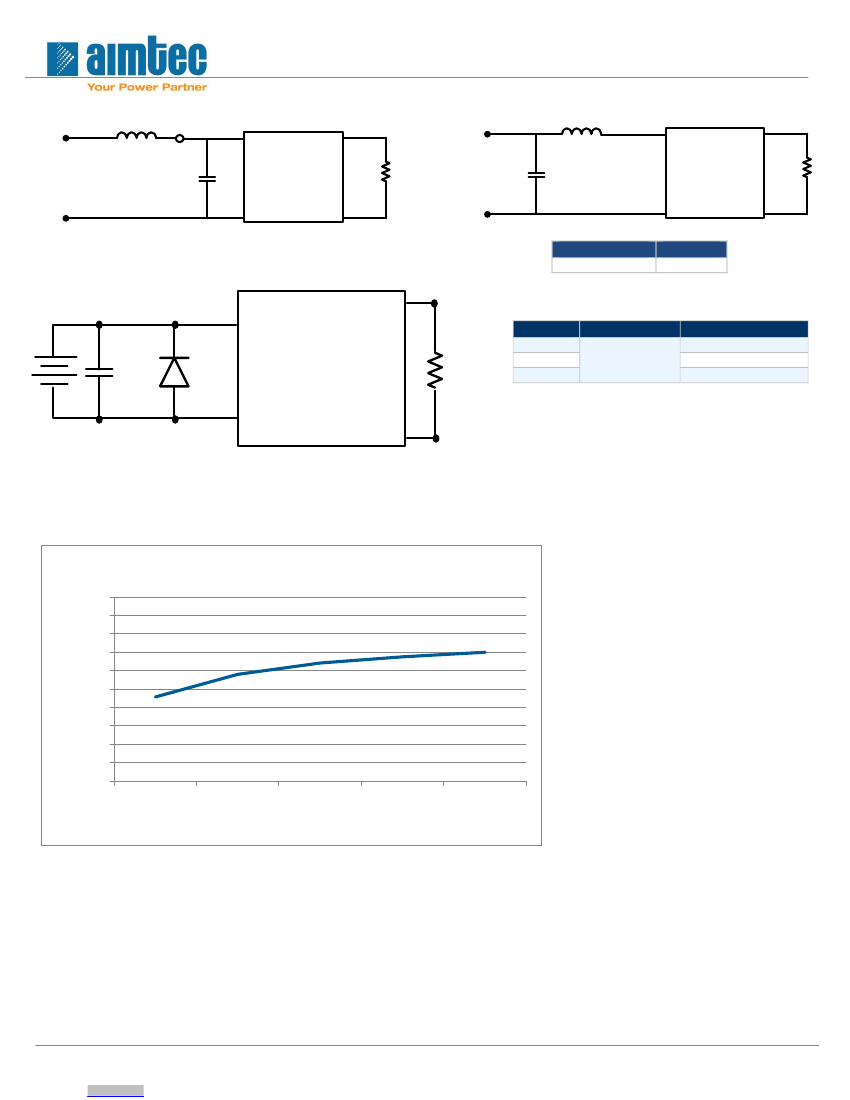

Recommended EMI Filter Circuit
Toll free: + 1 888 9 AIMTEC (924 6832)
North America only

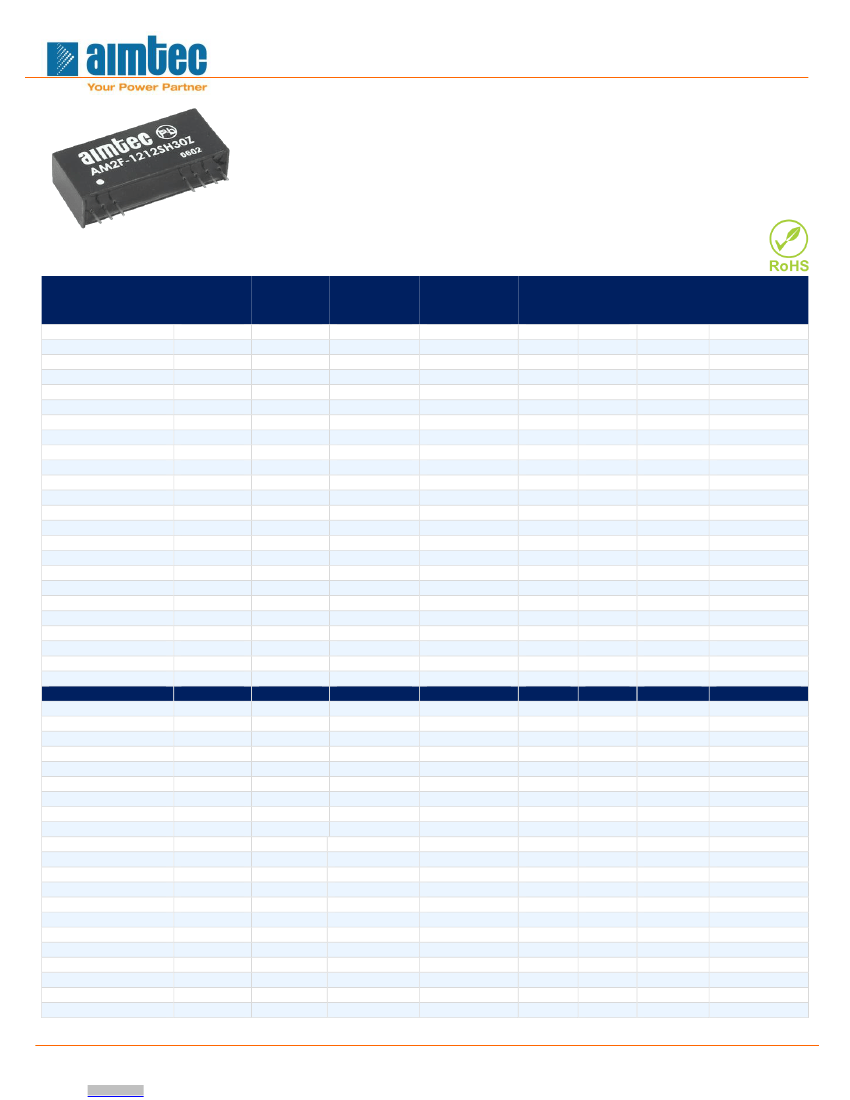

Series AM2F-Z
2 Watt | DC-DC Converter
Vin+
L1
(12 µh)
Test
Point
Vin+
L1
+
C1
(47 µf)
Vin-
Vo+
+
RL
(Full Load)
Vo+
Aimtec
DC-DC
Converter
-
Vo-
C1
Vin-
Aimtec
DC-DC
Converter
-
Vo-
* Tested at full load, and nominal input
C1
220µF/100V
L1
12µH
EFT/Surge Application circuit
+Vout
+Vin
Vin
C1
1000µF/50V
D1
TVS, 9V
TVS, 14V
TVS, 26V
DC/DC
Converter
C1
D1
Load
5VDC
12VDC
24VDC
-Vin
-Vout
Typical Efficiency Example Charts
AM2F-0512SZ Efficiency vs. Loading
100
90
80
70
60
50
40
30
20
10
0
20%
40%
60%
Loading %
80%
100%
www.aimtec.com
F 051e R6.E
Eff %
Tel: +1 514 620 2722
4 of 5
Toll free: + 1 888 9 AIMTEC (924 6832)
North America only
Load
Series AM2F-Z
2 Watt | DC-DC Converter
AM2F-1212SZ Efficiency vs. Loading
100
90
80
70
60
50
40
30
20
10
0
20%
40%
60%
Loading %
80%
100%
Eff %
AM2F-2412SZ Efficiency vs. Loading
100
90
80
70
60
50
40
30
20
10
0
20%
40%
60%
Loading %
80%
100%
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled
by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary based on the
date manufactured.
3.
Mechanical drawings and specifications are for reference only.
4.
All specifications are measured at an ambient temperature of 25°C, humidity<75%,
nominal input voltage and at rated output load unless otherwise specified.
5.
Aimtec may not have conducted destructive testing or chemical analysis on all internal components
and chemicals at the time of publishing this document. CAS numbers and other limited information are considered proprietary and may not be available for release.
6.
This
product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications which necessitate
specific safety and regulatory standards other the ones listed in this datasheet.
7.
Warranty is in accordance with Aimtec’s standard Terms of Sale available at www.aimtec.com.
