NOTE: All specifications in this datasheet are measured at an ambient temperature of 25°C, humidity<75%, nominal input voltage and at
rated output load unless otherwise specified.
Safety Specifications
Parameters
Agency approvals
Standards
CE
EN 55022, EN 55024 class A
Pin Out Specifications
Pin
1
2
3
4
5
6
7
Single
+V Input
-V Input
On/OFF Control
No pin
+V Output
-V Output
Trim
Dual
+V Input
-V Input
On/OFF Control
+V Output
Common
-V Output
Trim

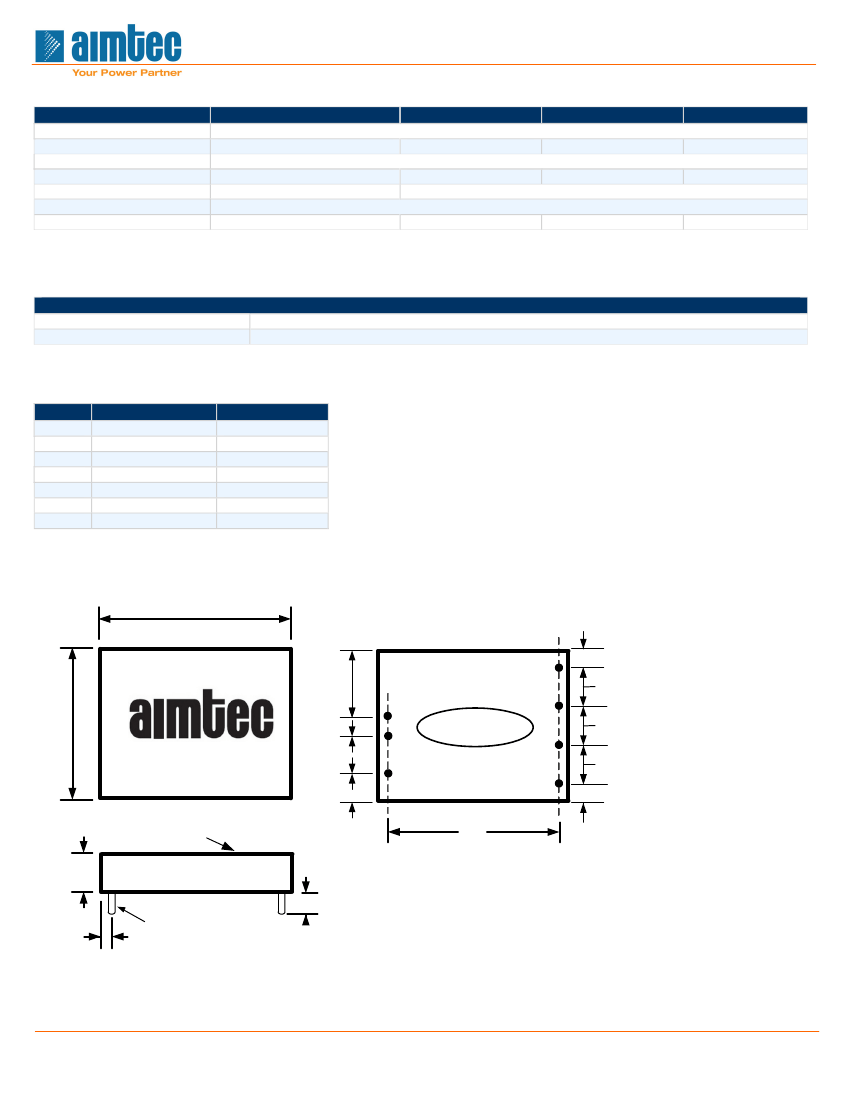

Dimensions
5.10
(0.20)
17.78
(0.70)
7.62 10.16 5.08
(0.30) (0.40) (0.20)
1
2
3
5
50.80
(2.00)
Bottom View
6
7
45.72
(1.80)
Printed Face
10.16
(0.40)
Dimensions mm (inch)
Case Tolerance ±0.50 (±0.02)
Pin Pitch Tolerance ±0.35 (±0.014)
5.60
(0.22)
Ø 1.00
(0.04)
2.54
(0.10)
www.aimtec.com
F 051e R8.F
Tel: +1 514 620 2722
3 of 5
5.10
(0.20)
10.16 10.16 10.16
(0.40) (0.40) (0.40)
4
40.60
(1.60)
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM30K-IZ
30 Watt | DC-DC Converter

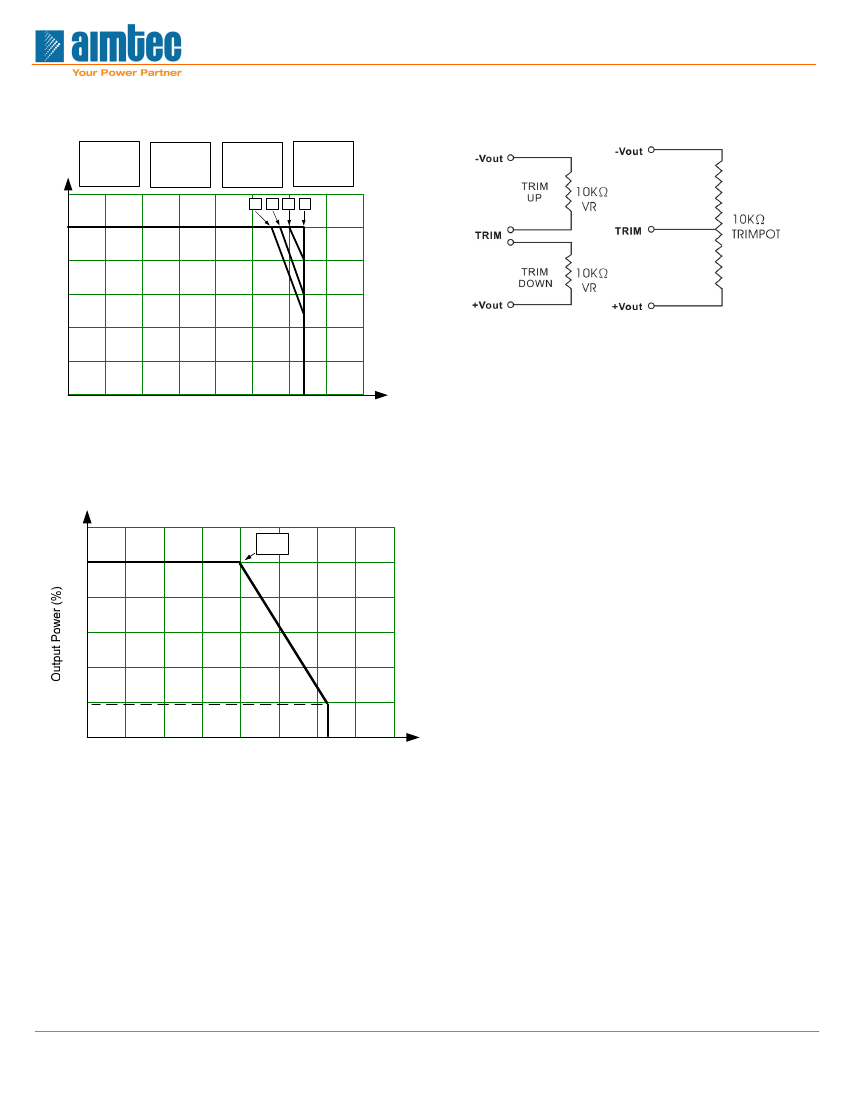

Derating
1500VDC Isolation
A
Free Air
70 ºC
B
100 LFM
75 ºC
C
200 LFM
80 ºC
A
B
C
Trimming
D
400 LFM
85 ºC
D
100
Output Power (%)
80
60
40
20
0
- 40
- 20
0
20
40
60
80
85
Safe Operating Area
100
Ambient Temperature
º C
3000VDC Isolation
Free Air Convection
40º C
100
80
60
40
20
0
- 40
- 20
0
20
40
60
80
85
Safe Operating Area
100
Ambient Temperature
º C
www.aimtec.com
F 051e R8.F
Tel: +1 514 620 2722
4 of 5
Toll free: + 1 888 9 AIMTEC
(924 6832)
North America only
Series AM30K-IZ
30 Watt | DC-DC Converter

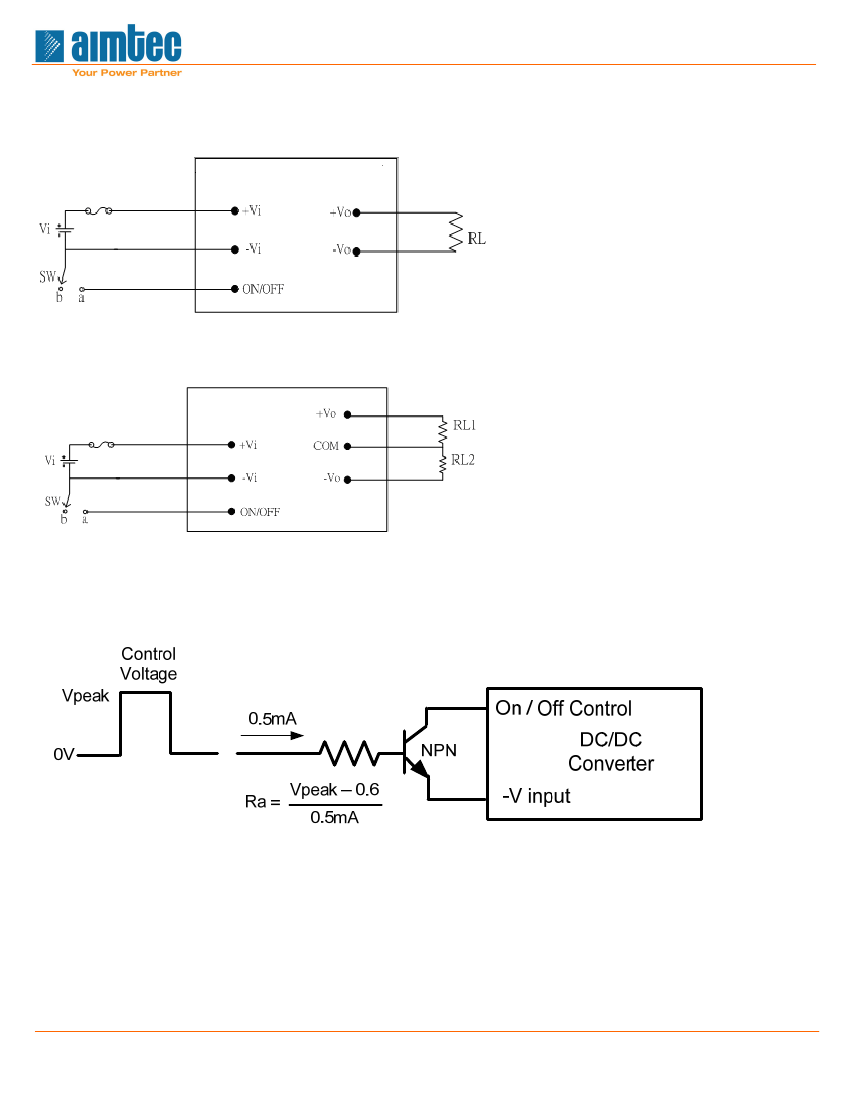

Control ON/OFF pin connection example
Single Output
Dual Output
Digital Control Circuit:
NOTE: 1.
Datasheets are updated as needed and as such, specifications are subject to change without notice. Once printed or downloaded, datasheets are no longer controlled
by Aimtec; refer to www.aimtec.com for the most current product specifications.
2.
Product labels shown, including safety agency certifications on labels, may vary based on the
date manufactured.
3.
Mechanical drawings and specifications are for reference only.
4.
All specifications are measured at an ambient temperature of 25°C, humidity<75%,
nominal input voltage and at rated output load unless otherwise specified.
5.
Aimtec may not have conducted destructive testing or chemical analysis on all internal components
and chemicals at the time of publishing this document. CAS numbers and other limited information are considered proprietary and may not be available for release.
6.
This
product is not designed for use in critical life support systems, equipment used in hazardous environments, nuclear control systems or other such applications which necessitate
specific safety and regulatory standards other the ones listed in this datasheet.
7.
Warranty is in accordance with Aimtec’s standard Terms of Sale available at www.aimtec.com.
